 Posted: Tue May 28, 2024 4:00 pm Post subject: Re: This is the year |
 |
|
Looking for some input.

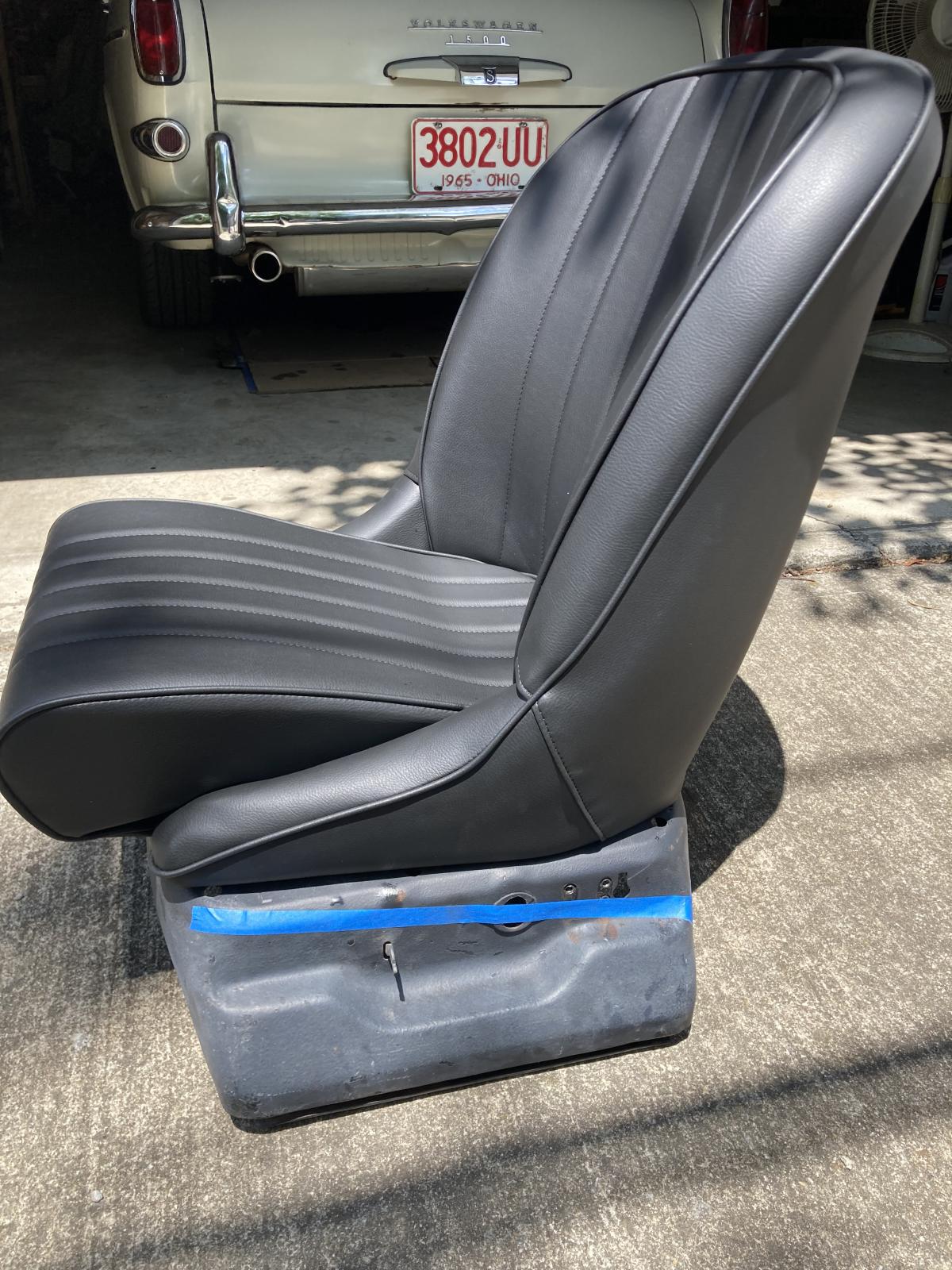

For mounting my new seat, I hoped to use the stock seat base so that I could keep the stock sliders. Today I removed the stock seat from the base and did a test fit with the new seat. No go, seating position is too high. Two options I'm considering: 1-cut down a seat base and weld brackets to the base as needed. 2- Use standard seat mounts bolted to the floor leaving the stock seat rails in place.
Option 2 is quick and simple, the only down side is drilling holes in the floor.
A question for Option 1: I'm looking through the classifieds for seat bases. Are the seat rails different over the years? Will a newer seat base fit on the rails on an older pan?
_________________
Drive 'em!
65 Notchback build: https://www.thesamba.com/vw/forum/viewtopic.php?t=773405 |
|
| Back to top |
|
 |
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23428
Location: Kimball, Mi
|
| Posted: Tue May 28, 2024 4:50 pm Post subject: Re: This is the year |
|
|
| GearheadJim wrote: |
Looking for some input.
A question for Option 1: I'm looking through the classifieds for seat bases. Are the seat rails different over the years? Will a newer seat base fit on the rails on an older pan? |
Yes, up to 71.5 is the same 2 rails. late 71 thru 73 is 3 point like late bugs use.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
VWporscheGT3
Samba Member
Joined: September 01, 2006
Posts: 2182
Location: Gardnerville, NV
|
| Posted: Wed May 29, 2024 3:03 pm Post subject: Re: This is the year |
|
|
| GearheadJim wrote: |
Looking for some input.
For mounting my new seat, I hoped to use the stock seat base so that I could keep the stock sliders. Today I removed the stock seat from the base and did a test fit with the new seat. No go, seating position is too high. Two options I'm considering: 1-cut down a seat base and weld brackets to the base as needed. 2- Use standard seat mounts bolted to the floor leaving the stock seat rails in place.
Option 2 is quick and simple, the only down side is drilling holes in the floor.
A question for Option 1: I'm looking through the classifieds for seat bases. Are the seat rails different over the years? Will a newer seat base fit on the rails on an older pan? |
I had a similar problem when i put in my empi bucket buggy seats... say that five times fast... i wanted to use the originals base , but waaaay to high. so then i got to playing with hieights with boxes and such and found if i added 2 inch spacers to the bottom of the taller seat bases that it was perfect... but like you are seeing i had to drill through my pans... painful... but worth it
_________________
If you have any questions about Forged ICON 4032 VW pistons just shoot me a line. |
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
| Posted: Tue Jun 25, 2024 3:12 pm Post subject: Re: This is the year |
|
|
Some progress on the interior, installed the Sewfine door panels.

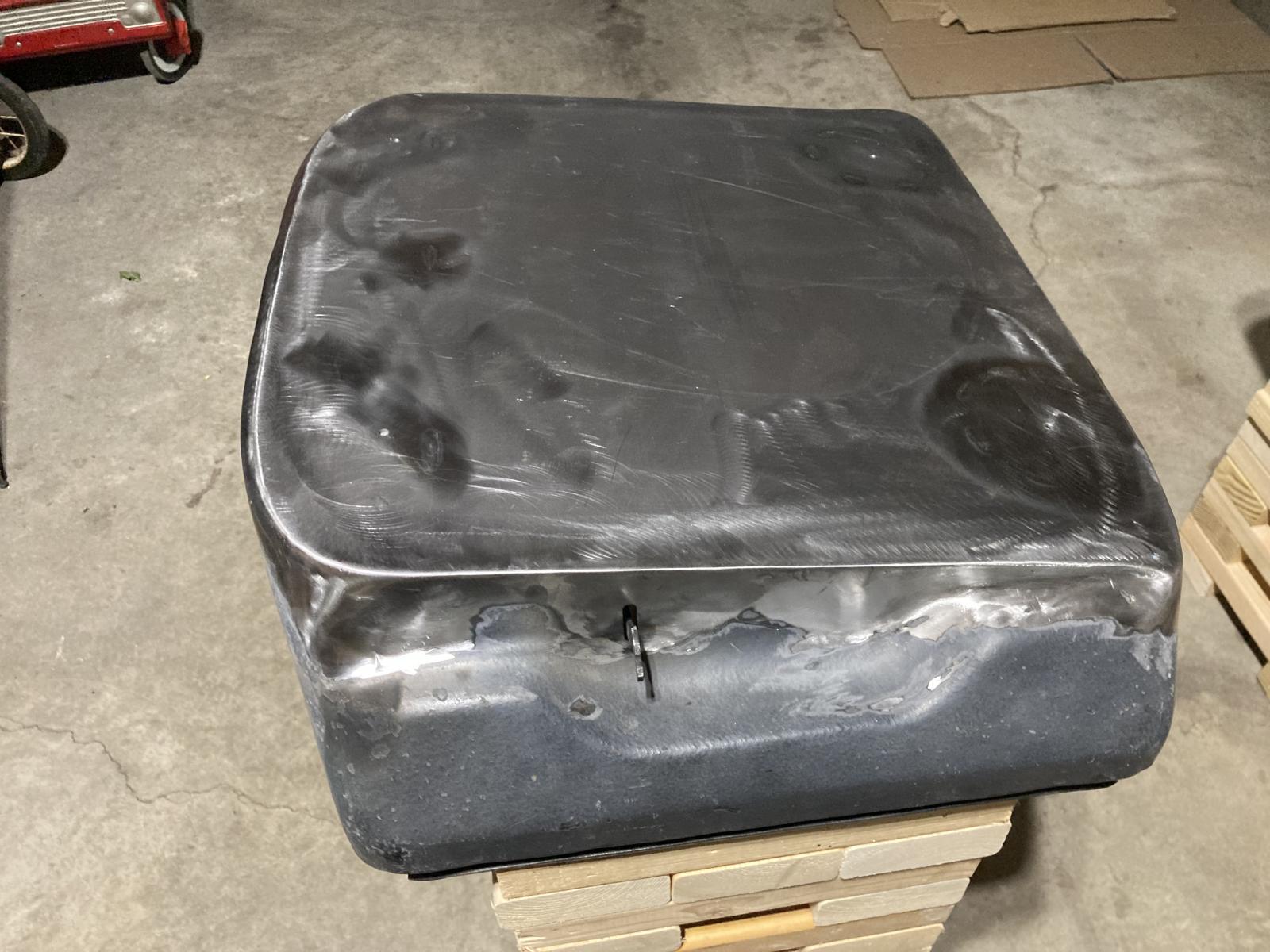

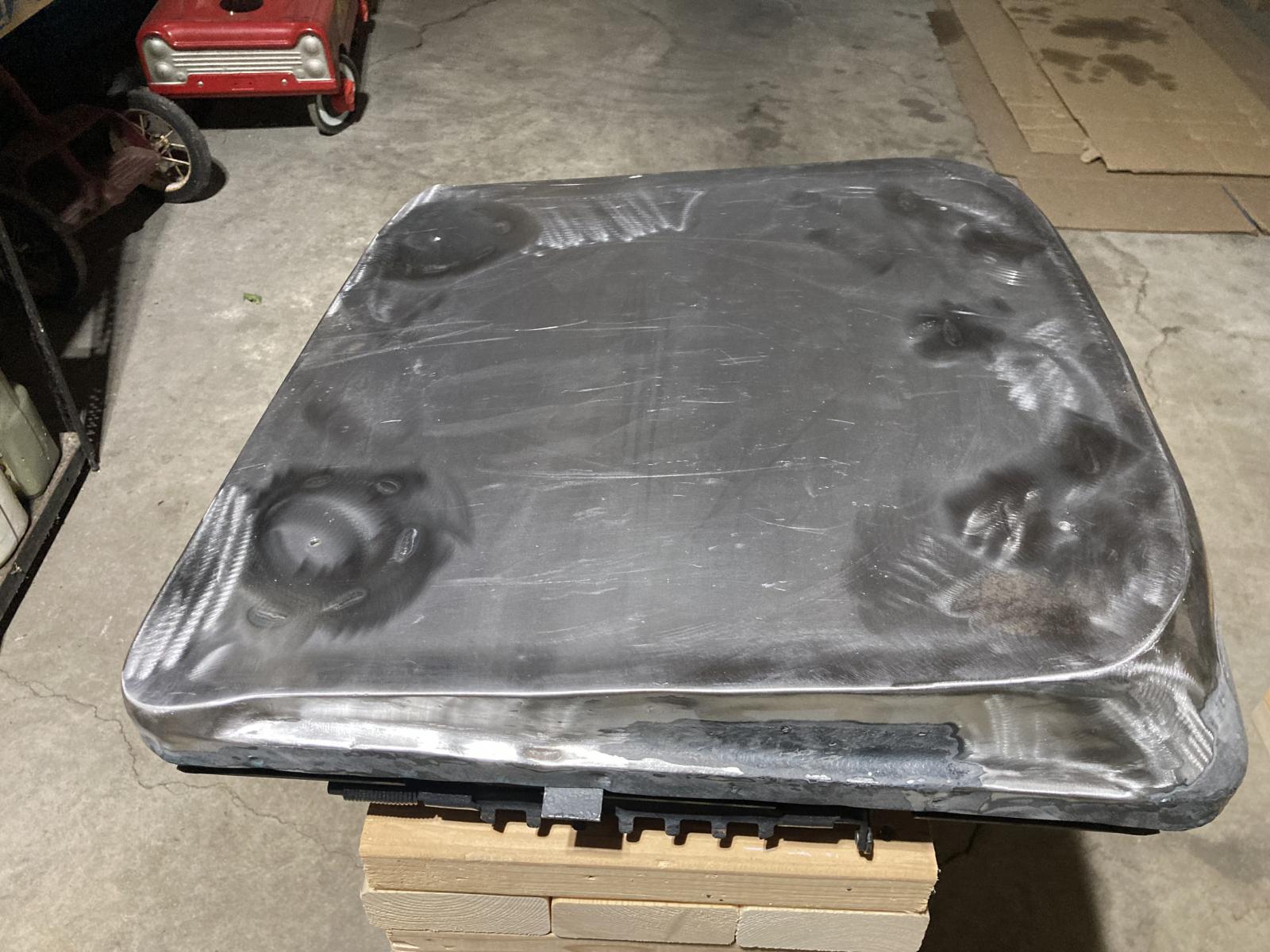

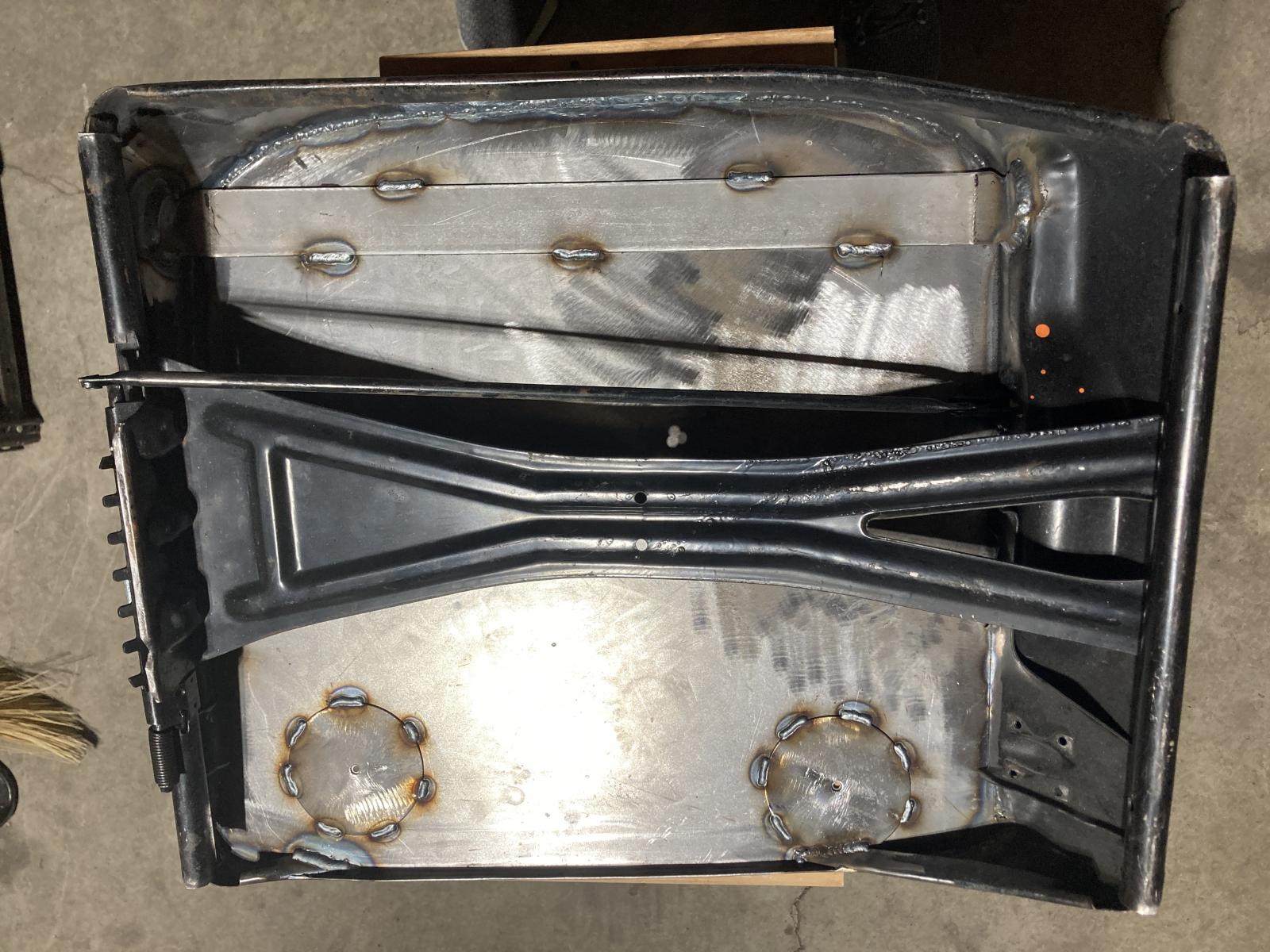

Picked up a second set of seat bases to use for the new seats. Mapping out a plan to cut these down.
_________________
Drive 'em!
65 Notchback build: https://www.thesamba.com/vw/forum/viewtopic.php?t=773405 |
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
| Posted: Wed Dec 11, 2024 5:57 pm Post subject: Re: This is the year |
|
|
Update on my interior upgrade. First, a recap of how I got here. A few pages back I shared that the first upholsterer did a GREAT job on the front seats but screwed up the back seat, pattern was wrong and the quality was poor. Once I got the car on the road, I found the front seats are just not comfortable for me. Maybe it's because I'm 15 years older than when I had last driven the car or maybe I just didn't remember they were always uncomfortable because it had been 15 years.
I purchased a period correct set of Cobra Roadster XL seats for the front and I ordered more of the same cloth to cover the front seats and to recover (fix) the back seat. SMS Auto Fabrics has the WORST customer service, I hope I never have to deal with them in the future. I ordered the additional fabric, they charged my credit card then never got back to me. After two weeks I checked back and SMS informed me the fabric was out of stock and they were working with a weaver to get more made, could not give me a target date. Another month of no update from SMS so I called them back and was told they still didn't have a date but they would get back to me in a couple days after they checked with the weaver. A week later, still no update from SMS. Long story short, this went on for another 2 months, no update, I would call and they would tell me they would call me back with an update but never did. I eventually got my fabric and it is nothing like the first batch. Not just that the color is a little different, the pattern is considerably different. I guess I'm glad I had to recover the back seat anyways. Typical car restoration challenges.

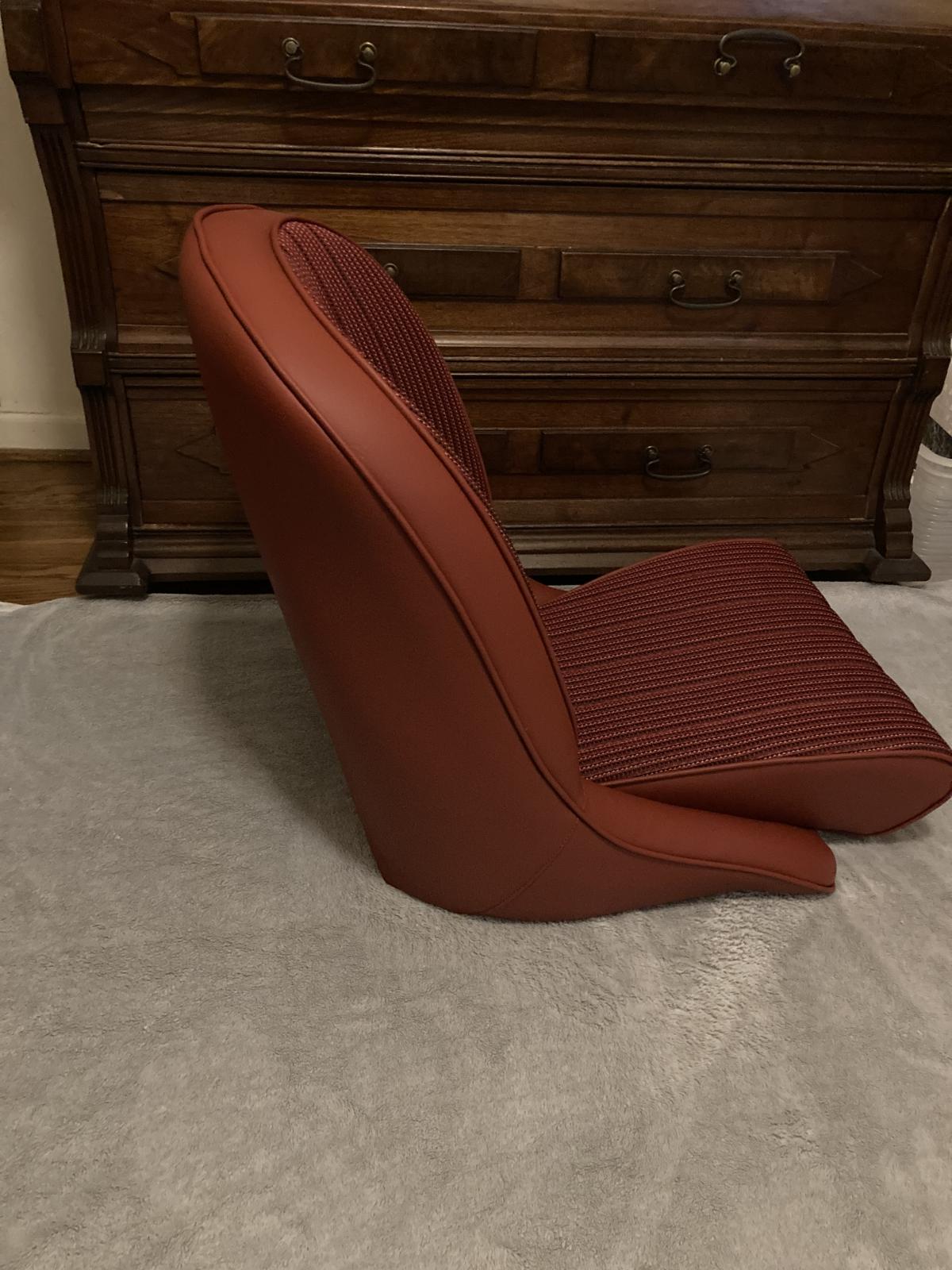

Got my seats back from the new upholsterer today and they look GREAT! Not quite ready to install because my modified front seat bases are not done. I have not finished body working and painting the bases and now we're into winter weather so I'll have to wait for some random 50 degree day before I can paint. No big deal, car is stored for winter now anyway. Any progress is good so I'll take the win.
_________________
Drive 'em!
65 Notchback build: https://www.thesamba.com/vw/forum/viewtopic.php?t=773405 |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23428
Location: Kimball, Mi
|
| Posted: Thu Dec 12, 2024 1:05 pm Post subject: Re: This is the year |
|
|
Yeah, that material does look a little darker than the first set of pics. I don't know if it's the light or not, but they sure do seem darker.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
lawn ninja
Samba Member
Joined: January 02, 2006
Posts: 1020
Location: Round Rock, TX
|
| Posted: Thu Dec 12, 2024 6:01 pm Post subject: Re: This is the year |
|
|
The seats look great redone. Can't wait to see them on the bases.
_________________
Jason
My 64 1500 S Notchback project here
My 58 sedan project here
My 63 Ghia here |
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
| Posted: Sat Feb 15, 2025 6:53 am Post subject: Re: This is the year |
|
|
Still too cold in central Ohio to paint the seat bases but starting to warm up enough to work on other projects. I have some changes for the engine I need to address: add an O2 sensor so I can dial in the carbs, modify the carb linkage mount to correct the angles, possibly add an external oil cooler. My only disappointment from the engine builder is that he did not include the thermostat and flaps. This is a 3 season car so I really need to reinstall the thermostat and flaps to get my oil temps up to operating level quickly.
Question for the group: should I be able to remove the fan housing without removing the engine from the car?
_________________
Drive 'em!
65 Notchback build: https://www.thesamba.com/vw/forum/viewtopic.php?t=773405 |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23428
Location: Kimball, Mi
|
| Posted: Sat Feb 15, 2025 1:38 pm Post subject: Re: This is the year |
|
|
| GearheadJim wrote: |
Still too cold in central Ohio to paint the seat bases but starting to warm up enough to work on other projects. I have some changes for the engine I need to address: add an O2 sensor so I can dial in the carbs, modify the carb linkage mount to correct the angles, possibly add an external oil cooler. My only disappointment from the engine builder is that he did not include the thermostat and flaps. This is a 3 season car so I really need to reinstall the thermostat and flaps to get my oil temps up to operating level quickly.
Question for the group: should I be able to remove the fan housing without removing the engine from the car? |
You can, but it might be easier with the engine out of the car.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
| Posted: Sat Mar 15, 2025 12:55 pm Post subject: Re: This is the year |
|
|

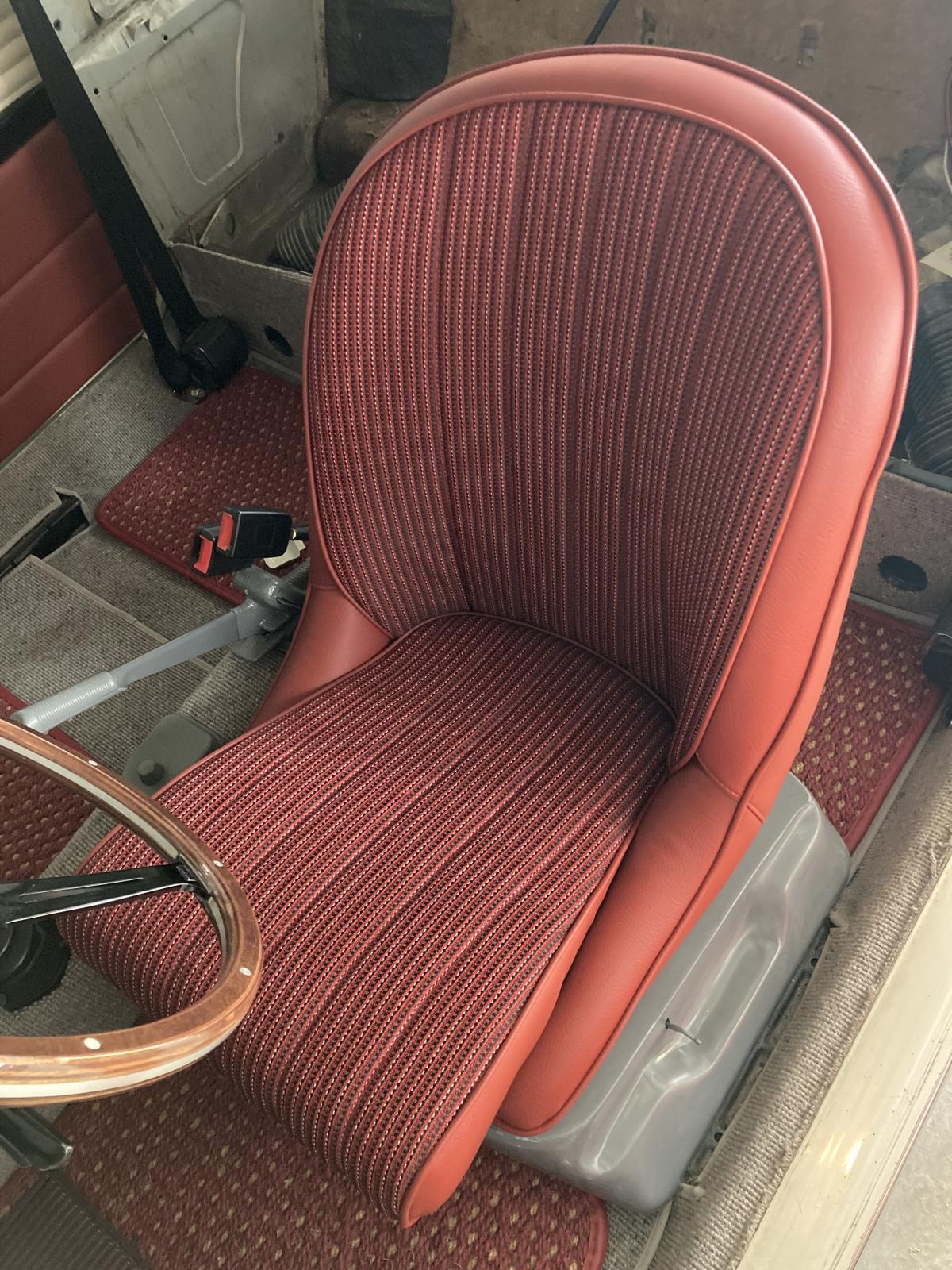

A little progress. Mounted one of the seats on the base to check fitment. So far so good. Final coat of paint on the bases and they'll be ready for final install.
_________________
Drive 'em!
65 Notchback build: https://www.thesamba.com/vw/forum/viewtopic.php?t=773405 |
|
| Back to top |
|
|
Hot Rod Ron
Samba Member
Joined: July 22, 2007
Posts: 18
Location: phoenix AZ
|
| Posted: Fri Mar 21, 2025 9:17 am Post subject: Re: This is the year |
|
|
| That seat idea is fantastic. Keep the updates coming. |
|
| Back to top |
|
|
Scotty D
Samba Member
Joined: February 08, 2020
Posts: 285
Location: Claremont CA
|
| Posted: Sat Mar 22, 2025 9:06 am Post subject: Re: This is the year |
|
|
| That whole interior is just stunning. Well done. |
|
| Back to top |
|
|
Cptn. Calzone
Samba Member
Joined: June 27, 2007
Posts: 1883
Location: S>E>Alabama
|
| Posted: Sat Mar 22, 2025 3:33 pm Post subject: Re: This is the year |
|
|
great work!! I am on the same path could you sendeingine builders contact info? full flow is puzzling' in and out to filter but ported Berg pump cover flows to where? So agree on the short manis andvelo stacks,, what kind of filters and bass? Thank you calzone
_________________
71 westfalia
67 912 Porsche Quintilla
67 Single Cab aka my work horse |
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
| Posted: Sun Mar 23, 2025 2:55 pm Post subject: Re: This is the year |
|
|
I'm ready to finish out the door jambs and looking for any tips or tricks. The sill plate goes on top of the door lace? Or cut the door lace to meet the end of the sill plate?
For the small bit of vinyl at the curve of the door frame, I'll fold back the bottom edge and finish with glue or a row of stiches.
_________________
Drive 'em!
65 Notchback build: https://www.thesamba.com/vw/forum/viewtopic.php?t=773405 |
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18046
Location: Eugene, OR
|
| Posted: Sun Mar 23, 2025 4:57 pm Post subject: Re: This is the year |
|
|
The sill plate fits on the steel heater channel with metal clips.
Get the sill plate fit down tight and then trim the door lace to meet it.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23428
Location: Kimball, Mi
|
| Posted: Mon Mar 24, 2025 12:51 pm Post subject: Re: This is the year |
|
|
| GearheadJim wrote: |
I'm ready to finish out the door jambs and looking for any tips or tricks. The sill plate goes on top of the door lace? Or cut the door lace to meet the end of the sill plate?
For the small bit of vinyl at the curve of the door frame, I'll fold back the bottom edge and finish with glue or a row of stiches. |
It sits on top of the wind lace (upper door surround), which goes on after the little corner piece of vinyl. Like Mike says, the threshold plate goes on with clips (4 per side, and no screws) that clip onto the upper seam of the rocker and heater channel assembly.
You might want to trim some of the carpet to get it all to fit more flush, and glue the vinyl in place first. I only mention that, as it's mostly cosmetic to look "finished" when done. Start with the corner and work your way out, with the kick plate carpet being last to go on.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
| Posted: Fri Apr 04, 2025 6:16 pm Post subject: Re: This is the year |
|
|
I expect the rear armrest damage is typical in Notch and Fastbacks and I imagine is the result of taking out the rear seat back.
Is there a trick or special procedure or sequence to prevent damage?
I'm fitting my reupholstered seat back and have attached the fronts to the modified seat bases.
Recovering the armrests with 4 way stretch pebble vinyl after I repair the crumbled foam.
_________________
Drive 'em!
65 Notchback build: https://www.thesamba.com/vw/forum/viewtopic.php?t=773405 |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23428
Location: Kimball, Mi
|
| Posted: Sat Apr 05, 2025 12:31 pm Post subject: Re: This is the year |
|
|
| GearheadJim wrote: |
I expect the rear armrest damage is typical in Notch and Fastbacks and I imagine is the result of taking out the rear seat back.
Is there a trick or special procedure or sequence to prevent damage?
I'm fitting my reupholstered seat back and have attached the fronts to the modified seat bases.
|
In reality, yes, you remove the arm rests before removing the seat cushions. It's a must to remove them for the backrest. It's a shame that VW waited until the late model cars to incorporate the arm rests into the side panels, as that would make getting the needed room easier. Those clips for the arm rests are hard to find now, as they lose their glue as the car ages, and the clips either stay with the arm rest, or fall off into a hidden pocket along the floor never to be seen again.  I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
GearheadJim
Samba Member
Joined: April 10, 2003
Posts: 215
Location: Columbus Ohio
|
| Posted: Sun Apr 06, 2025 6:47 am Post subject: Re: This is the year |
|
|
One more… for the side panels where the extra material wraps around the door pinch seam, there is glue residue on the inside but none on the door jamb side of the seam. Is it correct to glue that “flap”?

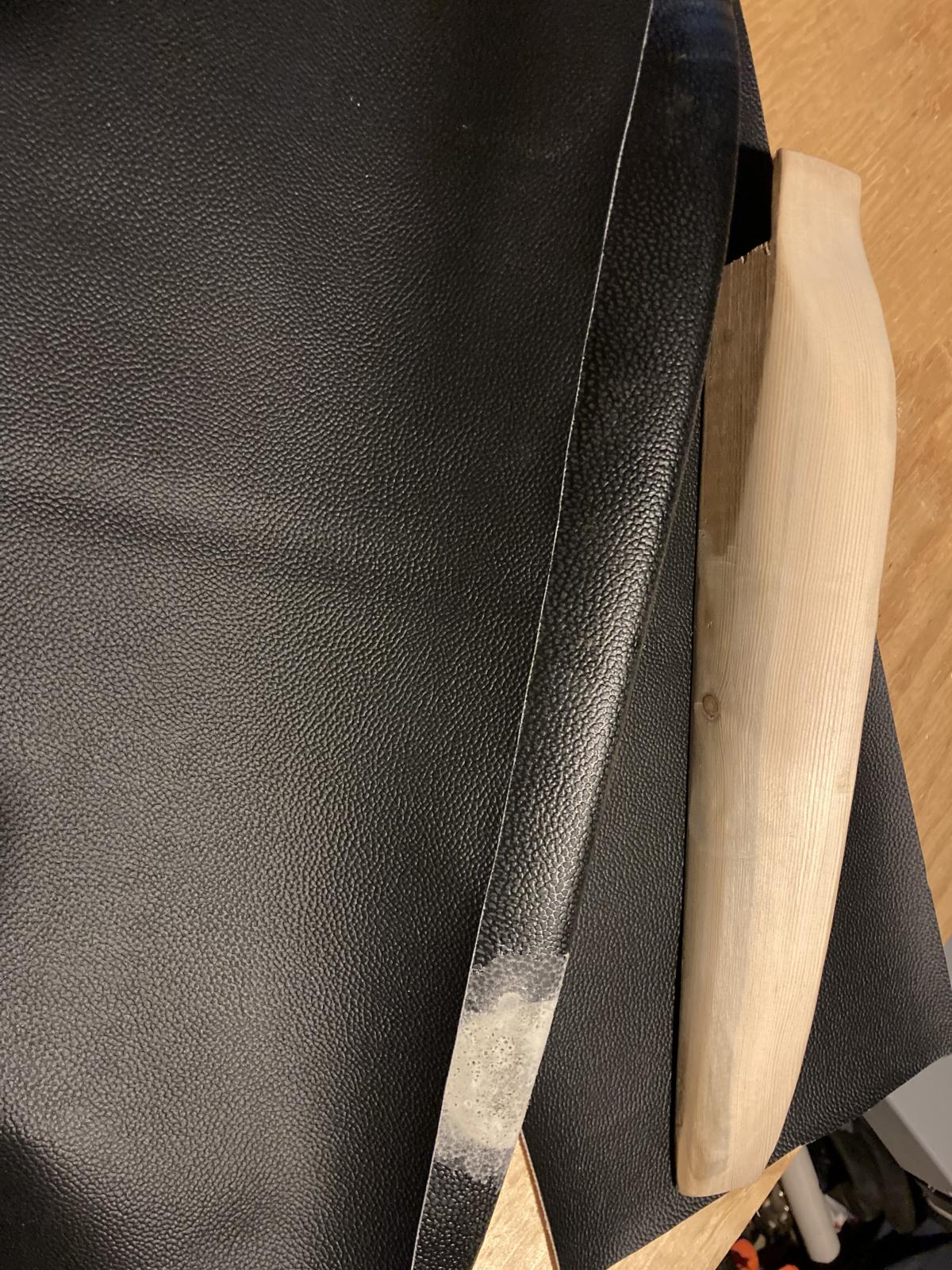

Here’s a comparison of the vinyl pattern. I made a buck to practice how the vinyl stretches.
