Distributor 113905205T rebuild *PIC Heavy*

[glutamodo]

Yeah, I've held onto a couple of "empty bodies" as well.
_________________
Andy T.

"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!"

[tasb]

I've been using one half a a split pin as a retainer. It's only a bit wider than a piece of wire but holds up well and requires only the tiniest of holes in the clip boss for those times when the boss is badly eroded. I'm able to rehabilitate most of these distributors this way but there are still some that are just too far gone.

I have found that the type III distributors of this era to be particularly prone to loose or missing cap clips.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc

1961 (October)Single Cab- Road Trip Workhorse

Member# 2059

[wcfvw69]

Link


I thought I'd add this video to this thread of a German Bosch 113905205T distributor mounted on my Sun distributor machine showing the famous 3* retard for cylinder #3. I just restored this 205T this morning.

What the video is showing is the flashing arrows when each lobe is firing as the points open on that lobe. The top right arrow is showing the 3* retard on that cylinder number 3 lobe. All the other lobes are at opening the points at basically 90* from each other which is what they should be doing.

VW knew it had an issue with cylinder #3 running hotter due to the oil cooler being in the way of the cooling air flow to that cylinder inside the fan shroud. They retarded the timing 3* on cylinder number three in an effort to help it run cooler. VW finally corrected this when they went to the dog house fan shroud in 1971 which got the oil cooler out of the cooling air path. They did this by offsetting the cooler to the front of the engine.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc

40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.

**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours**

[Xevin]

That's really cool. Thanks for sharing. Did I just make a pun
_________________
Keep on Busin'

[heimlich]

What's the measurable difference on the shaft? 1mm?
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)

[airschooled]

[Glenn]

[joey1320]

I know this thread deals with OEM distributors, but has anyone here disassembled, cleaned, lubed and reassembled (fixed) a German 009 distributor? I bought a decent looking one from eBay and want to service it for a spare.
_________________
1971 Super - Sold
1984 Puma GTC - Sold
1971 Campmobile

[Glenn]

I've done a few 009s.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[joey1320]

[Glenn]

Only 1 spring.

You can't use just any spring and expect the same curve.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[joey1320]

[wcfvw69]

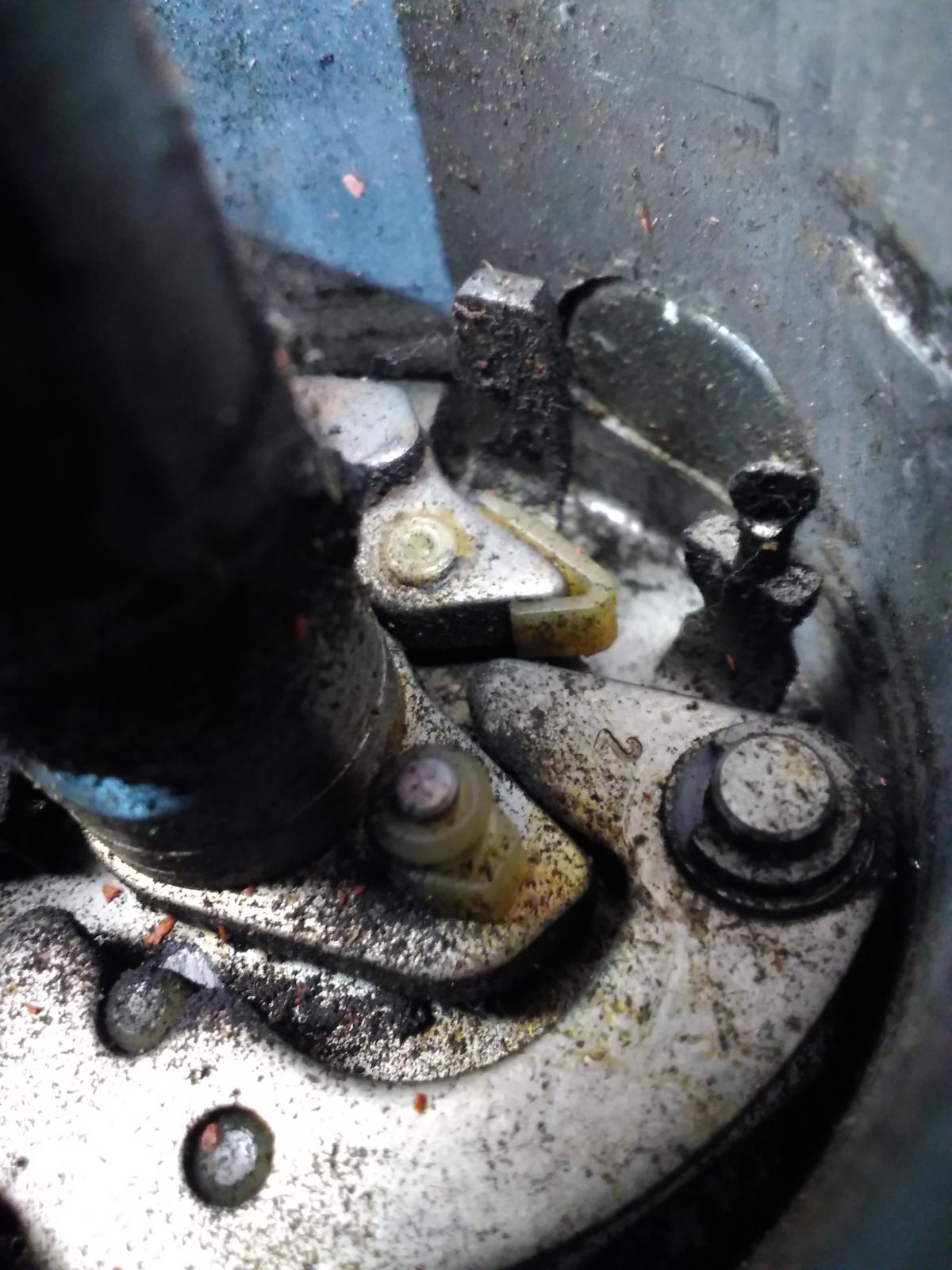

Yikes! That distributor was clearly stored/left in the weather. Lots of rust and corrosion in that one. A great reason why I won't buy any used distributors from the rust/salt belt.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc

40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.

**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours**

[Glenn]

Other than some pitting on the breaker plate, it cleaned up fine and works like new.

Some can't be saved.

383 from a 49 Split Beetle.

Internals from a VJ4BR8

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[gt1953]

Bucket of vinegar for a few days will eat the rust away. Like wcfvw69 says I pass on the rustosis items here in the west. Now oil covered that is a different story on the should I purchase or not.
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.

72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold})

[Glenn]

Greasy and dirty is better than rusty.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[wcfvw69]

[Glenn]

[Dwayne1m]

Are there bearings or bushings inside the distributor body?
