Idle Control Module issue (high idle) & cheap fix
Page: 1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
shenan-agon
Samba Member


Joined: May 11, 2005
Posts: 423
Location: Portland, OR
shenan-agon is offline

PostPosted: Sun May 15, 2005 6:20 pm    Post subject: Idle Control Module issue (high idle) & cheap fix Reply with quote

Well, one problem down, about a thousand more to go...

My van's now running, but idles very fast - not sure how fast...I wish VW had given me a tach in the dash instead of a huge freaking clock. I turned the idle screw all the way in, and no change. I'm thinking either a big vacuum leak or a stuck/dirty throttle; I can rev the engine up with the pedal, but it doesn't drop back any lower than the original fast idle. The idle stabilizer valve shows continuity, but I guess it could be the controller. I haven't tried unplugging it and starting yet. Any quick ideas?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
weinerwagen
Samba Member


Joined: May 10, 2004
Posts: 1548
Location: Monterey, CA -Laguna Seca--Coats, Kansas
weinerwagen is offline

PostPosted: Sun May 15, 2005 7:10 pm    Post subject: Reply with quote

Turn the idle down by the screw embedded in the Throttle Body, or, is the idle compensator history??? Working????

Can you bring the idle down by putting it in gear, forcing the engine down to an idle? Does it stay down at an idle or go back up?

Idle compensator could be not working, is it a 1.9 or a 2.1 or air cooled?
Some of the water boxers have a green box to the left of the engine with two connections. That also could be defective, you can unplug and put the plugs together to bypass it for testing purposes

my guess is the idle compensator
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BavarianWrench
Samba Member


Joined: January 18, 2004
Posts: 1045
Location: Oceans Edge
BavarianWrench is offline

PostPosted: Sun May 15, 2005 8:16 pm    Post subject: Reply with quote

I had intermitant fast idle problems on my 86/2.1L. engine kept reving at 2000 rpm. I chased wires, swapped out control units, checked for vacuum leaks, adj settings checked idle switches and nothing was wrong. Yet it would just idle away at 2000 rpm. I got sick of looking at the scales of rust on the intake runners the other day and started scraping them lightly and bingo rust holes in the base of the intake tubes where they meet the intake flange for the head. I was not detecting a leak through any of the usual spots when I searched for vacuum leaks but they were there. I just siliconed over the pin holes until I find a clean intake. This must be common back east. The syncro is from Pa, now living in Co.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shenan-agon
Samba Member


Joined: May 11, 2005
Posts: 423
Location: Portland, OR
shenan-agon is offline

PostPosted: Sun May 15, 2005 8:36 pm    Post subject: Reply with quote

Thanks for the replies...it's a 2.1. I tried adjusting the idle w/ the screw in the throttle body - still high even turned all the way in (which should normally kill the engine, right?). I haven't tried putting it in gear yet...if it does drop, what does that tell me?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
weinerwagen
Samba Member


Joined: May 10, 2004
Posts: 1548
Location: Monterey, CA -Laguna Seca--Coats, Kansas
weinerwagen is offline

PostPosted: Sun May 15, 2005 8:43 pm    Post subject: Reply with quote

idle compensator is not working, that silver tube looking doo dad is gone, maybe the temp sensor is also going bad or flakey

if tormorow the van dies and dies from too low an idle, check the sensors and the idle compensator...

Throttle body could be gunky, from stuff carbon and all, maybe someday take the boot off and clean the T/B out really good...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shenan-agon
Samba Member


Joined: May 11, 2005
Posts: 423
Location: Portland, OR
shenan-agon is offline

PostPosted: Tue May 17, 2005 7:52 am    Post subject: Reply with quote

So, after a bit of a detour involving the throttle body switch (it needed adjustment, but sort of broke in the process...), it looks like the problem is the idle stabilizer. I fired the engine up, and it raced high as usual - unplugged the idle stab. valve...voila! She purrs like a kitten! (Well, it's a Vanagon, but you get the idea). So this tells me it's most likely not a gunked-up and stuck valve, but the electrical signal it's getting from the control module. Agree?

The interesting thing is that it looks like I'm not the first one to play around with the idle stabilizer on this van...there is a section cut out of the plastic panel on the right for easy acess to the module. The original plug is still there attached to the body, but looks like it hasn't been used in a while; there is another harness sitting loose in that area with the module plugged in. I wouldn't be surprised if some water got in while it was sitting there. I'm going to pull the module apart and see if anything is fried - got some good tips after poring through the archives on vanagon.com....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shenan-agon
Samba Member


Joined: May 11, 2005
Posts: 423
Location: Portland, OR
shenan-agon is offline

PostPosted: Tue May 17, 2005 9:09 am    Post subject: Reply with quote

Update: there's definitely a fried transistor in there. Same as this post I found on the vanagon.com list; I'm going to try to find a replacement...

/////////////

Vanagonauts,

Recently I related the story of my 87 Syncro suddenly developing a +4,400 RPM
idle. I traced this to the Idle Control Module located forward of the
right/rear taillight. The dealer said list was $208. I called several
wreckers and was quoted from $80 to $20 for this item. I bought the $20 one
and it arrived yesterday.

Meanwhile I was pursuing repairing the bad module. Inside the module I
discovered two components that were suspect. The first one, a voltage
stabilizer transistor was definitely fried. I found (from my 88 Vanagon
module) a company logo: SGS in tall narrow letters pushed up against
eachother & other numbers were BD 438 and 9 741. I found that an ECG or NTE
185 was a replacement component for it. The other component was a rectifier
diode that had some signs of being overheated but was not overtly fried as
the other component had been. The diode had the numbers GP15G-7001 and GI
8641. I thingk the GI is for General Instruments. Well, found that it
could be replaced with an NTE 125 or ECG 125.

Yesterday, I installed the two new components and the bottom line is that
after poping the module back in, my van idles normally again! Smile

Cost?
NTE185: $2.25
NTE125: $.88

Total: $3.13 + tax

Compared to dealer list, I saved about $205. - that's 98.5% less!! Smile Smile
Smile
So now I've gone from needing a new module to having a spare for future use.
Smile

Jim Davis
87 GL Syncro
88 GL Wolfsburg
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shenan-agon
Samba Member


Joined: May 11, 2005
Posts: 423
Location: Portland, OR
shenan-agon is offline

PostPosted: Wed May 18, 2005 8:06 am    Post subject: Reply with quote

Well, I fixed it! Soldered in a new transistor and diode, and plugged it in...normal idle. $3.78 fix for a $200 part!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
JonnyPhenomenon
Samba Member


Joined: November 03, 2009
Posts: 11
Location: Lewiston, Maine, USA, Earth
JonnyPhenomenon is offline

PostPosted: Tue Jul 30, 2013 5:50 am    Post subject: Reply with quote

shenan-agon wrote:
Well, I fixed it! Soldered in a new transistor and diode, and plugged it in...normal idle. $3.78 fix for a $200 part!


I love a good DIY fix for a stupidly expensive part. Kudos to you Shenanagon!
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
minsk
Samba Member


Joined: March 17, 2008
Posts: 899
Location: pittsburgh
minsk is offline

PostPosted: Wed Oct 23, 2013 12:27 pm    Post subject: Reply with quote

how did you know which diode to replace?is it the one right infront of nte185
_________________
1987 Sunroof Syncro
1988 Vanagon GL
1990 Carat
2009 audi a3

www.sunroofsyncro.com
vanagonmechanic.com

http://facebook.com/pittsburghvanagonclub
https://www.youtube.com/minskmade


my super slow 1987 sunroof syncro rebuild
https://goo.gl/photos/7e9MZhHJxGvvv1Tm7

VANAGON STICKERS
https://www.etsy.com/shop/pigeonink
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Instagram Gallery Classifieds Feedback
minsk
Samba Member


Joined: March 17, 2008
Posts: 899
Location: pittsburgh
minsk is offline

PostPosted: Mon Oct 28, 2013 7:53 pm    Post subject: Reply with quote

can any one tell me where the nte125 diode goes...is it the one behind bd348?
pics anyone...nte 125 in the mail
_________________
1987 Sunroof Syncro
1988 Vanagon GL
1990 Carat
2009 audi a3

www.sunroofsyncro.com
vanagonmechanic.com

http://facebook.com/pittsburghvanagonclub
https://www.youtube.com/minskmade


my super slow 1987 sunroof syncro rebuild
https://goo.gl/photos/7e9MZhHJxGvvv1Tm7

VANAGON STICKERS
https://www.etsy.com/shop/pigeonink
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Instagram Gallery Classifieds Feedback
TopBud
Samba Member


Joined: February 28, 2004
Posts: 1104
Location: Flagstaff AZ
TopBud is offline

PostPosted: Wed Oct 30, 2013 6:51 pm    Post subject: Reply with quote

any recommendations where to order those parts online?
Thanks
_________________
86 bostig SYNCRO
66 convertible Karmann Ghia
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
minsk
Samba Member


Joined: March 17, 2008
Posts: 899
Location: pittsburgh
minsk is offline

PostPosted: Wed Oct 30, 2013 6:52 pm    Post subject: Reply with quote

i got mine on flea bay...
i still dont know wich nte125 to replace
_________________
1987 Sunroof Syncro
1988 Vanagon GL
1990 Carat
2009 audi a3

www.sunroofsyncro.com
vanagonmechanic.com

http://facebook.com/pittsburghvanagonclub
https://www.youtube.com/minskmade


my super slow 1987 sunroof syncro rebuild
https://goo.gl/photos/7e9MZhHJxGvvv1Tm7

VANAGON STICKERS
https://www.etsy.com/shop/pigeonink
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Instagram Gallery Classifieds Feedback
Marshj
Samba Member


Joined: May 26, 2017
Posts: 268
Location: New Jersey
Marshj is offline

PostPosted: Mon Sep 04, 2017 6:44 am    Post subject: Reply with quote

minsk wrote:
i got mine on flea bay...
i still dont know wich nte125 to replace


Were you able to ever figure this out?

Have a high idle on my 86 2.1 on startup. At first thought an air leak, bo issues. Then tracked it to ICV ( unplugged ICV wire and noemal idle, also unplug ICU and normal idle ).

When turning on ignition ICV opens then closes, no humming. Any thoughts?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Mon Sep 04, 2017 6:58 am    Post subject: Re: Idle Control Module issue (high idle) & cheap fix Reply with quote

You might find this thread helpful.....

https://www.thesamba.com/vw/forum/viewtopic.php?t=353187

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
0to60in6min
Samba Member


Joined: November 27, 2006
Posts: 3411
Location: OR & CA (Oregon/California)
0to60in6min is offline

PostPosted: Mon Sep 04, 2017 10:13 am    Post subject: Re: Idle Control Module issue (high idle) & cheap fix Reply with quote

besides replacing or rebuilding the idle control module and after that if there's little result.. you could do this

in the back of the idle control valve (ICV) there's a small allen screw to adjust the idle...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Goodie
Samba Member


Joined: April 19, 2016
Posts: 6
Location: MN
Goodie is offline

PostPosted: Sun Jul 29, 2018 1:25 pm    Post subject: Re: Idle Control Module issue (high idle) & cheap fix Reply with quote

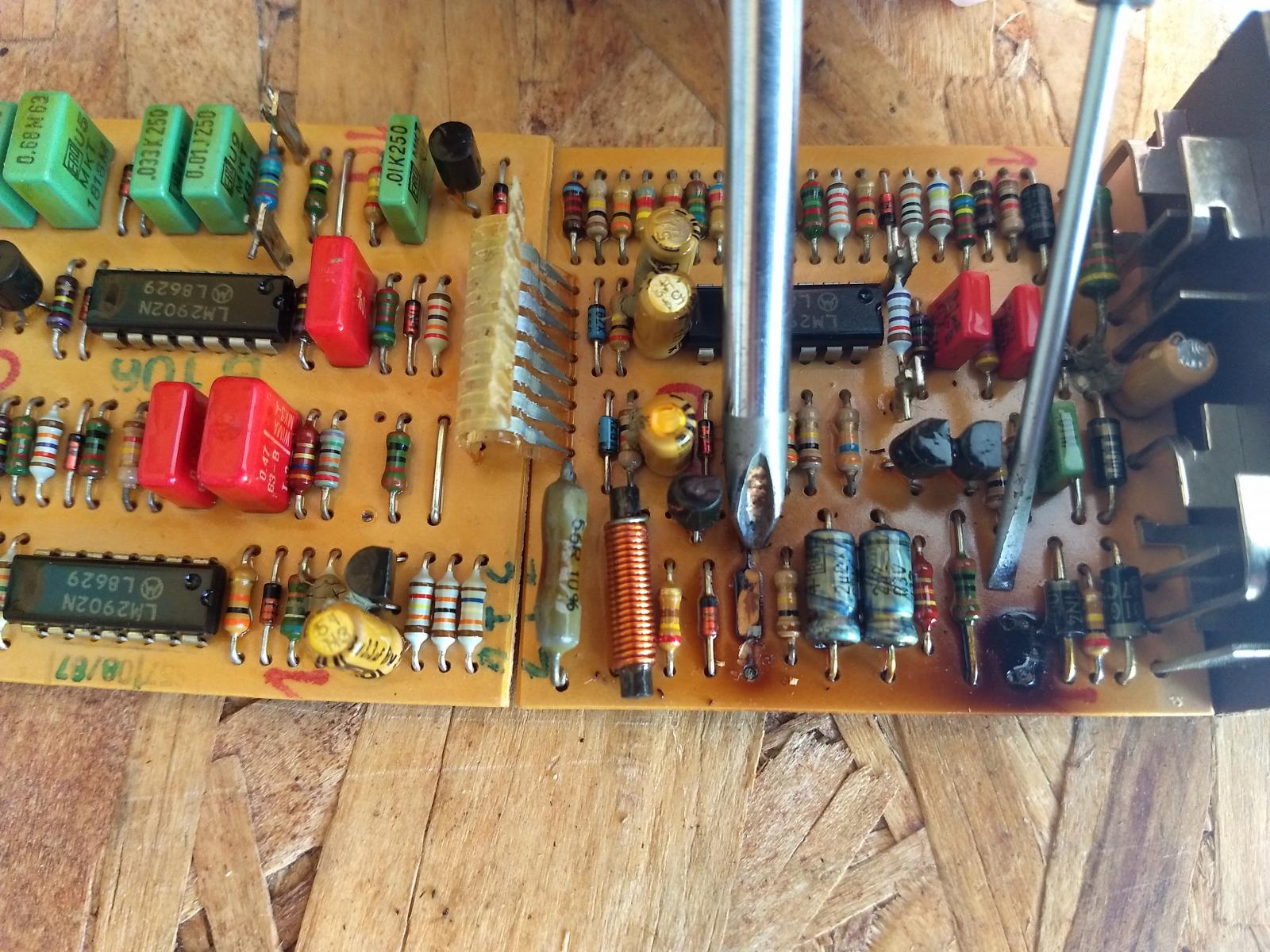

Locations of NTB185 and NTB125 (before and after).

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OldBlueSyncro
Samba Member


Joined: April 24, 2018
Posts: 206
Location: British Columbia
OldBlueSyncro is offline

PostPosted: Tue Nov 20, 2018 9:00 pm    Post subject: Re: Idle Control Module issue (high idle) & cheap fix Reply with quote

Goodie wrote:
Locations of NTB185 and NTB125 (before and after).

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Any idea what resistor is in the foreground of the bottom image? The big grey out of focused one.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Tue Nov 20, 2018 9:24 pm    Post subject: Re: Idle Control Module issue (high idle) & cheap fix Reply with quote

Found this other pic in Goodie's gallery:

Image may have been reduced in size. Click image to view fullscreen.

Resistor in question seems to be marked "66R 10%"...whatever that means... Wink

- Dave
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OldBlueSyncro
Samba Member


Joined: April 24, 2018
Posts: 206
Location: British Columbia
OldBlueSyncro is offline

PostPosted: Tue Nov 20, 2018 9:42 pm    Post subject: Re: Idle Control Module issue (high idle) & cheap fix Reply with quote

dhaavers wrote:
Found this other pic in Goodie's gallery:

Image may have been reduced in size. Click image to view fullscreen.

Resistor in question seems to be marked "66R 10%"...whatever that means... Wink

- Dave


Thanks for that picture! It shows everything much better. I know so little about circuit boards. I believe its 56r printed on there.

I already soldered the NTE185 into my idle control module, but this 56r 10% has a small burnt spot on the side of it. I bought this( https://canada.newark.com/ohmite/oy560ke/resistor-ceramic-56-ohm-2w-10/dp/64K5435?st=56r%2010% ) to replace it but I'm not sure if it's the right replacement for that resistor. Dont want to solder it in and mess up more things in this module.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
