How to connect Vintage Speed muffler if no heater risers?

[sonoma_vw]

Have dual carb setup now. (The grey horizontal running pre-heat tube is removed.) Where does the new muffler connect to with this configuration?
Any photos of a dual carb setup with this type of muffler showing how its mounted? Thanks.

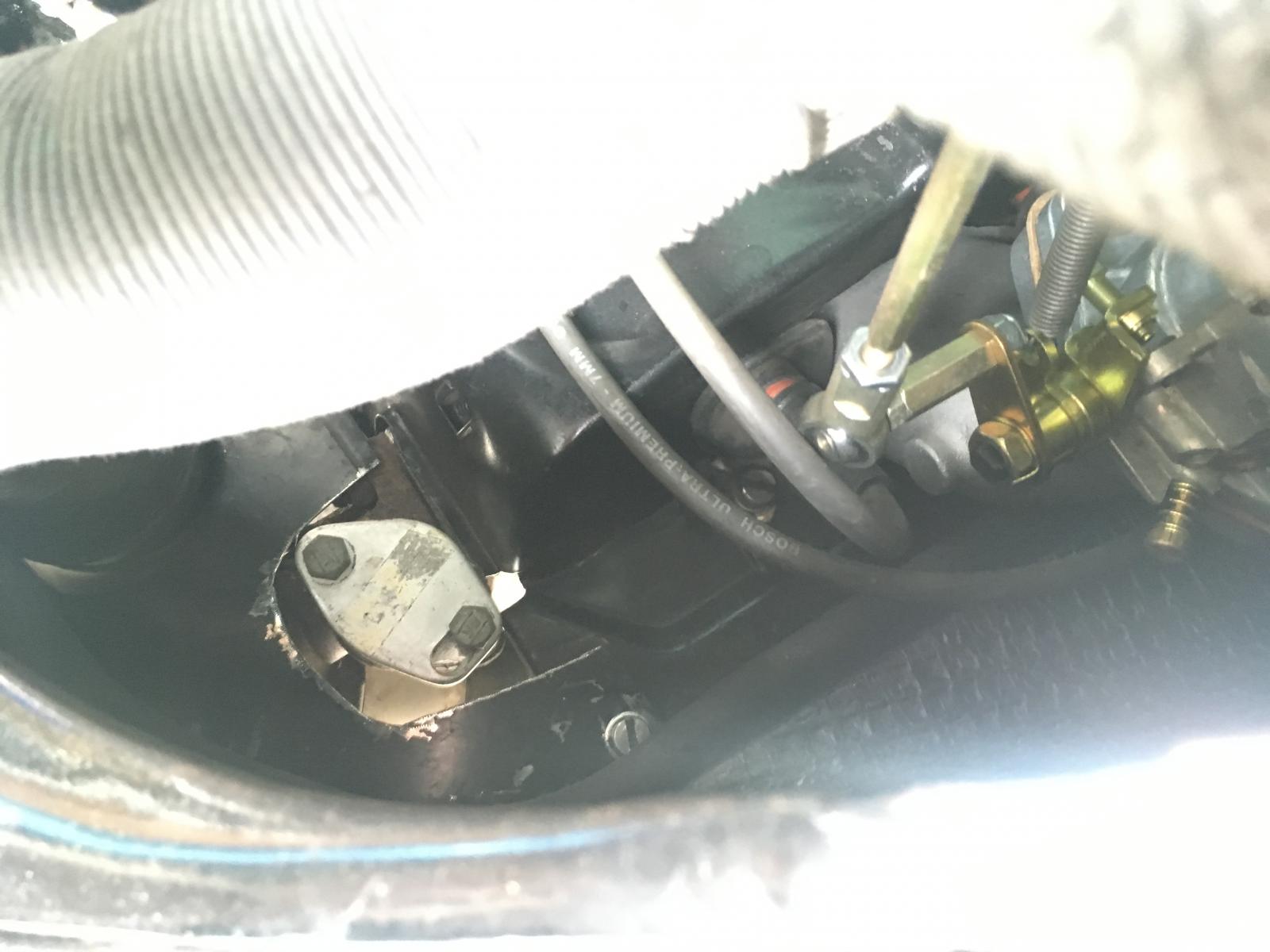

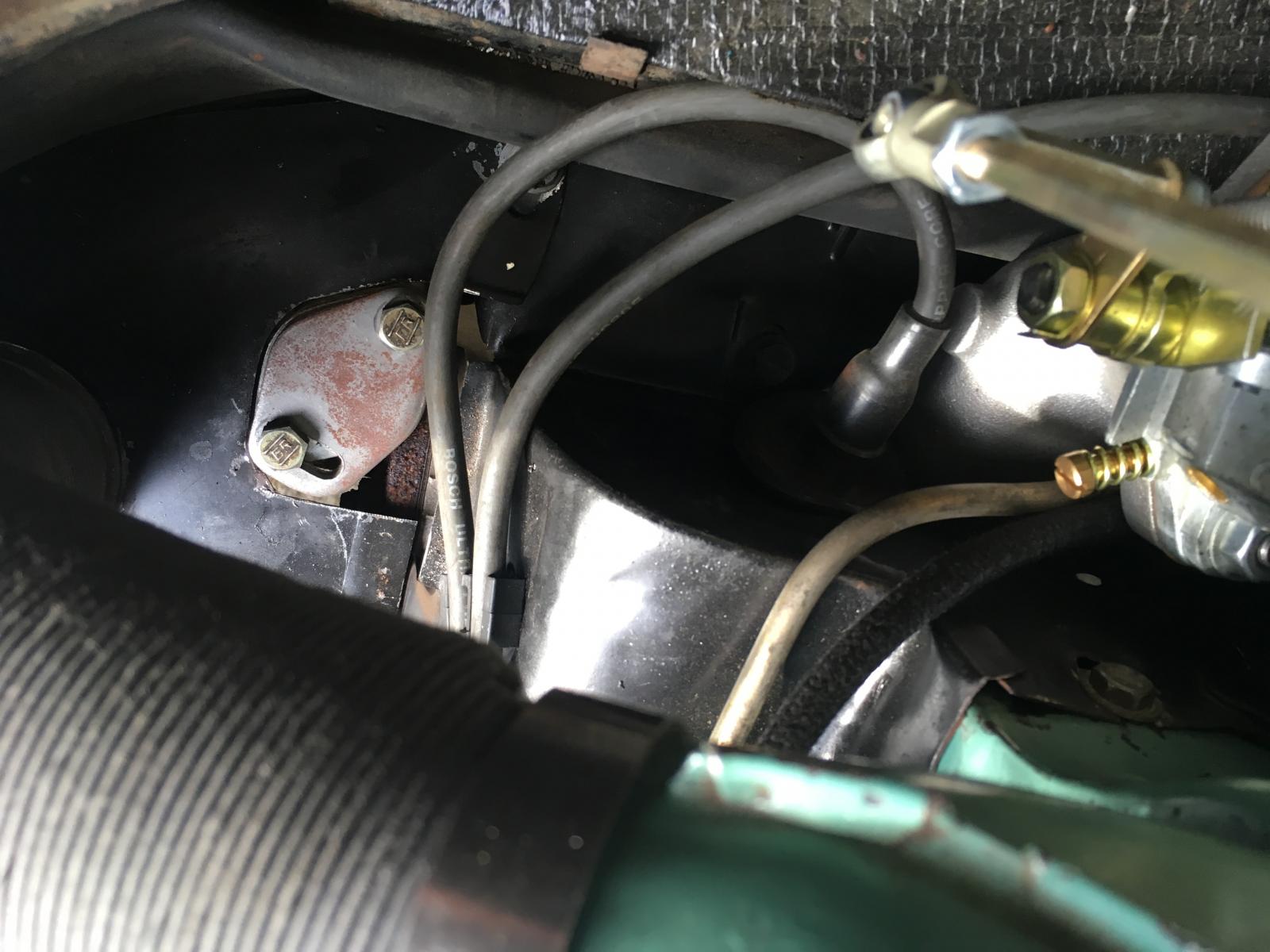

I guess I might as well ask, how to identify what type of rear tin I need to get? (its a 1600 squished into a 1960 engine bay) Mine was butchered apparently to go around the heater riser mounting points. (see pics). How to folks get a better fit tin? Trial an error with the tin snips?
Thanks #2.

[Glenn]

Since you now have dual carbs get the muffler that doesn't have heat riser bungs.

That way there's nothing to block off.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[Bryan67]

The Vintage Speed muffler in your picture doesn't have heat risers, so there's nothing to block off. And just by a new tin without holes for heat risers or heater hoses and you`ll be fine.
_________________
If you`re going to do something, do it right.

[Cusser]

Back in 1976, when my intake manifold for my Weber 40DCNF had no heat risers, I made such block-off plates in the shop at work at lunchtime. I couldn't find these commercially made back then; and I still use them.
