patrickkryan
Samba Member
Joined: January 27, 2008
Posts: 343
|
 Posted: Tue Jan 29, 2008 10:15 pm Post subject: Holes in the floor around the clutch, accelerator, and brake |
 |
|
| Hi I researched this on this website and others and I cannot find the answer to my question. I am about to purchase a 1967 camper van and around the clutch, accelerator, and brakes petals there are holes in the floor board, are the supposed to be there or should there be seals around them? |
|
| Back to top |
|
 |
Lind
Samba Member
Joined: November 06, 2000
Posts: 10272
Location: idaho
|
| Posted: Tue Jan 29, 2008 10:26 pm Post subject: |
|
|
yes.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
wanta23
Samba Member
Joined: March 31, 2007
Posts: 534
Location: At The Beach
|
| Posted: Tue Jan 29, 2008 11:33 pm Post subject: |
|
|
| The holes should be there but there is a rubber seal that goes on from the underside and a foam pad that goes on top. Both are inexpensive and readily available. I replaced mine last week and it's much less breezy in there now. |
|
| Back to top |
|
|
runderwood
Samba Member
Joined: July 17, 2007
Posts: 274
Location: near philadelphia, pa
|
| Posted: Wed Jan 30, 2008 7:34 am Post subject: |
|
|
so stupid question here... I got new seals. I was expecting some sort of seal that attached to the floor and allowed the pedal to slide thru it... but thats not how it works, right? From what i can tell, the rubber seal goes on the bottom, and when you press the pedal, it will go down with the pedal, effectively having no seal there anytime you step on the pedal... is that really right??? what an odd design...
i don't have the foam pads for the top... do they move with the pedal as well? or attach to the floor somehow?
I'd certainly be interested in seeing a closeup photo of someone that has this done right...
_________________
61 DD Panel |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Wed Jan 30, 2008 8:27 am Post subject: |
|
|
seal goes underneath and yes, it moves with the pedal. the foam seal sticks to the top of the floor and does not move.
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71919
Location: Phoenix 602
|
| Posted: Wed Jan 30, 2008 9:07 am Post subject: |
|
|
| runderwood wrote: |
| swhen you press the pedal, it will go down with the pedal, effectively having no seal there anytime you step on the pedal... is that really right??? what an odd design... |
I guess that is weird? I don't drive with the pedals pressed so it's a short period of time.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
wanta23
Samba Member
Joined: March 31, 2007
Posts: 534
Location: At The Beach
|
| Posted: Wed Jan 30, 2008 9:16 am Post subject: |
|
|

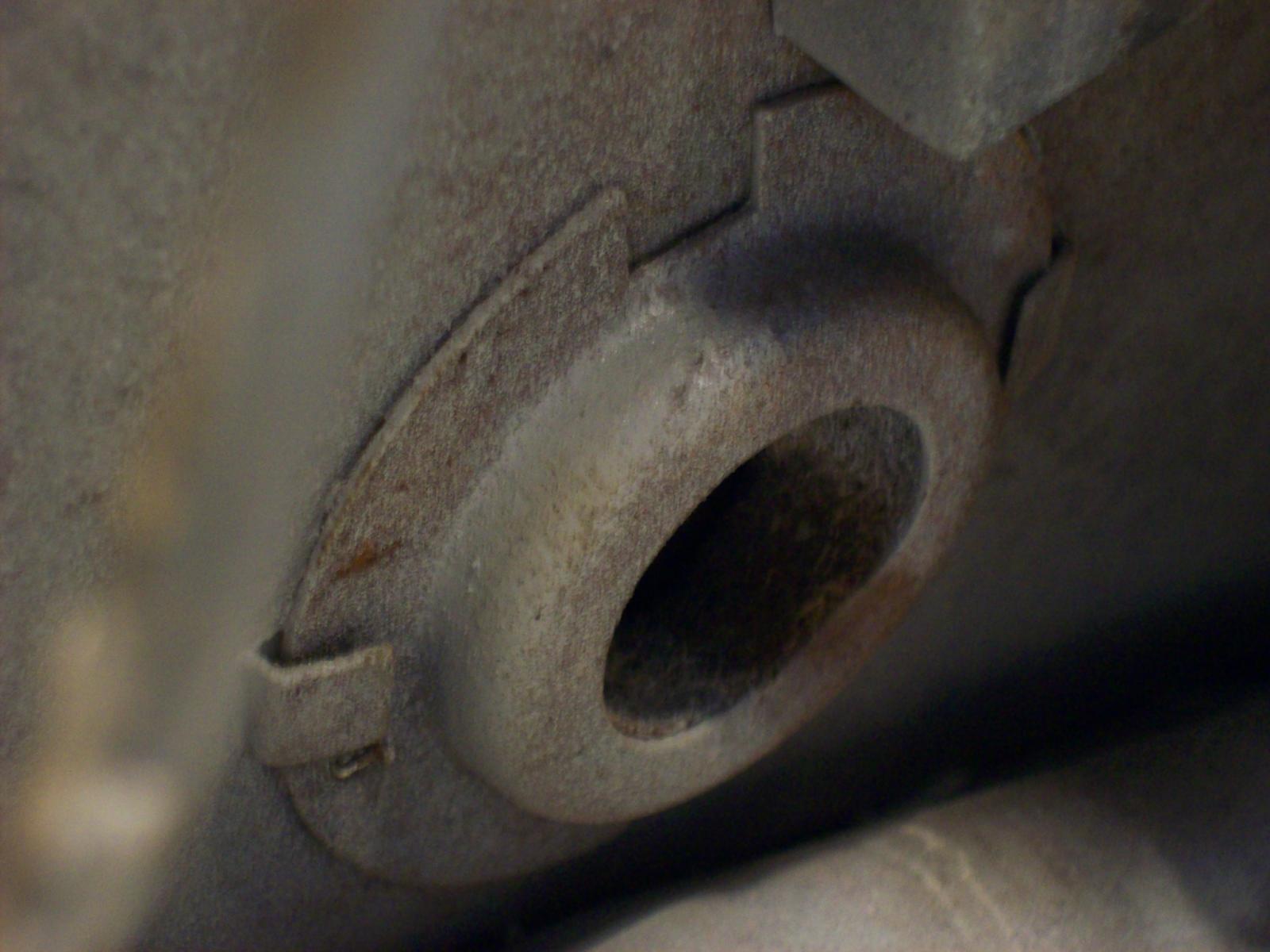

OVER

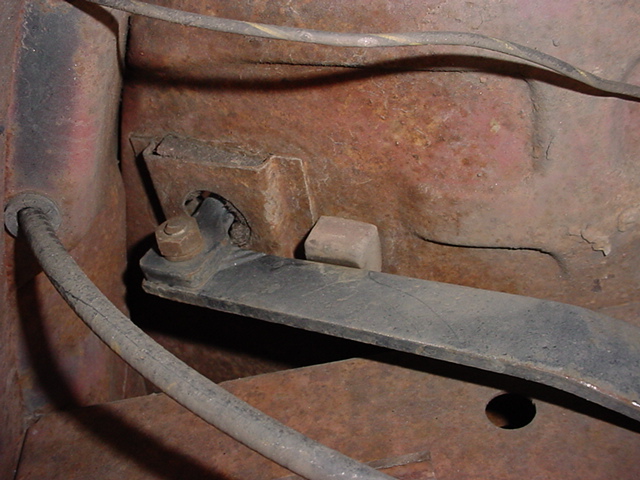

UNDER
|
|
| Back to top |
|
|
2Pack
Samba Member
Joined: September 20, 2005
Posts: 813
Location: Virginia
|
| Posted: Wed Jan 30, 2008 10:14 am Post subject: |
|
|
I put a set of the lower seals on recently and they don't fit tight. I "fixed" it using a tie wrap. Has anyone else have this problem? What did you do?
I think the seal got stretched out when I put it over the end of the pedal. |
|
| Back to top |
|
|
420GOAT
Samba Member
Joined: March 31, 2006
Posts: 3342
Location: Wilmington, CA on a nice quiet street but still in the 'hood
|
| Posted: Wed Jan 30, 2008 10:28 am Post subject: |
|
|
they dont go over the pedals, they go from the bottom, taking all that stuff apart is on my to do list. problem is things look fragile and i dont want to end-up doing more bad than good, so ill leave it alone for now.
_________________
once you realize im not impressed we will get along just fine |
|
| Back to top |
|
|
splitpile
Samba's Worst Speller
Joined: May 03, 2000
Posts: 5928
Location: back to living where hell meets the suface
|
| Posted: Wed Jan 30, 2008 10:54 am Post subject: |
|
|
| 2Pack wrote: |
I put a set of the lower seals on recently and they don't fit tight. I "fixed" it using a tie wrap. Has anyone else have this problem? What did you do?
I think the seal got stretched out when I put it over the end of the pedal. |
Did you use the seals as in the pictures in this thread? A lot of companies sell spark plug insulator seals as pedal seals
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line" |
|
| Back to top |
|
|
2Pack
Samba Member
Joined: September 20, 2005
Posts: 813
Location: Virginia
|
| Posted: Wed Jan 30, 2008 11:59 am Post subject: |
|
|
| splitpile wrote: |
| 2Pack wrote: |
I put a set of the lower seals on recently and they don't fit tight. I "fixed" it using a tie wrap. Has anyone else have this problem? What did you do?
I think the seal got stretched out when I put it over the end of the pedal. |
Did you use the seals as in the pictures in this thread? A lot of companies sell spark plug insulator seals as pedal seals |
Lol! I'll have to double check. I'm pretty sure they were not spark plug seals, but not 100%. |
|
| Back to top |
|
|
Mr. Electric Wizard
Samba Member
Joined: August 07, 2003
Posts: 2846
Location: Smyrna, TN
|
| Posted: Wed Jan 30, 2008 12:03 pm Post subject: |
|
|
| hazetguy wrote: |
seal goes underneath and yes, it moves with the pedal. the foam seal sticks to the top of the floor and does not move.
|
Does this same seal go on the brake and clutch?
_________________
"Saying what we think gives us a wider conversational range than saying what we know."
~ Cullen Hightower
(T)exas (C)oalition (B)uses
(H)eidenhammer (B)ully (B)oyz
--1966 De Luxe Camper |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10272
Location: idaho
|
| Posted: Wed Jan 30, 2008 12:05 pm Post subject: |
|
|
| EverettB wrote: |
| runderwood wrote: |
| swhen you press the pedal, it will go down with the pedal, effectively having no seal there anytime you step on the pedal... is that really right??? what an odd design... |
I guess that is weird? I don't drive with the pedals pressed so it's a short period of time. |
exactly. you shouldn't ride the clutch or the brakes.
also, having the pedal pan on severly reduces the possible amount of airflow
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
wanta23
Samba Member
Joined: March 31, 2007
Posts: 534
Location: At The Beach
|
| Posted: Wed Jan 30, 2008 12:07 pm Post subject: |
|
|
| The seals I got for the brake and clutch are the same, both from WW. The bottom ones install from the bottom. It's just one bolt to disconnect each pedal. 15 minute job. |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Wed Jan 30, 2008 12:11 pm Post subject: |
|
|
when did the rubber seal on the pedal arm start being used? my 59 (and other early busses i have worked on) have felt in square or round retainers. do they also use a rubber seal on the arm?
|
|
| Back to top |
|
|
mandysbus
Samba Member
Joined: December 20, 2002
Posts: 567
Location: downtown womelsdorf
|
| Posted: Wed Jan 30, 2008 1:13 pm Post subject: |
|
|

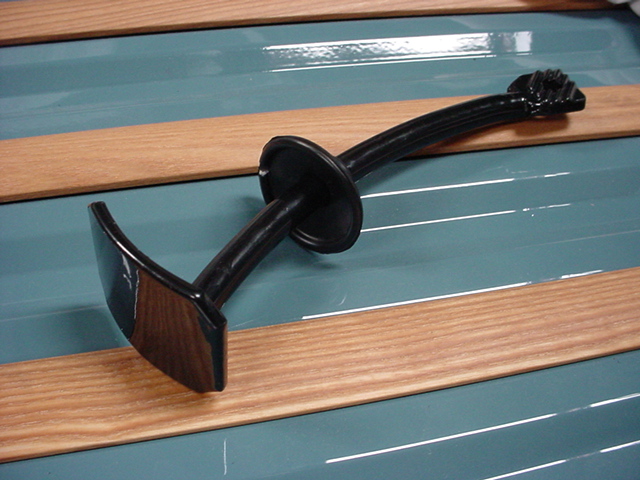

here is the accelerator pedal seal....
the other day i had the floor mat out of her bus and the pan off underneath.....
i picked the kid up at school and first thing he sez is i can see light through the floor....
i said its fine i'm working on it.the boy said better get that fixed i dont like it................7 year old critcs......phil
|
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Thu Jan 31, 2008 1:02 pm Post subject: |
|
|
| There is also a little flat rubber seal that goes on the steering column tube where it passes through the floor. It just sits there on the top side, under the mat. |
|
| Back to top |
|
|
VWLady
Crazy VW Lady
Joined: March 13, 2004
Posts: 3866
Location: Twin Cities, MN
|
|
| Back to top |
|
|
62DoKaGuy
Samba Member
Joined: May 22, 2011
Posts: 1293
Location: Surprise, AZ
|
| Posted: Tue Nov 07, 2017 2:51 pm Post subject: |
|
|
| hazetguy wrote: |
when did the rubber seal on the pedal arm start being used? my 59 (and other early busses i have worked on) have felt in square or round retainers. do they also use a rubber seal on the arm?
|
Not believing you still need the answer, Jon, I figured I would at least help make this thread more of a one-stop shop, with additional info that I too will need to know on my April '59 SC:
According to the replacement parts manuals [read: some deviation may apply], up through '59 MY (up to approx. Chassis #501 706) there were round/poss. square pieces of felt on the floor around the clutch and brake arms, Part #211-721-383, and one underneath the floor, Part #211-721-385.
Beginning in August '59 ('60 MY) from Chassis #501 707-ish, the square sealing pads, Part #211-721-383B, as well as the rubber seals, Part #211-721-387,were implemented for the brake and clutch pedals. Here those are from WW for example: http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=211721383B and http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=211721387.
Hope this helps someone down the road, or if anyone has something to add/change/delete, I'd love to know what would be correct.
_________________
,,Wenige Menschen denken, und doch wollen alle entscheiden.'' -der Alte Fritz
| EverettB wrote: |
| ...I went at it from both ends but going from the rear didn't seem to do anything, although I did spray some rust breaker in there... |
4/62 Double Cab
5/61 Panel (sold)
4/59 Single Cab (sold) |
|
