Stainless Steel Side Mirror Clamps
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
SCZ9-1-1
Samba Member


Joined: May 20, 2003
Posts: 711
Location: Santa Cruz, CA
SCZ9-1-1 is offline

PostPosted: Thu Mar 02, 2006 7:10 pm    Post subject: Stainless Steel Side Mirror Clamps Reply with quote

Has anyone seen or know where I can find round mirror clamps in stainless steel? I have one and would like to find another.
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
arthurnugen
Samba Member


Joined: January 11, 2005
Posts: 3080
Location: The PNW, where "going green" means rolling with moss.
arthurnugen is offline

PostPosted: Thu Mar 02, 2006 8:43 pm    Post subject: Reply with quote

Ok, I'll say it: I would say where you got the first one! Kidding aside, the Ace Hardware near my house has all sorts of weird stuff. Maybe call around if you can't find it at your favorite hardware store. WW sells them, but I don't know if they are stainless.

RV store?
_________________
cdennisg wrote:
Lawyers don't deserve buses.

zozo wrote:
Don't worry too much. You can always trust a lawyer.


ALWAYS WEAR STEEL-TOE BOOTS IN THE GARAGE!
1965 Bus (Riviera camper)
1972 Bug 'vert
1967 Bug sunroof
1961 Ghia 'vert
1957 DKW 3=6: 3 cylinder 2 stroke!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
splitpile
Samba's Worst Speller


Joined: May 03, 2000
Posts: 5926
Location: back to living where hell meets the suface
splitpile is offline

PostPosted: Thu Mar 02, 2006 9:24 pm    Post subject: Reply with quote

Flat Four and IZZ's were the only ones I kew that made them
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line"
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
hotvw1
Samba Member


Joined: November 10, 2002
Posts: 196
Location: Volksteria
hotvw1 is offline

PostPosted: Fri Mar 03, 2006 10:00 am    Post subject: Reply with quote

I got mine at wolfsburg west.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DubStyle
SBS Hit Squad


Joined: July 26, 2003
Posts: 6140
Location: SBS headquarters: Missery
DubStyle is offline

PostPosted: Fri Mar 03, 2006 12:51 pm    Post subject: Reply with quote

What does it matter? As soon as you tighten it down it chips the paint off your arm and that rusts. Evil or Very Mad
_________________
Anthony

SBS #1
SBS #1 on FB

"The original & best lowered Split Bus website/club"
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
SCZ9-1-1
Samba Member


Joined: May 20, 2003
Posts: 711
Location: Santa Cruz, CA
SCZ9-1-1 is offline

PostPosted: Sat Mar 04, 2006 10:24 am    Post subject: Mirror Clamps Reply with quote

Thanks for the responses. I will try IZZ's and yes I did ask the guys at the shop where they got them and they thought from IZZ's, but were not sure and thought it was a one time thing. As far as using them on painted arms I agree that the paint chips and there you go..rust, but I running with stainless steel arms as well and when you live a few blocks from the ocean stainless is the preferable way to go.
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
SCZ9-1-1
Samba Member


Joined: May 20, 2003
Posts: 711
Location: Santa Cruz, CA
SCZ9-1-1 is offline

PostPosted: Sat Mar 04, 2006 10:53 am    Post subject: Mirror Clamps Reply with quote

Do IZZ's or Flat Four have websites?
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
stingah2
Samba Member


Joined: March 26, 2005
Posts: 192
Location: High altitude
stingah2 is offline

PostPosted: Sat Mar 04, 2006 10:58 am    Post subject: Reply with quote

Stainless is the way to go. I lived in Santa Cruz for 13 years, rusty but not like the East coast. Izzy also has stainless window slider lock channels, very nice addition.
_________________
62 Singlecab - I kinda like it

Rust never sleeps, Stainless never rusts.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
SCZ9-1-1
Samba Member


Joined: May 20, 2003
Posts: 711
Location: Santa Cruz, CA
SCZ9-1-1 is offline

PostPosted: Sat Mar 04, 2006 11:03 am    Post subject: Reply with quote

Okay, I'm a dork. Just found IZZ's on the business listing, ya learn somethin new everyday. Good to know about the window lock channels as well. I'm about to redo the seals on my window frames and freshen them up. The stainless lock channels would be cool.
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
LAGrunthaner Premium Member
Samba Member


Joined: March 18, 2007
Posts: 4734
Location: 1st Coast
LAGrunthaner is offline

PostPosted: Mon Feb 19, 2018 11:59 am    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

Anyone know where I can get round mirror clamps like these 11 years later in stainless steel?

WW only has the cheap rustable ones.

https://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=211857545

Image may have been reduced in size. Click image to view fullscreen.

_________________
American Red Cross Safe And Well link:
https://safeandwell.communityos.org/cms/index.php?...OSmeUzh8l4
Maui Roadsters VW Logo
www.mauiroadsters.com
Lind wrote:
Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Malokin Martin
Samba Member


Joined: August 19, 2007
Posts: 2914
Location: E-burg
Malokin Martin is offline

PostPosted: Mon Feb 19, 2018 2:23 pm    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

Galvanic coupling ruined the whole idea of stainless hardware for me. Especially on somewhere visible.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


https://en.wikipedia.org/wiki/Galvanic_corrosion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
cru62
Samba Member


Joined: December 31, 2002
Posts: 4041
Location: Margaritaville.....24/7
cru62 is offline

PostPosted: Mon Feb 19, 2018 3:01 pm    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

https://www.thesamba.com/vw/classifieds/detail.php?id=1895577
_________________
"My biggest worry is that when I die, my wife will sell all my parts for what I told her I paid for them"-Jon

Jokes about German sausage are the wurst.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
LAGrunthaner Premium Member
Samba Member


Joined: March 18, 2007
Posts: 4734
Location: 1st Coast
LAGrunthaner is offline

PostPosted: Tue Feb 20, 2018 3:33 am    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

Thanks cru62 I'll ask if he has the clamps or I'll just coat WW clamps.

cru62 wrote:
https://www.thesamba.com/vw/classifieds/detail.php?id=1895577


Anyone ever buy from VW Wholesale in Surrey?
http://www.vw-wholesale.com/details.aspx?group=60&cat=200&subcat=672&id=2412

I've heard there are some concern's about stainless Malokin Martin, where is this a photo of?

What is more shocking is the wiki link you sent and food, looks like I need to rethink food preparation and get glassware, YIKES:

"Lasagna cell
A "lasagna cell" is accidentally produced when salty moist food such as lasagna is stored in a steel baking pan and is covered with aluminum foil. After a few hours the foil develops small holes where it touches the lasagna, and the food surface becomes covered with small spots composed of corroded aluminum.[15] In this example, the salty food (lasagna) is the electrolyte, the aluminum foil is the anode, and the steel pan is the cathode. If the aluminum foil only touches the electrolyte in small areas, the galvanic corrosion is concentrated, and corrosion can occur fairly rapidly. If an aluminum baking pan is used instead, the rate of corrosion is markedly reduced, but still may occur."

Malokin Martin wrote:
Galvanic coupling ruined the whole idea of stainless hardware for me. Especially on somewhere visible.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


https://en.wikipedia.org/wiki/Galvanic_corrosion

_________________
American Red Cross Safe And Well link:
https://safeandwell.communityos.org/cms/index.php?...OSmeUzh8l4
Maui Roadsters VW Logo
www.mauiroadsters.com
Lind wrote:
Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
easy e
Samba Member


Joined: May 28, 2008
Posts: 3620
Location: Five Cities, CA
easy e is offline

PostPosted: Tue Feb 20, 2018 7:19 am    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

Zinc is sacrificial.

We've seen how bolts get rusty when the zinc oxidizes... as it's supposed to.
Image may have been reduced in size. Click image to view fullscreen.


Then, we improve on it by replacing it with shiny stainless hardware... only to have the base metal become the first to oxidize due to galvanic corrosion. Then your stuff really turns to crap. Better to just switch out the hardware with fresh zinc plated steel... if it really bugs you.
Image may have been reduced in size. Click image to view fullscreen.

_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
LAGrunthaner Premium Member
Samba Member


Joined: March 18, 2007
Posts: 4734
Location: 1st Coast
LAGrunthaner is offline

PostPosted: Wed Feb 21, 2018 3:33 am    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

So what is preferred? Coat the sink style with clear grease?

easy e wrote:
Zinc is sacrificial.

We've seen how bolts get rusty when the zinc oxidizes... as it's supposed to.
Image may have been reduced in size. Click image to view fullscreen.


Then, we improve on it by replacing it with shiny stainless hardware... only to have the base metal become the first to oxidize due to galvanic corrosion. Then your stuff really turns to crap. Better to just switch out the hardware with fresh zinc plated steel... if it really bugs you.
Image may have been reduced in size. Click image to view fullscreen.

_________________
American Red Cross Safe And Well link:
https://safeandwell.communityos.org/cms/index.php?...OSmeUzh8l4
Maui Roadsters VW Logo
www.mauiroadsters.com
Lind wrote:
Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
easy e
Samba Member


Joined: May 28, 2008
Posts: 3620
Location: Five Cities, CA
easy e is offline

PostPosted: Wed Feb 21, 2018 6:31 am    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

It all depends...

A little mirror clamp corrosion over time is OK = do nothing

Needs to look great: (some combination of the following)
1) paint, wax, clearcoat, etc.
2) replacement schedule
3) keep it garaged / babied

To avoid base metal (your bus body)... use fasteners that will be sacrificed or are the same metal.
Minimize the difference in electrical potential when selecting fasteners.
You'll see (column 1 / row 3) in the chart below... with the steel bus body and the zinc plated mirror clamp... the engineers designed the bus body to outlive the zinc coating on the mirror clamp.

Here's a chart I put up in a Hehr jalousie window thread... when someone was using stainless screws or rivets. (so in this instance, ignore the red/green & just check out the chart)
Image may have been reduced in size. Click image to view fullscreen.

_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Drew Ogden
Samba Member


Joined: February 19, 2004
Posts: 323
Location: Elbow Cay, Bahamas
Drew Ogden is offline

PostPosted: Wed Feb 21, 2018 6:44 am    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

For protection from Galvanic corrosion, this stuff: https://www.ultratef-gel.com/tef-gel/

For coating zinc plated steel, this stuff: https://www.amazon.com/BOESHIELD-Corrosion-Protect...shield+t-9

I buy the T-9 stuff by the gallon, but you can also buy a $10 bottle. I live in a VERY humid/salty environment and I fight corrosion on everything. I have tried lots of products, but have become loyal to the two listed above. Lots of aluminum fastened by stainless hardware here, that also gets exposed to salt. Even my tools are coated with T-9....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
LAGrunthaner Premium Member
Samba Member


Joined: March 18, 2007
Posts: 4734
Location: 1st Coast
LAGrunthaner is offline

PostPosted: Thu Feb 22, 2018 2:52 am    Post subject: Re: Stainless Steel Side Mirror Clamps Reply with quote

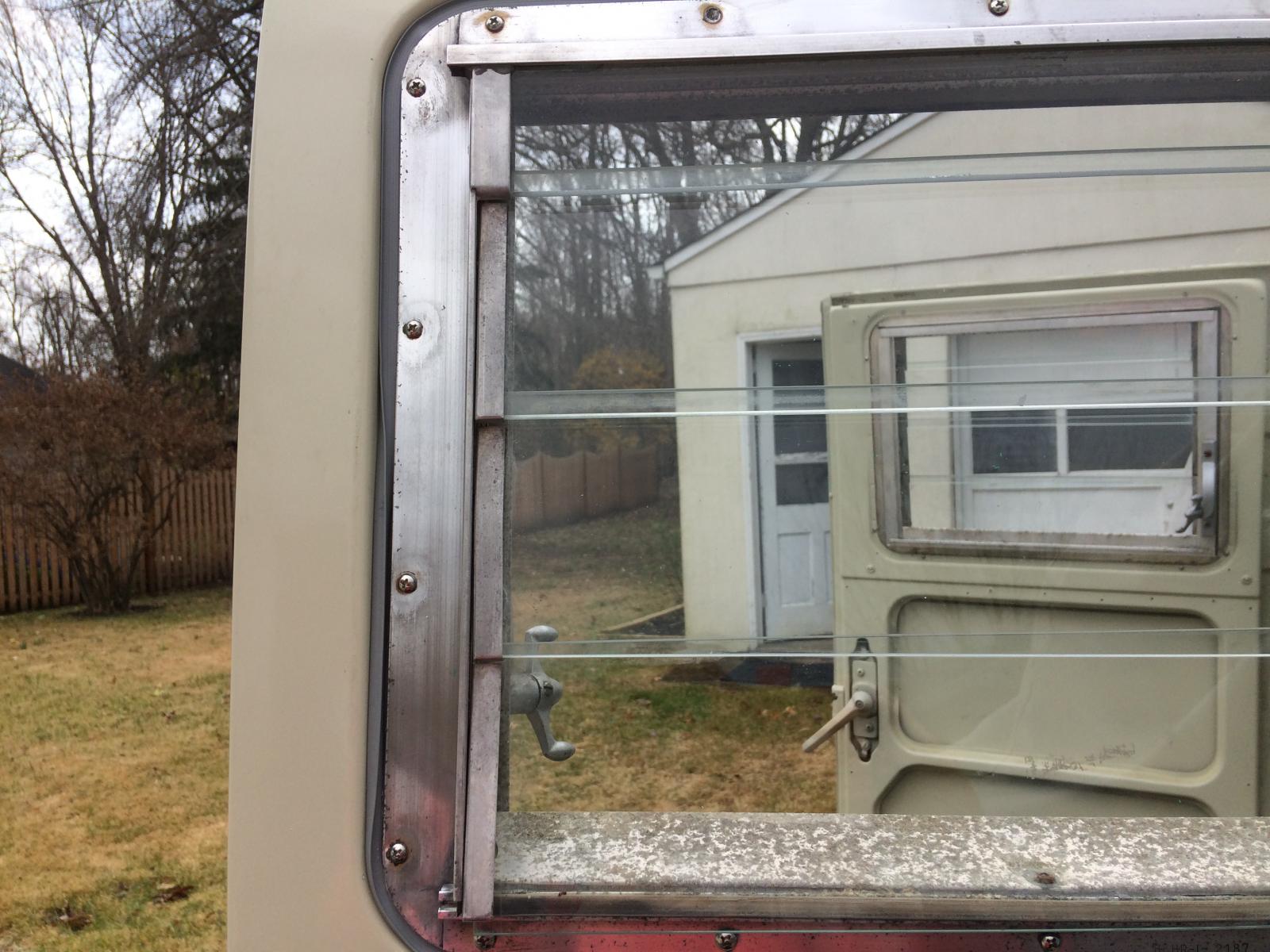

Thanks easy e, that chart has me nervous because I used stainless screws on my Jalousie windows and you probably were the one to tell me not to.

Image may have been reduced in size. Click image to view fullscreen.


easy e wrote:
It all depends...

A little mirror clamp corrosion over time is OK = do nothing

Needs to look great: (some combination of the following)
1) paint, wax, clearcoat, etc.
2) replacement schedule
3) keep it garaged / babied

To avoid base metal (your bus body)... use fasteners that will be sacrificed or are the same metal.
Minimize the difference in electrical potential when selecting fasteners.
You'll see (column 1 / row 3) in the chart below... with the steel bus body and the zinc plated mirror clamp... the engineers designed the bus body to outlive the zinc coating on the mirror clamp.

Here's a chart I put up in a Hehr jalousie window thread... when someone was using stainless screws or rivets. (so in this instance, ignore the red/green & just check out the chart)
Image may have been reduced in size. Click image to view fullscreen.



That stuff looks exactly what I need Drew Ogden, do you think I can put that T9 on my stainless screws on the jalousie windows? I have a Wet Coast Marine near me and can purchase it there.

Drew Ogden wrote:
For protection from Galvanic corrosion, this stuff: https://www.ultratef-gel.com/tef-gel/

For coating zinc plated steel, this stuff: https://www.amazon.com/BOESHIELD-Corrosion-Protect...shield+t-9

I buy the T-9 stuff by the gallon, but you can also buy a $10 bottle. I live in a VERY humid/salty environment and I fight corrosion on everything. I have tried lots of products, but have become loyal to the two listed above. Lots of aluminum fastened by stainless hardware here, that also gets exposed to salt. Even my tools are coated with T-9....

_________________
American Red Cross Safe And Well link:
https://safeandwell.communityos.org/cms/index.php?...OSmeUzh8l4
Maui Roadsters VW Logo
www.mauiroadsters.com
Lind wrote:
Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
