PostPosted: Mon Aug 21, 2006 6:39 pm    Post subject: This is a Beetle and that is a Super Beetle Reply with quote

There's been alot of questions about how to tell a Beetle from a Super Beetle so this is to help.

The easiest way to tell is that the spare tire in a Super lays flat while a Beetle stands up.

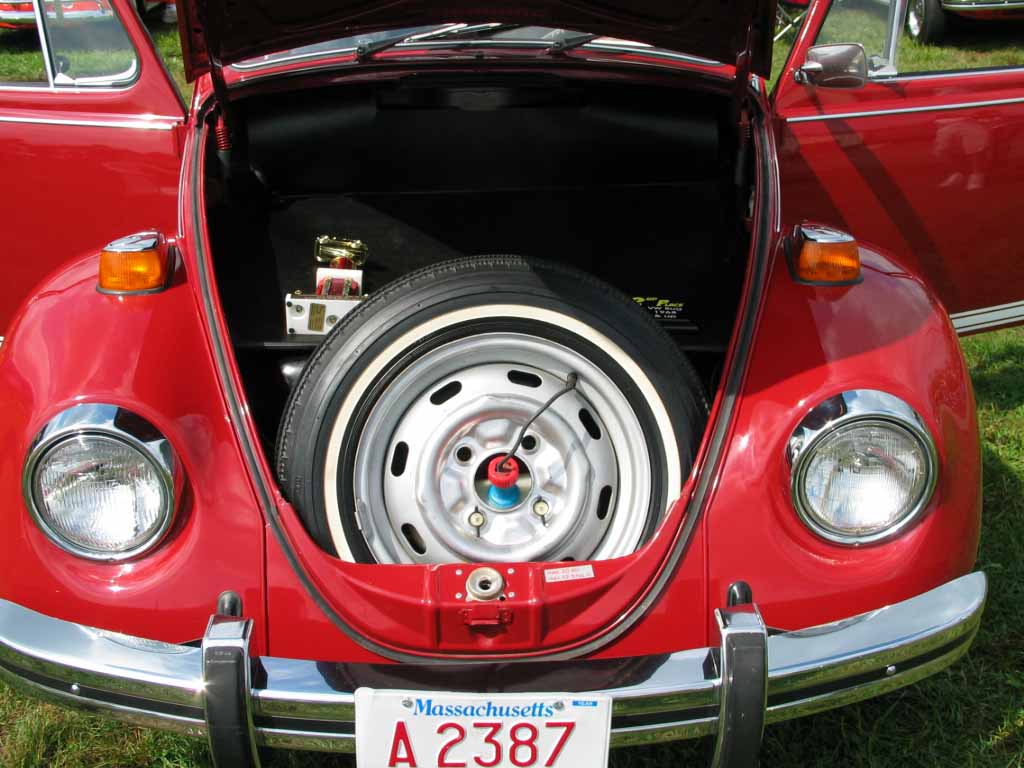

Beetle
Image may have been reduced in size. Click image to view fullscreen.

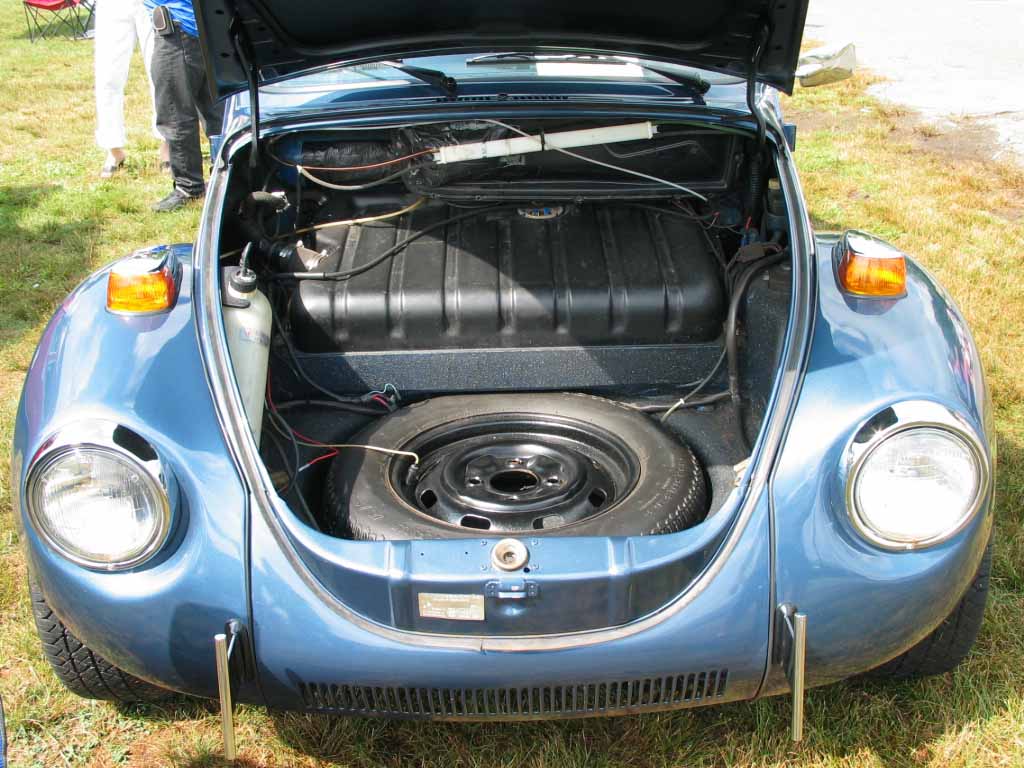

Super
Image may have been reduced in size. Click image to view fullscreen.

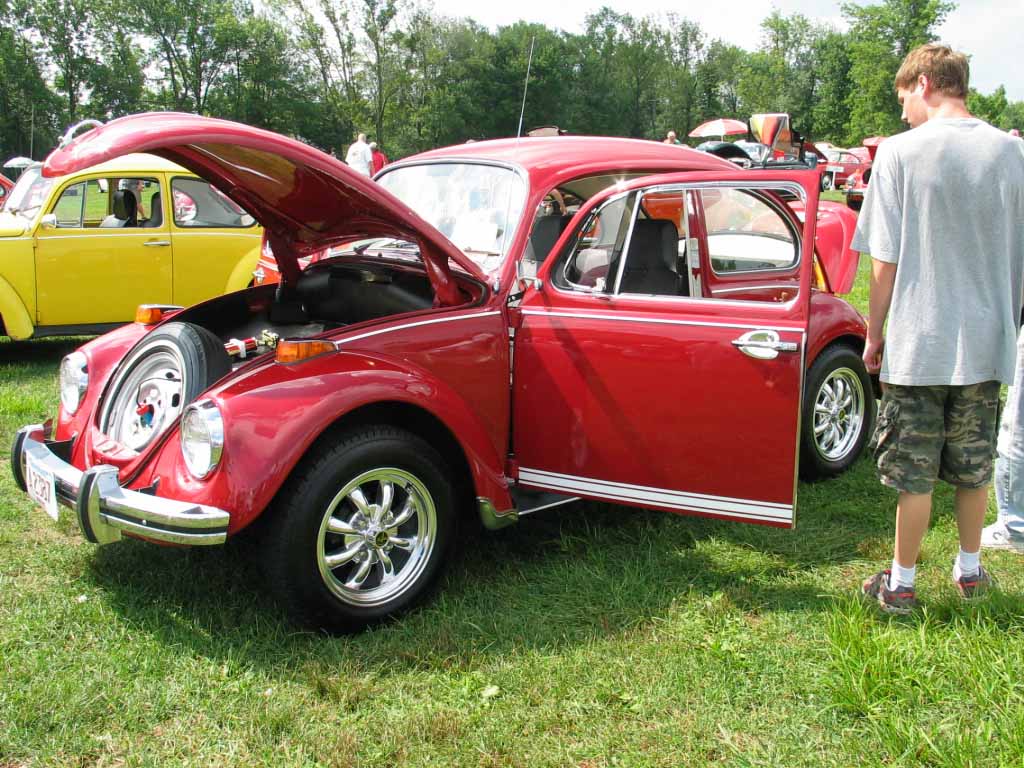

Beetle
Image may have been reduced in size. Click image to view fullscreen.

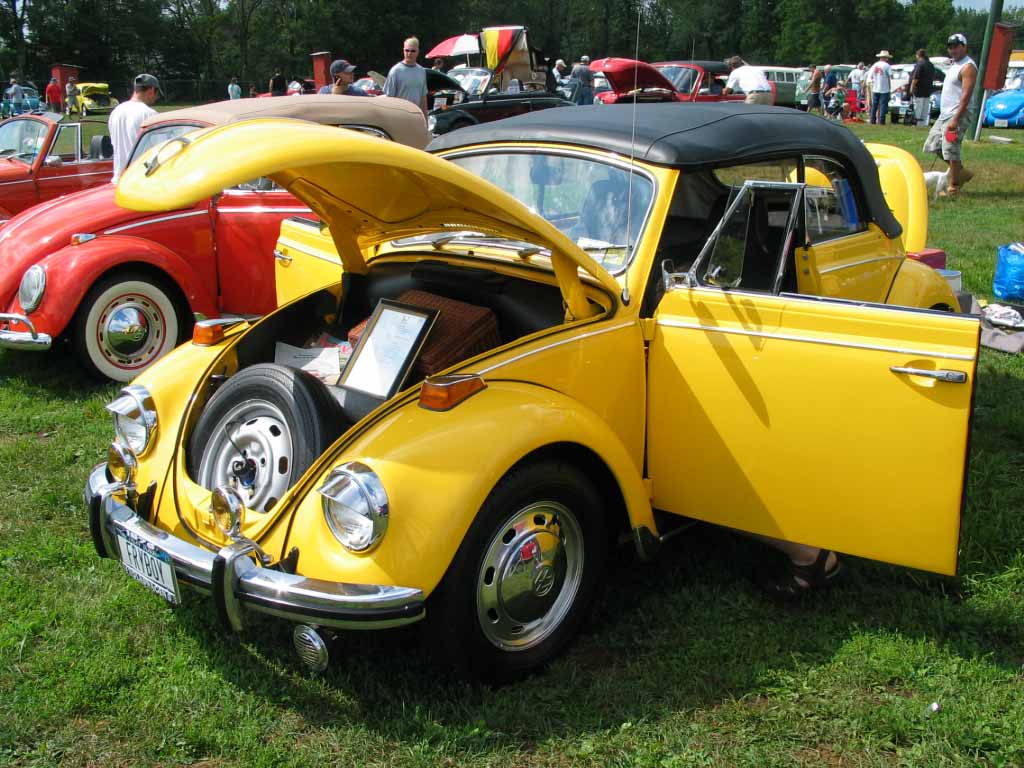

Beetle Convertible to 1970
Image may have been reduced in size. Click image to view fullscreen.

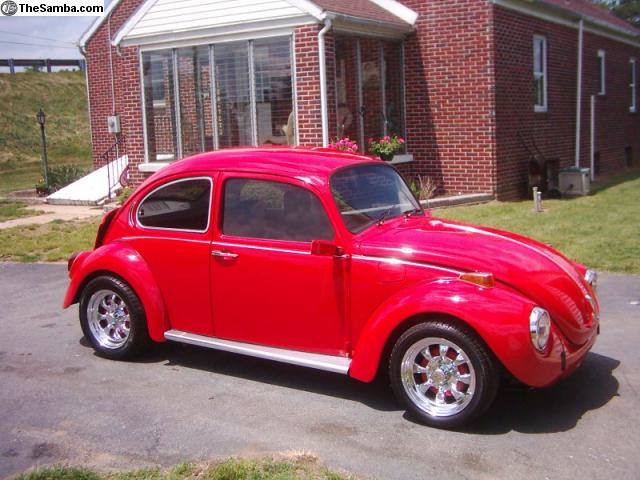

Super 1971-1972
Image may have been reduced in size. Click image to view fullscreen.


Super 1973-1977
Image may have been reduced in size. Click image to view fullscreen.


Super Convertible 1971-1972
Image may have been reduced in size. Click image to view fullscreen.


Super Convertible 1973-1979
Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי


Last edited by Glenn on Thu Jan 22, 2009 4:48 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
hazedub
Samba Member


Joined: July 25, 2006
Posts: 97
Location: Near Charlotte, NC
hazedub is offline

PostPosted: Mon Aug 21, 2006 7:25 pm    Post subject: Reply with quote

To add onto this, you can also tell by the front air vents under the front bumbers.... Another way not easily seen by the non looker is the wider fenders, these are just two other ways of telling a Super from a Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 77371
Location: Sneaking up behind you
Glenn is offline

PostPosted: Mon Aug 21, 2006 7:29 pm    Post subject: Reply with quote

hazedub wrote:
To add onto this, you can also tell by the front air vents under the front bumbers..


Many Supers have replacement front aprons without the AC condenser vents.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
hazedub
Samba Member


Joined: July 25, 2006
Posts: 97
Location: Near Charlotte, NC
hazedub is offline

PostPosted: Tue Aug 22, 2006 7:33 pm    Post subject: Reply with quote

Glenn wrote:
hazedub wrote:
To add onto this, you can also tell by the front air vents under the front bumbers..


Many Supers have replacement front aprons without the AC condenser vents.


This is true, forgot about that. But the ones that dont you can recognize them by that way.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jadvale
Samba Member


Joined: May 26, 2006
Posts: 29

jadvale is offline

PostPosted: Wed Aug 23, 2006 11:38 am    Post subject: Reply with quote

I've always relied on the curved windshield and wider dash on Supers.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
ScottK
Samba Member


Joined: August 28, 2004
Posts: 1748
Location: Avilla America
ScottK is offline

PostPosted: Wed Aug 23, 2006 11:50 am    Post subject: Reply with quote

jadvale wrote:
I've always relied on the curved windshield and wider dash on Supers.


71 and 72 supers had a flat windshield.

Scott
Back to top
View user's profile Send private message Gallery Classifieds Feedback
olde skool
Samba Member


Joined: January 23, 2006
Posts: 184

olde skool is offline

PostPosted: Wed Aug 23, 2006 1:25 pm    Post subject: Reply with quote

Quote:
jadvale wrote:
I've always relied on the curved windshield and wider dash on Supers.


71 and 72 supers had a flat windshield.

Scott


71 and 72 supers also had the same dash as a standard If i'm not mistaken
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jadvale
Samba Member


Joined: May 26, 2006
Posts: 29

jadvale is offline

PostPosted: Thu Aug 24, 2006 4:29 am    Post subject: Reply with quote

My bad. Thanks for clarifying. Embarassed
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
choppachris
Samba Member


Joined: May 15, 2006
Posts: 258
Location: Los Fresnos, TX
choppachris is offline

PostPosted: Thu Aug 24, 2006 12:48 pm    Post subject: Reply with quote

look for the long front hood, and the very bottom front of the car kinda rolls under the car. Wink
_________________
dubless
Back to top
View user's profile Send private message Yahoo Messenger Classifieds Feedback
Pont
Samba Member


Joined: December 29, 2005
Posts: 166
Location: Lexington, TN
Pont is offline

PostPosted: Thu Aug 24, 2006 1:38 pm    Post subject: Reply with quote

Someone should post up some good pics of the suspension upfront that is one of the top 3 ways of telling which is which
Back to top
View user's profile Send private message Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 77371
Location: Sneaking up behind you
Glenn is offline

PostPosted: Thu Aug 24, 2006 1:39 pm    Post subject: Reply with quote

Pont wrote:
Someone should post up some good pics of the suspension upfront that is one of the top 3 ways of telling which is which


The spare tire doesn't lie. If it's flat it's a Super, there's nothing else you need to look at.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Pont
Samba Member


Joined: December 29, 2005
Posts: 166
Location: Lexington, TN
Pont is offline

PostPosted: Fri Aug 25, 2006 12:34 am    Post subject: Reply with quote

Glenn wrote:
Pont wrote:
Someone should post up some good pics of the suspension upfront that is one of the top 3 ways of telling which is which


The spare tire doesn't lie. If it's flat it's a Super, there's nothing else you need to look at.


True but your always gone have those peeps that disagree with you Smile
Back to top
View user's profile Send private message Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 77371
Location: Sneaking up behind you
Glenn is offline

PostPosted: Fri Aug 25, 2006 3:02 am    Post subject: Reply with quote

Pont wrote:
Glenn wrote:
Pont wrote:
Someone should post up some good pics of the suspension upfront that is one of the top 3 ways of telling which is which


The spare tire doesn't lie. If it's flat it's a Super, there's nothing else you need to look at.


True but your always gone have those peeps that disagree with you Smile


It's a fact... there is nothing to disagree about. Wink
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Beetspeed
Samba Member


Joined: July 30, 2004
Posts: 431
Location: The Netherlands
Beetspeed is offline

PostPosted: Fri Aug 25, 2006 4:00 am    Post subject: Reply with quote

choppachris wrote:
look for the long front hood, and the very bottom front of the car kinda rolls under the car. Wink

Yes, the down-curved, rounder front fenders are the easiest part if the car in question is parked and you cannot look under the front hood.
But you need to know what to look for in the fender form, thats true.

In Europe, the 70-72 cars are called 1302 (L/S/LS)model and the model '73 (as of august '72) is always called 1303, (L/S/LS).
Its easy for us, as they all have either 1302 or 1303 on the rear hood (if they still are original that is) Wink
_________________
'75 SB 1303 2,4ltr T4 turbo: 10.58 @ 129.9mph
'65 Ruska buggy 1192cc EFI 80hp N/A
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
Lbhat
Samba Member


Joined: July 23, 2006
Posts: 4
Location: San Diego,CA
Lbhat is offline

PostPosted: Wed Aug 30, 2006 5:47 am    Post subject: Flat Super? Reply with quote

Question so...? I could find a 71 or 72 flat windshield Super with the spare laying flat? with struts too?
Back to top
View user's profile Send private message Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 77371
Location: Sneaking up behind you
Glenn is offline

PostPosted: Wed Aug 30, 2006 5:48 am    Post subject: Re: Flat Super? Reply with quote

Lbhat wrote:
Question so...? I could find a 71 or 72 flat windshield Super with the spare laying flat? with struts too?


If the tire is laying down then it's a Super and has struts. 71-72 Supers had a flat windshield and 73-79 had a curved one.

It's that simple.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
yaz731200
Samba Member


Joined: June 05, 2006
Posts: 235
Location: uk london
yaz731200 is offline

PostPosted: Wed Aug 30, 2006 1:21 pm    Post subject: Reply with quote

i no the difrences between the super and normal beetle im jsut wondering whyy they made the diferent kinds?
was it like a more expencive model when you bought the beetle or was it two difrent factories making two difrent beetleS?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buzzbug72
Samba Member


Joined: August 30, 2004
Posts: 73
Location: Houston TX
Buzzbug72 is offline

PostPosted: Thu Aug 31, 2006 1:58 pm    Post subject: Reply with quote

I have a 72 super. Flat windshield, lay-down spare, strut front-end.

They made the supers to update the suspension to modern type of supspension. Better handling and better ride quality.
_________________
1972 German Look Super (O\ | /O)
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Kelley
Samba Member


Joined: April 03, 2003
Posts: 1432
Location: "Die Sonneküste" Crystal Beach, FL
Kelley is offline

PostPosted: Thu Aug 31, 2006 2:39 pm    Post subject: Reply with quote

Buzzbug72 wrote:
They made the supers to update the suspension to modern type of supspension. Better handling and better ride quality.


When it's maintained properly,,, one bad suspension component can make the others wear that much faster. 45-55 mph speed wobbles is one result. There are others.
_________________
74 rusto-custom type 1 Sedan - SOLD
ZRX1100c3, Mean Green - SOLD
Growler wrote:
I hate people. Are you people? I hate you.

Just trying to remember classic Samba quotes from the 'Days of Yore'
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Buzzbug72
Samba Member


Joined: August 30, 2004
Posts: 73
Location: Houston TX
Buzzbug72 is offline

PostPosted: Thu Aug 31, 2006 2:52 pm    Post subject: Reply with quote

Right, but that is the owners fault for neglecting it, not the engineering of it.
_________________
1972 German Look Super (O\ | /O)
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Late Model/Super - 1968-up All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 16, 17, 18  Next
Jump to:
Page 1 of 18


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
