Barndoor Screws/Bolts/Fittings

RockStock · Posted: Fri Oct 13, 2006 5:16 am Post subject: Barndoor Screws/Bolts/Fittings

Long shot, but could anyone here put something like this together for Barndoors?
http://www.thesamba.com/vw/forum/viewtopic.php?p=1804368#1804368
I, for one, would really appreciate it.
_________________
-StockRocks-

Rusting Hulk · Posted: Sun Oct 15, 2006 2:29 am Post subject:

Well volunteered Chris
I know some of the hardware is not available now, ie shape of screwhead etc like the one which holds the deluxe luggage rails down, i think they are called 'philister' head. And most of these snap off when you remove the rails
And all the 8mm bolts have 14mm size heads.
I have just ordered some front beam bolts M14X1.5X100MM high tensile with the same amount of thread as the og one's so if anybody wants any i will have some and can get more.
_________________
64 356 C Coupe

RockStock · Posted: Wed Mar 07, 2007 4:27 am Post subject:

Rear Seat Backrest Bolt
http://www.thesamba.com/vw/forum/viewtopic.php?t=219113

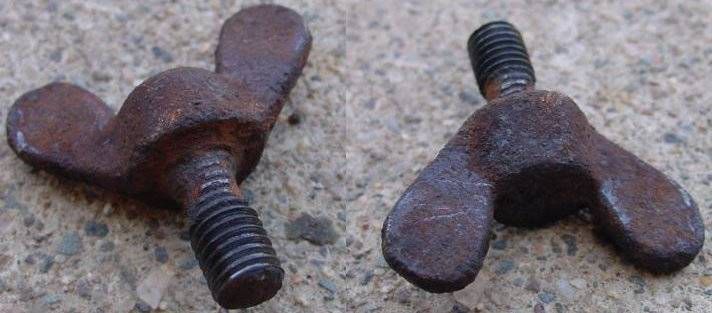

everett's pic:

Image may have been reduced in size. Click image to view fullscreen.

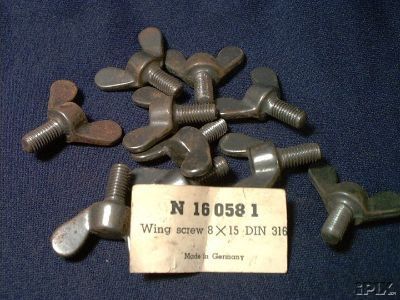

mark's stash. i believe mark sells these

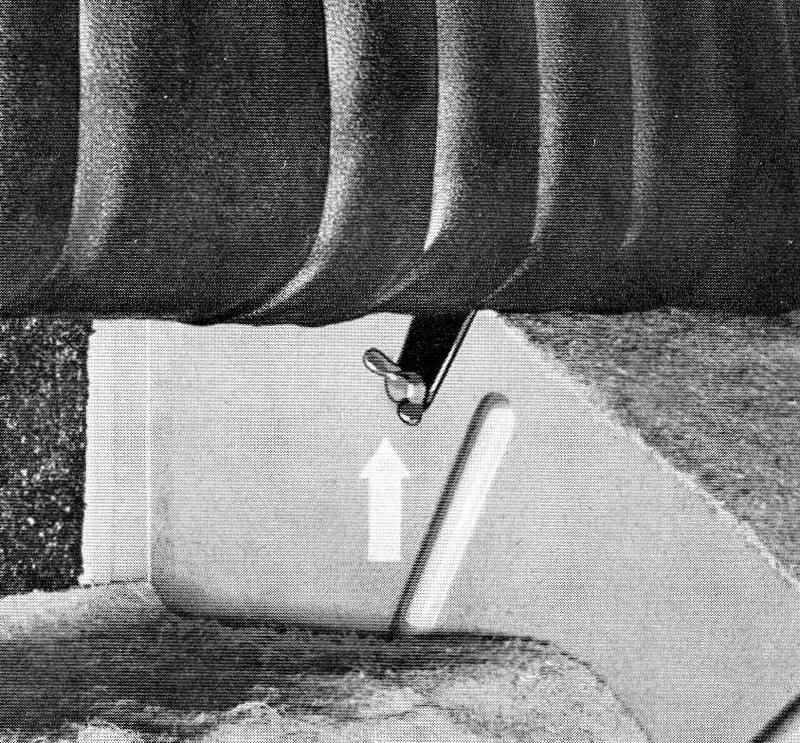

scanned pic from the Workshop Manual [note those sound deadening details(;]:

_________________
-StockRocks-

RockStock · Posted: Wed Mar 07, 2007 6:10 am Post subject: Exterior Mirror Bolts

Exterior Mirror Bolts

original (tbc) x 3 at top, repro x 4 below

NOS

related thread here:
http://www.thesamba.com/vw/forum/viewtopic.php?t=187188&highlight=mirror
_________________
-StockRocks-

Anchovy · Posted: Fri Mar 09, 2007 2:05 pm Post subject:

Lug nuts (bolts) with VW logo, "29" part number and manufacturers mark:

uberwagen · Samba Member Joined: February 11, 2006 Posts: 183

Rusting Hulk · Posted: Sat Mar 10, 2007 1:14 am Post subject:

The one i'm looking for and can't find is the screws that hold the luggage rails down on the deluxe rear shelf, mine were rusted out and had to be cut
_________________
64 356 C Coupe

RockStock · Posted: Sat Mar 10, 2007 4:38 am Post subject:

hazetguy · Posted: Sat Mar 10, 2007 11:21 am Post subject:

DIN 316 German Type, Rounded Ear Form, Wing Screws are still available. the closest length i found was 8x16, but i don't think the extra 1mm is gonna be noticeable when installed, and i guess if you were really concerned, you could grind off that 1mm.

http://www.metricmcc.com/productDetails.asp?C=3&PID=7014

i got some 316 screws a while ago to compare them to original safari window wingnuts, because the ones that come with some kits are really crappy, and they were identical to the real ones (in shape, they were not chrome plated). i would think they would be exactly like, or very very similar to the seat wingnuts in the pics above.

uberwagen · Samba Member Joined: February 11, 2006 Posts: 183

Thanks hazetguy!

Rusting Hulk · Posted: Sun Mar 11, 2007 5:24 am Post subject:

So who is going to buy 100 so i can have two Rolling Eyes

_________________
64 356 C Coupe

hazetguy · Posted: Sun Mar 11, 2007 12:17 pm Post subject:

Minimum Order Quantity: 25 pieces

and at a price if under $1.50 each, that seems alot cheaper than trying to talk merz out a couple.

Rusting Hulk · Posted: Sun Mar 11, 2007 12:25 pm Post subject:

Ok Jon i'll take 2 at $3+shipping Wink

Hows thing with you? See your still busy with the mechanical side of things, re 53 front beam
Simon
_________________
64 356 C Coupe

Scotty · Posted: Mon Mar 12, 2007 6:22 am Post subject:

So has someone bought a batch of those wing nuts? I'd buy 2 if they have...
_________________

RockStock · Posted: Mon Mar 12, 2007 12:44 pm Post subject: rear seat-back wingnuts

there's a bolt wholesalers near me. i'll see what they can do
_________________
-StockRocks-

Anchovy · Posted: Mon Mar 12, 2007 1:19 pm Post subject:

I ordered 100 from a retailer in Texas. They were cheaper than the list price in the internet. Shipping to the UK in a global priority mail envelope is $5. If you guys across the pond have trouble finding them send me a PM and I will hook you up.

Barndoor Mafia · Posted: Mon Mar 12, 2007 2:18 pm Post subject:

Anchovy · Posted: Mon Mar 12, 2007 2:32 pm Post subject:

Johnny, I am talking about these type, but 1 mm longer because everyone knows we run 'em a little longer out here in Cali.

I'll let you know when I get the order.

Secret information: I am going to grind some down to 15mm, dip them in hydrocloric acid, let them rust up a bit and then sell them to suckers as NOS for big bucks!

bubba · Posted: Mon Mar 12, 2007 2:34 pm Post subject:

I need a set of those mirror screws, if anyone has some at a affordable price. I think for $28.00 I'm getting screwed!

Rusting Hulk · Posted: Mon Mar 12, 2007 3:09 pm Post subject:

Re mirror arm bolts: There is a guy in Germany who does them for 1 euro each, i think he has two length's
email:[email protected]
fax 0231-47-83-57 not sure what numbers you have to add to get through from your end.
This guy also sells Schwimmer and Kubel parts.
_________________
64 356 C Coupe
