 Posted: Mon Dec 18, 2006 2:38 pm Post subject: Technical questions... Heater tube and others |
 |
|
Good night!
I have to ask two very important questions to you... I am not going to cry about the work done there. I just ask you for answers. Now it is time to undo what has been done wrong. So, how to arrange it?
First question:
-Which is the distance between the motor compartment wall and the interior heating tube?
i made a circle to show this small flat area. In this picture this area is in front of the tube; comparing to this EB's picture, where the tube is over the flat area... why?
Second question:

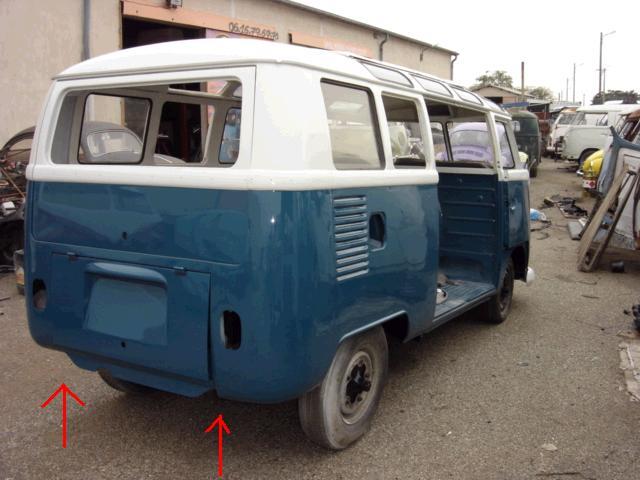

-How is this possible? Which side is wrong?
Please, don't criticise please. Work is almost finished, I don't want to fight with them right now.
Thank you very much...
Moderator note:
Actual heater log piece measurements from later in this thread:
| joe56vw wrote: |

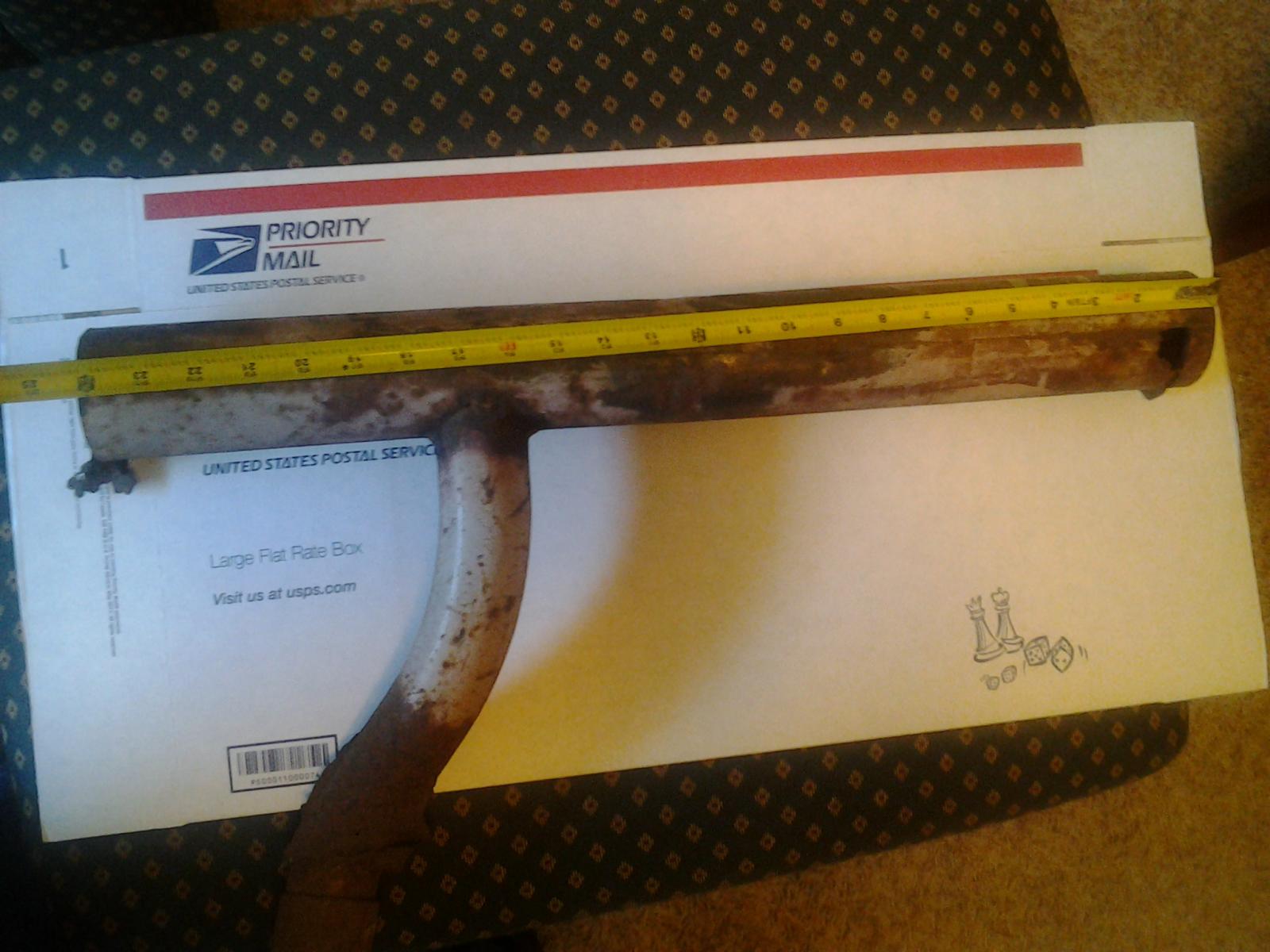

someone asked for measurements of the heater log I have for sale so I thought I would share them with the masses as well
I did a search and didn't find this info and I also don't know what year this one came out of either
tube length is 24 3/8"
tube diameter is 2 3/4"
there are four big slotted holes with a space in between two of them
space is 4 1/4"
big slot length is 2 9/32"
big slot width is 15/32
small slot length is 2 1/64
small slot width is 5/16
|
| Z wrote: |
I think all the measurements you need are in here:
|
_________________
Freedom for the Catalan Countries
Si ens destrossen les contrades alçarem les barricades !!*!! |
|
| Back to top |
|
 |
jimmy1
Samba Member
Joined: April 17, 2001
Posts: 1569
Location: http://www.thedeafvolks.com
|
| Posted: Mon Dec 18, 2006 3:01 pm Post subject: |
|
|
drivers side corner is correct.
wow, id be pissed if someone made a mistake like that
_________________
North Hollywood, CA
1956 Kabrolett
"I'd rather be driving my VW thinking about God than sitting in church thinking about my VW."
check out my classified ads, lots of rare parts/accessories for sale. |
|
| Back to top |
|
|
Metalwizard
Samba Member
Joined: October 21, 2003
Posts: 696
Location: Archdale, NC
|
| Posted: Mon Dec 18, 2006 5:49 pm Post subject: Re: technical questions... |
|
|
| Pau wrote: |
Good night!
I have to ask two very important questions to you... I am not going to cry about the work done there. I just ask you for answers. Now it is time to undo what has been done wrong. So, how to arrange it?
First question:
-Which is the distance between the motor compartment wall and the interior heating tube?
i made a circle to show this small flat area. In this picture this area is in front of the tube; comparing to this EB's picture, where the tube is over the flat area... why?
Second question:
-How is this possible? Which side is wrong?
Please, don't criticise please. Work is almost finished, I don't want to fight with them right now.
Thank you very much...
Cheers,
Pau |
1st question EV's pic looks right, i can ck my 60 15 tomorrow for you.
2nd it looks like something Mario did  . That is totally fucked and they should fix for free. The drivers side is right and the other will stick out like a damn sore thumb. Your welcome to show this post to them and they are welcome to call me about my statements. The best thing you can do is yank the thing and don't pay the full amout for such an amature job. I dosen't take a rocket scientist to see the mistake there. Good god i can see that and i have been welding for 30+ years, and half blind.
I wouldn't cry i would be raising more hell than a little, and posting their info all over the net and town for that mess. It's shit like that that give honest craftsman and restorers a bad name.
Sorry if i'm blunt but thats just the way i am, if you want the truth i'll give it to you and no damn sugar coating. Some hate me for that and some respect me. Your call.
Edited to fix errors from painkillers
_________________
http://s461.photobucket.com/albums/qq335/Metalwizard/
Kelly aka
"Bubble & Nut Buster for wannabe BadBoy's of Restoration"
"There is no cure for Stupid"
ITMC "Drill SGT" |
|
| Back to top |
|
|
Stanagon
Samba Member
Joined: July 11, 2003
Posts: 4195
Location: Boston, MA
|
|
| Back to top |
|
|
TimGud
Samba Member
Joined: March 03, 2002
Posts: 6459
Location: Rio Rico Arizona
|
| Posted: Mon Dec 18, 2006 9:13 pm Post subject: |
|
|
| Stanagon wrote: |

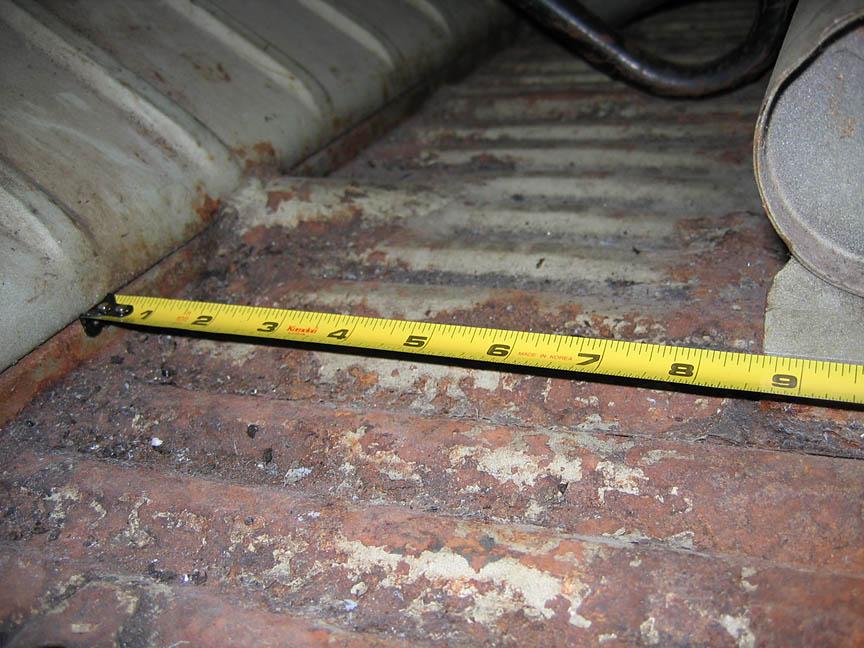

Here's the dimension you want for heater outlet from the end of the cargo floor.
8-5/8" as shown = 8.625 in. = 22cm
This is from my '61 Standard.
I don't see the problem with the rear engine apron. I must be missing something? |
Look below the tail light opening for the extra 3" of corner that shouldnt be there.
Even an amature (spelling?) like me could do (and have done) better work. |
|
| Back to top |
|
|
derv
Samba Member
Joined: October 12, 2005
Posts: 2601
Location: Oak Park (Chicago), IL
|
| Posted: Mon Dec 18, 2006 9:21 pm Post subject: |
|
|
I would be speaking with them sternly first thing in the morning about their plans to rectify that huge mistake.
_________________
Jack
| Quote: |
| Mr. Hido: To post your bare ass to virtually all hardened bus enthusiasts casts thick, a slag not easily ground smooth. |
|
|
| Back to top |
|
|
Stanagon
Samba Member
Joined: July 11, 2003
Posts: 4195
Location: Boston, MA
|
|
| Back to top |
|
|
Campy
Samba Member
Joined: January 10, 2005
Posts: 4933
Location: Chico, CA
|
| Posted: Mon Dec 18, 2006 11:56 pm Post subject: |
|
|
| You certainly shouldn't pay for the slipshod work done on the right corner panel. Was the body man drunk or something? Get reimbursed and have it done properly somewhere else. |
|
| Back to top |
|
|
Mowser
Samba Member
Joined: September 02, 2002
Posts: 607
Location: British Columbia, Canada
|
| Posted: Tue Dec 19, 2006 12:22 am Post subject: |
|
|
| Stanagon wrote: |
That will be hidden by a bumper, if it's any consolation. |
That shit won't be hidden by the bumper. Even if you put hide it behind US Spec bumpers it's only gonna make it more obvious. Hell I'm 1000's of km away and I can see it  They screwed up plain and simple. If it's a busy local shop complain directly. IF that doesn't get it fixed for free go public locally with your information. Bottom line is if they have any sort of integrity they will fix it for free. If they don't then drive as much business away from them as you can. It'll be cheaper in the long run for them to just fix it.
I know this has been a VERY long wait for you but OMG that's BAD!!!
_________________
| bushaus wrote: |
only in the VW bus world is someone stoked to have road raced an AT&T bucket truck!  |
| cdennisg wrote: |
| If I was in this for big money, I wouldn't be in it. |
|
|
| Back to top |
|
|
Cocoabean
Samba Member
Joined: January 30, 2006
Posts: 357
|
| Posted: Tue Dec 19, 2006 12:31 am Post subject: |
|
|
That's total bullshit, I'd track down 'Rudy.
'
_________________
'66 Sundial
The Moderators are out to get me. |
|
| Back to top |
|
|
Campy
Samba Member
Joined: January 10, 2005
Posts: 4933
Location: Chico, CA
|
| Posted: Tue Dec 19, 2006 1:18 am Post subject: |
|
|
| Over the last several decades, I sued, in small claims court, an owner of a travel agency and a VW mechanic--I won both cases and it was very easy to do. |
|
| Back to top |
|
|
Pau
Samba Member
Joined: April 09, 2002
Posts: 374
Location: Euskal Herria
|
| Posted: Tue Dec 19, 2006 9:28 am Post subject: |
|
|
Shhhhhhhhhhhhhhhhht!!!! Don't talk so loud. I am afraid if they see this comments they will just be mad and don't do the work.
Any single thought that could cross your minds (Metalwizard and others) has already crossed mine thousands of times! So, you must know how do I feel...
You must know that yes, they are going to fix it for free. That was obvious... What I would like to know: How many of you put together everything before painting just to see if everything fits correctly? Is this a normal way of doing?
Thank you for all the informations. I am going to mail them the distances Stanagon. You even gave it in cm !!
Take it easy everyone. Cocoabean: Rudy does not work for them anymore...
_________________
Freedom for the Catalan Countries
Si ens destrossen les contrades alçarem les barricades !!*!! |
|
| Back to top |
|
|
pyrOman
Fire Master
Joined: July 21, 2003
Posts: 12551
Location: Over 2002 posts deleted!
|
| Posted: Tue Dec 19, 2006 9:40 am Post subject: |
|
|
Though you probably have good reasons for having a shop do the work, this is but one of the reasons why I always do as much as I possibly can of any work needed on ANY of my vehicles. Hell, I'm now "responsible" for the wife's '04 Jeep since it's out of warranty already!
For one thing, I don't trust nearly any place out there and those few that I do trust, just plain CAN'T afford them!
_________________
Some people are so busy being clever they don't have time enough to be wise. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15278
Location: Casa de Oro, California
|
| Posted: Tue Dec 19, 2006 10:00 am Post subject: |
|
|
| Don't different cut off years have the heater outlet in closer or farther? You probably said which year, though huh. I'll go away now. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71608
Location: Phoenix 602
|
| Posted: Tue Dec 19, 2006 10:10 am Post subject: Re: technical questions... |
|
|
| Pau wrote: |
i made a circle to show this small flat area. In this picture this area is in front of the tube; comparing to this EB's picture, where the tube is over the flat area... why?
|
This is my '63. The heater tubing got larger in 1964, which alters the look of the rear floor heater outlet piping. I don't think the distance changed but your Bus may be different.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Pau
Samba Member
Joined: April 09, 2002
Posts: 374
Location: Euskal Herria
|
| Posted: Tue Dec 19, 2006 10:42 am Post subject: |
|
|
thank you!!!
luckily I did not send any information nor picture to them... (even if normally they should know cause they are pros!!).
Could anybody take a picture of a post-64 heating tube and the distance between it and motor compartment wall?
THANKS THANKS THANKS AGAIN!!
_________________
Freedom for the Catalan Countries
Si ens destrossen les contrades alçarem les barricades !!*!! |
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Tue Dec 19, 2006 10:45 am Post subject: |
|
|
Anytime you take apart a vehicle and cut body sections off, you always preassemble the vehicle before paint and check the panel fits. It is time well spent because then you don't have to go back and redo your work.
While they're fixing the screwup on the rear corner, have them fix the seam at the side of the battery tray too! |
|
| Back to top |
|
|
Stanagon
Samba Member
Joined: July 11, 2003
Posts: 4195
Location: Boston, MA
|
|
| Back to top |
|
|
Mowser
Samba Member
Joined: September 02, 2002
Posts: 607
Location: British Columbia, Canada
|
| Posted: Wed Dec 20, 2006 1:22 am Post subject: |
|
|
Sorry Pau, I'd help with a picture or two but my '67 is in the booth getting sprayed. It should be done by Friday and I'll be going down with my camera if you haven't gotten a picture by then...
_________________
| bushaus wrote: |
| only in the VW bus world is someone stoked to have road raced an AT&T bucket truck! |
| cdennisg wrote: |
| If I was in this for big money, I wouldn't be in it. |
|
|
| Back to top |
|
|
Pau
Samba Member
Joined: April 09, 2002
Posts: 374
Location: Euskal Herria
|
| Posted: Wed Dec 20, 2006 1:41 pm Post subject: |
|
|
thank you... I could even wait until monday if you want. Take your time
