Bus Headlight Bezel Adjust Screw position

[galexander]

I'm working on putting together pair of headlight assemblies for my son's '63 SC out of a box of misc headlight bits and pieces and I just was having the darndest time coming up with the right combination.

Had a bunch of Beetle stuff in there too, anyway, what is the correct adjust screw postion for a '63? I came up with one where the holes are at 10 and 4 o'clock when mounted on the SC and the other one is at 2 and 4 o'clock. The 2 & 4 is right next to the headlight assembly to body mount screw. Looks kinda funny right now, with the two differnt style on there.

Thanks
_________________
enjoy the journey,
Gary
Watch us on YouTube, VW Life AND
listen in to the VW Life Good Time Hour on VDub Radio, every Tuesday!

[EverettB]

My '63 has the adjustment screws above and below the mounting screw.

They are the original headlights as far as I know (very good chance).

Surprisingly, they also have the "E" logo headlight lenses, which I had though ended before 1963.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

[galexander]

Thanks Ev. I am just suprised at how many combinations of headlight assemblies are out there. On my '66 Deluxe, they are at 4 and 8 o'clock, and they sure look like the originals. I know that some of the assemblies have a spring like wire that puts tension on the headlight, while the newer ones have no such wire, and the headlight adjust screws are the only tension on the assembly.

I guess I'm just going to try to make a pair that match and go from there. This is a real interesting tidbit of Bus differences thru the years.
_________________
enjoy the journey,
Gary
Watch us on YouTube, VW Life AND
listen in to the VW Life Good Time Hour on VDub Radio, every Tuesday!

[don.ville]

Adjusters are normally on the same side of the bulb near the mounting screw except buses sent to some countries where they were on opposite sides of the bulb

For search

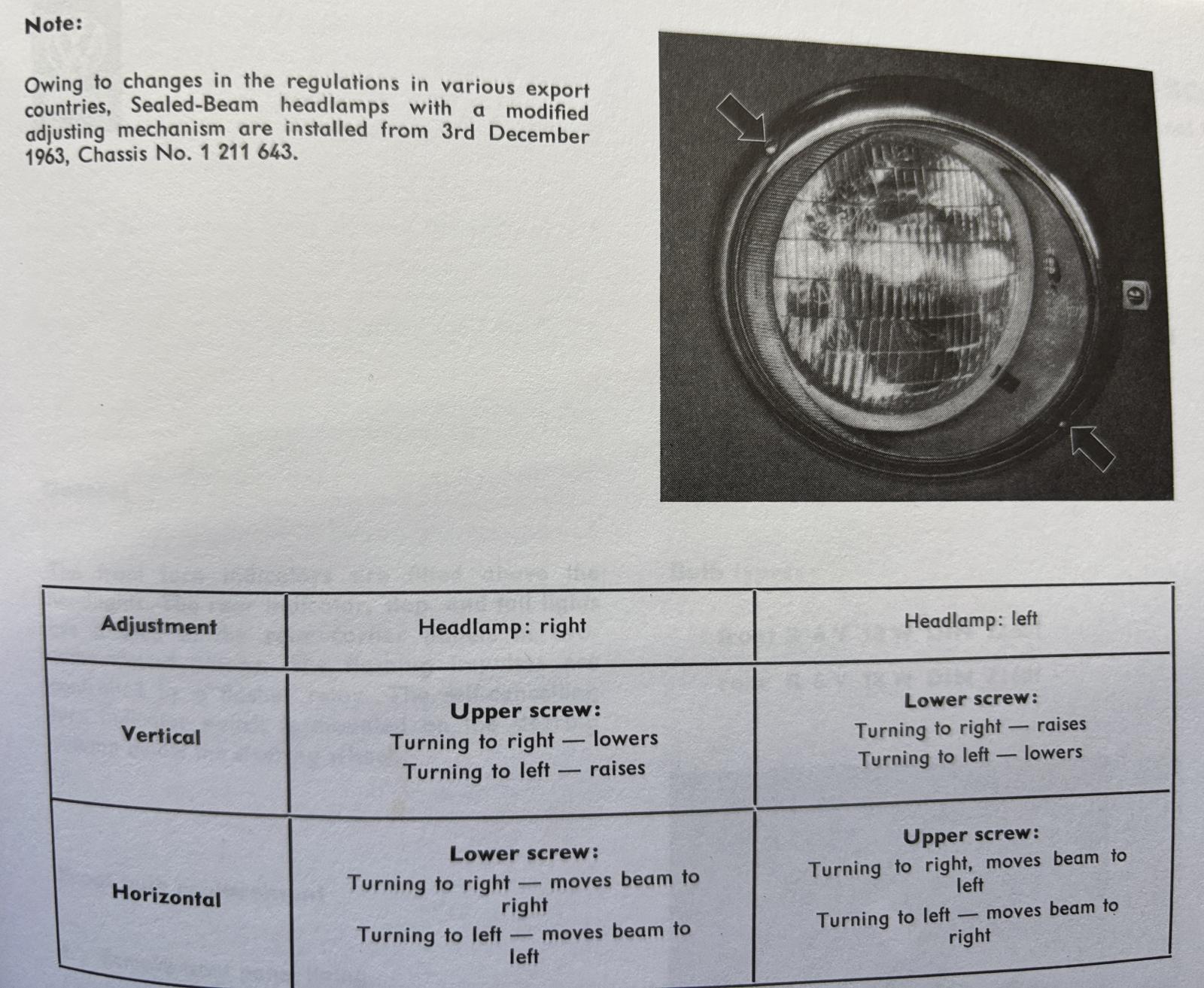

Owing to changes in the regulations in various export countries, Sealed-Beam headlamps with a modified adjusting mechanism are installed from
3rd December 1963
Chassis No. 1 211 643.
