Fuel Hose Clamps
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Perales
Samba Member


Joined: May 07, 2007
Posts: 2037
Location: Montreal
Perales is offline

PostPosted: Sat Sep 22, 2007 12:29 pm    Post subject: Fuel Hose Clamps Reply with quote

How tight should the fuel hose clamps be tightened? The hoses are under considerable pressure so you don't want them blowing off but you don't want to crush the fittings either. Anybody have any advice as to how to know if they are on tight enough?

I ordered the fuel hose replacement kit. Don't want to be the next photo of a burning van on the Samba. (man are my old hose clamps ever rusty!!)
_________________
-- 1987 Westfalia automatic (Captain Vino)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 66490
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sat Sep 22, 2007 12:35 pm    Post subject: Reply with quote

First you need the right clamp. Here are two "better" clamps, the left is German stainless with rolled edges. The right is Swedish and provides the most uniform pressure on the hose. Then you need the right size, too large a clamp is no good.
Image may have been reduced in size. Click image to view fullscreen.


I'm using the Swedish ones.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Randy in Maine
Samba Member


Joined: August 03, 2003
Posts: 34812
Location: The Beach
Randy in Maine is offline

PostPosted: Sat Sep 22, 2007 12:51 pm    Post subject: Reply with quote

I also use the ABA stainless clamps.....

http://www.ultimategarage.com/abaprice.html

#15 work well for 7mm FI hose.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9548
Location: San Diego
r39o is offline

PostPosted: Sat Sep 22, 2007 1:39 pm    Post subject: Reply with quote

The "Mercedes" fuel line clamps that the bus despot sells work fine too.

I like the smooth clamps with the rounded edges best too. The Mercedes clamps from bus despot are like that.

I would, however, NOT use them as replacements for the crimped on hose ends of the fuel injectors. Just get your injectors professionally serviced and have new hoses with new crimps installed. I did and am happy that I can sleep at night.
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!
1990 Multivan EJ 22 running well...

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 66490
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sat Sep 22, 2007 1:41 pm    Post subject: Reply with quote

Randy in Maine wrote:
I also use the ABA stainless clamps.....

http://www.ultimategarage.com/abaprice.html

#15 work well for 7mm FI hose.

Randy,

I went to his house/shop to get mine. /all I can say is INC READABLE.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
msinabottle
Samba Member


Joined: September 20, 2005
Posts: 3472
Location: Denver Area, Colorado
msinabottle is offline

PostPosted: Mon Sep 24, 2007 12:02 am    Post subject: NAPA! Reply with quote

You can get those swedish clamps (or clamps using that design) from NAPA. I use them by preference, they are JUST big enough for the injector lines, if you get the largest size.

Those are the ones on the right in the useful picture above.

Best!
_________________
'Winston,' '84 1.9 WBX Westy
Vanagon Poet Laureate: "I have suffered in
many ways, but never, never, never in silence."
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
germansupplyscott
Samba Member


Joined: May 22, 2004
Posts: 6157
Location: toronto
germansupplyscott is offline

PostPosted: Mon Sep 24, 2007 8:18 am    Post subject: Reply with quote

if you want the exact clamps used originally, we have them:

http://germansupply.com/xcart/customer/product.php?productid=17016

these are the hose clamps we have found for 7mm rubber hose. we have tired everything available from about 5 manufacturers and these OE clamps fit and clamp the best. they will only fit one size of hose, which is the smooth 7mm rubber.

we also have the crimp style clamps, that are used on the supply lines under the vehicle, where the short rubber hose pieces connect to the nylon hoses.

http://germansupply.com/xcart/customer/product.php?productid=17371
_________________
scott lyons
http://www.germansupply.com

VW Bus-Centric Online Parts Source
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
wavanagon
Samba Member


Joined: September 17, 2007
Posts: 400
Location: Everett, WA
wavanagon is offline

PostPosted: Mon Sep 24, 2007 8:34 am    Post subject: Reply with quote

Randy in Maine wrote:
I also use the ABA stainless clamps.....

http://www.ultimategarage.com/abaprice.html

#15 work well for 7mm FI hose.


Having just done this, I would say either 14 or 13 for the smooth 7mm fuel line. Unless busdepot sent me smaller diameter line, there's no way I could have gotten a 15 to stay on. I bought size 14 for my job and they are pretty close to maxed out as far as remaining thread goes. And, no, I did not over tighten. FWIW....

And yes, go w/ ultimategarage.com, they are 100% SS. I believe his name is Steve and he runs a first class business in my opinion.
_________________
1988 Vanagon GL - For Sale
1987 Westfalia
2008 Audi A4 2.0T
http://wavanagon.googlepages.com

Dirty from working on your Vanagon? Buy soap from my wife!
http://www.teatreesoap.com
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
dr. no
Samba Member


Joined: August 06, 2004
Posts: 574
Location: Santa Fe
dr. no is offline

PostPosted: Mon Sep 24, 2007 9:57 am    Post subject: Reply with quote

Quote:
I would, however, NOT use them as replacements for the crimped on hose ends of the fuel injectors. Just get your injectors professionally serviced and have new hoses with new crimps installed. I did and am happy that I can sleep at night.


That's assuming that you are entirely confident that the "professionally serviced" means that they used (or were able to get) hose that will not rot by next summer...While I don't exactly enjoy it, I don't mind changing the little short lines as much when I don't have to cut off the crimps.
_________________
Scott
http://lungehphoto.com

'83.5 Westy s/p 1.6td JX and 4sp DK transplant--wonderful!
'86 MB 300GD
'97 Z3
'14 Subaru Crosstrek Mommymobile


PAST VWs:
'82 NA diesel Vanagon
'86 7-passenger Vanagon
'77 Bay
'71 Bay
'74 Things (2)
'69 Karmann Ghia (the only one I miss--in nice weather, anyway...)
'91 Fox
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Perales
Samba Member


Joined: May 07, 2007
Posts: 2037
Location: Montreal
Perales is offline

PostPosted: Mon Sep 24, 2007 11:43 am    Post subject: Reply with quote

wavanagon wrote:
And, no, I did not over tighten. FWIW....


Which brings me back to my original question in this thread...
How tight is tight enough, but not too tight and how can you tell when you are tightening them?
_________________
-- 1987 Westfalia automatic (Captain Vino)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 40657

Wildthings is offline

PostPosted: Mon Sep 24, 2007 3:10 pm    Post subject: Reply with quote

Tight enough means they will not leak and too tight means that they will cut into and damage the hose. Just right is subjective and has to be learned by experience. Typically you can still rotate the hose on the fitting without too much effort when they are just right, (this doesn't work for larger hoses)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9627
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Thu Jul 10, 2008 9:31 am    Post subject: Reply with quote

Hey, Perales, if you followed the link above to Ultimate Garage you would have found the answer to your question.
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Perales
Samba Member


Joined: May 07, 2007
Posts: 2037
Location: Montreal
Perales is offline

PostPosted: Thu Jul 10, 2008 9:44 am    Post subject: Reply with quote

tencentlife wrote:
Hey, Perales, if you followed the link above to Ultimate Garage you would have found the answer to your question.

Gee how did I miss that..Embarassed
I guess I didn't read it carefully.. I feel silly, Oh well.

I will post a quote for local reference:

Clamps should be torqued properly to assure proper seal - for all ABA Mini clamps & Original Clamps through size #6, use 25-30 inch pounds; for Original Clamps sizes #8 through #16, use 30-40 inch pounds and for sizes #20 and higher, tighten to 40-45 inch pounds.
_________________
-- 1987 Westfalia automatic (Captain Vino)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Mon Apr 05, 2010 9:36 pm    Post subject: Reply with quote

so, is #14 the size to get for most of the line?
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RCB
Samba Member


Joined: September 05, 2005
Posts: 4144
Location: San Francisco-Bay Area
RCB is offline

PostPosted: Tue Apr 06, 2010 6:08 am    Post subject: Reply with quote

#13 is what I have for the 7mm fuel injection hose. At least thats what the ABA clamps have stamped on them. Ultimate Garage has a real fine selection of these clamps and they also have a chart that shows the inside/outside diameter of each clamp. I found the chart to be helpful in deciding what size clamp to get for each application.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Alaric.H
Samba Member


Joined: March 28, 2009
Posts: 2529
Location: Sandy Springs GA
Alaric.H is offline

PostPosted: Tue Apr 06, 2010 6:32 am    Post subject: Reply with quote

randywebb wrote:
so, is #14 the size to get for most of the line?
4 14.5 and the rest 13 for the injectors . The 4 barbs are larger so they need a bigger size. These sizes are for step less ear clamps.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Busdepot
Samba Member


Joined: March 24, 2004
Posts: 1147

Busdepot is offline

PostPosted: Tue Apr 06, 2010 7:21 pm    Post subject: Reply with quote

r39o wrote:
The "Mercedes" fuel line clamps that the bus despot sells work fine too.


That would be these:
http://busdepot.com/details.jsp?partnumber=311133515
Cheaper than the VW ones and very high quality.
_________________
- Ron Salmon
The Bus Depot
www.busdepot.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
RCB
Samba Member


Joined: September 05, 2005
Posts: 4144
Location: San Francisco-Bay Area
RCB is offline

PostPosted: Tue Apr 06, 2010 7:27 pm    Post subject: Reply with quote

Ron, do you carry different sizes of this style of clamp?? Putting a want list together.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Tue Apr 06, 2010 9:03 pm    Post subject: Reply with quote

also do you have whatever size is required for the larger hose runs?

IIRC, it is the hose from tank to the big metal filter & maybe from there thru the firewall

there are 2 listings for the 2.1L motors but they both seem to point to the same item
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9548
Location: San Diego
r39o is offline

PostPosted: Tue Apr 06, 2010 10:22 pm    Post subject: Reply with quote

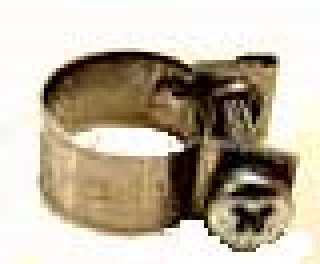

These are the ones Bus Depot sells:
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!
1990 Multivan EJ 22 running well...

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
