PostPosted: Thu Oct 18, 2007 5:46 pm    Post subject: Coil discussion Reply with quote

Original post:
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?Vi...0169726448

i will try to get that dead body to make a cutaway .....pictures will follow soon if i win the auction ...

==================
Information from later in the thread:

HeSa wrote:
A star coil is not the only correct coil for pre 1952 Splits. Infact it seems that it is incorrect for 1951 cars.

Bosch 1952 blue spare parts book lists the following:

VW 1947-1950: TE 6 A 3 früher = earlier TL 6/1
VW 1951: same as above

For Goliath the change from TL 6/1 to TE 6 A 3 is mentioned and took place on 11 November 1950. For VW the date is not mentioned.

The TE 6 coils are not star coils. They have the "reserve" place for the third connector in the bakelite as seen in the picture. The other end has a round pressing.

And it appears to be the correct coil for splits. For 1951s and for some in the range of 1947-1950. At least according to Bosch Smile

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Suboval wrote:
lzamora wrote:
I have 3 coils.... One is a TE6B1, second is a TE6A3 and the third is a star coil TL 6/1. Im trying to figure out which one is correct for a January 53 Zwitter and a May 56 oval? Any help


TL 6/1 was used before November 1, 1950
TE 6 A3 was used after November 1, 1950
Image may have been reduced in size. Click image to view fullscreen.


TE6B1 was used on August 14, 1956 starting with chasis 1261493
See Progressive Refinements, Volume 1, Electrical TAB, E-14
http://www.thesamba.com/vw/archives/manuals/progressive_refinements/

_________________
in my Garage:

1951 crotch cooler split
1971 1302 cabriolet
1981 Mercedes Benz 230 military "Gelandewagen"
2010 Mercedes Benz c200 kompressor touring
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Rollo Tomasi
Samba Member


Joined: October 08, 2006
Posts: 373
Location: Chapala Lake , Mexico. Georgetown , Texas.
Rollo Tomasi is offline

PostPosted: Thu Oct 18, 2007 6:03 pm    Post subject: Reply with quote

Again thats is not 356 pre-a , Romano should know that.
TK (fat) Porsche vs TE (thin) VW. is not that hard
Back to top
View user's profile Send private message Gallery Classifieds Feedback
53 0val
Samba Professor


Joined: July 03, 2003
Posts: 11396
Location: Irvine, CA
53 0val is offline

PostPosted: Thu Oct 18, 2007 7:43 pm    Post subject: Reply with quote

Rollo Tomasi wrote:
Again thats is not 356 pre-a , Romano should know that.
TK (fat) Porsche vs TE (thin) VW. is not that hard


Oh................he knows. Rolling Eyes
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Rollo Tomasi
Samba Member


Joined: October 08, 2006
Posts: 373
Location: Chapala Lake , Mexico. Georgetown , Texas.
Rollo Tomasi is offline

PostPosted: Thu Oct 18, 2007 10:02 pm    Post subject: Reply with quote

Someone in BC sold two TK/6 (one NOS in box one nice used) to a friend of mine as a correct star coils for his 1950 split. 600 euros he paid.
He came back to Mexico all happy with his finds and I had to tell him the truth. Crying or Very sad
Back to top
View user's profile Send private message Gallery Classifieds Feedback
HeSa
Samba Member


Joined: January 15, 2007
Posts: 466
Location: FINLAND
HeSa is offline

PostPosted: Thu Oct 18, 2007 10:53 pm    Post subject: Reply with quote

Looking at the bracket the eboy coil is neither VW nor Porsche. Good luck with the bidding Shocked
Back to top
View user's profile Send private message Gallery Classifieds Feedback
splitpartsunlimited
Samba Member


Joined: January 18, 2006
Posts: 1234
Location: Good Ol`Buenos Aires, Argentina
splitpartsunlimited is offline

PostPosted: Fri Oct 19, 2007 3:08 am    Post subject: Reply with quote

maybe the bracket is bent ????

what that star coil could be for ??????

Ricardo
_________________
in my Garage:

1951 crotch cooler split
1971 1302 cabriolet
1981 Mercedes Benz 230 military "Gelandewagen"
2010 Mercedes Benz c200 kompressor touring
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Genrich
Samba Member


Joined: February 09, 2004
Posts: 147

Genrich is offline

PostPosted: Fri Oct 19, 2007 6:56 am    Post subject: OK I'm game Reply with quote

Ok,
I need to know the difference between the TK (fat) Porsche vs TE (thin) VW.
Does anyone know? (Bob) Anyone? (John H.)......
Erich

Coil deprived as a child
_________________
5 out of 4 people have problems with fractions.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
splitpartsunlimited
Samba Member


Joined: January 18, 2006
Posts: 1234
Location: Good Ol`Buenos Aires, Argentina
splitpartsunlimited is offline

PostPosted: Fri Oct 19, 2007 8:30 am    Post subject: Reply with quote

one is thin, the other is fat , these are the differences ....

btw the thin one is not "te" it is "tl" , correct me if i am wrong

Ricardo
_________________
in my Garage:

1951 crotch cooler split
1971 1302 cabriolet
1981 Mercedes Benz 230 military "Gelandewagen"
2010 Mercedes Benz c200 kompressor touring
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Rollo Tomasi
Samba Member


Joined: October 08, 2006
Posts: 373
Location: Chapala Lake , Mexico. Georgetown , Texas.
Rollo Tomasi is offline

PostPosted: Fri Oct 19, 2007 8:42 am    Post subject: Reply with quote

Right!! the one I have here is Stamped TL 6/4 , but I remember saw TE in other car vws??

What about voltage diferencies,??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mr. patina
Samba Member


Joined: December 21, 2005
Posts: 179
Location: splitsville
mr. patina is offline

PostPosted: Fri Oct 19, 2007 8:50 am    Post subject: Reply with quote

i had it in my hands last weekend in mannheim on the veterama.
price was 50eur.
i think the star is just stamped in the top of the coil.......
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Genrich
Samba Member


Joined: February 09, 2004
Posts: 147

Genrich is offline

PostPosted: Fri Oct 19, 2007 8:51 am    Post subject: Reply with quote

Ricardo,
Do you mean the diameter of the coil itself or the bead around the "star" of the coil?
Erich
_________________
5 out of 4 people have problems with fractions.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
splitpartsunlimited
Samba Member


Joined: January 18, 2006
Posts: 1234
Location: Good Ol`Buenos Aires, Argentina
splitpartsunlimited is offline

PostPosted: Fri Oct 19, 2007 9:19 am    Post subject: Reply with quote

NO , I MEAN THE DIAMETER OF THE COIL BY ITSELF ....IT IS ABOUT 52MM FOR THE THIN , BUT I DON`T HAVE A FAT ONE TO MEASURE ...

WAS ROMANO SELLING THAT COIL AT VETERAMA ??
_________________
in my Garage:

1951 crotch cooler split
1971 1302 cabriolet
1981 Mercedes Benz 230 military "Gelandewagen"
2010 Mercedes Benz c200 kompressor touring
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Rollo Tomasi
Samba Member


Joined: October 08, 2006
Posts: 373
Location: Chapala Lake , Mexico. Georgetown , Texas.
Rollo Tomasi is offline

PostPosted: Fri Oct 19, 2007 9:21 am    Post subject: Reply with quote

I will measure the diameter of the TK(fat) on my 52
Back to top
View user's profile Send private message Gallery Classifieds Feedback
johnshenry Premium Member
Samba Member


Joined: September 21, 2001
Posts: 9207
Location: Dunstable, MA USA
johnshenry is offline

PostPosted: Fri Oct 19, 2007 10:03 am    Post subject: Reply with quote

I have both kinds at home, will measure tonight....
_________________
John Henry

'57 Deluxe
'56 Single Cab
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1325
Location: Finland
virtanen is offline

PostPosted: Fri Oct 19, 2007 10:05 am    Post subject: Reply with quote

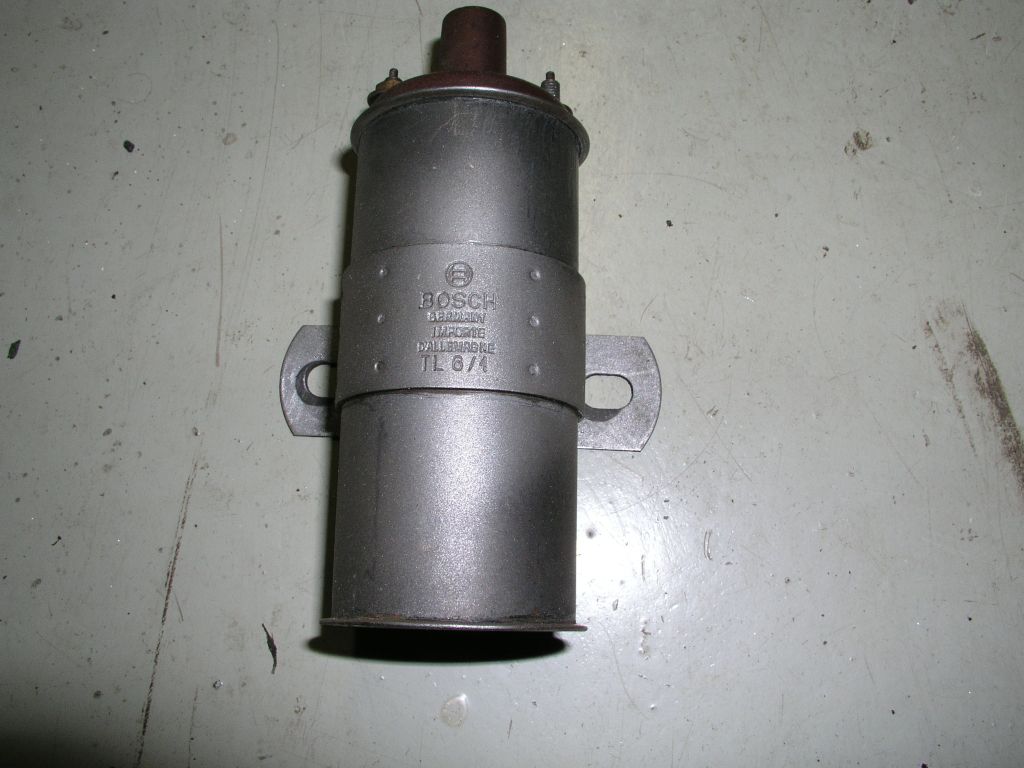

My thin TL 6/1 dia is ca. 52.2 mm

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

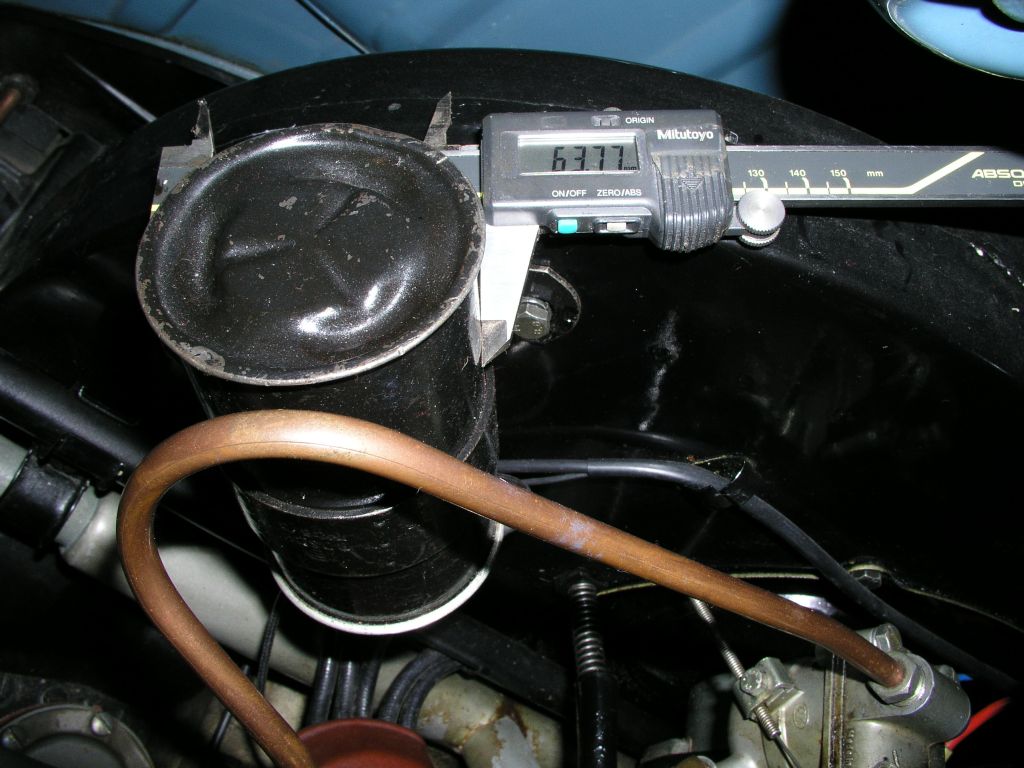

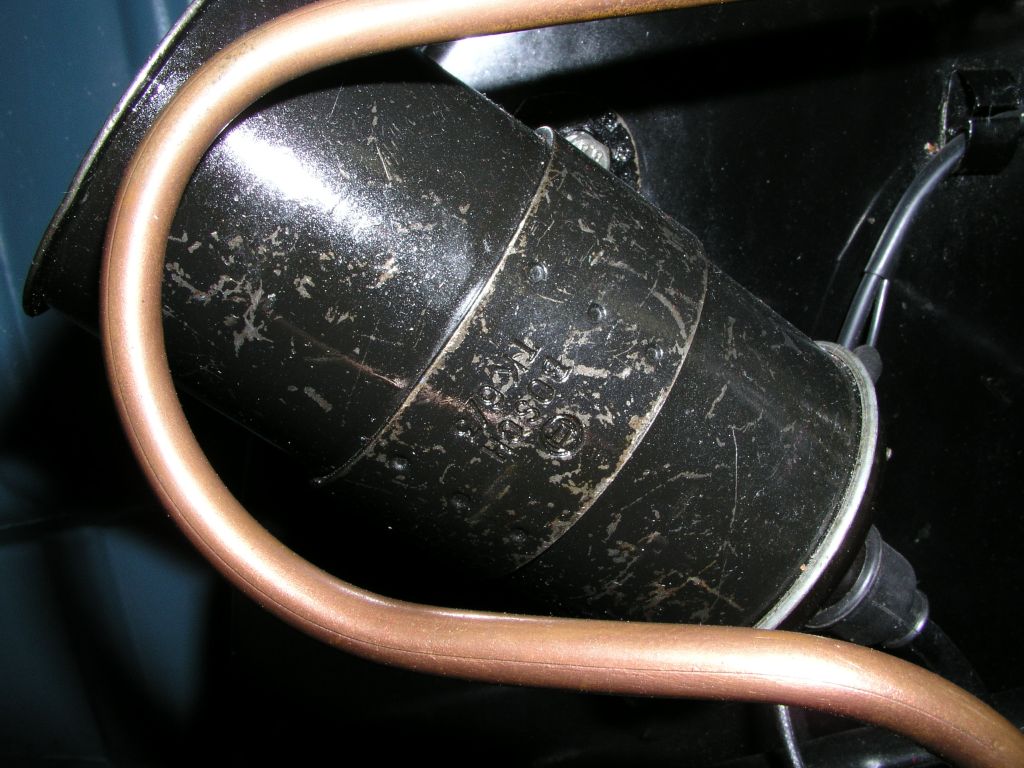

My fat TK6/3 dia is ca. 63.8 mm
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
billmetric
Samba Member


Joined: March 16, 2006
Posts: 1042
Location: Columbus City USA
billmetric is offline

PostPosted: Sun Oct 21, 2007 8:06 am    Post subject: Reply with quote

interesting style of coil there but obviously neither a VW nor Porsche with that type of mounting, looks like a possible bargain if you need a wrong part that hasnt been "proofed" the seller should know better than to represent it as a VW part ...
_________________
There is an idea of a Billmetric; some kind of abstraction. But there is no real me: only an entity, something illusory. And though I can hide my cold gaze, and you can shake my hand and feel flesh gripping yours and maybe you can even sense our lifestyles are probably comparable... I simply am not there...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oldbarnvws
Samba Member


Joined: December 17, 2006
Posts: 9
Location: gamble city , nevada
oldbarnvws is offline

PostPosted: Sun Oct 21, 2007 8:23 am    Post subject: Reply with quote

no surprises here .....do you know who`s selling the coil ? the good ol`romano !
Back to top
View user's profile Send private message Classifieds Feedback
johnshenry Premium Member
Samba Member


Joined: September 21, 2001
Posts: 9207
Location: Dunstable, MA USA
johnshenry is offline

PostPosted: Sun Oct 21, 2007 11:39 am    Post subject: Reply with quote

My skinny one is marked "TL 6/1"
_________________
John Henry

'57 Deluxe
'56 Single Cab
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
mr. patina
Samba Member


Joined: December 21, 2005
Posts: 179
Location: splitsville
mr. patina is offline

PostPosted: Sat Oct 27, 2007 2:47 am    Post subject: Reply with quote

yes, ricardo, romano was the seller and is also the seller of the coil on ebay.
i saw some tk12 coils today, they cost around 80eur.
thomas
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
HeSa
Samba Member


Joined: January 15, 2007
Posts: 466
Location: FINLAND
HeSa is offline

PostPosted: Tue Oct 30, 2007 3:58 pm    Post subject: Reply with quote

A star coil is not the only correct coil for pre 1952 Splits. Infact it seems that it is incorrect for 1951 cars.

Bosch 1952 blue spare parts book lists the following:

VW 1947-1950: TE 6 A 3 früher = earlier TL 6/1
VW 1951: same as above

For Goliath the change from TL 6/1 to TE 6 A 3 is mentioned and took place on 11 November 1950. For VW the date is not mentioned.

The TE 6 coils are not star coils. They have the "reserve" place for the third connector in the bakelite as seen in the picture. The other end has a round pressing.

And it appears to be the correct coil for splits. For 1951s and for some in the range of 1947-1950. At least according to Bosch Smile

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by HeSa on Wed Oct 31, 2007 12:34 am; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Split-Window/1938-53 VWs All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
