 Posted: Thu Aug 10, 2006 8:35 pm Post subject: 2 heater knobs? |
 |
|
My '66 deluxe has two holes under the drivers seat for heater knobs, one of which is occupied. It looks like the empty hole has wear around it -- like it had a knob at one point possibly? My m-code says something about a delete plate and I think it means the plugged heater branch near the back where one tube goes to the back seat. So, should I have another heater knob hooked up to the left heater box to control the heat in back?
_________________
Looking for...
- fuse cover (8-fuse for my '66 bus) |
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71572
Location: Phoenix 602
|
| Posted: Fri Aug 11, 2006 8:32 am Post subject: |
|
|
The single heat knob controls both cables.
I think the other hole is either something someon added or possibly for a gas heater. Does it appear to have had a gas heater installed?
The "plugged tube" is normal for a Standard or Deluxe Bus as one heater box goes directly to the back seat outlet and one comes up front instead of both heading up front.
What does your M-code plate say?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
edgruberman
Samba Member
Joined: July 08, 2005
Posts: 69
Location: Carlsbad (San Diego)
|
| Posted: Fri Aug 11, 2006 9:04 am Post subject: |
|
|
The code I was referring to:
002 - USA sealed beam headlights, Pre-heat flap delete
As for the other hole...it looks pretty stock. I will take a picture when I get home. I also have the full m-code at home so I'll post that. These pics are some I found in the gallery of my bus before I bought it. What might be evidence of a gas heater? Is this where it would have been?
Here's a pic -- there is some sort of knob but it isn't there anymore.
_________________
Looking for...
- fuse cover (8-fuse for my '66 bus) |
|
| Back to top |
|
|
_monkey_
Samba Monkey
Joined: April 11, 2005
Posts: 1584
Location: New England
|
| Posted: Fri Aug 11, 2006 9:15 am Post subject: |
|
|
| edgruberman wrote: |
What might be evidence of a gas heater? Is this where it would have been?
|
That is where the gas heater would go. What's that cable that seems to be just hanging right there? Maybe that is the no longer connected gas heater control cable? |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71572
Location: Phoenix 602
|
|
| Back to top |
|
|
edgruberman
Samba Member
Joined: July 08, 2005
Posts: 69
Location: Carlsbad (San Diego)
|
| Posted: Fri Aug 11, 2006 9:59 am Post subject: |
|
|
Okay, so I think I can be sure it had a gas heater. It looks like there could be some aftermarket ones and some dealer installed ones. Is there any way to tell? The engine compartment pic shows a delete plate in the tire well and maybe the knob is a giveaway. Any clues? I am so excited...there is ANOTHER thing I can try to find for my bus.
_________________
Looking for...
- fuse cover (8-fuse for my '66 bus) |
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Fri Aug 11, 2006 2:31 pm Post subject: |
|
|
Those are controls for an Eberspacher BN4 6-volt gas heater.
That big wad of fiberglass is covering a rectangular hole next to your wheelwell. The heater duct passes through that. Do a gallery search for "BN4" so you know what you are looking for.
That switch lights up when turned on. |
|
| Back to top |
|
|
Tim
Samba Member
Joined: September 04, 2003
Posts: 170
Location: Texas
|
| Posted: Fri Aug 11, 2006 4:38 pm Post subject: |
|
|
Here is a picture that shows the BN4 installed:
_________________
How we spend our days is, of course, how we spend our lives.
Annie Dillard
55 Rag Top
67 Westy |
|
| Back to top |
|
|
arthurnugen
Samba Member
Joined: January 11, 2005
Posts: 3081
Location: The PNW, where "going green" means rolling with moss.
|
| Posted: Fri Aug 11, 2006 4:50 pm Post subject: |
|
|
| Major Woody wrote: |
Those are controls for an Eberspacher BN4 6-volt gas heater.
That big wad of fiberglass is covering a rectangular hole next to your wheelwell. The heater duct passes through that. Do a gallery search for "BN4" so you know what you are looking for.
That switch lights up when turned on. |
I have the same ivory switch for my Stewart-Warner heater, except it is to the right of the regular heater knob. Did SW and Eberspacher use the same switch? Mine doesn't light up and I doubt that one does, but I could be wrong. Could have had an SW in there.
_________________
| cdennisg wrote: |
| Lawyers don't deserve buses. |
| zozo wrote: |
| Don't worry too much. You can always trust a lawyer. |
ALWAYS WEAR STEEL-TOE BOOTS IN THE GARAGE!
1965 Bus (Riviera camper)
1972 Bug 'vert
1967 Bug sunroof
1961 Ghia 'vert
1957 DKW 3=6: 3 cylinder 2 stroke! |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19835
Location: Land of Whine and Phonies
|
| Posted: Sat Aug 12, 2006 3:28 pm Post subject: |
|
|
| arthurnugen wrote: |
| Major Woody wrote: |
Those are controls for an Eberspacher BN4 6-volt gas heater.
That big wad of fiberglass is covering a rectangular hole next to your wheelwell. The heater duct passes through that. Do a gallery search for "BN4" so you know what you are looking for.
That switch lights up when turned on. |
I have the same ivory switch for my Stewart-Warner heater, except it is to the right of the regular heater knob. Did SW and Eberspacher use the same switch? Mine doesn't light up and I doubt that one does, but I could be wrong. Could have had an SW in there. |
They used different switches. that picture doesn't look like a German switch to me. If you pull the switch out and can turn it to click it on it isn't a BN4 switch.
BN4 switch-

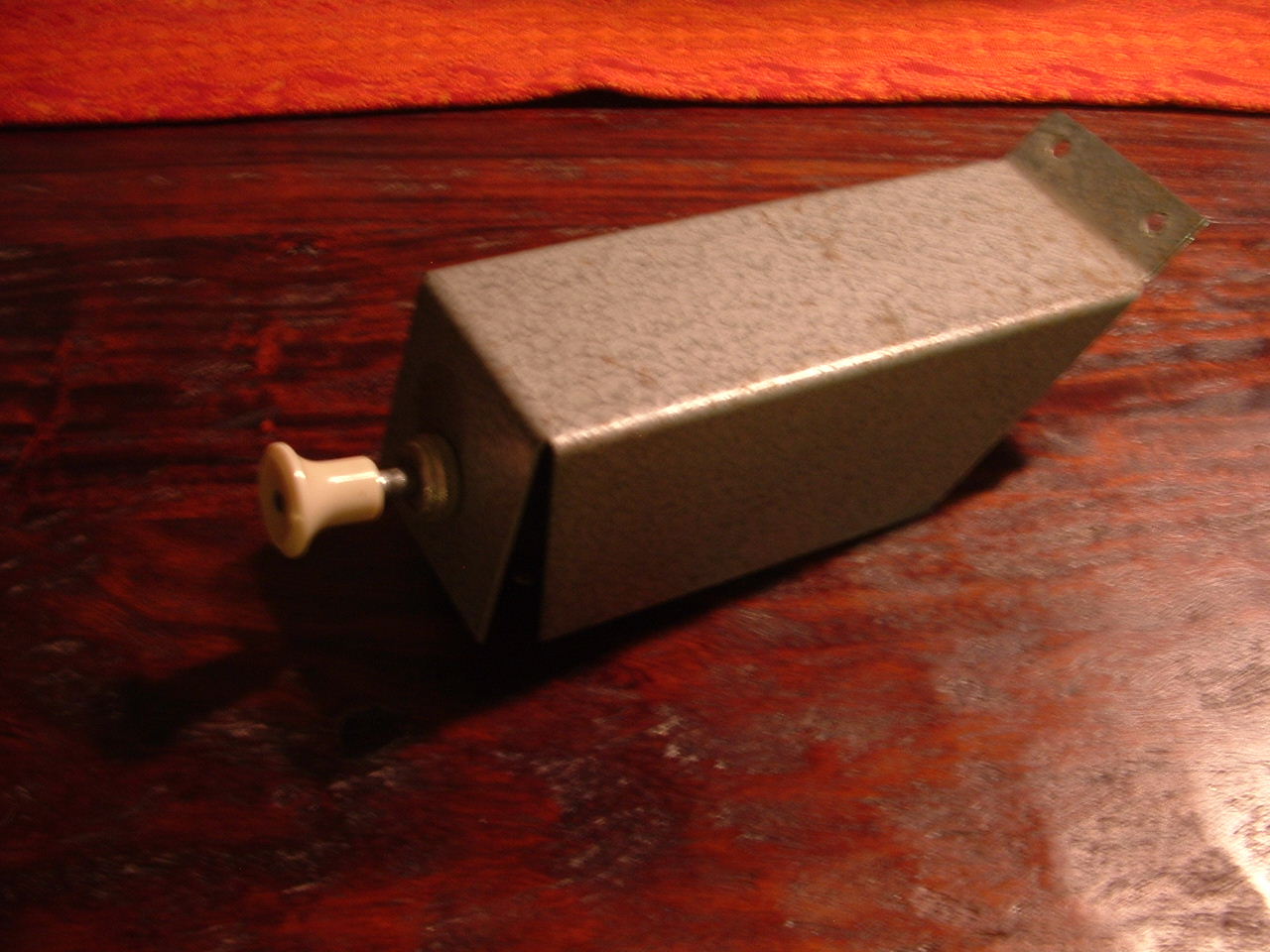

it lights up and this is the correct cover-
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
Russ Wolfe
Samba Member
Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
|
| Posted: Sat Aug 12, 2006 7:37 pm Post subject: |
|
|
Here are the manuals for both the Eberspacher and the Southwind heaters.
http://classicvw.org/eberspacher/
Both put the switch below the drivers seat, except for a few special heaters. These were mounted under the dash, on the passengers side, and were very rare.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey
Gary: OK. Ima poop. |
|
| Back to top |
|
|
edgruberman
Samba Member
Joined: July 08, 2005
Posts: 69
Location: Carlsbad (San Diego)
|
| Posted: Sat Aug 12, 2006 8:50 pm Post subject: |
|
|
So both heaters would have needed to remove the spare tire well? It would seem at first glance that the SW did and the Eberspacher didn't.
_________________
Looking for...
- fuse cover (8-fuse for my '66 bus) |
|
| Back to top |
|
|
arthurnugen
Samba Member
Joined: January 11, 2005
Posts: 3081
Location: The PNW, where "going green" means rolling with moss.
|
| Posted: Sat Aug 12, 2006 10:49 pm Post subject: |
|
|
All I know is my switch is under the passenger seat in what looks like a stock switch area. Go figure.
_________________
| cdennisg wrote: |
| Lawyers don't deserve buses. |
| zozo wrote: |
| Don't worry too much. You can always trust a lawyer. |
ALWAYS WEAR STEEL-TOE BOOTS IN THE GARAGE!
1965 Bus (Riviera camper)
1972 Bug 'vert
1967 Bug sunroof
1961 Ghia 'vert
1957 DKW 3=6: 3 cylinder 2 stroke! |
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Sat Aug 12, 2006 10:56 pm Post subject: |
|
|
With the Southwind, you had to remove the spare tire well on a walkthru.
With the Eberspacher, you did not.
I don't know about the switches. |
|
| Back to top |
|
|
arthurnugen
Samba Member
Joined: January 11, 2005
Posts: 3081
Location: The PNW, where "going green" means rolling with moss.
|
| Posted: Sat Aug 12, 2006 11:03 pm Post subject: |
|
|
| edgruberman wrote: |
| So both heaters would have needed to remove the spare tire well? It would seem at first glance that the SW did and the Eberspacher didn't. |
My SW is pretty bulky compared to the Eber, which is pretty streamlined. Of course, my camper was built from a panel (no rear vents) so the spare tire well was not an issue with the bench seat arrangement.
_________________
| cdennisg wrote: |
| Lawyers don't deserve buses. |
| zozo wrote: |
| Don't worry too much. You can always trust a lawyer. |
ALWAYS WEAR STEEL-TOE BOOTS IN THE GARAGE!
1965 Bus (Riviera camper)
1972 Bug 'vert
1967 Bug sunroof
1961 Ghia 'vert
1957 DKW 3=6: 3 cylinder 2 stroke! |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10224
Location: idaho
|
| Posted: Sat Aug 12, 2006 11:34 pm Post subject: |
|
|
| edgruberman wrote: |
| Okay, so I think I can be sure it had a gas heater. It looks like there could be some aftermarket ones and some dealer installed ones. Is there any way to tell? The engine compartment pic shows a delete plate in the tire well and maybe the knob is a giveaway. Any clues? I am so excited...there is ANOTHER thing I can try to find for my bus. |
I used to own that bus.
it had a stewart warner southwind gas heater that was removed before I got the bus.
there are very few things that the bus is missing.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
edgruberman
Samba Member
Joined: July 08, 2005
Posts: 69
Location: Carlsbad (San Diego)
|
| Posted: Sun Aug 13, 2006 9:00 am Post subject: |
|
|
Cool! I'm glad to hear a little history about my bus. I am not going to try to find a heater to put in it after all...I like the spare tire well where it is. I might make an effort to block off the hole between the cabin and the engine compartment a little better to keep any fumes out. For what it is worth, I am taking good care of it and keeping it original with only old stock repairs here and there.
_________________
Looking for...
- fuse cover (8-fuse for my '66 bus) |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26007
Location: Olympia Wash Rinse & Repeat
|
| Posted: Sun Aug 13, 2006 9:49 am Post subject: |
|
|
Hi edgruberman,
Get rid of the loose fiberglass in the engine compartment. Seal off the hole with sheetmetal instead. Even if the fiberglass main body stayed where it is. Bits of it will come off and clog off cooling slots on the engine under the cooling tins.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
derv
Samba Member
Joined: October 12, 2005
Posts: 2601
Location: Oak Park (Chicago), IL
|
| Posted: Sun Aug 13, 2006 11:11 am Post subject: |
|
|

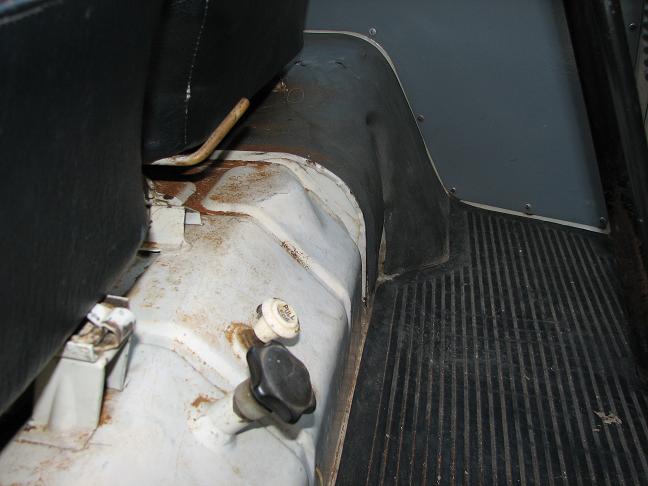

Here is the heater knob in the Casino Kombi - which is the first bus I have owned that is plumbed for a gas heater (besides a fatchick)...
