Heater Valve Control Cable Mod
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Sat Feb 02, 2008 9:42 pm    Post subject: Heater Valve Control Cable Mod Reply with quote

I have had three Vanagons and they all bent the heater control cable right at the operating lever. Since I had the dash off today I decided to see if I could improve things. I shortened the center wire of the cable almost 1 1/2 inches and then repositioned the sheath so the cable operated normally. I also had to bend the tap where the inner wire hooks upwards a little. Very easy mod if you have the dash off. Looks like it should work well.



Here is the original set up. You can see that the center wire has been bent at some point in the past.

Image may have been reduced in size. Click image to view fullscreen.




Here is the cable after modification.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Sun Feb 03, 2008 3:03 pm    Post subject: Reply with quote

Take a good lok at these picture's.
From my vantage point, and from what I'm seeing is , you've lengthened the outer cable so much in it stop that the inner cable isn't going to able to move more than a hair.

What I see is, you just lenghtened the inner cable so much, and so close to the lever, that the inner cable isn't going to be able to move anything.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 9752
Location: Where?
?Waldo? is offline

PostPosted: Sun Feb 03, 2008 3:14 pm    Post subject: Reply with quote

Terry, from my vantage point it looks like the lever is all the way toward the sheath in it's pictured position and so it would in fact have a full range of motion away from the sheath.

Andrew
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Sun Feb 03, 2008 3:51 pm    Post subject: Reply with quote

The heat is all the way OFF in both pictures. The lever can not move any more to the left even in the top pic do to the physical limitations of the original design. The heat is turned ON by moving the lever to the right, the action of the lever is normal.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Sun Feb 03, 2008 9:20 pm    Post subject: Reply with quote

Gotcha---

The maybe reason the inner cable got twisted up is the outer must have slipped in the holder, and the outer went back too far.

Who know's---??
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Mon Feb 04, 2008 3:33 pm    Post subject: Reply with quote

Terry Kay wrote:
Gotcha---

The maybe reason the inner cable got twisted up is the outer must have slipped in the holder, and the outer went back too far.

Who know's---??


I went out and checked the other two WBX Vanagons I have parked out back. They were both set up as in the top picture. Both have given trouble in the past with the cables bending.

The 91 is scheduled to have the dash pulled to get a new heater motor as soon as I can find were I set the darn thing down. I intend to make the same heater cable mod to it while I am in there.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
redcanoe
Samba Member


Joined: August 13, 2007
Posts: 150

redcanoe is offline

PostPosted: Sun Apr 19, 2009 9:48 pm    Post subject: heater control cable time estimate Reply with quote

I saw Wildthings post some time back. When my cable bent I was unable to lower the heat output. The control lever was over in the 'hot' postion and wouldn't move towards 'cold' more than halfway and was very spring-like due to the bend. I shortened up on the center cable until the connection to the lever was just the other side of the bend. Now my lever moves fully to the cold position on the left but only goes about 70% of the way to the hot positon.

While I'm not cooking all the time it seems that I can't shut the heat off entirely even when all the way left to the 'cold' postion where I should be just getting outside airflow. Shorter inner cable perhaps is not pushing the thermostat lever as far as it should go.

I have had the instrument cluster off, or at least disconnected enough to get it out of the way. Still a bugger of a place to work in. I was also underneath the clamshell to have a look but have not tried to get my hands up there to do any disconnects. Looks like a bugger too.

Good response to my question, thanks a bunch folks.
Back to top
View user's profile Send private message Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Mon Apr 20, 2009 9:14 am    Post subject: Reply with quote

You may need to get the length of the inner and outer cables correct to work with each other. I shortened my inner cable a little too much at first and I couldn't shut the flow off fully, I then had to shorten the outer just a bit to match and it has worked well since.

The heater control valves can go bad as well. In particular they may get where they still pass coolant even in the fully closed position, no adjustment of the cable can help you then.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Mon Apr 20, 2009 9:22 am    Post subject: Reply with quote

To make this job a bunch simpler, get somebody under the Van to keep an eye on the valve as you adjust/ cut the cable, to get a full swing on the lever on the valve.

If you still got heat and the cable is giving full swing from full open to full closed postion, put an accessory heater shut off valve in the heater feed hose and be done with it.

The stock plastic front shut off valves are garbage, and don't do the job they were intended to do-not for very long anyway.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2160
Location: PA
Zero419 is offline

PostPosted: Mon May 21, 2012 7:14 am    Post subject: Reply with quote

can this adjustment be done with the dash in place?
_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Mon May 21, 2012 9:01 am    Post subject: Reply with quote

The dash can stay in place, but you will have to drop the spare tire to access the valve, cable & retaining clip.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Mon May 21, 2012 9:38 am    Post subject: Reply with quote

Terry Kay wrote:
The dash can stay in place, but you will have to drop the spare tire to access the valve, cable & retaining clip.


I have done it all from the top with the dash in place. Not easy, but doable.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slimvest
Samba Member


Joined: March 20, 2014
Posts: 431
Location: Portland, OR
Slimvest is offline

PostPosted: Mon Feb 16, 2015 9:24 am    Post subject: Reply with quote

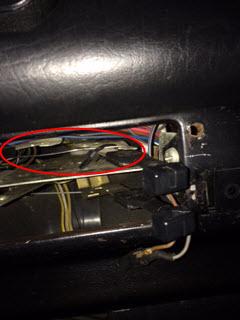

Either my cable went bad or the heater valve is getting stiff, which caused the cable to bend at the dash control over the weekend. After cursing a bit over the fact that I just had the coolant system worked on and bled a month ago, I came up with this:

Image may have been reduced in size. Click image to view fullscreen.


Not sure how long it will last, but the zip tie is preventing the cable from bowing/bending when I move the lever to the cool side. Problem solved...until it isn't. Laughing
_________________
'87 GL w/ Reimo top
Back to top
View user's profile Send private message Gallery Classifieds Feedback
t3 kopf
Samba Member


Joined: October 22, 2012
Posts: 1112
Location: over by 'der
t3 kopf is offline

PostPosted: Mon Feb 16, 2015 2:36 pm    Post subject: Reply with quote

When my cable did that, I relocated my valve inside the cabin and made it manual. I put it behind the kick panel in the heater core line in. When I want heat, I just open the glovebox, reach behind and turn the lever.
_________________
'90 Carat w/ '95 phase 1 EJ22 OBD2 conversion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1vw4x4
Banned


Joined: June 22, 2005
Posts: 472
Location: Pgh. PA
1vw4x4 is offline

PostPosted: Mon Feb 16, 2015 9:49 pm    Post subject: Reply with quote

This can easily be fixed by straightening the cable. Add a little lube
and never force the lever again.
I'm not sure why these get stiff, but my newest Syncro an 1988 has very low mileage on it. This lever is extremely easy to throw.


Slimvest wrote:
Either my cable went bad or the heater valve is getting stiff, which caused the cable to bend at the dash control over the weekend. After cursing a bit over the fact that I just had the coolant system worked on and bled a month ago, I came up with this:

Image may have been reduced in size. Click image to view fullscreen.


Not sure how long it will last, but the zip tie is preventing the cable from bowing/bending when I move the lever to the cool side. Problem solved...until it isn't. Laughing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slimvest
Samba Member


Joined: March 20, 2014
Posts: 431
Location: Portland, OR
Slimvest is offline

PostPosted: Tue Feb 17, 2015 12:08 pm    Post subject: Reply with quote

Quote:
This can easily be fixed by straightening the cable. Add a little lube
and never force the lever again.


Trying to do this without having the dash out? Straightening sounds tough. I also found the 2nd point of contact that the zip tie is providing really helped.
_________________
'87 GL w/ Reimo top


Last edited by Slimvest on Tue Feb 17, 2015 1:19 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 16450
Location: Brookeville, MD
dobryan is offline

PostPosted: Tue Feb 17, 2015 12:46 pm    Post subject: Reply with quote

Slimvest wrote:
Either my cable went bad or the heater valve is getting stiff, which caused the cable to bend at the dash control over the weekend. After cursing a bit over the fact that I just had the coolant system worked on and bled a month ago, I came up with this:

Image may have been reduced in size. Click image to view fullscreen.


Not sure how long it will last, but the zip tie is preventing the cable from bowing/bending when I move the lever to the cool side. Problem solved...until it isn't. Laughing


I have done exactly that mod in the past. Worked great! Very Happy
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rwflyboy
Samba Member


Joined: April 06, 2014
Posts: 21
Location: United States
rwflyboy is offline

PostPosted: Thu Sep 15, 2016 6:04 pm    Post subject: Reply with quote

Gonna give this one a try. I was hoping to find a way not to have to pull the dash if I didnt have too.. Also the lowest cable is also bent and not functioning. Will have to see if I can do the same with that one.
Slimvest wrote:
Either my cable went bad or the heater valve is getting stiff, which caused the cable to bend at the dash control over the weekend. After cursing a bit over the fact that I just had the coolant system worked on and bled a month ago, I came up with this:

Image may have been reduced in size. Click image to view fullscreen.


Not sure how long it will last, but the zip tie is preventing the cable from bowing/bending when I move the lever to the cool side. Problem solved...until it isn't. Laughing

_________________
Randy


1976 Westy Raby type 4 Camper Special
purch 5/3/14
1982 Vanagon Westy Diesel 1.6NA
purch 4/3/15
1987 Doka Fire Truck
purch 4/1/16
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shagginwagon83
Samba Member


Joined: February 07, 2016
Posts: 3771
Location: VA/TN
shagginwagon83 is offline

PostPosted: Wed Apr 03, 2019 5:20 am    Post subject: Re: Heater Valve Control Cable Mod Reply with quote

I did this yesterday without having to pull the dash. I replaced the cable because mine was bent. Thanks Wildthings for the post.
_________________
Brandon
"Jo Ann" - '83.5 Westfalia EJ22e w/Peloquin
Instagram @joannthevan
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
AZ Landshaper
Samba Member


Joined: February 08, 2009
Posts: 1698
Location: The Old Pueblo
AZ Landshaper is offline

PostPosted: Wed Apr 03, 2019 5:52 am    Post subject: Re: Heater Valve Control Cable Mod Reply with quote

Funny thing. I spent anhour yesterday trying to adjust a heater cable that was bent and stuck on. Almost 85 degrees in the desert this week and the heat in NOT needed.

Im gonna try this. And then get that AC rolling.
_________________
Support Small Business.

-------------------------------------------------------
85 Weekender w/ EJ22
Previously
64, 71, 72, 73, 76, 81, 84, 85 & 87 Campmobiles and Westfalias
and a 67 bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
