| Author |
Message |
slow36hp
scott wimberley
Joined: August 09, 2004
Posts: 3113
Location: mukilteo washington
|
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71759
Location: Phoenix 602
|
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
 Posted: Tue Feb 19, 2008 9:27 am Post subject: |
 |
|
yes, you do not use the later style "plastic" bushing. it will not fit, as you have found out already.
the early bracket and spring are totally different from the later version.

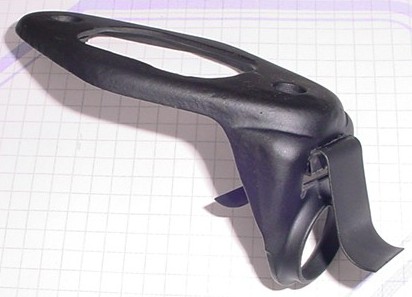

here is what the "m" springs look like out of the bracket. no, they are not for sale, don't ask. does anyone have a source for the M springs?
there may not be any bushings on the long rod either. does the long rod pass through a tube, or is it exposed when it is installed? (can you see the actual rod when it is in the bus and you are under the bus?) if it does not go in a tube, there are no bushings on the rod, only the weird 3-fingered bushing as seen in center of the pic above (no, that is not for sale either). that clips in to the front crossmember, and that is the only long rod guide until it gets to the rear coupler/transmission. if there are no holes in the long shift rod, i would guess there is no tube for it to pass through.
only if your long shift rod passes through a tube will it get the two "plastic" bushings on it. |
|
| Back to top |
|
|
slow36hp
scott wimberley
Joined: August 09, 2004
Posts: 3113
Location: mukilteo washington
|
|
| Back to top |
|
|
perello
Samba Member
Joined: April 15, 2005
Posts: 895
Location: where social security comes for free
|
| Posted: Tue Feb 19, 2008 1:29 pm Post subject: |
|
|
should I understand that M springs are difficult to find?
Oh gosh, mine needs to be replaced.....  |
|
| Back to top |
|
|
slow36hp
scott wimberley
Joined: August 09, 2004
Posts: 3113
Location: mukilteo washington
|
|
| Back to top |
|
|
mintonman
Samba Member
Joined: October 20, 2003
Posts: 4246
Location: between Trenton NJ. & Philly Pa.
|
| Posted: Tue Feb 19, 2008 8:46 pm Post subject: |
|
|
| perello wrote: |
should I understand that M springs are difficult to find?
Oh gosh, mine needs to be replaced..... |
Yes, & someone needs to start reproducing them, both mine have holes worn through.
_________________
Hoockd on fonicks werkt for mee?
under the influance "DUH" |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15394
Location: Casa de Oro, California
|
| Posted: Wed Feb 20, 2008 8:47 am Post subject: |
|
|
| Couldn't you use the later style shift guide bracket and nylon sleeve with the old shift rod or is the diameter altogether different? |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Wed Feb 20, 2008 8:49 am Post subject: |
|
|
| mintonman wrote: |
| perello wrote: |
should I understand that M springs are difficult to find?
Oh gosh, mine needs to be replaced..... |
Yes, & someone needs to start reproducing them, both mine have holes worn through. |
i am currently in the process of getting an estimate from a spring manufacturer. |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12646
|
| Posted: Wed Feb 20, 2008 8:52 am Post subject: |
|
|
| BarryL wrote: |
| Couldn't you use the later style shift guide bracket and nylon sleeve with the old shift rod or is the diameter altogether different? |
yes you can.
I think you then have to shim the shifter under the bus between the floor and the new/later guide. you can use a couple washers. I think it needs a bit more space there if you do it that way.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Wed Feb 20, 2008 8:53 am Post subject: |
|
|
i had a later (post 59) front bracket and bushing on my 59 and it made shifting difficult. i found the correct early parts, put them on, and since then the shifter works great.
http://www.thesamba.com/vw/forum/viewtopic.php?t=220206 |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Wed Feb 20, 2008 2:10 pm Post subject: |
|
|
| hazetguy wrote: |
| mintonman wrote: |
| perello wrote: |
should I understand that M springs are difficult to find?
Oh gosh, mine needs to be replaced..... |
Yes, & someone needs to start reproducing them, both mine have holes worn through. |
i am currently in the process of getting an estimate from a spring manufacturer. |
i got a quote from a spring manufacturer this afternoon. this will NOT be an inexpensive proposition. however, if anyone is interested in getting some, please PM me and i will start a list to see if there is enough interest to warrant spending the money on this.
it looks like i would be able to sell them for between $25-$30 each, and that would include shipping. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71759
Location: Phoenix 602
|
|
| Back to top |
|
|
gatorwyatt
Samba Member
Joined: April 24, 2002
Posts: 1889
Location: Clearwater Fl.
|
| Posted: Wed Feb 20, 2008 5:08 pm Post subject: |
|
|
jon... 4 for me
_________________
www.blastserv.com
wanted:
Nothing! |
|
| Back to top |
|
|
faster
Samba Member
Joined: September 25, 2005
Posts: 1386
Location: Ga.
|
| Posted: Wed Feb 20, 2008 6:31 pm Post subject: |
|
|
McMaster-Carr sells spring steel for penneys. I would think that someone with an og to copy and a couple pairs of needle nose pliers torch & bucket of oil could make them for next to nothing. Theres some toolmaker on here that I`m sure could handle it with no problem.
|
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Wed Feb 20, 2008 6:46 pm Post subject: |
|
|
| faster wrote: |
McMaster-Carr sells spring steel for penneys. I would think that someone with an ORIGINAL to copy and a couple pairs of needle nose pliers torch & bucket of oil could make them for next to nothing. Theres some toolmaker on here that I`m sure could handle it with no problem.
|
sweet! send them to this thread! i would love to see what they say about making multiple copies these with needle nose pliers and a torch. that would save me lots of up front money instead of having them properly stamped and heat treated.
it they are so easy to make, why hasn't anyone done it yet?
Last edited by hazetguy on Wed Feb 20, 2008 9:03 pm; edited 3 times in total |
|
| Back to top |
|
|
derv
Samba Member
Joined: October 12, 2005
Posts: 2601
Location: Oak Park (Chicago), IL
|
| Posted: Wed Feb 20, 2008 6:50 pm Post subject: |
|
|
I was waiting for it Jon.
Ill take one set also -
_________________
Jack
| Quote: |
| Mr. Hido: To post your bare ass to virtually all hardened bus enthusiasts casts thick, a slag not easily ground smooth. |
|
|
| Back to top |
|
|
faster
Samba Member
Joined: September 25, 2005
Posts: 1386
Location: Ga.
|
| Posted: Wed Feb 20, 2008 7:23 pm Post subject: |
|
|
| hazetguy wrote: |
| faster wrote: |
McMaster-Carr sells spring steel for penneys. I would think that someone with an ORIGINAL to copy and a couple pairs of needle nose pliers torch & bucket of oil could make them for next to nothing. Theres some toolmaker on here that I`m sure could handle it with no problem.
|
sweet! send them to this thread! i would love to see what they say about making multiple copies these with needle nose pliers and a torch. that would save me lots of up front money instead of having them properly stamped and heat treated.
it they are so easy to make, why hasn't anyone done it yet?
here's a side profile:
|
Ok. So send me a couple of og`s and I`ll have some of are southern friends make them here in Ga. You know your in the south now don`t you.
Look I `ll pay the shipping and you`ll not only get your og`s back but 10+ copies for your time (it`s a southern thing we look out for each other). So just send them on down and everyone will be happy  |
|
| Back to top |
|
|
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4961
Location: 713
|
| Posted: Wed Feb 20, 2008 8:57 pm Post subject: |
|
|
| faster wrote: |
McMaster-Carr sells spring steel for penneys. I would think that someone with an og to copy and a couple pairs of needle nose pliers torch & bucket of oil could make them for next to nothing. Theres some toolmaker on here that I`m sure could handle it with no problem.
|
Please send me a link to the spring steel. I would definitely give a go at making a batch of these. I got nothing more fun to do. I can imagine their size probably pretty well. And I would hook everyone up if you can get me the steel reasonably.
Thanks, -Ian
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Wed Feb 20, 2008 9:04 pm Post subject: |
|
|
| Ian wrote: |
| I can imagine their size probably pretty well. |
 |
|
