piece of fuel pump flange fell into top of block
Forum Index -> Beetle - Late Model/Super - 1968-up Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 8:06 pm    Post subject: piece of fuel pump flange fell into top of block Reply with quote

When I was changing my fuel pump flange a piece of it broke off ( about 1 1/2 inches long) and went into the top of the block. I can't see it when I look into the hole and I'm not sure if it went through to the bottom or if it is laying on the gears somewhere. I was told by a friend to take off the generator stand and try to access it from there and my brother-in-law told me I had to take the engine apart.

Does anyone have any advice on how to get it out without taking the engine apart? Please help!

Oh, I forgot, I have '71 Super Beetle Auto Stick with a dual port 1600CC engine.
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
BDSBSS23
Samba Member


Joined: January 03, 2008
Posts: 1817
Location: Utah
BDSBSS23 is offline

PostPosted: Fri Apr 11, 2008 8:22 pm    Post subject: Reply with quote

Oh boy that's the ugly part. You should take off the oil plate where you drain the oil. That could help to get the part that fell down in the engine.
_________________
58 beetle AKA Black Beauty http://www.thesamba.com/vw/forum/viewtopic.php?t=496780&highlight=black+beauty
65 micro bus (project)
http://www.thesamba.com/vw/forum/viewtopic.php?t=522611&highlight=std
Pillar repair with 65 bus
http://www.thesamba.com/vw/forum/viewtopic.php?t=530360
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 8:30 pm    Post subject: Reply with quote

Was thinking about that, but not sure where it could've gone. What about taking off the front pulley and removing the oil pump and going in that way?
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
66foot
Samba Member


Joined: November 19, 2006
Posts: 390
Location: Lakeville, Minnesota
66foot is offline

PostPosted: Fri Apr 11, 2008 8:37 pm    Post subject: Reply with quote

Stephaniempvj69 -

Been there done that. Don't worry too much.

A piece that large should be fairly easy to extract.

There is no way a piece that large can fall all the way to the pan.

It has probably fallen straight down and is just sitting up next to the gears. I would look to the upper left of the fuel pump access hole.

Get yourself a mini LED shop light so you can look down into the block.

You will also need some flexible claws.

Good luck.

Pat (66foot)
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 8:46 pm    Post subject: Reply with quote

I will give that a shot, good to know I'm not the only one who's done this.
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
66foot
Samba Member


Joined: November 19, 2006
Posts: 390
Location: Lakeville, Minnesota
66foot is offline

PostPosted: Fri Apr 11, 2008 9:13 pm    Post subject: Reply with quote

Stephaniempvj69 -

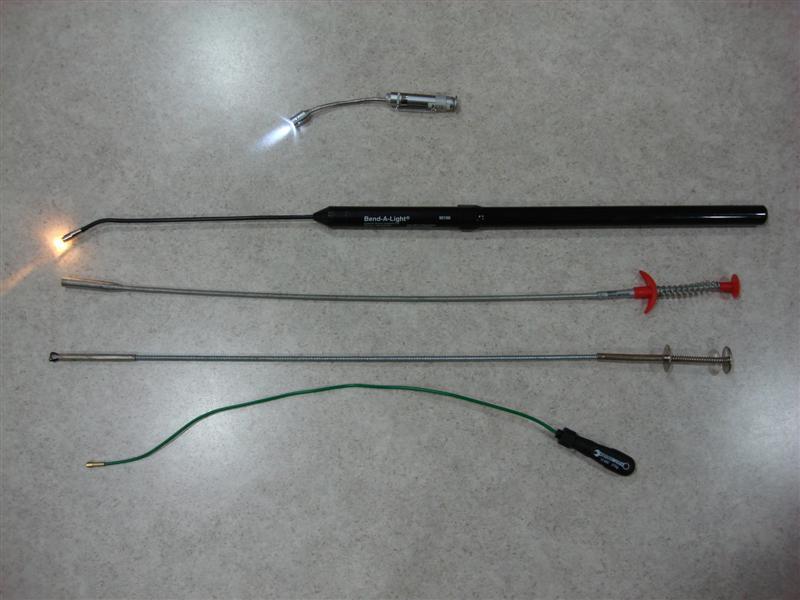

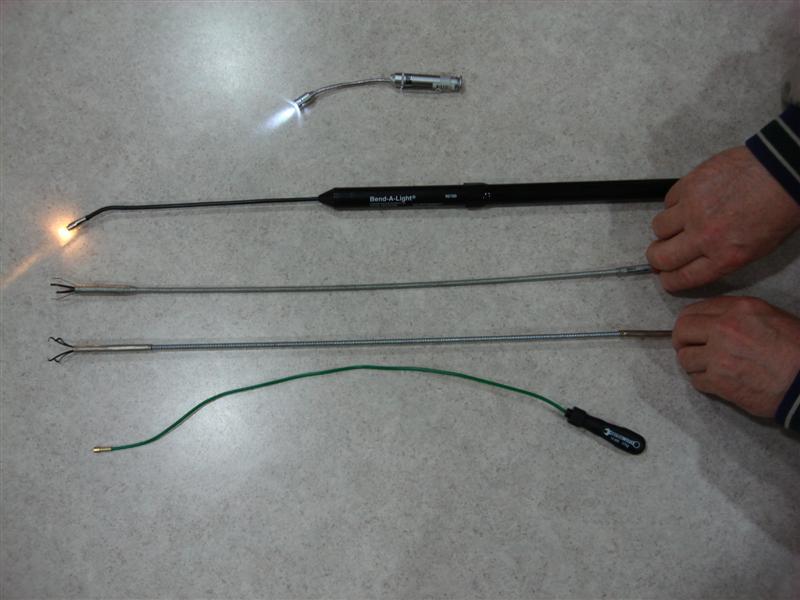

See the enclosed photos for the tools that are useful for extracting "stuff".

The mechanics claws have both straight teeth and hooked teeth. From experience I have found that the straight teeth work best for this job, especially since you do not have very much room to maneuver.

Your FLAPS or Sears should have these tools.

The green tool is a flexible magnet for when really bad things fall into your engine.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Pat (66foot)
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
jon68
Samba Member


Joined: April 04, 2008
Posts: 33
Location: Seattle
jon68 is offline

PostPosted: Fri Apr 11, 2008 9:19 pm    Post subject: Reply with quote

I have found that the flexible magnetic one works wonders - especially if you cant see it, just swish that thing around in there until it picks up the part (unless of course the part isnt magnetic). Good luck, you shouldnt need to split the block to get something like that out.
Back to top
View user's profile Send private message Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 9:20 pm    Post subject: Reply with quote

I found the claw on sears.com (available in store close to me), but not the light. Does it have a specific name other than mini led light? Would wal-mart or auto zone have them?
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
66foot
Samba Member


Joined: November 19, 2006
Posts: 390
Location: Lakeville, Minnesota
66foot is offline

PostPosted: Fri Apr 11, 2008 9:25 pm    Post subject: Reply with quote

Stephaniempvj69 -

Bend-A-Light

I believe that I purchased it from Sears. It may be a regular incandescent light.

Pat (66foot)
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 9:36 pm    Post subject: Reply with quote

Cool, thanks. I'll check on it tomorrow when I go up there.

I'll let you know if I get it out or not, hopefully I will. If I don't I won't be going to the Texas Classic next weekend.
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
66foot
Samba Member


Joined: November 19, 2006
Posts: 390
Location: Lakeville, Minnesota
66foot is offline

PostPosted: Fri Apr 11, 2008 9:38 pm    Post subject: Reply with quote

I hope that you don't miss the Texas Classic.

When you go to replace your push rod and intermediate flange, I highly recommend CB Performance - they are awesome VW OEM.

See the pictures below:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Don't forget to pack the pump.

Without Grease
Image may have been reduced in size. Click image to view fullscreen.


With Grease
Image may have been reduced in size. Click image to view fullscreen.


Pat (66foot)
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 9:38 pm    Post subject: Reply with quote

jon68 wrote:
I have found that the flexible magnetic one works wonders - especially if you cant see it, just swish that thing around in there until it picks up the part (unless of course the part isnt magnetic). Good luck, you shouldnt need to split the block to get something like that out.


Yeah, the one bad thing about the flange, not metal. Wish it was or I would've already had it out, magnets we have, claws not (don't know what happened to the one we had). Hopefully better news tomorrow.
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 9:41 pm    Post subject: Reply with quote

66foot wrote:
I hope that you don't miss the Texas Classic.

When you go to replace your push rod and intermediate flange, I highly recommend CB Performance - they are awesome VW OEM.

See the pictures below:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Don't forget to pack the pump.

Without Grease
Image may have been reduced in size. Click image to view fullscreen.


With Grease
Image may have been reduced in size. Click image to view fullscreen.


Pat (66foot)



I have the replacement flange already, but did not know about packing the fuel pump with grease. What do you use for this?

I forgot to ask you, what is the easiest access point to retrieve the piece of flange? I don't think it will come out the way it went in, it's in one piece, not broken off or a hunk.
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
66foot
Samba Member


Joined: November 19, 2006
Posts: 390
Location: Lakeville, Minnesota
66foot is offline

PostPosted: Fri Apr 11, 2008 9:49 pm    Post subject: Reply with quote

Stephaniempvj69 -

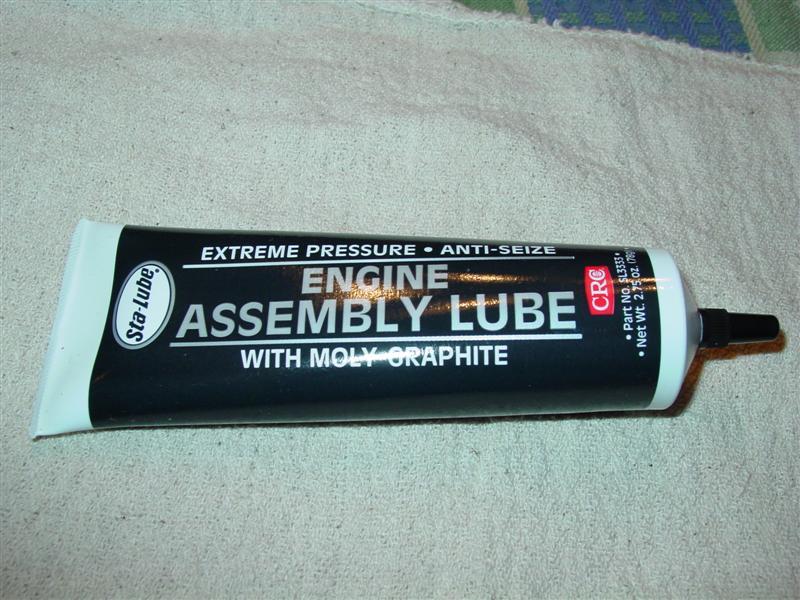

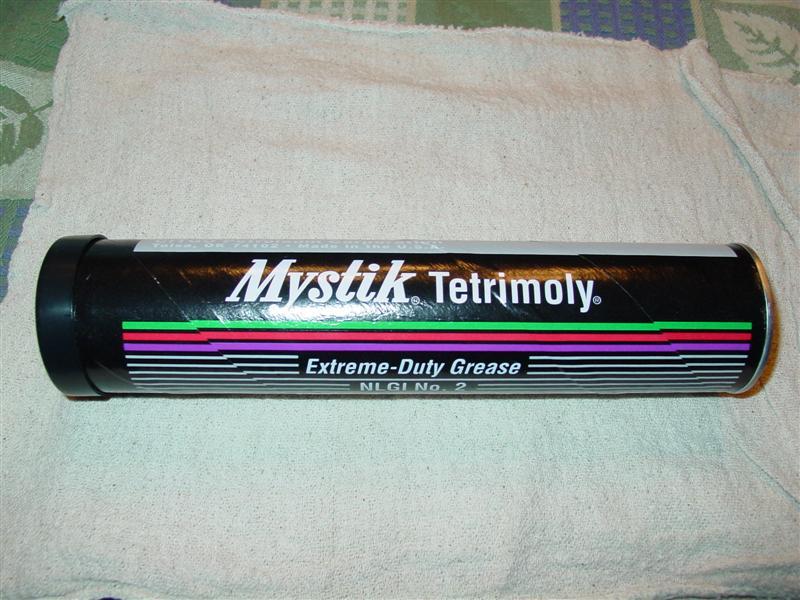

I use Mystik Tetrimoly for the packing and I put a light coating of Engine Assemply Lube on the push rod.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Pat (66foot)
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Fri Apr 11, 2008 9:54 pm    Post subject: Reply with quote

Pat,

Thanks for the info, noone told me I had to do that.
Will report back tomorrow and let you know how things went.

By the way, I don't know if you saw what I added, what is the easiest way to gain access to the area. I don't think it will come out the same way it went in.

Stephanie
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
66foot
Samba Member


Joined: November 19, 2006
Posts: 390
Location: Lakeville, Minnesota
66foot is offline

PostPosted: Fri Apr 11, 2008 10:01 pm    Post subject: Reply with quote

Stephaniempvj69 -

Once you locate the piece, then figure your best angle of attack. Probably the Bend-A-Light in the center hole and the mechanics fingers around the outside.

You do not have very much room to maneuver, that is why I suggest using the mechanics fingers with the straight claws. They, will give you about an extra 1/8" of lateral maneuverability.

Be patient and you will be able to remove it.

Pat (66foot)

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Sat Apr 12, 2008 9:25 am    Post subject: Reply with quote

Or try going in through the oil pump opening. That is probably where the piece will be.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
forrest72bug
Samba Member


Joined: February 18, 2008
Posts: 83
Location: S.C
forrest72bug is offline

PostPosted: Sat Apr 12, 2008 3:32 pm    Post subject: fuel pump flange Reply with quote

Use a vacum, duct tape a small hose on the end of it put hose down in motor, it might find peace that fell in. Good Luck
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
stephaniempvj69
Samba Member


Joined: February 04, 2008
Posts: 11
Location: Houston, Texas
stephaniempvj69 is offline

PostPosted: Sat Apr 12, 2008 4:54 pm    Post subject: Reply with quote

Thanks for all the help guys, we were able to get the pieces out by using the claw as 66foot suggested. We pulled out 2 pieces about 1 1/4 long, it broke in half when it went through. Did not notice any thing else in there, already changed the oil and only saw a few bits in the screen. Starts and runs fine.
Back to top
View user's profile Send private message AIM Address Yahoo Messenger Classifieds Feedback
66foot
Samba Member


Joined: November 19, 2006
Posts: 390
Location: Lakeville, Minnesota
66foot is offline

PostPosted: Sat Apr 12, 2008 8:48 pm    Post subject: Reply with quote

Texas Classic all the way...

Good job!

Pat (66foot)
