I need fog light wiring routing suggestions
Forum Index -> Beetle - Late Model/Super - 1968-up Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
KnoxBeetle
Samba Member


Joined: October 16, 2016
Posts: 61
Location: East Tennessee
KnoxBeetle is offline

PostPosted: Thu Jul 06, 2017 6:23 am    Post subject: I need fog light wiring routing suggestions Reply with quote

I picked up these awesome vintage IPF Japan fog lights for my 73 super and I'm looking for some suggestions on a good inconspicuous way to route the wires into the trunk. I'll be mounting these on the front bumper. Thanks

Image may have been reduced in size. Click image to view fullscreen.

_________________
73 Super beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gt1953
Samba Member


Joined: May 08, 2002
Posts: 11622
Location: White Mountains Arizona
gt1953 is offline

PostPosted: Thu Jul 06, 2017 6:58 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

It is not that hard to figger out. Look under the fender below the head light, you will see the head light drain tube. Run your wire into that which will put it in the head light bucket, then from the head light bucket into the trunk by following the head light wiring. Simple, now from the fog light run along the bumper and into the body along the bumper mounting brackets.
PM me if you need photos.
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KnoxBeetle
Samba Member


Joined: October 16, 2016
Posts: 61
Location: East Tennessee
KnoxBeetle is offline

PostPosted: Thu Jul 06, 2017 7:13 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

Figger? Lol. I guess i should've been more specific. I was hoping to get suggestions on where other people with fog lights routed their wires. I'm not saying i don't know how to route wires. I have some ideas but thought maybe someone could have a way i haven't thought of.
_________________
73 Super beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dodgy
Samba Member


Joined: January 30, 2006
Posts: 374
Location: Leicester, UK
Dodgy is offline

PostPosted: Thu Jul 06, 2017 11:53 pm    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

Look at a late Super with indicators in the front bumper for ideas.

The wires for the bumper mounted indicators are in a plastic sleeve and follow the bumper bracket through the wing then through the inner wing into the trunk. I can't remember if they merge with the headlight loom or pass through the inner wing via a separate hole. Earth point was a self-tapped screw each side of the trunk, shared with the headlights.
_________________
'75 1303 (current project) owned since 1989!
'72 Squareback - full resto completed 2008 - now sold
356 Speedster kit, completed 2005 - now sold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KnoxBeetle
Samba Member


Joined: October 16, 2016
Posts: 61
Location: East Tennessee
KnoxBeetle is offline

PostPosted: Fri Jul 07, 2017 8:42 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

Dodgy wrote:
Look at a late Super with indicators in the front bumper for ideas.

The wires for the bumper mounted indicators are in a plastic sleeve and follow the bumper bracket through the wing then through the inner wing into the trunk. I can't remember if they merge with the headlight loom or pass through the inner wing via a separate hole. Earth point was a self-tapped screw each side of the trunk, shared with the headlights.


This is what i was looking for. Thanks!
_________________
73 Super beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Littleeagle28
Samba Member


Joined: April 13, 2017
Posts: 92
Location: U.K. lincs
Littleeagle28 is offline

PostPosted: Thu May 24, 2018 10:32 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

Has anyone got a good suggestion for routing the rear fog light?
_________________
1974 1303
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bnam
Samba Member


Joined: July 02, 2006
Posts: 1403
Location: El Dorado Hills CA/ Bangalore, India
bnam is offline

PostPosted: Thu May 24, 2018 11:08 pm    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

SOmeone recently posted a pic of original VW foglights which had instructions for how to run the wiring. I would copy that.
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - 2017 - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Littleeagle28
Samba Member


Joined: April 13, 2017
Posts: 92
Location: U.K. lincs
Littleeagle28 is offline

PostPosted: Thu May 24, 2018 11:25 pm    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

bnam wrote:
SOmeone recently posted a pic of original VW foglights which had instructions for how to run the wiring. I would copy that.


Great, do you where the link is, also was this for an rear light? Thanks
_________________
1974 1303
Back to top
View user's profile Send private message Gallery Classifieds Feedback
windfish
Samba Member


Joined: September 05, 2012
Posts: 680
Location: NC
windfish is offline

PostPosted: Fri May 25, 2018 7:21 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

If you want official instructions there's some guides in the technical section, like this (for a reverse light, but same idea) - https://www.thesamba.com/vw/archives/manuals/techbulletins/e3.php

Basically reiterating what was said above, you just follow the existing head/tail-light wire routing and exit through a bumper mount.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
bnam
Samba Member


Joined: July 02, 2006
Posts: 1403
Location: El Dorado Hills CA/ Bangalore, India
bnam is offline

PostPosted: Fri May 25, 2018 8:59 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

Littleeagle28 wrote:
bnam wrote:
SOmeone recently posted a pic of original VW foglights which had instructions for how to run the wiring. I would copy that.


Great, do you where the link is, also was this for an rear light? Thanks



Sorry, was for the front.
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - 2017 - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlmostHeavenWV_VW
Samba Member


Joined: October 12, 2017
Posts: 492
Location: WV
AlmostHeavenWV_VW is online now

PostPosted: Fri May 25, 2018 9:50 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

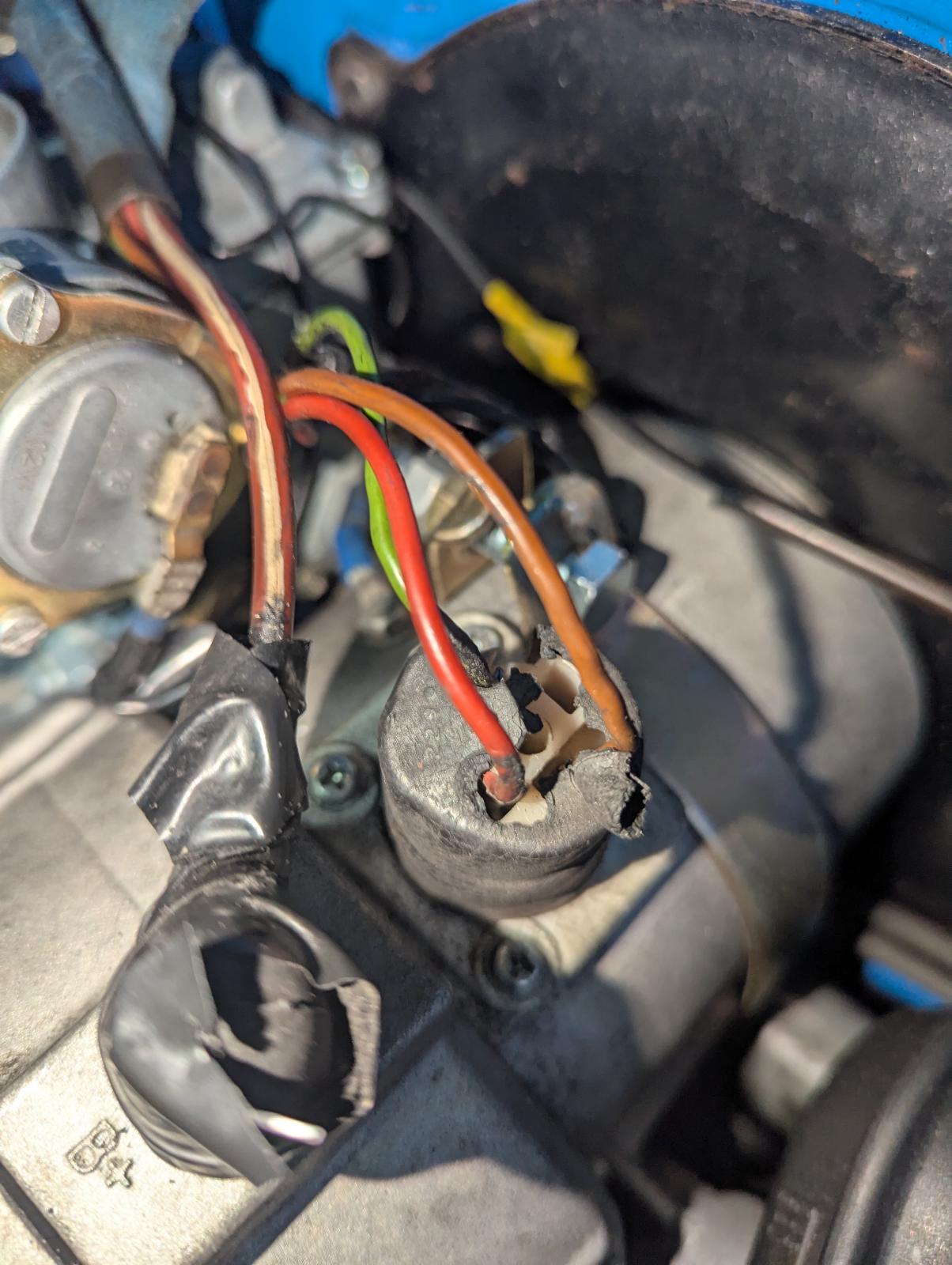

if you are perplexed to get the wires from the cabin to the trunk, I did this to get some wires to switches for my 12v washer pump. Wires are run through the grommet which was for one of the hoses for the OEM washer bottle to valve on the steering column.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1973 Standard Beetle

"A car is meant to be driven and enjoyed. Do both as often as possible."
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Littleeagle28
Samba Member


Joined: April 13, 2017
Posts: 92
Location: U.K. lincs
Littleeagle28 is offline

PostPosted: Yesterday 11:38 am    Post subject: Re: I need fog light wiring routing suggestions Reply with quote

AlmostHeavenWV_VW wrote:
if you are perplexed to get the wires from the cabin to the trunk, I did this to get some wires to switches for my 12v washer pump. Wires are run through the grommet which was for one of the hoses for the OEM washer bottle to valve on the steering column.
Image may have been reduced in size. Click image to view fullscreen.

Mine is for a rear fog light, is your description for the front?
_________________
1974 1303
Back to top
