spydee's Modification for broken skylight swingarm gliders.
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
spydee
Samba Member


Joined: May 22, 2008
Posts: 20
Location: Calgary, Canada
spydee is offline

PostPosted: Fri Aug 29, 2008 10:46 pm    Post subject: spydee's Modification for broken skylight swingarm gliders. Reply with quote

Here is a modification i just finished today on my skylight swingarm plastic gliders that are on both ends of the glider. These things pretty much fell off when i began removing my skylight hardware to install my new skylight.Because of age the plastic is now very brittle, so be very carefull when removing. ok here are the pix, hope this can help someone else with this issue.

Image may have been reduced in size. Click image to view fullscreen.

this is roughly what it looked like originally.

Image may have been reduced in size. Click image to view fullscreen.

here is what it looked like broken, use a bench grinder to remove the old rivet from the swingarm.

Image may have been reduced in size. Click image to view fullscreen.

here is the piece now removed fom the swingarm, notice that i have drilled a hole through the aluminum piece to fit a new rivet through.

Image may have been reduced in size. Click image to view fullscreen.

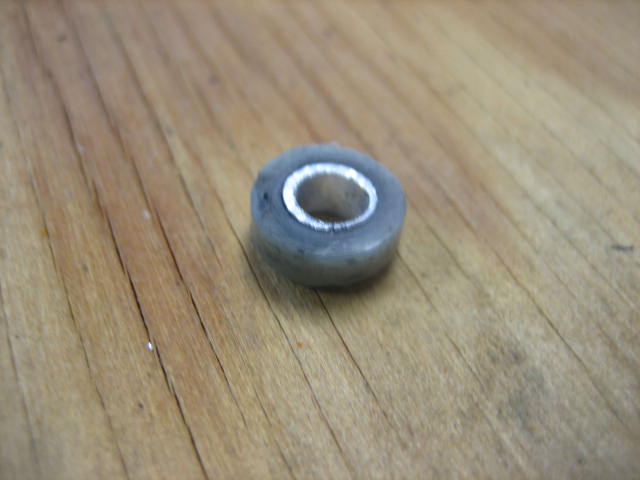

keep these

Image may have been reduced in size. Click image to view fullscreen.

the 2 pieces together
Image may have been reduced in size. Click image to view fullscreen.

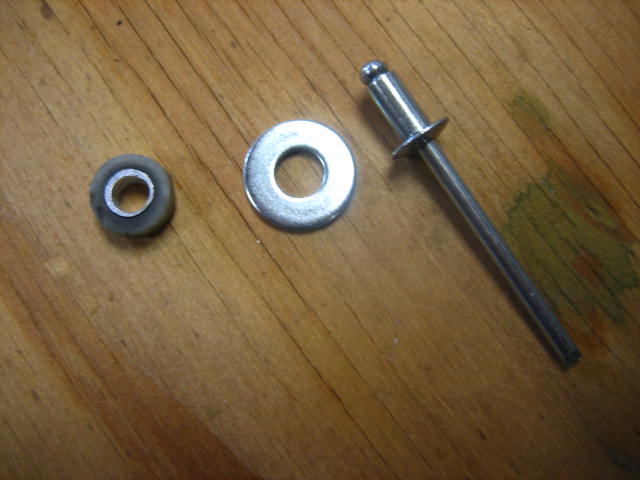

old pieces, new rivet, new washer
Image may have been reduced in size. Click image to view fullscreen.

how it looks on the rivet
Image may have been reduced in size. Click image to view fullscreen.

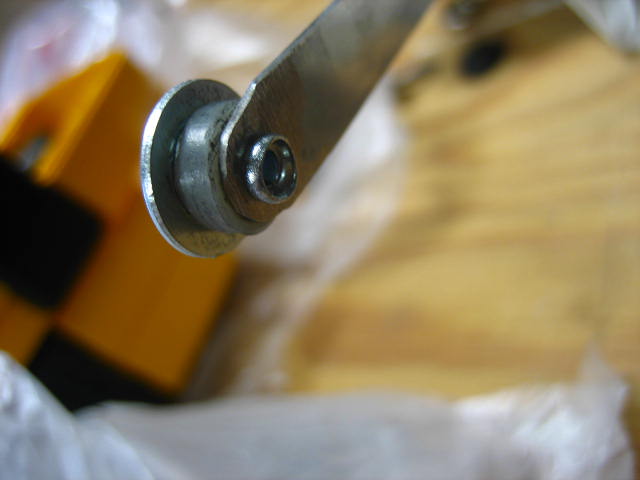

here's what it looked like after i applied the rivet using the rivet gun.
Image may have been reduced in size. Click image to view fullscreen.

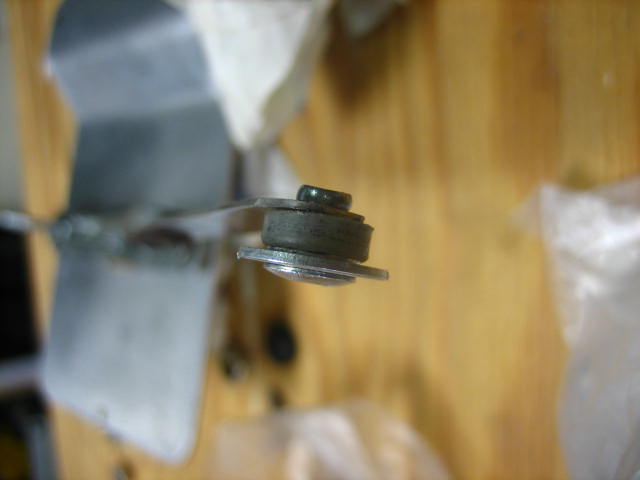

another angle
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

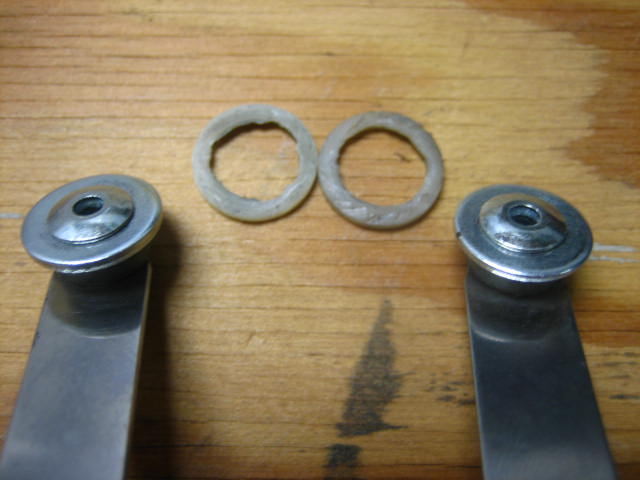

the old plastic pieces, going in the recycling.
Image may have been reduced in size. Click image to view fullscreen.

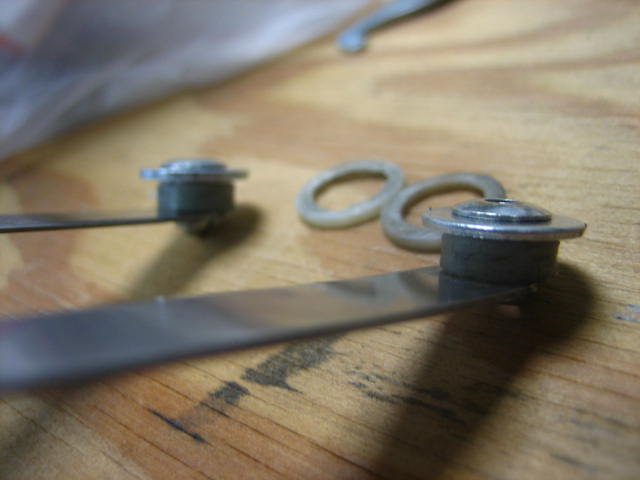

old vs new
Image may have been reduced in size. Click image to view fullscreen.

one last thing i will add is that when i was reinstalling everything i did notice that the plastic gliders were no longer rolling like they are suppose to.most likely cause the rivet is too tight, so maybe the final modification would be instead of a rivet maybe to use a small bolt and a nut with a nylon insert, the nylon in those nuts will allow it stay tight wherever you decide to tighten it to. i may make a quick alteration if i can find the right size bolt/ nut. anyhow this is spydee's first mod. i will contribute as many ideas as i can to this forum, as it has served me well. thanx everyone for the advice.

spydee
90 westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rodknock
Samba Member


Joined: April 06, 2006
Posts: 516
Location: Boulder CO
Rodknock is offline

PostPosted: Sat Aug 30, 2008 5:04 am    Post subject: Reply with quote

I was thinking of doing this exact same thing to mine. Thank you for the pics and write-up.
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
Raynor Shine
Samba Member


Joined: November 07, 2005
Posts: 552

Raynor Shine is offline

PostPosted: Sat Aug 30, 2008 6:29 am    Post subject: Reply with quote

very mcgyver! i have this one noted. thanks for the pics
Back to top
View user's profile Send private message Gallery Classifieds Feedback
riceye
Samba Member


Joined: March 09, 2006
Posts: 1658
Location: Caledonia, WI
riceye is offline

PostPosted: Sat Aug 30, 2008 6:58 am    Post subject: Reply with quote

Great save!

The next time mine wears out I'll try that. The last time I rebuilt it I used rollers I was able to locate at the hardware store in the patio screen door parts selection.

And, just last week I was able to eliminate the incessant rattle of the skylight. As it turns out, the rattle was caused by a baggy hinge at the front of the skylight. I took both off and did some pinching with a vise grips to tighten the hinges up.

No more rattles!
_________________
'87 Westy Weekender - daily driver on salt-free roads

There's gonna be some changes made.

“I find that things usually go well right up until the moment they don't.” - Ahwahnee

"Quality isn't method. It's the goal toward which the method is aimed." - Socrates, later quoted by R.M. Pirsig
Back to top
View user's profile Send private message Gallery Classifieds Feedback
debbiej
Samba Member


Joined: December 14, 2008
Posts: 1541
Location: las cruces, nm
debbiej is offline

PostPosted: Mon Jun 06, 2011 7:09 pm    Post subject: Reply with quote

ah, like the search. this is why my skylight rattles and leaks!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 743
Location: Salt Lake City
Classicvibe is offline

PostPosted: Mon Jun 06, 2011 7:37 pm    Post subject: Reply with quote

HOw funny, I had no idea those little plastic things existed. I just assumed that skylight was the single worst designed product I had ever seen. I mean, it still is, but it is nice to know just a tiny bit more thought went into it. Bookmarked!
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2022...see you there!

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender Transporter
Back to top
View user's profile Send private message Gallery Classifieds Feedback
K58
Samba Member


Joined: July 01, 2006
Posts: 1173
Location: Santa Barbara
K58 is offline

PostPosted: Mon Jun 06, 2011 8:42 pm    Post subject: Reply with quote

debbiej wrote:
ah, like the search. this is why my skylight rattles and leaks!!

It most likely leaks because of a bad seal.
It rained here the last 2 days and I noticed my seal is rotted and the caulking around it is gone. Talk about a bad design..the skylight sits in a groove where water collects.
GoWesty has the items you need
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
debbiej
Samba Member


Joined: December 14, 2008
Posts: 1541
Location: las cruces, nm
debbiej is offline

PostPosted: Tue Jun 07, 2011 7:03 am    Post subject: Reply with quote

we did replace the seal on both the pop top and the skylight. I think maybe the hinges are loose too. I am trying to decide if I should order the part.

is there a non-operable skylight replacement idea out there?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
PDXWesty
Samba Member


Joined: April 11, 2006
Posts: 6234
Location: Portland OR
PDXWesty is offline

PostPosted: Tue Jun 07, 2011 8:24 am    Post subject: Reply with quote

debbiej wrote:
we did replace the seal on both the pop top and the skylight. I think maybe the hinges are loose too. I am trying to decide if I should order the part.

is there a non-operable skylight replacement idea out there?


Sounds like you already have a non-operable skylight. Wink

Seriously, all the parts to repair it and make it work properly and seal tight are available at most of the major vendors including the skylight guy.

http://www.theskylightguy.com/main.jsp?p2=shopping/catalog.jsp&catalog_id=50
_________________
89 Westy 2.1 Auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joetiger Premium Member
Samba Member


Joined: January 27, 2005
Posts: 5062
Location: denver
joetiger is offline

PostPosted: Tue Jun 07, 2011 9:32 am    Post subject: Reply with quote

I did a similar repair to mine, but I used nuts and bolts instead of rivets; I wanted to play with it and see if I could make it continue to work using only old crap I could find in my garage. It lasted about 600 miles. Very Happy

I went ahead and bought the replacement mechanism from Van Cafe for $16 or so and am installing it this evening.
_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'04 GTI 1.8T
'04 Golf R32

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond

Available Now! Vanagon to Louisiana--A Two-Lane Reckoning Through Past and Present

www.josephtrussell.com
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
msinabottle
Samba Member


Joined: September 20, 2005
Posts: 3492
Location: Denver Area, Colorado
msinabottle is offline

PostPosted: Tue Jun 07, 2011 12:44 pm    Post subject: My Problem Reply with quote

I used that screen door part mod findable online... Yours is a good mod indeed and looks a lot more robust.

Y'know what my biggest problem with the lifting/lower arms is? The rivets in the MIDDLE of the arms hang up on each other and I have to reach up and physically push them apart. Anyone have a solution for THAT?

Shocked

Best!
_________________
'Winston,' '84 1.9 WBX Westy
Vanagon Poet Laureate: "I have suffered in
many ways, but never, never, never in silence."
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3990
Location: Maine
Timwhy is offline

PostPosted: Wed Jun 08, 2011 3:23 am    Post subject: Reply with quote

I used these directions to repair my skylight.
http://www.vanagonauts.com/index.phtml?catid=170

However I cut the plastic tube closer to the ridge than what is stated in the directions.
I used shorter screws also, the longer ones would not allow the skylight to close all
the way down. Pretty ceap fix, I think it was under Five Buck$?
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
joetiger Premium Member
Samba Member


Joined: January 27, 2005
Posts: 5062
Location: denver
joetiger is offline

PostPosted: Wed Jun 08, 2011 7:19 am    Post subject: Reply with quote

In the interest of full disclosure, I figured something out when I took apart my mechanism again last night to replace it with the new part:

I had installed my modified mechanism backwards. Embarassed No wonder it wouldn't operate correctly.

Duh.

I installed the new one and it works well enough, though.
_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'04 GTI 1.8T
'04 Golf R32

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond

Available Now! Vanagon to Louisiana--A Two-Lane Reckoning Through Past and Present

www.josephtrussell.com
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
K58
Samba Member


Joined: July 01, 2006
Posts: 1173
Location: Santa Barbara
K58 is offline

PostPosted: Wed Jun 08, 2011 7:07 pm    Post subject: Reply with quote

http://www.vanagonauts.com/index.phtml?catid=170
that's waaaay too much work....for 15 bucks I'll buy a new flexarm
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ragnarhairybreeks
Samba Member


Joined: October 26, 2009
Posts: 1888
Location: Sidney B.C. Canada
ragnarhairybreeks is offline

PostPosted: Wed Jun 08, 2011 8:23 pm    Post subject: Reply with quote

I was fussing around making delrin bushes for the swing arm and i decided that the plastic cover need repaint. Krylon Fusion satin black. Then one thing led to another and I made a new knob from an old inline skate wheel.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


alistair
_________________
'86 7 passenger syncro, converted to westy pop top, project still in progress
'82 westy, diesel converted to gas in '94, now gone...
https://shufti.blog/
Old address still works...
http://shufti.wordpress.com


Last edited by ragnarhairybreeks on Wed Jun 08, 2011 8:47 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
debbiej
Samba Member


Joined: December 14, 2008
Posts: 1541
Location: las cruces, nm
debbiej is offline

PostPosted: Wed Jun 08, 2011 8:35 pm    Post subject: Reply with quote

that is very nice!
yep, I do pretty much have a non-operable skylight!
it is good to see what the wheels should look like, mine has no wheels, just the little disks left there.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Wed Sep 07, 2011 3:29 pm    Post subject: Blatant copy Reply with quote

Here's the text to the above URL:

After leaving the skylight up on my '90 Westy and trying to drive into the garage one too many times, the rollers on the ends of the lifter arms needed to be fixed. Here is what I did, based largely on Terry K.'s fix for the problem.

Parts list:
2 nylon bi-fold door top guide/pivots.
2 10/32 x 1/2 or 3/4" machine screws (with the flattest heads you can find) and two nylock nuts.
2 nylon washers. These are optional. I couldn't find any the size I needed, so I had to make the hole larger
and the outer diameter smaller. I put these between the lifter arm and the slotted track.

Procedure:
Remove the screw holding the knob on and remove knob.
Pull off the plastic covers and remove the 4 8mm nuts and washers plus the smaller screw and nut
above the knob.
Remove the plastic cover over the lifter mechanism. Don't lose the spacer washers under the outer ends.
Remove the lifter.
Drill out the old rivets and rollers.
Enlarge the holes in the ends of the arms slightly to take 10/32 screws (or use smaller screws).
Cut the two pivots as shown in the photo, to 1/4" long. Actually, a little less is better. This and the flat screw
screw heads ensure they will not hit the nuts holding the slotted track to the skylight. If they do, you can
mark the point on the nut, remove it and file it down a little.

The optional method uses two flanged nylon bushings, one inside the other, and cut down to 1/4" or less.
The sizes for these two are:
Large one: flange diam.=17/32"; I.D.=1/4"; length=11/32".
Small one: flange diam.=13/32"; I.D.=3/16"; length=11/32".
.
Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Wed Sep 07, 2011 3:33 pm    Post subject: Reply with quote

I *MUST* do this fix. You know just how annoying that skylight is rattling down the road, ya know, eh?

So I have questions for the above text(S) and posts.

Where do you get "bi-fold door top guide/pivots?"

Where is Terry Ks fix?

Where, from what application, do you get any of the little nylons / plastics mentioned?

Where in the Homie Despot do I go, for example?
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
K58
Samba Member


Joined: July 01, 2006
Posts: 1173
Location: Santa Barbara
K58 is offline

PostPosted: Wed Sep 07, 2011 4:27 pm    Post subject: Reply with quote

Update:
Whatever you do don't waste money on the GoWe$ty junk.
I thought I was buying a direct fit replacement gasket but when I received it there was a warning that it was not. The "fix" resulted in a worse leak than I had before Mad
Now I have to spend more money to fix the fix.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ragnarhairybreeks
Samba Member


Joined: October 26, 2009
Posts: 1888
Location: Sidney B.C. Canada
ragnarhairybreeks is offline

PostPosted: Wed Sep 07, 2011 4:42 pm    Post subject: Reply with quote

r39o wrote:
I *MUST* do this fix. You know just how annoying that skylight is rattling down the road, ya know, eh?

So I have questions for the above text(S) and posts.

Where do you get "bi-fold door top guide/pivots?"

Where is Terry Ks fix?

Where, from what application, do you get any of the little nylons / plastics mentioned?

Where in the Homie Despot do I go, for example?



I wrote up Terry's mod years ago on my old website, here is the link:

http://members.shaw.ca/albell/mods2.html


alistair
_________________
'86 7 passenger syncro, converted to westy pop top, project still in progress
'82 westy, diesel converted to gas in '94, now gone...
https://shufti.blog/
Old address still works...
http://shufti.wordpress.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
