 Posted: Mon Nov 03, 2008 1:41 pm Post subject: Oil pressure control/relief valves: where are they? |
 |
|
I've looked everywhere in and around my engine case and can't find them. Does anyone know where the oil control valve and oil pressure relief valves are on a Type 4?
_________________
75 Deluxe Microbus - Finally alive and kicking!
72 Fiat 850 Spider - Finally alive and...oh wait, never mind...wait there it goes!...whoops, false alarm...oh - wait wait...nope, nothing. |
|
| Back to top |
|
 |
Randy in Maine
Samba Member
Joined: August 03, 2003
Posts: 34890
Location: The Beach
|
| Posted: Mon Nov 03, 2008 2:02 pm Post subject: |
|
|
On th ebottom of the engine and look like they need a really big screwdriver to unscrew them.
If you are a GE engine code, you only have one. |
|
| Back to top |
|
|
Oil Phil-M
Samba Member
Joined: October 08, 2005
Posts: 547
Location: Vancouver, BC
|
| Posted: Mon Nov 03, 2008 2:29 pm Post subject: |
|
|
The oil pressure by-pass valve is located drivers side rear of the engine. Access from below - looks like a large screwdriver slot. If you have a tool that fits great. I ended up using a dull chisel to tap it loose.
The oil pressure relief valve is located on the passenger side of the motor between the underside of the cylinders. Will need to remove the stone shield tin to see it. A 3/8 drive extension will fit in there. Like the previous post stated, the relief valve was eliminated in when when they went to hydraulic lifters. |
|
| Back to top |
|
|
keifernet
Samba Search & Rescue
Joined: May 11, 2002
Posts: 19395
Location: Samba Center for Behavioral Science
|
| Posted: Mon Nov 03, 2008 3:12 pm Post subject: |
|
|
| Oil Phil-M wrote: |
The oil pressure by-pass valve is located drivers side rear of the engine. Access from below - looks like a large screwdriver slot. If you have a tool that fits great. I ended up using a dull chisel to tap it loose.
The oil pressure relief valve is located on the passenger side of the motor between the underside of the cylinders. Will need to remove the stone shield tin to see it. A 3/8 drive extension will fit in there. Like the previous post stated, the relief valve was eliminated in when when they went to hydraulic lifters. |

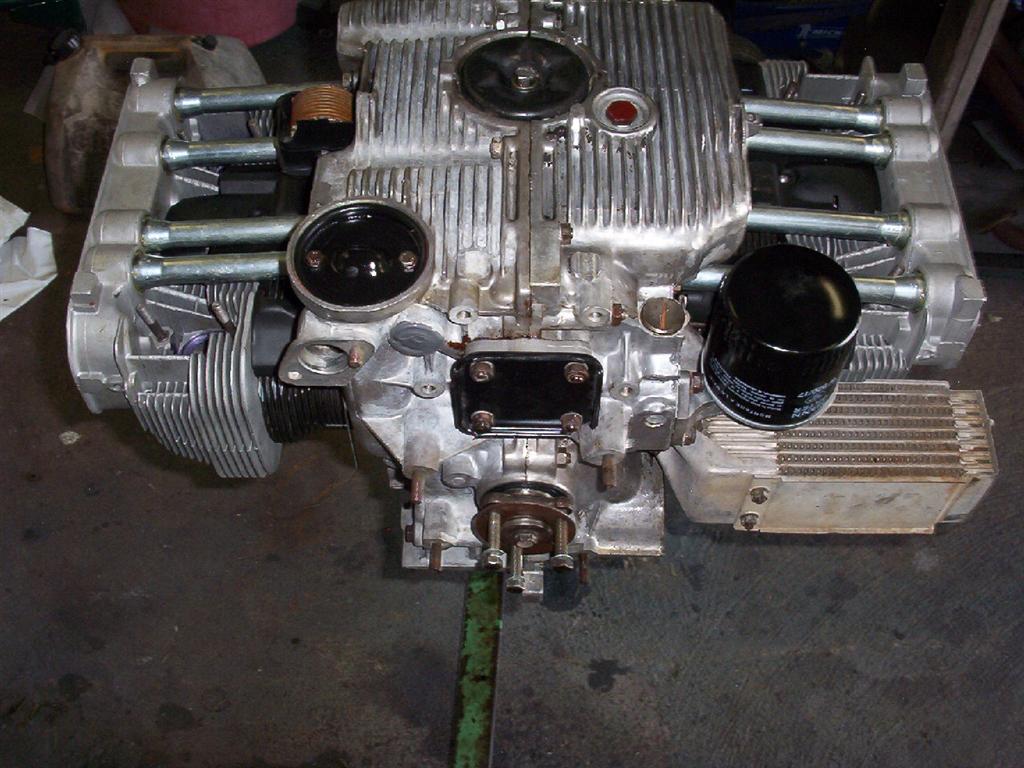

Right by the oil filter...
|
|
