PostPosted: Wed Feb 18, 2009 6:34 pm    Post subject: Door hinge - Broken weld Reply with quote

Alright folks... Got another one for ya! I removed my passenger door from my square knowing that the bottom hinge weld was broken, but now what? I have a donor car (68' square) with perfect doors and hinges. Question is how to make the swap with the least amount of headache...

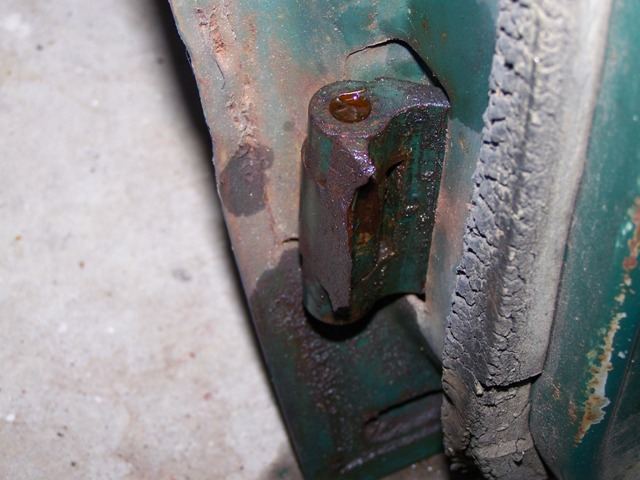

Image may have been reduced in size. Click image to view fullscreen.

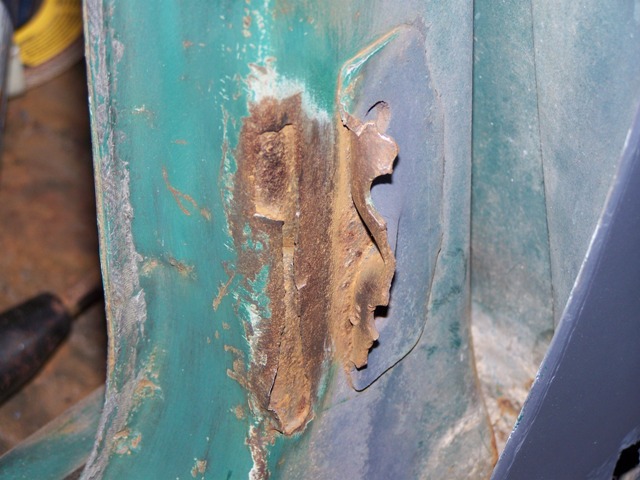

Image may have been reduced in size. Click image to view fullscreen.


As you can see by the photos... the hinge is pretty much jacked! No idea how the PO did this, but nevertheless... what's done is done. Thanks for any help! [/img]
_________________
You laugh cause I'm different...
I laugh cause I just farted!!!


69/67 SQB's... That's all I got.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Wed Feb 18, 2009 7:43 pm    Post subject: Reply with quote

Use the edge of a grinder and start working at the welds.
Then, you should be able to weld the donor one on.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
RATTRP
Samba Member


Joined: October 16, 2006
Posts: 53
Location: Haslet, TX
RATTRP is offline

PostPosted: Thu Feb 19, 2009 10:21 am    Post subject: Reply with quote

How might I go about removing the donor hinge from the post of the donor car? The nature of the hinge plate being so thin, makes it kind of hard to envision how to get them off without destroying them! Thanks...
_________________
You laugh cause I'm different...
I laugh cause I just farted!!!


69/67 SQB's... That's all I got.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Thu Feb 19, 2009 10:34 am    Post subject: Reply with quote

Grind away the welds.
It will not be easy. You will need patience.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 20512
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Thu Feb 19, 2009 3:03 pm    Post subject: Reply with quote

Cut the donor hinge piece a little big, the grind the metal away from the back side. Kind of the reverse of the old broken piece you want to remove (gring it away) Once you've both portions clean, fit it into place, and tack weld it. Use your new donor door to help fit it in place. Then pull the door off, and stitch weld the new hinge in place, and paint it, so it won't rust. You can even use some 3M weld thru coating before actually welding the donor part on. I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RATTRP
Samba Member


Joined: October 16, 2006
Posts: 53
Location: Haslet, TX
RATTRP is offline

PostPosted: Sun Feb 22, 2009 6:56 pm    Post subject: Reply with quote

Alright folks... I worked on getting the old hinge off yesterday and this is what I ended up with.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I have no earthly idea how I will get the donor hinge off of the frame without entirely destroying it, seeing as getting this portion of the hinge off was a NIGHTMARE!!!

The only thing I can think of is like BobNotch said, to cut around the hinge and grind down the metal behind the hinge.

If anyone out there has experience with doing this, please let me know before I completely destroy my donor hinge. Thanks...
_________________
You laugh cause I'm different...
I laugh cause I just farted!!!


69/67 SQB's... That's all I got.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bluerobotkid
Samba Member


Joined: December 29, 2008
Posts: 17
Location: Fair Oaks, CA
bluerobotkid is offline

PostPosted: Mon Feb 23, 2009 1:02 pm    Post subject: Reply with quote

I would recomend a multi layered sanding disk on an angle grinder. Get one in the 60-80 grit range. It will make short work of grinding the back side of the old hinge off. It also leaves a nice surface to weld to. I just used (2) of these to remove all the metal off the back of the seat brackets I am swapping out from a donor pan. Thet sanding disks are a bit pricey ($10 a pop at HD or Lowes, but Harbor Freight sells them for $5 each).
