 Posted: Tue Jan 24, 2023 12:35 pm Post subject: Heat/Air levers |
 |
|
My 1976 Bay was missing the heat control levers, which I found at many sources. It seems there is a clip and a button that attach the levers to the control rods behind the dash??? I have found pictures but not one with the lever attached, nor can I find those clips anywhere? Any help/photos would be appreciated.
Thanks,
Ken C
_________________
1976 Bay, 1974 Thing, 1979 Vert Bug, 1973 Super, 1968 Beetle, 1967 split Brazilian Kombi |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52577
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Jan 24, 2023 1:03 pm Post subject: Re: Heat/Air levers |
|
|

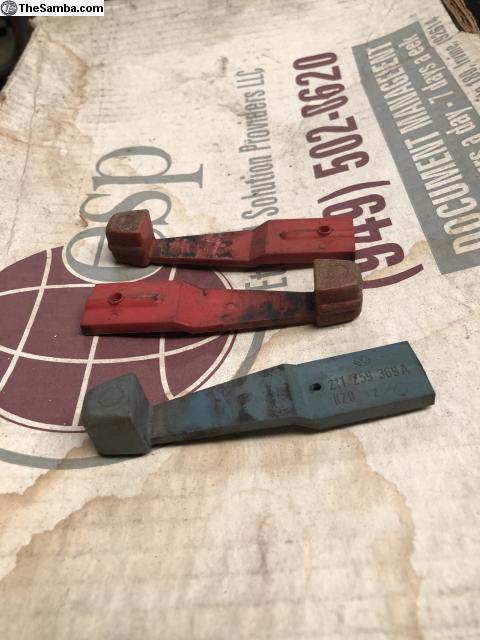

A 76 should use the plastic levers, no clips or springs required for those:
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Shonandb
Samba Member
Joined: January 12, 2019
Posts: 1938
Location: Vancouver, BC
|
| Posted: Tue Jan 24, 2023 1:07 pm Post subject: Re: Heat/Air levers |
|
|
I have a 76 and the levers just push on / pull off and are a snug fit.
_________________
*******************************
76 Westy with a 2.5L Subaru SOHC + Vanagon (010) Automatic Transaxle
Build & Trip Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=758760
Previous 1973 Panel Bus:
Click to view image |
|
| Back to top |
|
|
KChallener
Samba Member
Joined: December 11, 2022
Posts: 71
Location: PA
|
| Posted: Tue Jan 24, 2023 1:07 pm Post subject: Re: Heat/Air levers |
|
|
So what connects the to the levers? Not slotted? I am missing something obvious here!!
_________________
1976 Bay, 1974 Thing, 1979 Vert Bug, 1973 Super, 1968 Beetle, 1967 split Brazilian Kombi |
|
| Back to top |
|
|
KChallener
Samba Member
Joined: December 11, 2022
Posts: 71
Location: PA
|
| Posted: Tue Jan 24, 2023 1:13 pm Post subject: Re: Heat/Air levers |
|
|

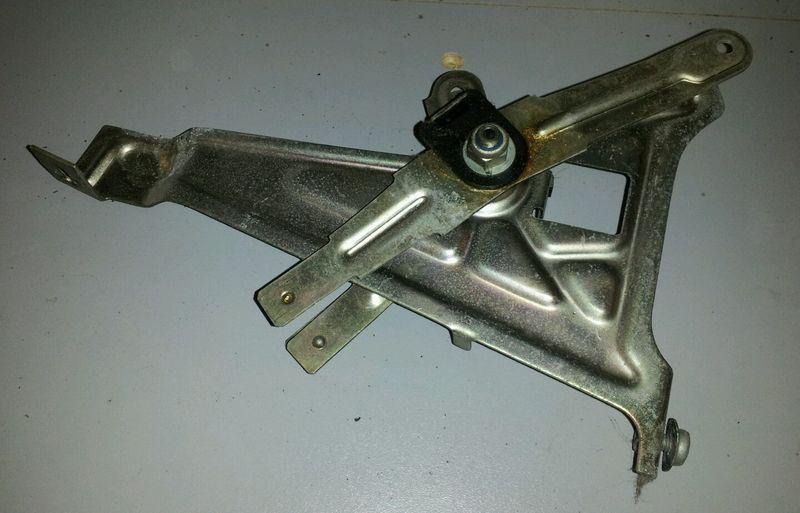

Heater lever with dimple, assuming the plastic lever attaches there?
_________________
1976 Bay, 1974 Thing, 1979 Vert Bug, 1973 Super, 1968 Beetle, 1967 split Brazilian Kombi |
|
| Back to top |
|
|
Shonandb
Samba Member
Joined: January 12, 2019
Posts: 1938
Location: Vancouver, BC
|
|
| Back to top |
|
|
KChallener
Samba Member
Joined: December 11, 2022
Posts: 71
Location: PA
|
| Posted: Tue Jan 24, 2023 7:10 pm Post subject: Re: Heat/Air levers |
|
|
Thank you! I will look at the ones that came with the bus closer, but I think they may be for an earlier model.
Ken
_________________
1976 Bay, 1974 Thing, 1979 Vert Bug, 1973 Super, 1968 Beetle, 1967 split Brazilian Kombi |
|
| Back to top |
|
|
KChallener
Samba Member
Joined: December 11, 2022
Posts: 71
Location: PA
|
| Posted: Wed Jan 25, 2023 5:28 pm Post subject: Re: Heat/Air levers |
|
|

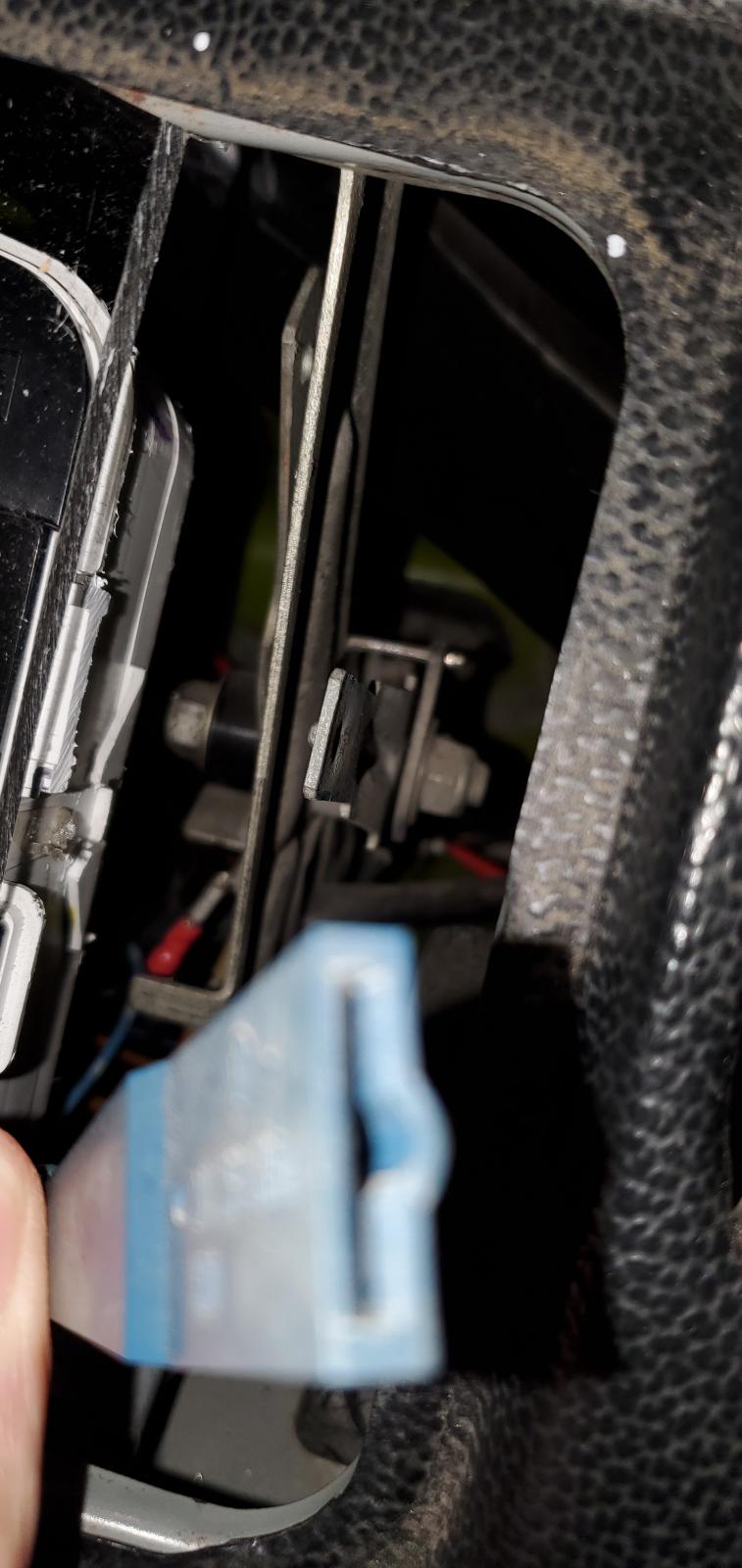

So I am embarrassed to report that the levers I have that came with the bus are for 1973 and earlier, slotted, not push on. I ordered the correct one
