PostPosted: Wed Dec 17, 2014 7:52 am    Post subject: Reply with quote

If you are planning to add (or already have) a decent sized auxiliary battery, especially AGM type, consider putting the $ into a hard-wired charger like an Iota. Then, when plugged in the battery will automatically be charged and kept topped up. I run my own rig this way, DC-only fridge but have a 40A charger wired in.
_________________
Westy Ventures
Upgrade your starter with More-Torque Starter Adapters
Featuring reliable, modern Bosch gear-reduction starters.
Visit Westy Ventures for more details!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 16673
Location: Brookeville, MD
dobryan is offline

PostPosted: Wed Dec 17, 2014 9:36 am    Post subject: Reply with quote

westyventures wrote:
If you are planning to add (or already have) a decent sized auxiliary battery, especially AGM type, consider putting the $ into a hard-wired charger like an Iota. Then, when plugged in the battery will automatically be charged and kept topped up. I run my own rig this way, DC-only fridge but have a 40A charger wired in.


Yes, spend your money on something like this.

DLS-30/IQ4

http://www.iotaengineering.com/dls30.htm

That way you can also charge your house battery and power the DC fridge at the same time when plugged into 120V. BTDT, works great. Very Happy
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
captainkarl
Samba Member


Joined: January 08, 2010
Posts: 16
Location: San Antonio
captainkarl is offline

PostPosted: Wed Dec 17, 2014 6:55 pm    Post subject: Reply with quote

dobryan wrote:
westyventures wrote:
If you are planning to add (or already have) a decent sized auxiliary battery, especially AGM type, consider putting the $ into a hard-wired charger like an Iota. Then, when plugged in the battery will automatically be charged and kept topped up. I run my own rig this way, DC-only fridge but have a 40A charger wired in.


Yes, spend your money on something like this.

DLS-30/IQ4

http://www.iotaengineering.com/dls30.htm

That way you can also charge your house battery and power the DC fridge at the same time when plugged into 120V. BTDT, works great. Very Happy


Cheers! Thanks guys!
Back to top
View user's profile Send private message Classifieds Feedback
LemonCove
Samba Member


Joined: July 29, 2010
Posts: 324
Location: Henderson, NV
LemonCove is offline

PostPosted: Mon Feb 16, 2015 9:50 am    Post subject: Reply with quote

Nothing new here . . . . thanks to all who preceded me on this thread.

50 shades of grey interior . . . original laminate and vinyl trim, Stove plate, electrical box plates, Fridge trim, GoWesty laminate, floor, upholstery, carpet, curtains . . .

VitriFrigo CS51 AC/12V. Trim painted grey with Rustoleum, propane line replaced after removing Tee on regulator. Fridge wired to Blue Seas fuse box behind drivers seat (12V) and relocated (A/C) outlet. Will eventually add drawer beneath fridge like others have done.

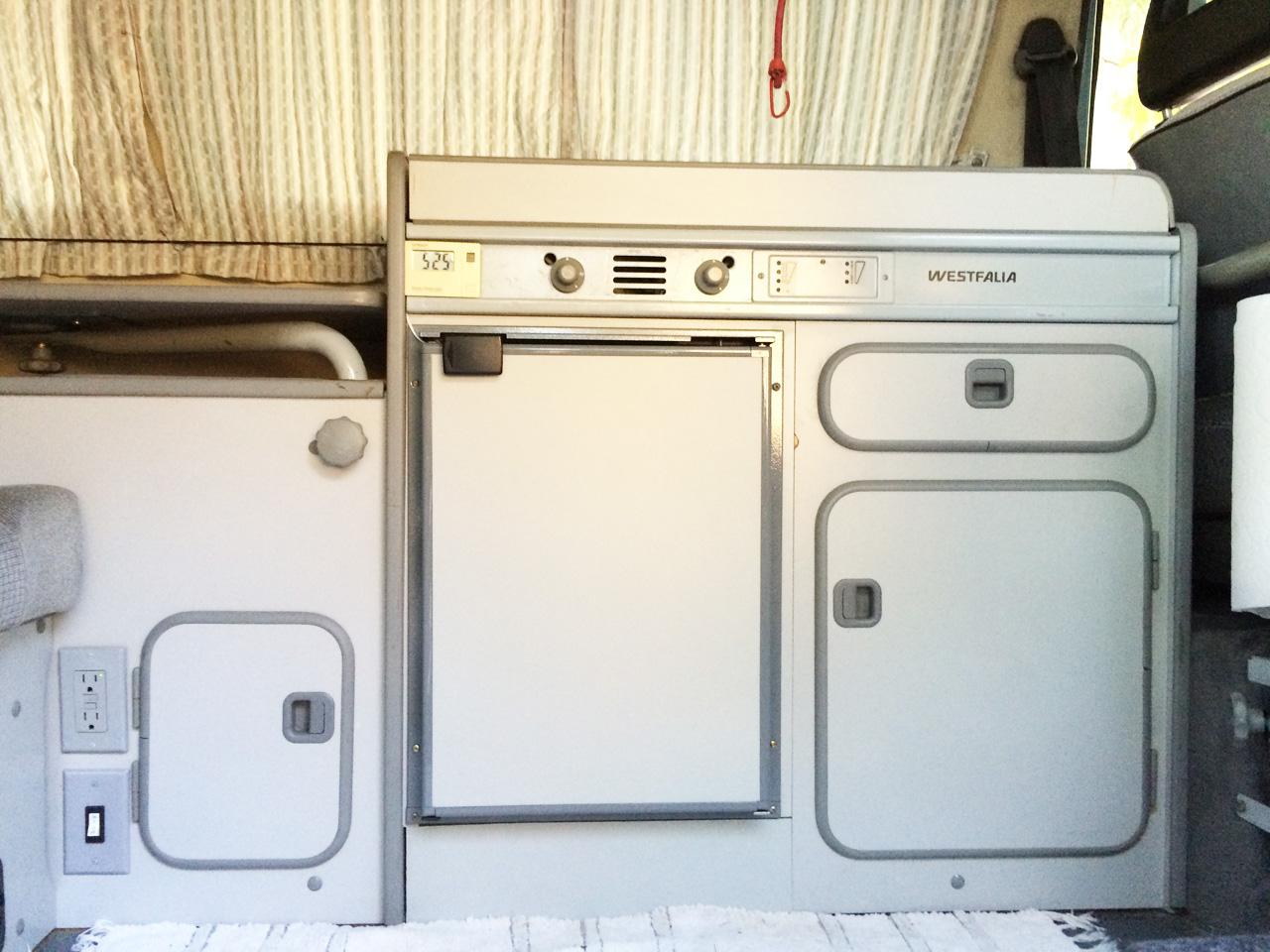

Finished installation (except for future drawer):
Image may have been reduced in size. Click image to view fullscreen.


Complete install notes/photos:https://picasaweb.google.com/13VelosdeRemi/FridgeR...eplacement

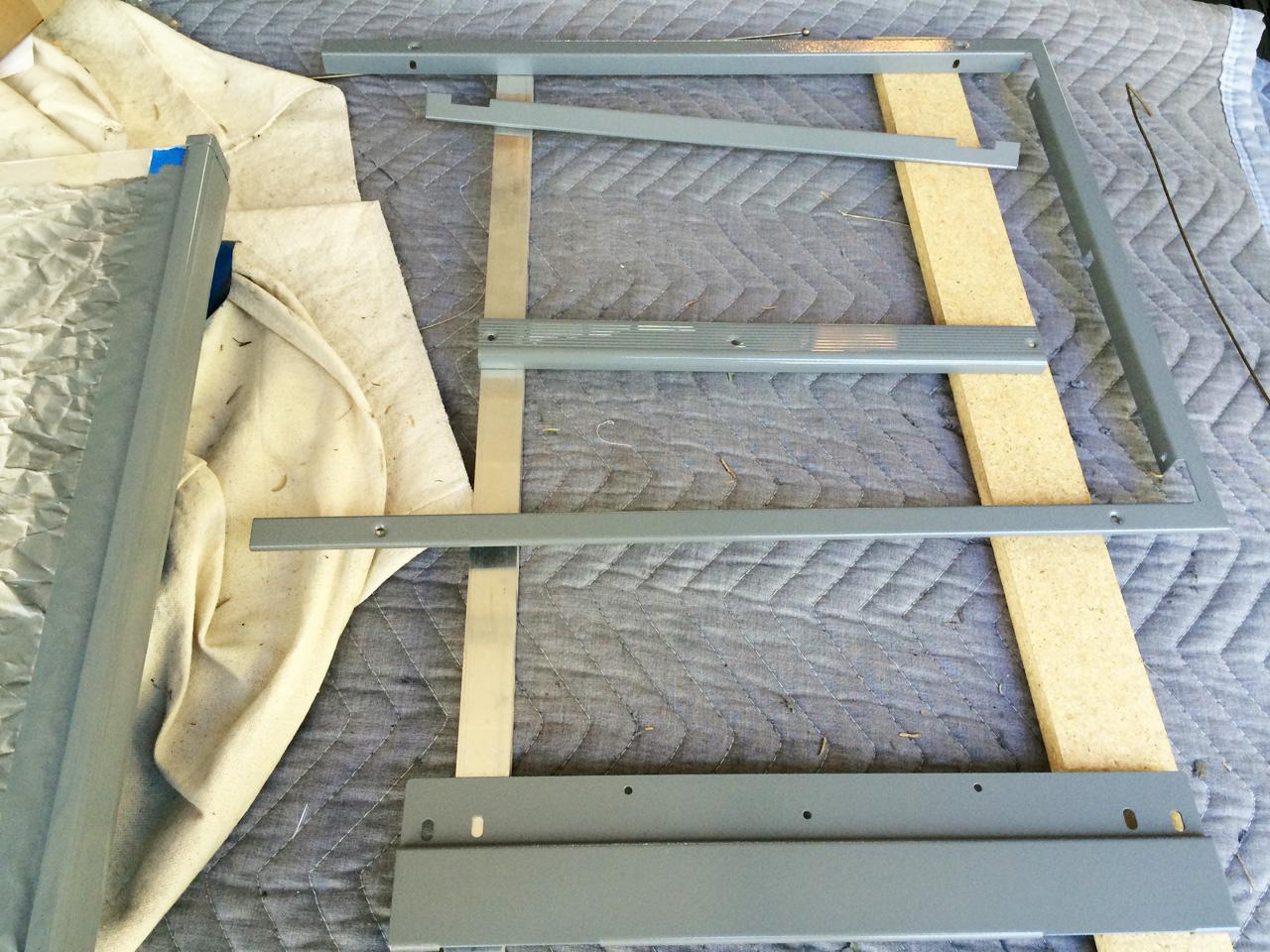

Painting the trim:
Image may have been reduced in size. Click image to view fullscreen.

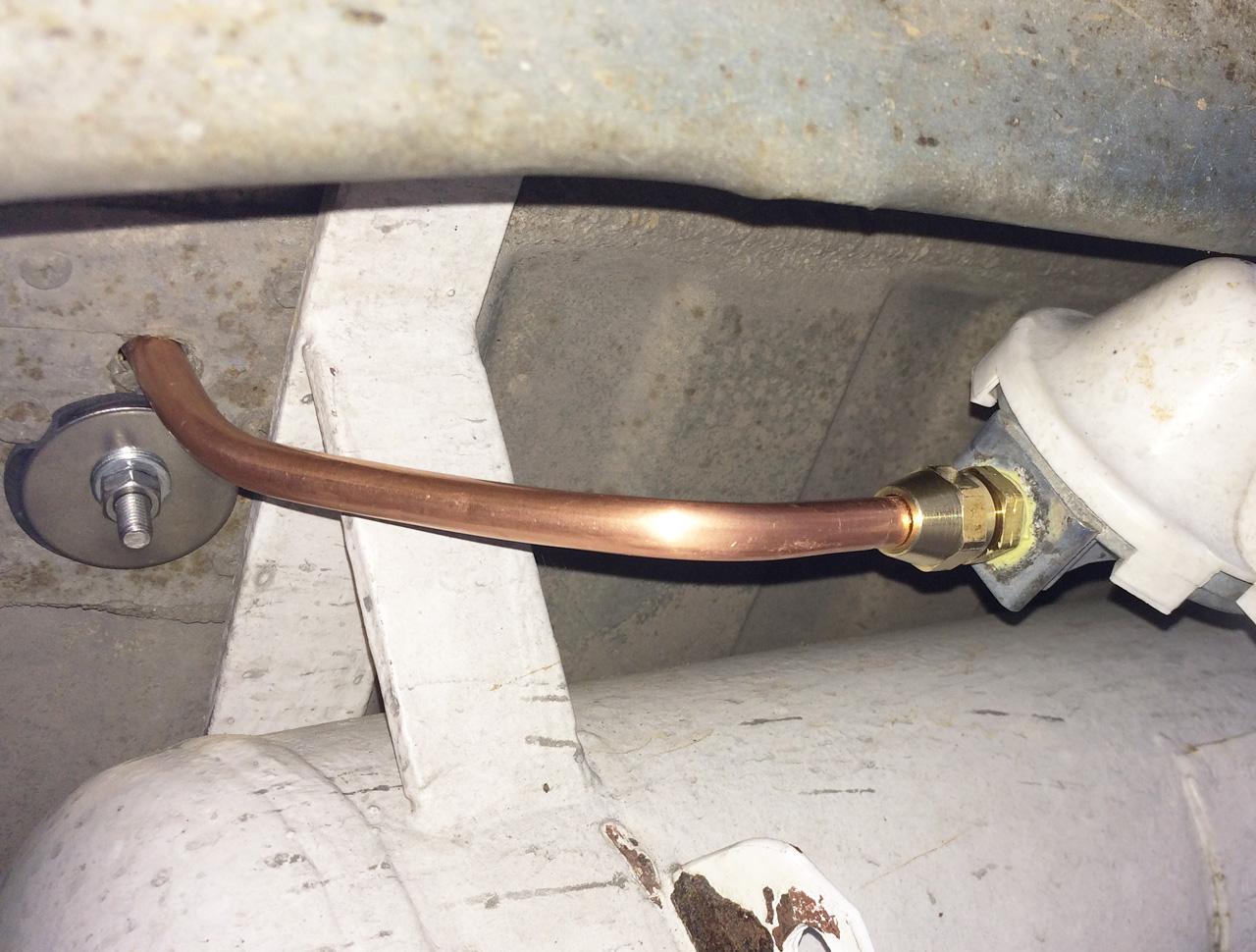

New propane line:
Image may have been reduced in size. Click image to view fullscreen.

_________________
'88 Bostig Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Microbusdeluxe Premium Member
Samba Member


Joined: July 26, 2003
Posts: 993
Location: Bellingham, WA
Microbusdeluxe is offline

PostPosted: Mon Feb 16, 2015 12:09 pm    Post subject: Nice work Reply with quote

What exact color of Rustoleum paint did you use to match the grey trim?
_________________
'69 Squareback RIP
'65 21 window deluxe sold before the price spike, damn it.
'70 rhd bay now a taxi in South Sudan
'81 Westy sold
'89 hightop Westy Joker syncro 16" now with Bostig!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
LemonCove
Samba Member


Joined: July 29, 2010
Posts: 324
Location: Henderson, NV
LemonCove is offline

PostPosted: Mon Feb 16, 2015 9:37 pm    Post subject: Re: Nice work Reply with quote

Microbusdeluxe wrote:
What exact color of Rustoleum paint did you use to match the grey trim?


7786 Smoke Grey . . . got it at Lowe's
_________________
'88 Bostig Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OhBetty
Samba Member


Joined: August 23, 2014
Posts: 80
Location: Salt Lake City
OhBetty is offline

PostPosted: Thu Mar 05, 2015 11:42 am    Post subject: Reply with quote

LemonCove wrote:
Nothing new here . . . . thanks to all who preceded me on this thread.

50 shades of grey interior . . . original laminate and vinyl trim, Stove plate, electrical box plates, Fridge trim, GoWesty laminate, floor, upholstery, carpet, curtains . . .

VitriFrigo CS51 AC/12V. Trim painted grey with Rustoleum, propane line replaced after removing Tee on regulator. Fridge wired to Blue Seas fuse box behind drivers seat (12V) and relocated (A/C) outlet. Will eventually add drawer beneath fridge like others have done.


Hey Lemon, are you able to share what the lighter shade of paint is that you used for the stove panel? Everything look's great!! Thanks for sharing!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2327
Location: Oregon Outback
westyventures is offline

PostPosted: Thu Mar 05, 2015 12:00 pm    Post subject: Reply with quote

I hope you'll add a grommet to the entry point in the floor for the propane line if you haven't already. Did you use any adhesion coat for the gray paint? I doubt regular enamel is going to stay adhered to bare plastic for long. Looks good otherwise!
_________________
Westy Ventures
Upgrade your starter with More-Torque Starter Adapters
Featuring reliable, modern Bosch gear-reduction starters.
Visit Westy Ventures for more details!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
noganav
Samba Member


Joined: January 06, 2006
Posts: 1236
Location: San Diego CA
noganav is offline

PostPosted: Sun Jun 14, 2015 2:38 pm    Post subject: Reply with quote

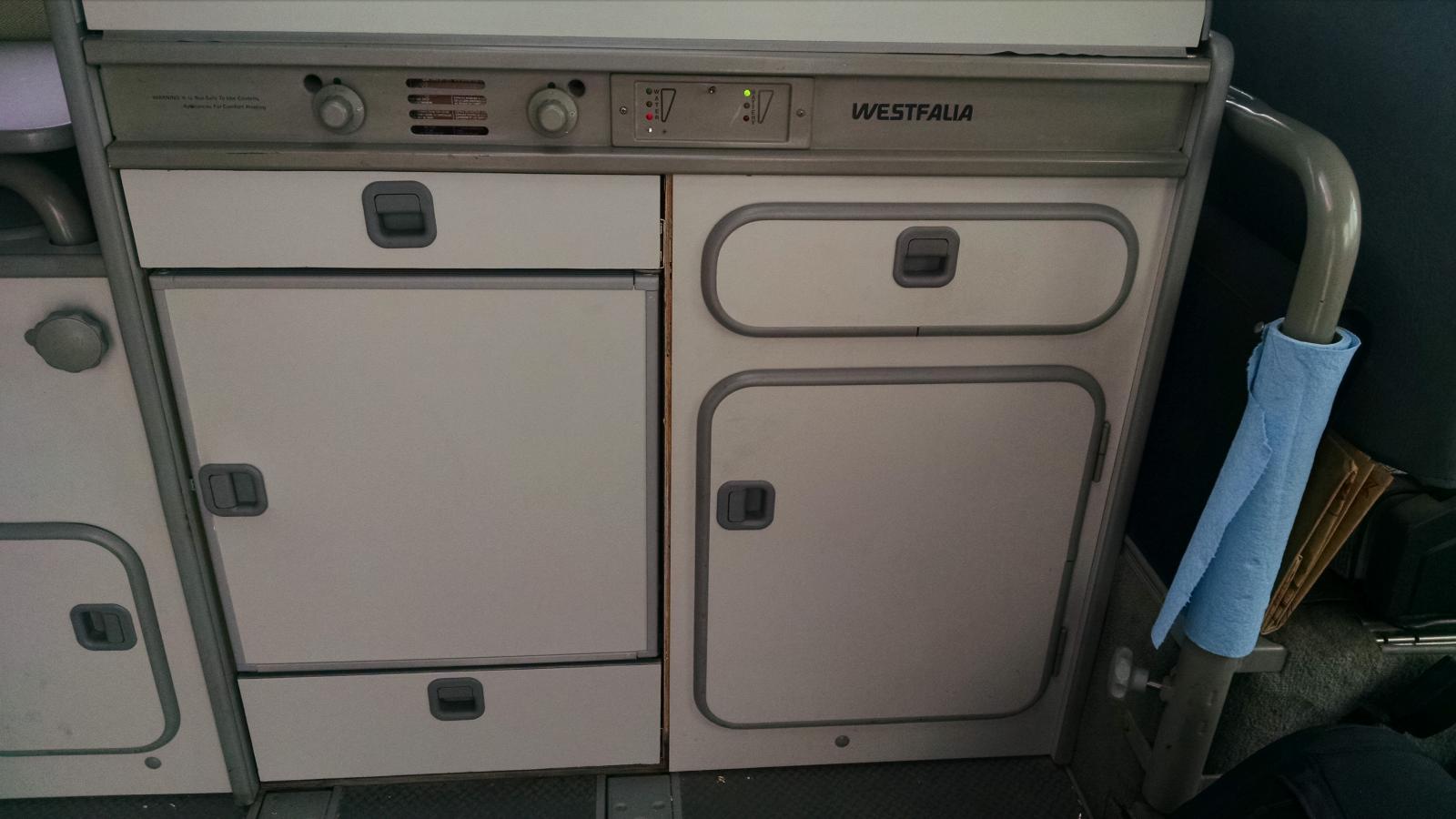

Here's some pics of my Isotherm 40 Cube install.

This fridge has several advantages over a truckfridge:

1) It fits the width and depth of the existing space perfectly. It mounts flush to the front of the westy cabinets. Nothing sticking out. I adapted a stock westy latch to mine so that it would look as stock as possible.

Image may have been reduced in size. Click image to view fullscreen.

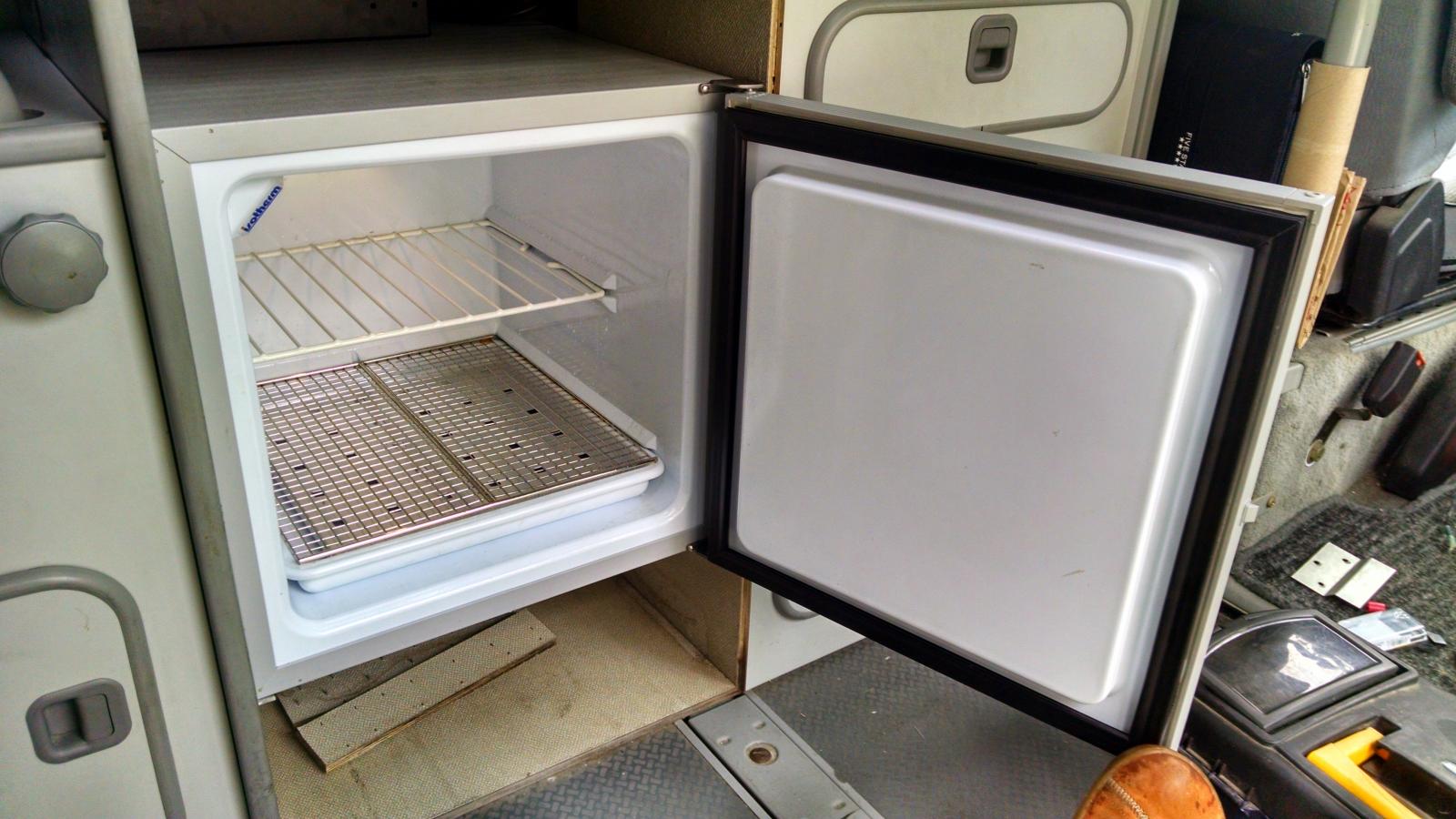

2) It doesn't have that little internal freezer to take up space. The usable space inside is huge compared to the stock dometic, and about equivalent to the TF49. There's room for three 2 liter milk/juice/water bottles in the front of the fridge. Even with those there, the rest of the fridge is about twice the usable space of the dometic (as measured by the number of tupperware containers I can fit in). The condensation tray and shelf at the bottom are unnecessary. I took them out to free up space.

Image may have been reduced in size. Click image to view fullscreen.


3) The whole fridge can operate either as a fridge or as a freezer. When I'm in it on my own I use it as a fridge. When I go camping with friends I can use it to freeze ice bottles and everyone can have their own cooler. I'm a biologist, so having a freezer for samples on the road is a big plus for me.

Image may have been reduced in size. Click image to view fullscreen.


4) You gain tons of storage space above and below. I put in a cutlery drawer (3.25 x 12 x 15.75) and a pantry below (5.75 x 18 x 15.75).

Image may have been reduced in size. Click image to view fullscreen.



5) It uses less power than a truckfridge. Mine runs for days on a 65AH battery under the driver's seat, so you don't need to dedicate space for extra batteries.

The downside compared to a Truckfridge is that it costs more. Mine was $922 from Defender during their yearly warehouse sale. Best non-sale price is $1024 from isotherm-parts. But because you need less battery, that extra cost is offset. I put solar in as part of this install and when you consider the total cost, a couple hundred extra bucks for a fridge that fits properly is well worth it.

Image may have been reduced in size. Click image to view fullscreen.

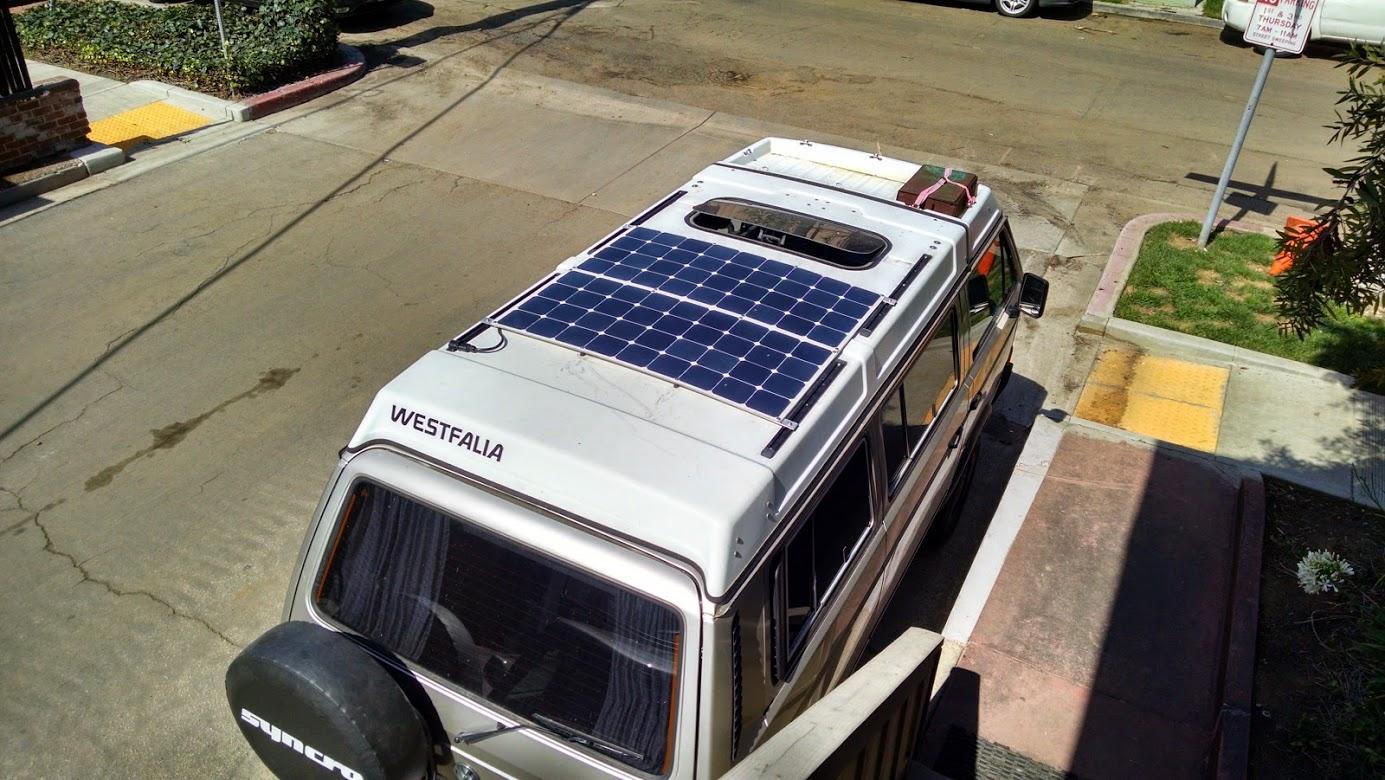

With the solar panels, the fridge doesn't even put a dent in the battery. Worry free cold. I'm loving this fridge!

A few more details in this thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=623163
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Sun Jun 14, 2015 3:46 pm    Post subject: Reply with quote

Very nice workmanship! Very Happy

I agree about the freezer in the TF. The number of times we've enjoyed a Haagen Daz bar pulled from the freezer compartment pales in comparison to the extra space it would free up. Ice cubes, even tiny ones, for G&Ts is another story but a small cooler is a good cure for that ailment.

Again, very nice work. Congrats.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Gruppe B
Samba Member


Joined: January 16, 2007
Posts: 1331

Gruppe B is offline

PostPosted: Sun Jun 14, 2015 5:14 pm    Post subject: Reply with quote

Love the install but not big enough for my needs. I second the awesomeness of the TF65 freezer too.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Microbusdeluxe Premium Member
Samba Member


Joined: July 26, 2003
Posts: 993
Location: Bellingham, WA
Microbusdeluxe is offline

PostPosted: Mon Jun 29, 2015 7:55 pm    Post subject: Reply with quote

Here's some shots of my refer project. First off thanks to Jay, thatvwbusguy, for answering all of my stupid questions.

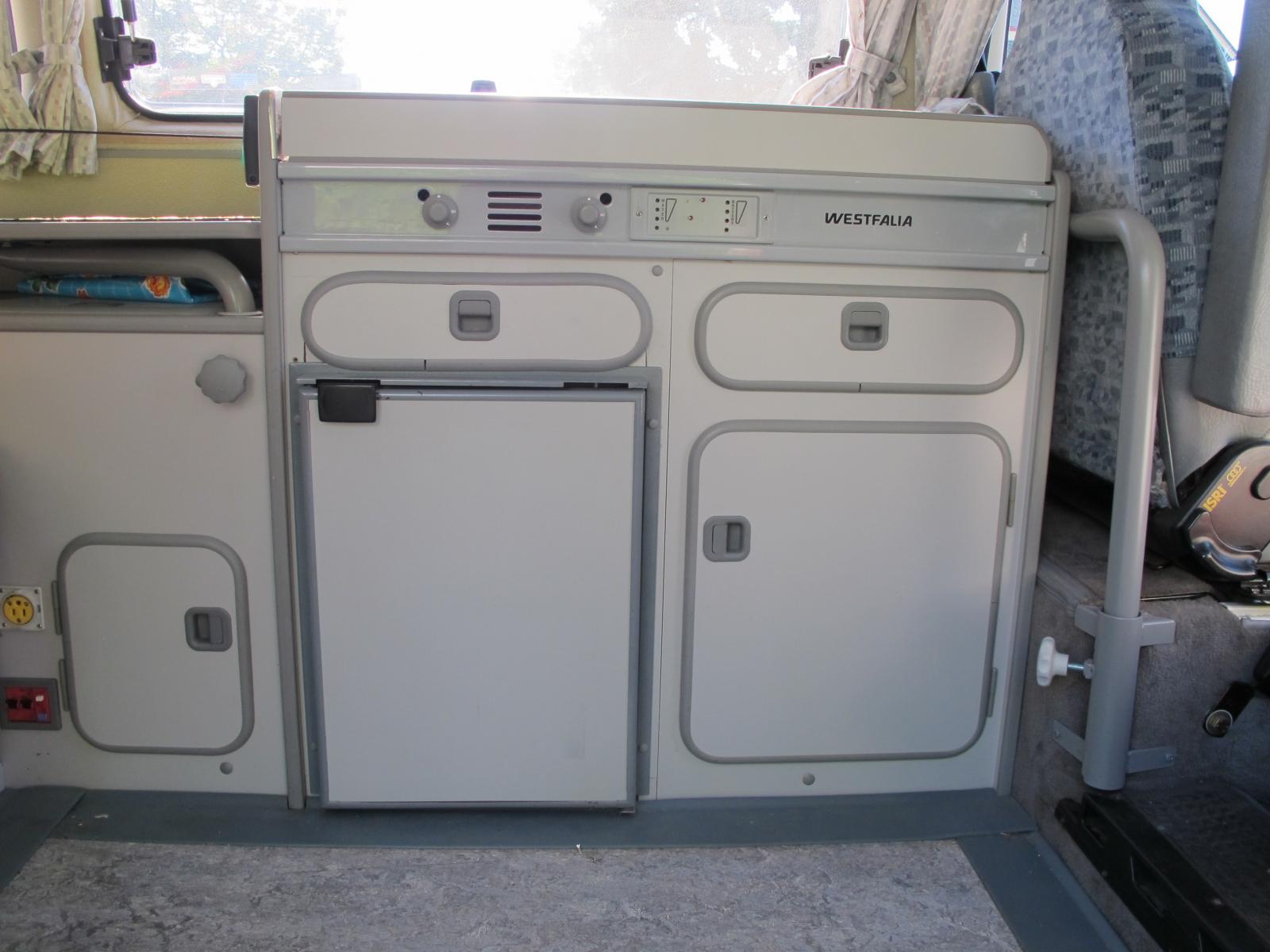

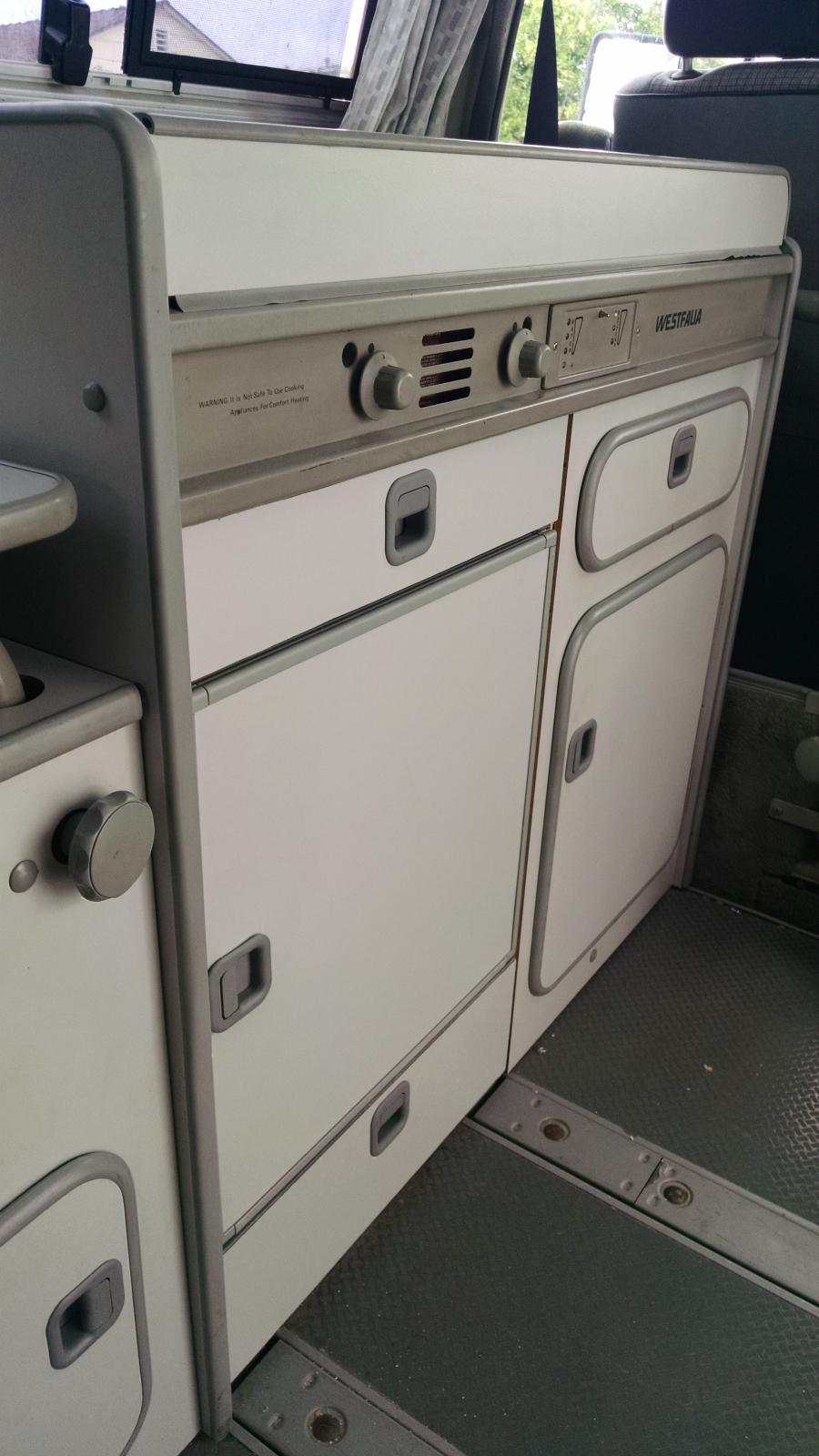

Here's a shot of the refer install.
Image may have been reduced in size. Click image to view fullscreen.


I used the recommended Rustoleum Smoke Grey paint #7786 and while it looks good, it is definitely darker than the interior grey. Maybe because I have a Euro spec Joker, or there was variation in the paint, but the particular rattle can I used is darker.

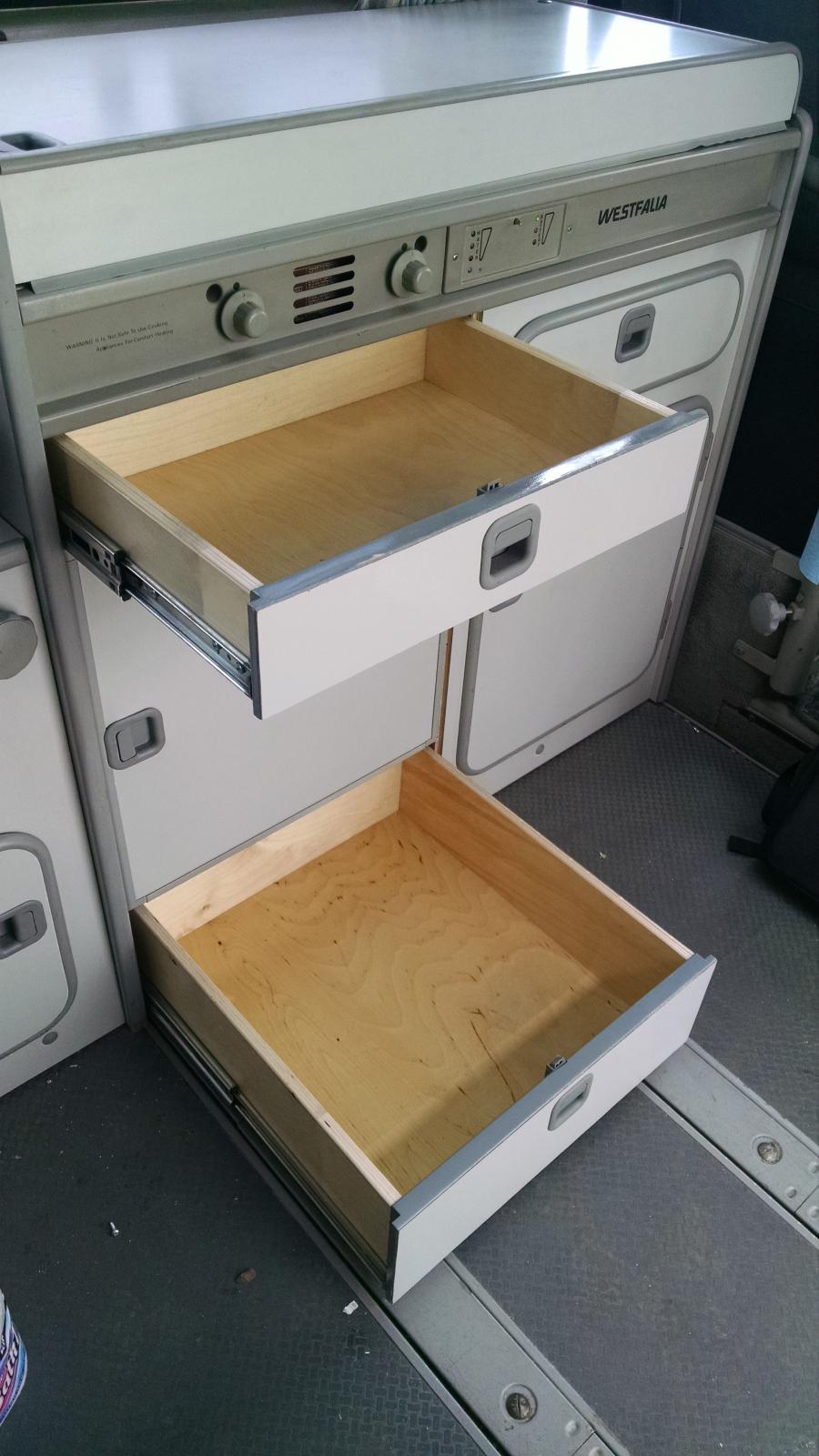

I went for a drawer above the refer. I used the Go Westy laminate for the new refer door panel, a great match.

I got edging from Gunzl. I ordered both kinds they offer. The wider one (17mm plate height) would have done a better job of covering the door edge, but is way too light in color. The narrower one (13 mm plate height) is perfect on color and only a bit too narrow. You only notice the exposed door (or drawer) edging when the door/drawer is open & you're looking straight down the edge.

As far as the refer itself goes. I ordered the Vitrifrigo for the European quality. Maybe the q.c. guys were out having an espresso when mine rolled down the line but not only is the handle rather flimsy, but one screw hole was completely stripped. That aside it does cool down nice. Only tested it pre solar panel, but got 3 days off the new aux battery.

Image may have been reduced in size. Click image to view fullscreen.

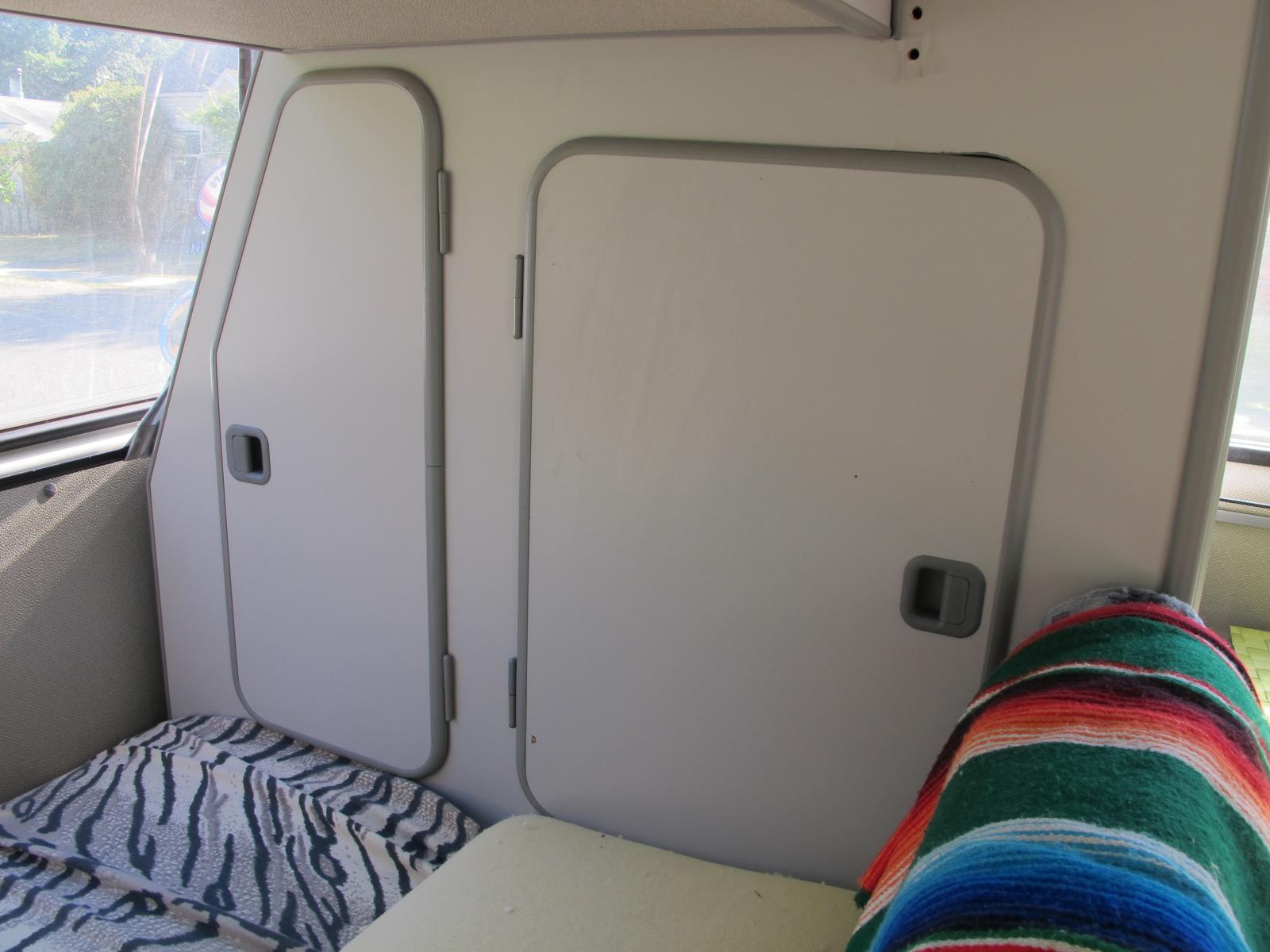

Here's the original refer door getting reused as a closet door. I made a door for my '81 and liked having it open in this direction. It does mean you need to relocate the bottom hinge, but that's not too hard to do. If you do this use the old refer front as a template and be sure you hold back from the marked edge enough when drilling the corners with your 4" hole saw.

Image may have been reduced in size. Click image to view fullscreen.

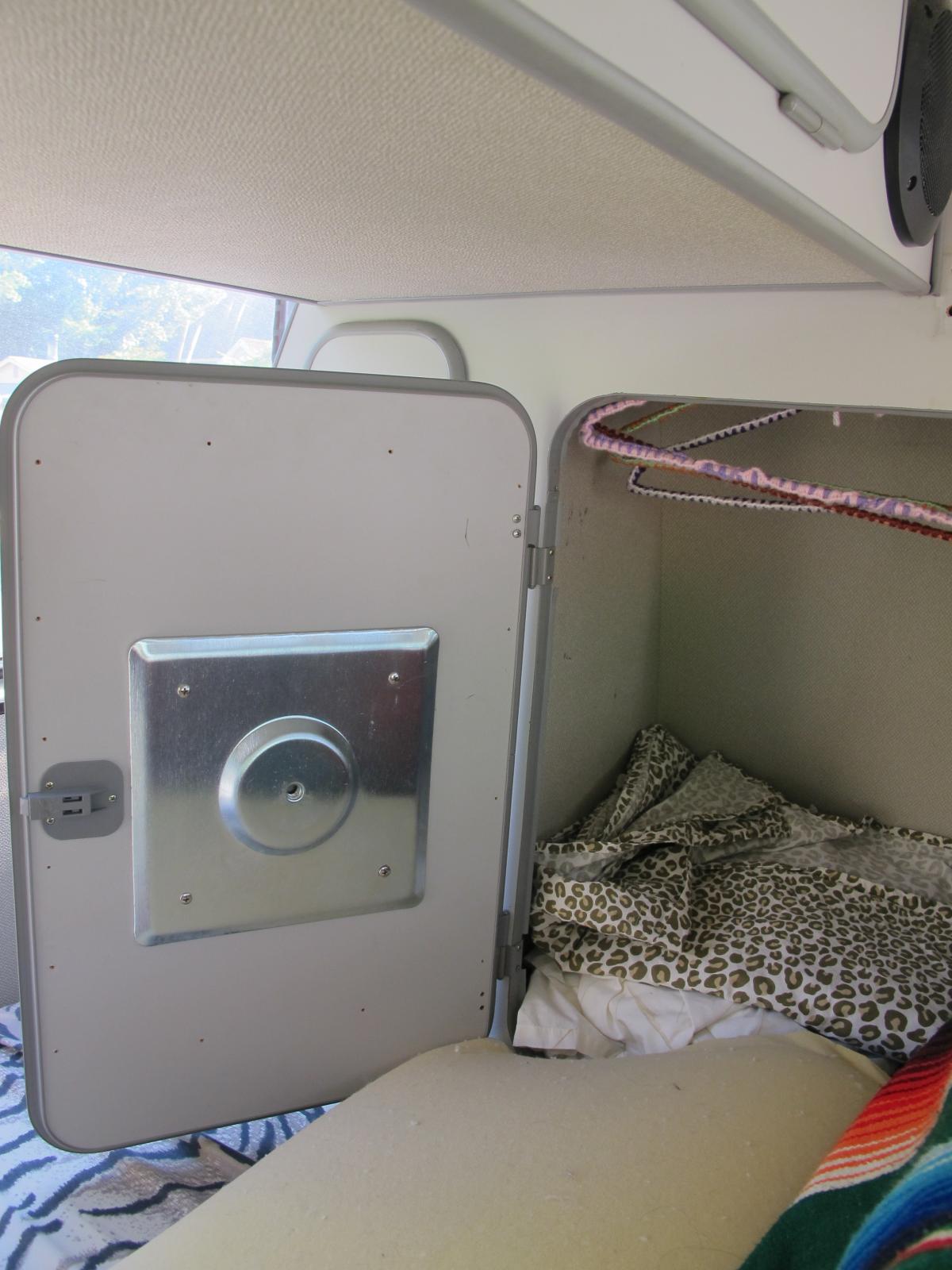

The door does double duty as the front table. A nifty mod that I shamelessly stole from another Sambanista. Feel free to do the same from me.
[/img]
_________________
'69 Squareback RIP
'65 21 window deluxe sold before the price spike, damn it.
'70 rhd bay now a taxi in South Sudan
'81 Westy sold
'89 hightop Westy Joker syncro 16" now with Bostig!


Last edited by Microbusdeluxe on Thu Jul 02, 2015 7:12 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
almo
Samba Member


Joined: January 27, 2011
Posts: 174
Location: In the back sleepin
almo is offline

PostPosted: Tue Jun 30, 2015 10:59 pm    Post subject: Reply with quote

Quick question?

I want to put a switch on my TG-49. When during round town. And not on trips don't need fridge on.

How many amp switch is safe to run the power through? I have a nice little labels switch panel I would like to use but the switches are rated at 10amps. Would this be safe or should I use a relay?

Cheers
_________________
San Francisco/Mayo Ireland

1986 2.1L Westy 2wd 4-spd Sold!!!!
1987 2.1L Westy syncro
2005 Subaru legacy 2.5Gt Wagon 5sp MT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
almo
Samba Member


Joined: January 27, 2011
Posts: 174
Location: In the back sleepin
almo is offline

PostPosted: Thu Jul 02, 2015 1:03 pm    Post subject: Reply with quote

Found the info in the TF manual.

Says minimum of 15amp switch

Wink
_________________
San Francisco/Mayo Ireland

1986 2.1L Westy 2wd 4-spd Sold!!!!
1987 2.1L Westy syncro
2005 Subaru legacy 2.5Gt Wagon 5sp MT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DAV!D
Samba Member


Joined: September 10, 2013
Posts: 979
Location: EL CAMINO
DAV!D is offline

PostPosted: Thu Jul 02, 2015 3:10 pm    Post subject: Reply with quote

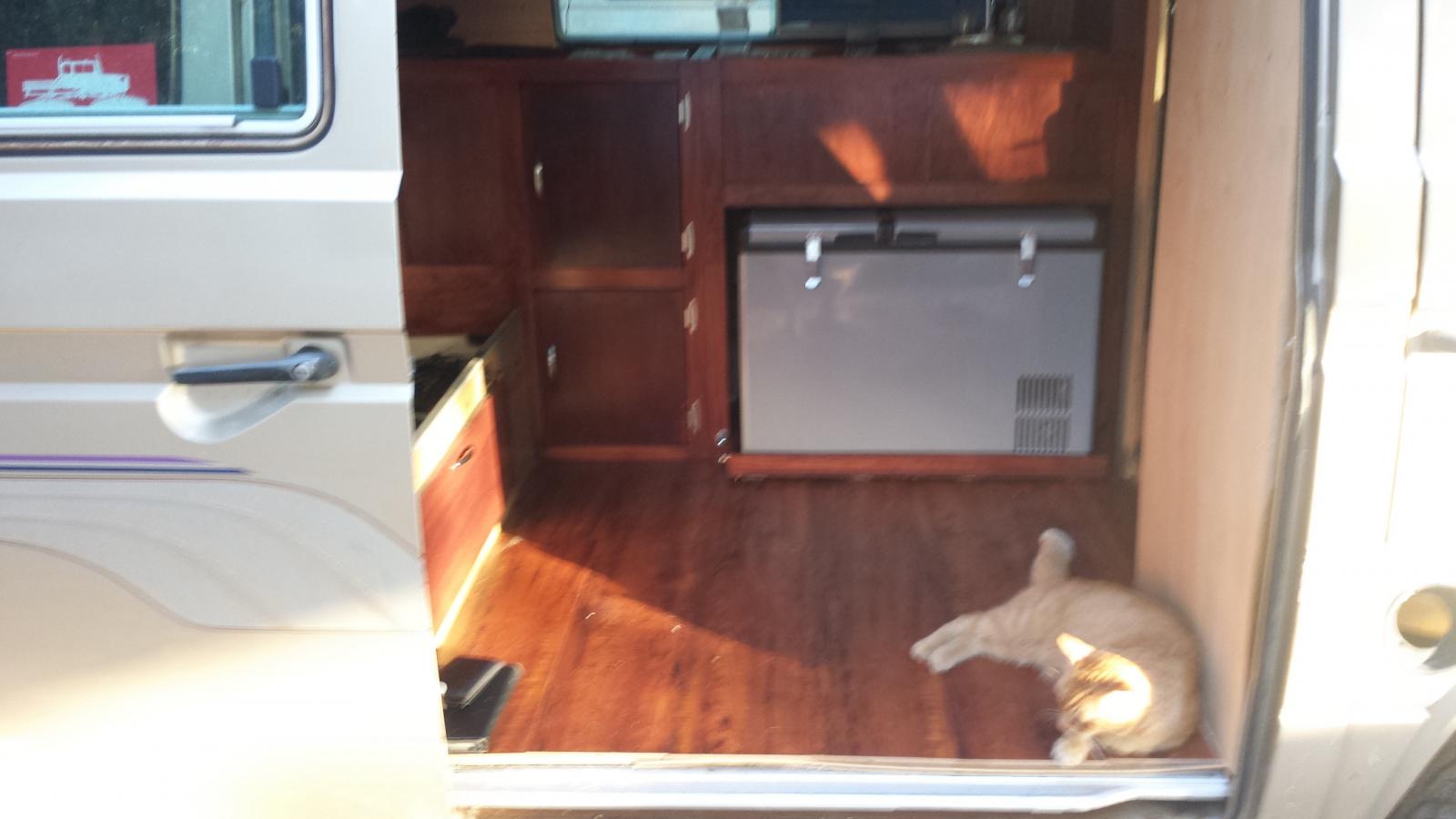

Here's mine, it's not a replacement, but a full custom build, the fridge has separate freezer and fridge compartments. I built it on a sliding shelf, so it can be pulled out and then push back out of the way.

Image may have been reduced in size. Click image to view fullscreen.


More pics of my build can be found here..

https://imgur.com/a/XWQWo
_________________
86 Syncro Build - Ecotec Motor Swap - Pop Top Conversion - Camper Build & Syncro Conversion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
0to60in6min
Samba Member


Joined: November 27, 2006
Posts: 3437
Location: OR & CA (Oregon/California)
0to60in6min is offline

PostPosted: Thu Jul 02, 2015 3:16 pm    Post subject: Reply with quote

@David...

what fridge do you have there and what size?

thanks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DAV!D
Samba Member


Joined: September 10, 2013
Posts: 979
Location: EL CAMINO
DAV!D is offline

PostPosted: Thu Jul 02, 2015 4:12 pm    Post subject: Reply with quote

0to60in6min wrote:
@David...

what fridge do you have there and what size?

thanks


It's a Whynter dual zone it's 62qts. I picked mine up from Amazon, here is a link to the model I have.

They have smaller ones, but this was the only one with dual zone. The cool thing is you can set both sides as fridge or freezer in any combination you want.

I personally love it, but the only draw back is the power plug goes into the right side toward the front. Due to the way I built my cabinets, the plug just barely clears and my first week with it, I accidentally knocked the plug out and had to toss everything inside because I didn't notice it for almost a full day. It's awesome to have ice cream on your trip or be able to freeze meats and so on while traveling.

Eventually I'm gonna get one of those Oven/top burner set ups for my van and I'll be able to cook just about anything I want after that. Like being in a home kitchen just smaller.
_________________
86 Syncro Build - Ecotec Motor Swap - Pop Top Conversion - Camper Build & Syncro Conversion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
noganav
Samba Member


Joined: January 06, 2006
Posts: 1236
Location: San Diego CA
noganav is offline

PostPosted: Thu Jul 02, 2015 6:49 pm    Post subject: Reply with quote

Looks like we've been doing similar projects all spring Dav!D. Very Happy

Another really nice looking install, congrats! I thought long and hard about the National Luna dual zone, but it was out of my price range. I didn't know Whynter had one. Looks great!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
DAV!D
Samba Member


Joined: September 10, 2013
Posts: 979
Location: EL CAMINO
DAV!D is offline

PostPosted: Thu Jul 02, 2015 6:59 pm    Post subject: Reply with quote

noganav wrote:
Looks like we've been doing similar projects all spring Dav!D. Very Happy

Another really nice looking install, congrats! I thought long and hard about the National Luna dual zone, but it was out of my price range. I didn't know Whynter had one. Looks great!


Yea even the Whynter was more than I wanted to spend, but I really wanted a separate freezer which was usable and not one of those tin can things they put in most fridges.

As for the interior, thanks. It's not quite finished yet like most of the van.. lol However I plan to wrap it up when I head back to FL at the end of the year.
_________________
86 Syncro Build - Ecotec Motor Swap - Pop Top Conversion - Camper Build & Syncro Conversion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
noganav
Samba Member


Joined: January 06, 2006
Posts: 1236
Location: San Diego CA
noganav is offline

PostPosted: Thu Jul 02, 2015 7:04 pm    Post subject: Reply with quote

DAV!D wrote:


Yea even the Whynter was more than I wanted to spend, but I really wanted a separate freezer which was usable and not one of those tin can things they put in most fridges.


I totally agree. Laughing
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 21, 22, 23 ... 33, 34, 35  Next
Jump to:
Page 22 of 35


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
