 Posted: Fri Jul 10, 2009 8:17 pm Post subject: Headlight switch or wiper switch? |
 |
|

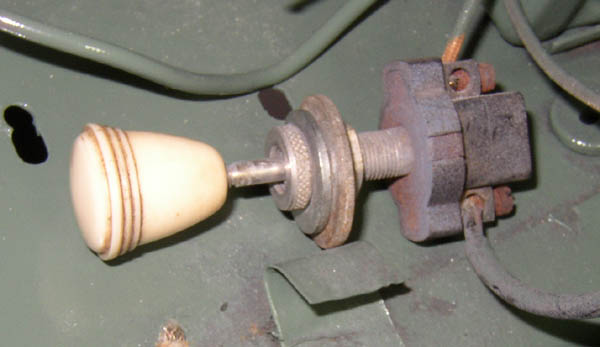

For my Zwitter, is this my headlight or wiper switch or none of the above?
I need to get a good book about my car! Thanks
Brian Waz |
|
| Back to top |
|
 |
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9414
Location: Northwood, NH USA
|
| Posted: Fri Jul 10, 2009 8:45 pm Post subject: |
|
|
Looks like a wiper switch...
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
52crotch
Samba Member
Joined: July 22, 2005
Posts: 91
Location: Boise Idaho - Gifhorn Germany
|
| Posted: Fri Jul 10, 2009 9:15 pm Post subject: |
|
|
Get the Bentley manual, it covers your car pretty good
_________________
52 crotch cooler
54 cabriolet
57 deluxe
63 sunroof
63 356B
and more |
|
| Back to top |
|
|
Matts Bug Parts
Samba Member
Joined: July 01, 2001
Posts: 213
|
| Posted: Sat Jul 11, 2009 6:55 am Post subject: Switch |
|
|
It is definitely wiper.
Matthew |
|
| Back to top |
|
|
bwaz
Samba Member
Joined: August 24, 2004
Posts: 1815
|
| Posted: Sat Jul 11, 2009 7:12 am Post subject: |
|
|
it pretty well shows, but I should have mentioned it was two wires. Now what's the headlight switch like?
thanks for the help
brian |
|
| Back to top |
|
|
billmetric
Samba Member
Joined: March 16, 2006
Posts: 1062
Location: Columbus City USA
|
| Posted: Sat Jul 11, 2009 6:38 pm Post subject: |
|
|
the headlight switch is going to have many many wires going to it, like 5 or so, I have to vote for "none of the above" for that switch in your picture, its clearly got a not very VW like knurled & threaded collar for mounting, most likely an accessory switch for fog lights or something, I'm thinking even on a zwitter the wiper switch was mounted in the conventional manner with a propper smooth collar behind the knob and a screw into the bottom of the dash from a bracket on the switch
_________________
There is an idea of a Billmetric; some kind of abstraction. But there is no real me: only an entity, something illusory. And though I can hide my cold gaze, and you can shake my hand and feel flesh gripping yours and maybe you can even sense our lifestyles are probably comparable... I simply am not there... |
|
| Back to top |
|
|
Komissar
Samba Member
Joined: May 18, 2008
Posts: 894
Location: Bucharest, Romania
|
| Posted: Sat Jul 11, 2009 11:27 pm Post subject: |
|
|
Yeah, it's an acesory switch - I have a similar one on my car, wired by myself for the fog lights. Even more, even if the ivory button looks like a normal dashboard ivory button - the thread for the ivory button is thinner than the thread on standard dash buttons ( such as headlight switch, found later stock beetles )/
_________________
1965 Sunroof Beetle
1972 Type 3 Squareback
1978 Skoda 105S |
|
| Back to top |
|
|
Blue Baron
VW Aficionado
Joined: June 16, 2006
Posts: 28321
Location: Free State of Florida
|
| Posted: Tue Jul 14, 2009 8:39 pm Post subject: |
|
|
X2
I agree. It's an accessory switch.
_________________
We are striving for perfection, to make our cars run forever, if possible.
Heinz Nordhoff |
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9414
Location: Northwood, NH USA
|
| Posted: Wed Jul 15, 2009 7:08 am Post subject: |
|
|
There were 2 terminal (and 3) wiper switches for single speed wipers. I have some of each, NOS, in the bag with VW dealer part numbers. But I agree that it could also be an aftermarket accessory switch.
