Lubricating the Vanagon heater fan
Page: 1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
This topic is locked: you cannot edit posts or make replies.
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2077
Location: South central Oregon
westyventures is offline

PostPosted: Mon Nov 16, 2009 4:55 pm    Post subject: Lubricating the Vanagon heater fan Reply with quote

Symptom: front heater fan squeaks annoyingly on 1/2 positions. The bearing that most often causes this is sitting right out there unprotected inside the air plenum on the left side of the fan motor.

How: Remove the headlamp grille and the heater intake grill. Then, a simple 3/8" hole drilled into the sheetmetal in the location shown gives a straight shot to the offending squeaky bearing. I used PB Blaster and two nozzle tubes joined with a short piece of tiny flexible plastic tubing. Using an LED headlamp tucked into the vent above, I could see the bearing through the 3/8" hole, and was able to direct the PB into the bearing while the motor was turning. Immediately the squeak was gone. Plugged the hole with an old plastic dust plug from a master cylinder I replaced. Never toss these little things in the trash.

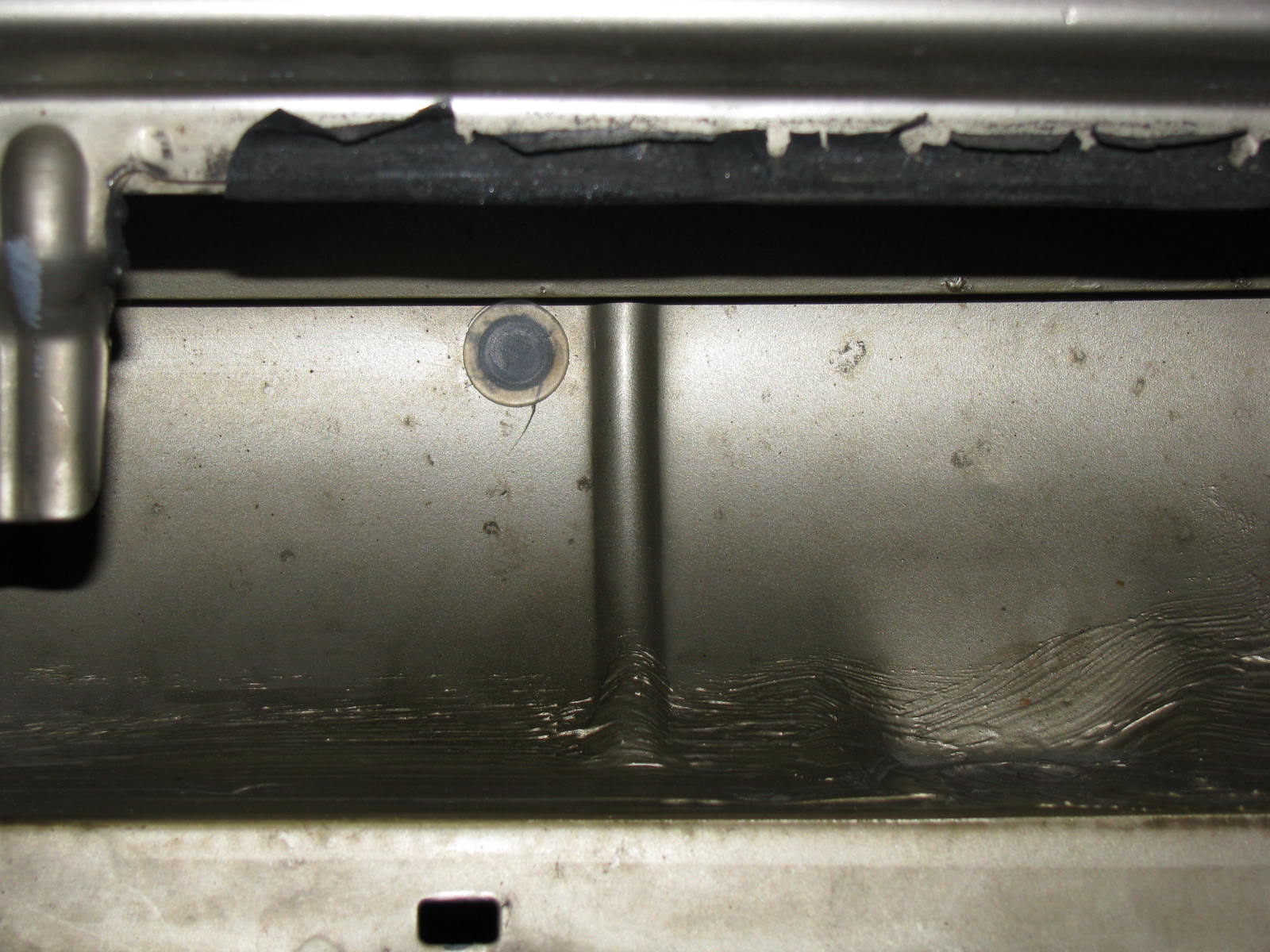

Image may have been reduced in size. Click image to view fullscreen.
[/img]
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
PDXWesty
Samba Member


Joined: April 11, 2006
Posts: 5718
Location: Portland OR
PDXWesty is offline

PostPosted: Mon Nov 16, 2009 4:58 pm    Post subject: Reply with quote

Cool. Could we get a little wider shot in the photo to see where you located the hole?
_________________
89 Westy 2.1 Auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2077
Location: South central Oregon
westyventures is offline

PostPosted: Mon Nov 16, 2009 5:19 pm    Post subject: Reply with quote

PDXWesty wrote:
Cool. Could we get a little wider shot in the photo to see where you located the hole?

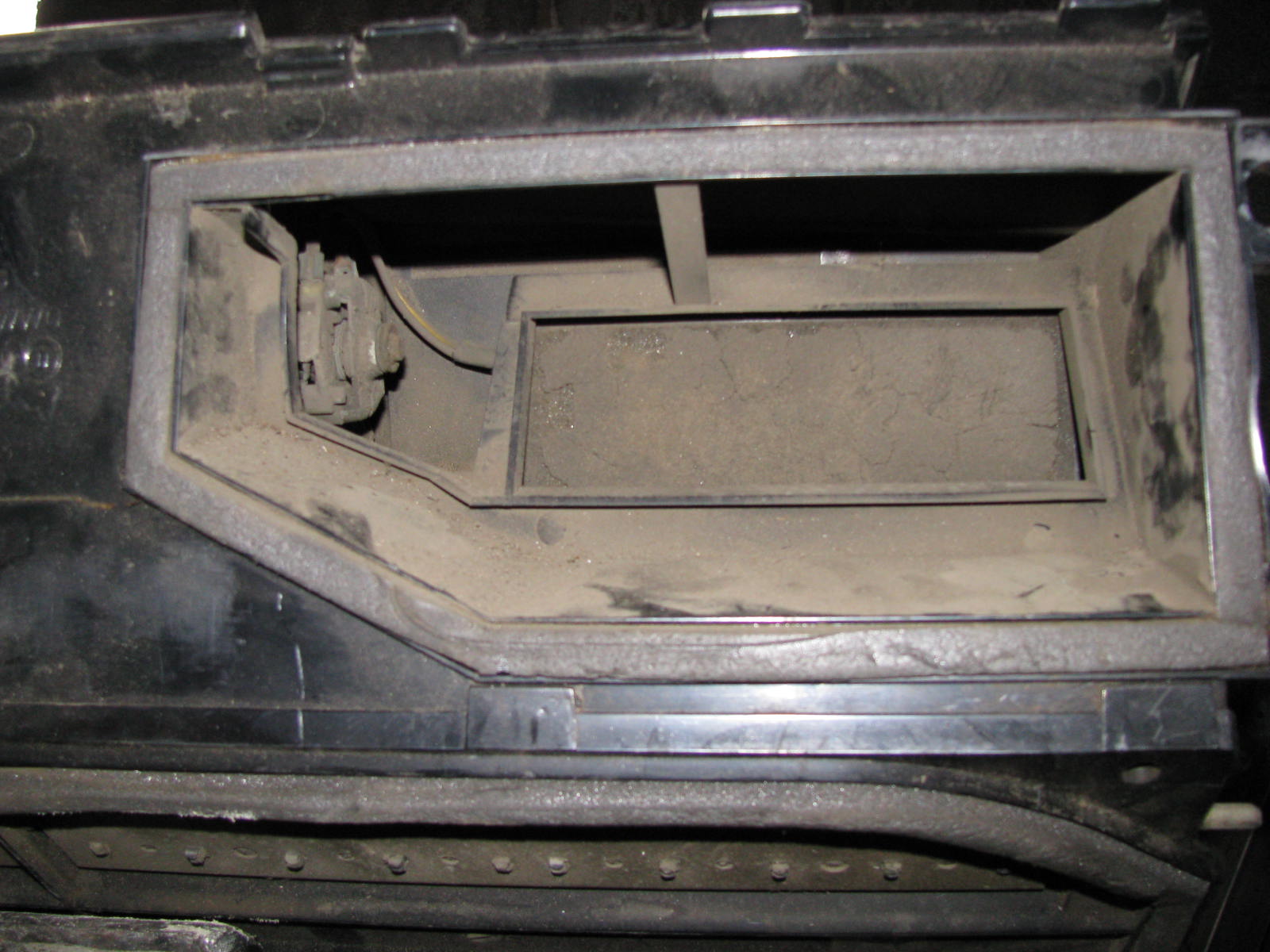

Image may have been reduced in size. Click image to view fullscreen.

_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
the caveman
Samba Member


Joined: August 09, 2004
Posts: 885
Location: island state of Montreal
the caveman is offline

PostPosted: Mon Nov 16, 2009 5:46 pm    Post subject: Reply with quote

Good info because as i was putting it all back together last week, i tugged on the ground wire from the fan to reconnect it . As i pulled gently it all of a sudden gave way to the point that i thought it had come loose off the terminal of the fan. I swore for a minute or two [sun was going down fast ] then got a battery and some wires to make sure it was still connected, in case i had to pull the housing off again. Well it worked, but i have a funny feeling it'll work it's way loose one day- probably the first day we get a big dump of snow. I figured there was a way to get at the fan by drilling a hole somewhere. because i really really don't have the time to take it all out again for one wire.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
blakeck2
Samba Member


Joined: April 10, 2009
Posts: 939
Location: Los Osos, CA
blakeck2 is offline

PostPosted: Mon Nov 16, 2009 5:57 pm    Post subject: Reply with quote

THANKYOU!!! I have been pondering this fix for awhile
Back to top
View user's profile Send private message AIM Address Facebook Classifieds Feedback
stormforge
Samba Member


Joined: May 05, 2009
Posts: 355
Location: Adirondacks NY
stormforge is offline

PostPosted: Mon Nov 16, 2009 6:36 pm    Post subject: Reply with quote

Outstanding post! That squeak is getting pretty bad...

Thanks!

-Bill
'89 Syncro
Back to top
View user's profile Send private message Gallery Classifieds Feedback
James 93SLC
Samba Member


Joined: January 21, 2009
Posts: 937
Location: NE Ohio
James 93SLC is offline

PostPosted: Mon Nov 16, 2009 6:44 pm    Post subject: Reply with quote

Great idea! I too have a slightly squeaky fan and was dreading the dash removal.

FYI though I would use something other than PB Blaster. While a good penetrating spray, it doesn't have the long lasting lubrication you need. I would use some Tri-Flow or other oil. Not WD-40 either.
_________________
-------------------------
91 Vanagon Carat
93 Corrado SLC
-------------------------
Photos: http://picasaweb.google.com/slc.corrado
--------------------------------------------------------
tencentlife "Sometimes a pooka is a problem and sometimes it's just a pooka"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2077
Location: South central Oregon
westyventures is offline

PostPosted: Mon Nov 16, 2009 6:57 pm    Post subject: Reply with quote

James 93SLC wrote:
Great idea! I too have a slightly squeaky fan and was dreading the dash removal.

FYI though I would use something other than PB Blaster. While a good penetrating spray, it doesn't have the long lasting lubrication you need. I would use some Tri-Flow or other oil. Not WD-40 either.


Actually, forgot to mention the PB was followed by Triflow. Wink
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 40946

Wildthings is offline

PostPosted: Tue Nov 17, 2009 12:33 am    Post subject: Reply with quote

If while you have had the heater motor out in the past and have drilled a hole in the correct location in the fan, you can lube the other bearing in the motor this same way.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Tue Nov 17, 2009 12:39 am    Post subject: Reply with quote

Yea, by drilling a hole in the fan hub you can lube up the inner bearing--your not going to get this job done by a hit or miss lube job entering from a hole bored into the front end sheet metal.

If one bearing is galled or dry, the other is in the same shape.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2077
Location: South central Oregon
westyventures is offline

PostPosted: Tue Nov 17, 2009 6:55 am    Post subject: Reply with quote

Terry Kay wrote:
Yea, by drilling a hole in the fan hub you can lube up the inner bearing--your not going to get this job done by a hit or miss lube job entering from a hole bored into the front end sheet metal.

If one bearing is galled or dry, the other is in the same shape.


I knew you'd chime in with something positive! Rolling Eyes Nowhere did anyone mention this as being a cure for all that ails a Vanagon, but as in this case if the outer bearing is the one squealing it will buy more time, perhaps years, before pulling the dash for motor replacement.
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Tue Nov 17, 2009 7:49 am    Post subject: Reply with quote

One question--how in the heck did you have any idea where that drill bit exactly was going to bore into the heater box?
The hole into that sheet metal sure didn't give you a straight line into the box directly onto the end of the motor & bearing---

At best this hoakey idea is as just about as good a the Crazy Condelli blasting the WD-40 into the intake vent and hope for the best--and say the motor is as good as new for years.

Yea--right.

You've got a spinning axle shaft with two bearings on it--and the other side on the hub is the load bearing support bearing.

Blindly blasting some sort of miracle in a can into a blind hole is, and say it'll give your electric motor more years of trouble free service is just about as reliable information as a barker selling some snake oil artritis remidy at a state fair.

What--you bought a 400 dollar boroscope to guarantee the exact & propper entry point into the front header panel & heater box case--and then right onto the end of the heater motor?

PTL and Amen --it's a miracle.

It was a pot luck operation and that heater motor spinning as good as new for years after is a hallucination at best.

I can't believe how folks side step the correct way of getting a job done right.

The front heater motor, Stevey Wonder oil job is a perfect example of that.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Alaric.H
Samba Member


Joined: March 28, 2009
Posts: 2529
Location: Sandy Springs GA
Alaric.H is offline

PostPosted: Tue Nov 17, 2009 8:28 am    Post subject: Reply with quote

Terry Kay wrote:
One question--how in the heck did you have any idea where that drill bit exactly was going to bore into the heater box?
The hole into that sheet metal sure didn't give you a straight line into the box directly onto the end of the motor & bearing---

At best this hoakey idea is as just about as good a the Crazy Condelli blasting the WD-40 into the intake vent and hope for the best--and say the motor is as good as new for years.

Yea--right.

You've got a spinning axle shaft with two bearings on it--and the other side on the hub is the load bearing support bearing.

Blindly blasting some sort of miracle in a can into a blind hole is, and say it'll give your electric motor more years of trouble free service is just about as reliable information as a barker selling some snake oil artritis remidy at a state fair.

What--you bought a 400 dollar boroscope to guarantee the exact & propper entry point into the front header panel & heater box case--and then right onto the end of the heater motor?

PTL and Amen --it's a miracle.

It was a pot luck operation and that heater motor spinning as good as new for years after is a hallucination at best.

I can't believe how folks side step the correct way of getting a job done right.

The front heater motor, Stevey Wonder oil job is a perfect example of that.
Thanks for reminding me I have a 400$ boroscope (snap on)
well I paid 200 but still it is a good ideal to use it for this.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
iceracer
Samba Member


Joined: February 28, 2006
Posts: 932
Location: Milwaukee, Wisconsin
iceracer is offline

PostPosted: Tue Nov 17, 2009 8:40 am    Post subject: Reply with quote

Come on terry, give the guy some credit. Not all of us have time to pull the dash or even know how. I have become rather good at it since I have done it 4 times now.

I had mine out of my project a few weeks back and really for the life of me couldn't figure out the best way to lube it from the outside. I was thinking more in terms of drilling a hole to put a rubber tube into so that I could drip oil in there once in a while. I think 10C did something like this.

But I do like this new idea of Karls. I think in order to really know you are hitting the right spot you would need to drill the hole and set it up with the housing out. The other thing is you are drilling through metal and then there is dead air space before you hit the housing and then there is a lot of air space until you are close to the bearing inside the box.
_________________
86 Bronze Biege Metallic (Syncro wolfsburg edition) Restoration finished and daily driver
63 red Beetle (The Iceracer)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2077
Location: South central Oregon
westyventures is offline

PostPosted: Tue Nov 17, 2009 8:45 am    Post subject: Reply with quote

Terry Kay wrote:
One question--how in the heck did you have any idea where that drill bit exactly was going to bore into the heater box?
The hole into that sheet metal sure didn't give you a straight line into the box directly onto the end of the motor & bearing---

You've got a spinning axle shaft with two bearings on it--and the other side on the hub is the load bearing support bearing.


Terri, it's hilarious how often you lambast things like this. If you actually read the beginning of this thread maybe you would understand.

I had a complete Vanagon heater box, with motor still installed, in my pile-o-parts. Looking at the air inlet I could see that the end bearing is directly visible in the inlet. The only thing separating said bearing from full view in the van is one layer of sheetmetal, the curved air inlet duct. Using a simple LED headlamp and mirror, I could see the bearing. I then extrapolated where a small hole through the air inlet could be located directly in front. The worst that could have happened is that I drilled a hole for nothing, and there would be a small hole to plug. But placing the light in the inlet again, I could watch as the fan motor turned, and at the same time spray the bearing with lubricant. Nine out of ten motors I've replaced had only a seized bearing on this end. This one had just started to squeal - my success in freeing the bearing and lubricating it in ten minutes of work seems well worth the time. If it starts to squeal again, guess what? The port is there. Rolling Eyes
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
stormforge
Samba Member


Joined: May 05, 2009
Posts: 355
Location: Adirondacks NY
stormforge is offline

PostPosted: Tue Nov 17, 2009 8:48 am    Post subject: Reply with quote

I'd say a properly located hole with a nice rubber stopper is actually a great improvement. With the addition of this "maintenance access port" we can lube the bearing all we like without ripping out half the van. Tearing out the dash in a 20 year old vehicle is never a good thing -- extra wear and tear on fasteners, connectors, wiring harnesses, components, etc... is just asking for trouble. "Doing It Right" would really mean replacing half the wiring and electrical components under there... Most of us just want "good", not "right".

Cheers,
-Bill

'89 Syncro
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5132
Location: PNW
Christopher Schimke is offline

PostPosted: Tue Nov 17, 2009 8:49 am    Post subject: Reply with quote

Terry Kay wrote:

I can't believe how folks side step the correct way of getting a job done right.

The front heater motor, Stevey Wonder oil job is a perfect example of that.



Since when is lubing a dry bearing the incorrect way to fix something?
(The required disclaimer to note that of course there are certain critical bearings that should, at the very least, be examined prior to simply adding lube, but the heater motor bearing isn't one of them)
And since when is there only one correct way to fix something?
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2077
Location: South central Oregon
westyventures is offline

PostPosted: Tue Nov 17, 2009 8:54 am    Post subject: Reply with quote

westyventures wrote:

I had a complete Vanagon heater box, with motor still installed, in my pile-o-parts. Looking at the air inlet I could see that the end bearing is directly visible in the inlet.


Here is a photo so you can get a better idea how easy it is to access from the hole I drilled. Looking through the hole you will be staring straight at this bearing, it is directly behind the curved intake panel where I drilled.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
thewump
Samba Member


Joined: June 15, 2008
Posts: 215
Location: Denver
thewump is offline

PostPosted: Tue Nov 17, 2009 9:31 am    Post subject: Reply with quote

Hey Karl, I'm with you. Ingenuity to make a non critical problem go away is incredibly satisfying.

Sad to see the thread taken over with unnecessary, and what smells to me to be self important verbal masturbation.

It squeeked. Now it doesn't. Good enough for me.

K
_________________
87 Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wbx
Samba Member


Joined: April 11, 2005
Posts: 1254
Location: Monterey, CA
wbx is offline

PostPosted: Tue Nov 17, 2009 10:00 am    Post subject: Reply with quote

I'm assuming so, but does this work for older models (say... an '84), too?
_________________
'84 Westy (first owner).......but my daily driver has pedals
My "perspective" mantra:
A Volkswagen Vanagon is just a material thing,
As such, it is of the earth,
And if i need to, I can let my Van go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
This topic is locked: you cannot edit posts or make replies.    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
