PostPosted: Sun Feb 28, 2010 1:19 pm    Post subject: Type 181 / 126 - Industrial heater box delete tin Reply with quote

In another thread about sled tins and their importance in engine cooling the topic of "j tube" tin was brought up. I started this thread to make it easier to find when searching.

In order to direct the spent cooling air out the back of the car the sled tin and heater boxes must be in place. If the heater boxes are removed the spent air goes out the sides of the tin instead of to the rear of the car. Type 181 (thing/safari) with gas heaters and industrial engines did not have heater boxes but still needed to direct the air away from the engine. VW used these small tins to box in the sled tin as the heater box once did.

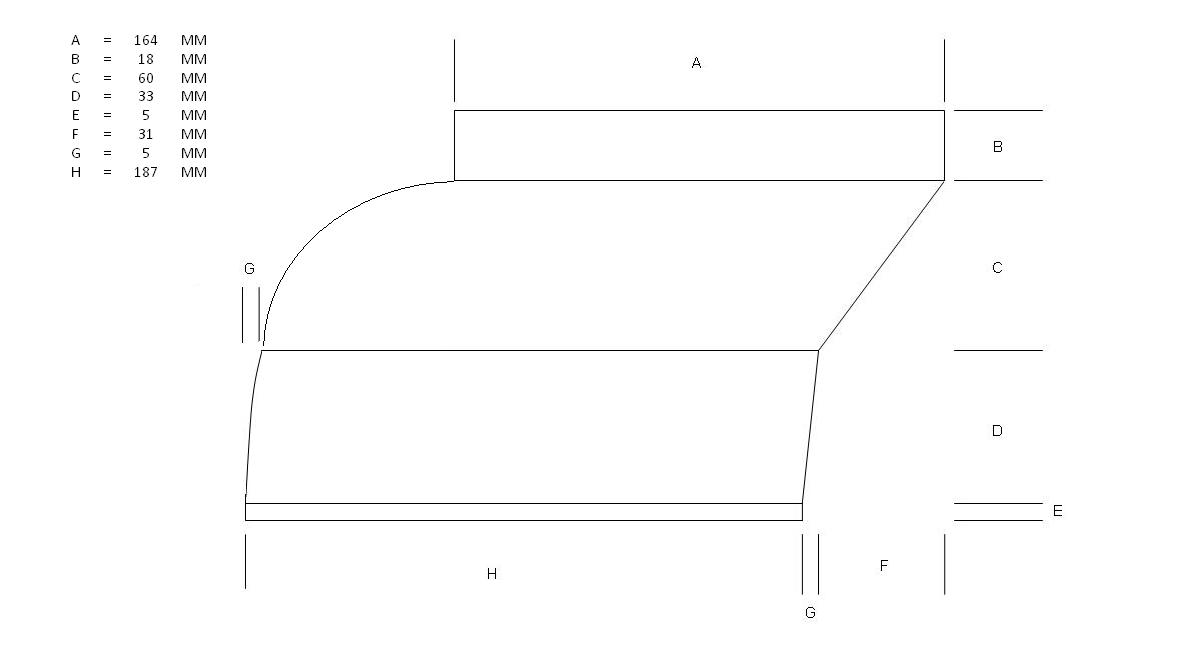

Below is a pic of the tin and a drawing with dimensions so you can make your own.

Image may have been reduced in size. Click image to view fullscreen.


Dimensions:

Right

Image may have been reduced in size. Click image to view fullscreen.


Left

Image may have been reduced in size. Click image to view fullscreen.
[/quote]

Drawings not to scale
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70759
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sun Feb 28, 2010 1:23 pm    Post subject: Reply with quote

Here's another picture of the original tins.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Installed.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


And if you rather buy reproductions rather than making your own, you can get them here:
http://www.awesomepowdercoat.com/Industrial_Shields.html
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
1961bluebug
Samba Member


Joined: November 11, 2002
Posts: 1137
Location: Czech Republic, Europe
1961bluebug is offline

PostPosted: Sun Feb 28, 2010 1:43 pm    Post subject: Reply with quote

These tins were factory installed on 1500 engines and 1600 engines in a Type 181/Thing without heater boxes and on all Type 126 industrial engines.
_________________
Quote:
enghof rambeling.


|82x94|

1961 Deluxe beetle, 1971 type 181, 1968 T2a Baywindow, 1973 Type 147 "Swiss Fridolin"(sold), 1966 Deluxe sedan (sold), 1983 "Silver Bug" edition (sold), 1961 beetle (sold)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Chad1376
Samba Member


Joined: January 29, 2005
Posts: 1435
Location: Henderson, Nevada
Chad1376 is offline

PostPosted: Sun Feb 28, 2010 1:46 pm    Post subject: Reply with quote

What secures the outside edge of the tin? It looks like it could create an irritating rattle/buzz.
_________________
My never ending 1302 Autocross Project:
http://www.shoptalkforums.com/viewtopic.php?f=51&a...02b8f83f22
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70759
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sun Feb 28, 2010 1:50 pm    Post subject: Reply with quote

Chad1376 wrote:
What secures the outside edge of the tin? It looks like it could create an irritating rattle/buzz.

Nothing..... I twisted the sleds so they apply some pressure to the shields and are held tightly against the heads.

They do not rattle.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
durfeec
Samba Member


Joined: May 03, 2010
Posts: 1279
Location: Mio, MI
durfeec is offline

PostPosted: Fri Feb 03, 2012 11:34 pm    Post subject: Reply with quote

Glenn, have you tested temps with and without these tins? First time I have ever heard of these. I am running j-tubes on my bus but right now its winter so I'm not concerned with overheating but when summer comes and I move out west, I'll be driving in heat and will be concerned.
_________________
1960 Bus Panel/Camper
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70759
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sat Feb 04, 2012 4:36 am    Post subject: Reply with quote

I've only run my engine with them.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
durfeec
Samba Member


Joined: May 03, 2010
Posts: 1279
Location: Mio, MI
durfeec is offline

PostPosted: Sat Feb 04, 2012 1:32 pm    Post subject: Reply with quote

ok. looks like ill be making them when it starts to warm up. thank you.
_________________
1960 Bus Panel/Camper
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
earthquake
Samba Member


Joined: January 10, 2008
Posts: 3550
Location: SANDY VALLEY, NEVADA
earthquake is offline

PostPosted: Sat Feb 04, 2012 4:28 pm    Post subject: Reply with quote

As soon as we get the water jet set back up I will be making a few sets from stainless.

Casey
_________________
74 CLASS 11 LOOK-A-LIKE
69 DUNE BUGGY
79 INTERNATIONAL SCOUT II
05 SCION XB SERIES RELEASE 2[#437]

Kelly J. Nolte 3/20/53 - 11/6/08
http://www.rememberingkelly.com/

DEATH TO CHINGERS!
[From a military recruitment poster in the novel "The Stainless Steel Rat" By Harry Harrison]
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lucatero
Samba Member


Joined: May 16, 2011
Posts: 417
Location: San Diego
Lucatero is offline

PostPosted: Sun Feb 05, 2012 11:32 am    Post subject: Reply with quote

I hear alot about Jtubes and I am not sure what people are talking about, as I am have not owned aircools very long. I have a 64 with heater boxes and I a have a 71 without. It has aftermarket exhaust and have simaler tubes as the pic below, but tucked up closer to the head. Are the J tubes the tubes that connect to the exhaust and are running alongside the head?
Image may have been reduced in size. Click image to view fullscreen.

_________________
64 Beetle Type 1/Totaled
64 Beetle Type 1/Totaled after owning 5day!
71 Beetle Type 1
70 Karmann Ghia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Chris Vellat
Samba Member


Joined: April 09, 2004
Posts: 1590
Location: Seattle, WA
Chris Vellat is offline

PostPosted: Sun Feb 05, 2012 11:37 am    Post subject: Reply with quote

J-tube:

Image may have been reduced in size. Click image to view fullscreen.

_________________
(3) '69's
'67 Baja
'74 Super
'73 Bay
(2) '77's
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Altema
Samba Member


Joined: June 20, 2010
Posts: 2900
Location: Lower Michigan
Altema is offline

PostPosted: Sun Feb 05, 2012 11:38 am    Post subject: Reply with quote

Lucatero wrote:
Are the J tubes the tubes that connect to the exhaust and are running alongside the head?

Yes, that's them.

Paul
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lucatero
Samba Member


Joined: May 16, 2011
Posts: 417
Location: San Diego
Lucatero is offline

PostPosted: Sun Feb 05, 2012 11:52 am    Post subject: Reply with quote

Thanks for the speedy reply, those are in place, now I just need to put the pieces of tin on the sled and box it in to make it complete.
_________________
64 Beetle Type 1/Totaled
64 Beetle Type 1/Totaled after owning 5day!
71 Beetle Type 1
70 Karmann Ghia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 16855
Location: Left coast, Canada
Bruce is offline

PostPosted: Sun Feb 05, 2012 12:41 pm    Post subject: Reply with quote

durfeec wrote:
Glenn, have you tested temps with and without these tins? First time I have ever heard of these. I am running j-tubes on my bus but right now its winter so I'm not concerned with overheating but when summer comes and I move out west, I'll be driving in heat and will be concerned.

Howard Washington reported a 10F oil temp drop by installing a sheet metal shield between the J tube and the pushrod tubes.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
durfeec
Samba Member


Joined: May 03, 2010
Posts: 1279
Location: Mio, MI
durfeec is offline

PostPosted: Sun Feb 05, 2012 8:12 pm    Post subject: Reply with quote

Bruce wrote:
durfeec wrote:
Glenn, have you tested temps with and without these tins? First time I have ever heard of these. I am running j-tubes on my bus but right now its winter so I'm not concerned with overheating but when summer comes and I move out west, I'll be driving in heat and will be concerned.

Howard Washington reported a 10F oil temp drop by installing a sheet metal shield between the J tube and the pushrod tubes.


wow. thank you.
_________________
1960 Bus Panel/Camper
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 8010

AlteWagen is offline

PostPosted: Tue Feb 07, 2012 3:24 pm    Post subject: Reply with quote

Bruce wrote:
durfeec wrote:
Glenn, have you tested temps with and without these tins? First time I have ever heard of these. I am running j-tubes on my bus but right now its winter so I'm not concerned with overheating but when summer comes and I move out west, I'll be driving in heat and will be concerned.

Howard Washington reported a 10F oil temp drop by installing a sheet metal shield between the J tube and the pushrod tubes.


Ive noticed that there is no more burnt oil in the tubes when running the industrial tins, evidence that it was heating the oil when going back into the case from the heads
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
chrisdiehl
Samba Member


Joined: October 10, 2011
Posts: 183
Location: middle ga
chrisdiehl is offline

PostPosted: Tue Aug 14, 2012 7:07 pm    Post subject: Reply with quote

I'm glad I ran across this. I installed j tubes a couple of weeks ago and hadn't heard of these sleds until now. Stupid question.....engine doesn't have to be out to install right?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
66brm
Samba Member


Joined: January 25, 2010
Posts: 3645
Location: Perth Western Australia
66brm is offline

PostPosted: Tue Aug 14, 2012 7:28 pm    Post subject: Reply with quote

Right
_________________
Aust. RHD 66 Type 1
Aust. RHD 57 Type 1 Oval

modok wrote:
I am an expert at fitting things in holes, been doing it a long time
Back to top
View user's profile Send private message Gallery Classifieds Feedback
durfeec
Samba Member


Joined: May 03, 2010
Posts: 1279
Location: Mio, MI
durfeec is offline

PostPosted: Wed Aug 15, 2012 1:36 pm    Post subject: Reply with quote

chrisdiehl wrote:
I'm glad I ran across this. I installed j tubes a couple of weeks ago and hadn't heard of these sleds until now. Stupid question.....engine doesn't have to be out to install right?


sleds are used even with factory heater boxes. they are what protect your push rod tubes. and it would be easier to install with the motor out since they bolt to the backside of the cylinder head tin. the tin that this thread is about is something different than just a sled and can be installed without removing the motor.
_________________
1960 Bus Panel/Camper
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
1961bluebug
Samba Member


Joined: November 11, 2002
Posts: 1137
Location: Czech Republic, Europe
1961bluebug is offline

PostPosted: Tue Aug 21, 2012 4:52 am    Post subject: Reply with quote

Just as a note, next to Glenns Berg header, I just found out thtat CSP Python fits with original 1600 engine sled tins and industrial tins too!
_________________
Quote:
enghof rambeling.


|82x94|

1961 Deluxe beetle, 1971 type 181, 1968 T2a Baywindow, 1973 Type 147 "Swiss Fridolin"(sold), 1966 Deluxe sedan (sold), 1983 "Silver Bug" edition (sold), 1961 beetle (sold)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
