PostPosted: Wed Apr 28, 2010 7:28 am    Post subject: Reviving Bettie (69 Squareback) Reply with quote

This thread is dedicated to showing the process of reviving my 69 Squareback as well as to solicit help along the way.

First things first, wiring. The wiring is a mess and since she is going to be my daily driver I want to make sure the electrical is done right. Right now the brake lights, turn signals, and wipers don't work. Each headlight is on their own switch (she can blink!) and who knows what else I may discover is wrong. Needless to say I need to replace all the wiring. Does anyone know where I can get a complete wiring harness for a 69 Square?
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sharkskinman
Lateral Lunatic


Joined: April 26, 2006
Posts: 4025
Location: Deep In My Own Psyche
sharkskinman is offline

PostPosted: Wed Apr 28, 2010 9:20 am    Post subject: Reply with quote

what is that
did someone put all that shit under the hood
ive never seen under a 69 hood
but none i have aver seen are set up like that

is that a F.I. relay under there too??

funny
"Bettie" is my cars name to

(vegas...bettie page...)

but good luck
you should be able to find all the info you need
_________________
74 Mexi Swamp Thing. 70 square volksrod (Swamp Rat)..65 C10

Me of Course wrote:
Extremity is relative to how far your willing to jump

Ward Cleaver wrote:
You ever try a pink golf ball, Wally? Why, the wind shear alone on a pink golf ball can take the head off a 90-pound midget at over 300 yards


PS4 "NKOGNEATO"
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Gallery Classifieds Feedback
Mike Fisher
Samba Member


Joined: January 30, 2006
Posts: 16847
Location: Eugene, OR
Mike Fisher is offline

PostPosted: Wed Apr 28, 2010 9:37 am    Post subject: Reply with quote

ISPWest sells a complete wiring harness for all carbureted Type 3's for $319.95. If that 69 is still has the fuel injection you've got bigger problems with wiring! Wink
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Wed Apr 28, 2010 10:10 am    Post subject: Reply with quote

She is sporting dual Weber's now.
_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
schlomo72
Samba Member


Joined: November 06, 2008
Posts: 61
Location: White Rock, Canada
schlomo72 is offline

PostPosted: Wed Apr 28, 2010 11:37 am    Post subject: Reply with quote

umm.. that wiring box is nailed to the wall of the trunk.. Shocked Laughing awesome PO hack job
_________________
Click to view image
Back to top
View user's profile Send private message Classifieds Feedback
idealsociety
Samba Member


Joined: February 25, 2010
Posts: 131
Location: New Ulm, MN
idealsociety is offline

PostPosted: Wed Apr 28, 2010 2:11 pm    Post subject: Reply with quote

in the PO's defense, at least its a real nail and not liquid nails Laughing
_________________
My other Squareback is a 93 Festiva.
Back to top
View user's profile Send private message Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Wed Apr 28, 2010 2:19 pm    Post subject: Reply with quote

sharkskinman wrote:


is that a F.I. relay under there too??



No, that is a domestic flasher relay.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Wed Apr 28, 2010 5:57 pm    Post subject: Reply with quote

Mike Fisher wrote:
ISPWest sells a complete wiring harness for all carbureted Type 3's for $319.95. If that 69 is still has the fuel injection you've got bigger problems with wiring! Wink


Is ISPWest the only game in town? Since I'm rewiring the whole car is there anything you guys would suggest I do while I'm at it?
_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Wed Apr 28, 2010 6:13 pm    Post subject: Reply with quote

Also, can someone tell me about the fuse box. Is it suppose to be in the trunk?
_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Wed Apr 28, 2010 6:24 pm    Post subject: Reply with quote

What is the difference between a main wiring loom like this one, http://www.jbugs.com/product/WM-311-62-67.html?Category_Code=vw-squareback-wiring-harness and the ISPWest wiring harness that is more than double the price?
_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mike Fisher
Samba Member


Joined: January 30, 2006
Posts: 16847
Location: Eugene, OR
Mike Fisher is offline

PostPosted: Wed Apr 28, 2010 6:25 pm    Post subject: Reply with quote

the VOLKSWAGEN SERVICE MANUAL Type 3 1968-1973 by Bentley is our Bible for Type 3 owners. It will tell/show you Everything. www.books4cars.com.

P.S. The stock fuse box is under the dash, but could be in the frunk I guess?

P.P.S. That Jbugs harness doesn't include the frunk wiring!
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 19827
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Wed Apr 28, 2010 7:25 pm    Post subject: Reply with quote

Temmett wrote:
What is the difference between a main wiring loom like this one, http://www.jbugs.com/product/WM-311-62-67.html?Category_Code=vw-squareback-wiring-harness and the ISPWest wiring harness that is more than double the price?


It's probably the same part. However you'll probably need to find a fuse box for a type 3, if yours is in the front trunk Rolling Eyes (pics aren't loading for me). There is supposed to be a Vintage VW show in Ypsi on May 23rd (mother's day). You might want to attend, and see if you can find some parts there that you need. I don't know yet whether I'm attending, as I'm trying to finish some stuff up around here (I'm northeast of Detroit). There's also the bug In at US 131 dragway in Martin Mi on May 2nd, you might find some parts there as well. Just a thought.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Fri May 21, 2010 4:58 pm    Post subject: Reply with quote

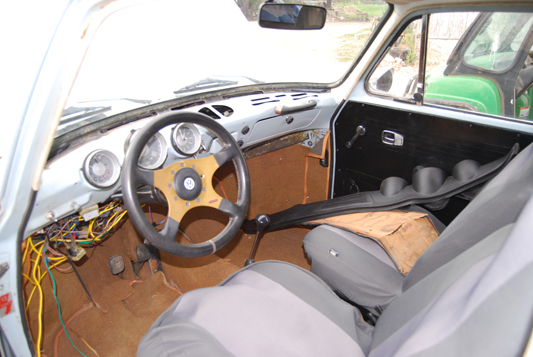

Okay, so I bought a complete wiring harness and began the install today. I'm green so I'm taking my time. What's really sweet is that my wife is all about the resto and is helping with the process. It doesn't get any better than that! We purchased the Bentley manual and it sure is a valuable tool. Here are some pics. Since the wiring was such a mess (including a custom hack), today was primarily prep work. The only downer was discovering some rust above the driver's side seat rail. Any advice on how to treat the rust?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Fri May 21, 2010 5:13 pm    Post subject: Reply with quote

As for the rust, you will need to learn to weld, or find someone that can do it for you.
Along with the Bentley, I would recommend downloading the wiringing diagrams from the Samba, and taking a copy to your local copy center. Have them printed out in 11 x 17 format, and get the laminated.

http://www.thesamba.com/vw/archives/info/wiring/type3_6870.jpg
http://www.thesamba.com/vw/archives/info/wiring/type3_6870_key.jpg
http://www.thesamba.com/vw/archives/info/wiring/68type3fuses.jpg

Then you are not squinting trying to figure out where a wire goes, and the print out will last.

And can I make a suggestion on your photos. Reduce your resolution on your camera to less than 3 megapixel. Some people on here still use dial-up, and it takes forever to load.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 19827
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Fri May 21, 2010 6:15 pm    Post subject: Reply with quote

Russ Wolfe wrote:
As for the rust, you will need to learn to weld, or find someone that can do it for you.
Along with the Bentley, I would recommend downloading the wiringing diagrams from the Samba, and taking a copy to your local copy center. Have them printed out in 11 x 17 format, and get the laminated.

http://www.thesamba.com/vw/archives/info/wiring/type3_6870.jpg
http://www.thesamba.com/vw/archives/info/wiring/type3_6870_key.jpg
http://www.thesamba.com/vw/archives/info/wiring/68type3fuses.jpg

Then you are not squinting trying to figure out where a wire goes, and the print out will last.

And can I make a suggestion on your photos. Reduce your resolution on your camera to less than 3 megapixel. Some people on here still use dial-up, and it takes forever to load.


Yup, and we'll get sick of waiting, and then move on. Or we get a couple of BS pics, then the ones you're asking about will have little red X's in the box. Ask me how I know? I'm one of those dial up users. Rolling Eyes
But Russ is right, download and save the color wiring diagrams from the Samba, and blow them up and laminate them. They're easier to follow that way.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Thu Jun 03, 2010 10:31 pm    Post subject: Reply with quote

Alright, so today I ran the wiring for the dome light. Not a big task but at least I got something done. I have been dying to wash the car since I purchased it so I took a break from the electrical and pushed her out into the driveway so that I could scrubb away. Her paint has been neglected and the Arizona sun did a number but all in all she bounced back pretty well. I'm waxing the car in the morning. To aid the process I took some time to pull off all her jewelry. I'm crossing my fingers that the shine will come back.
_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Thu Aug 19, 2010 6:34 pm    Post subject: Reply with quote

Okay, the picture sizes have all been adjusted. Thanks Everett! And now on with the restoration...

Here are some pics of the Square, post wash and wax.

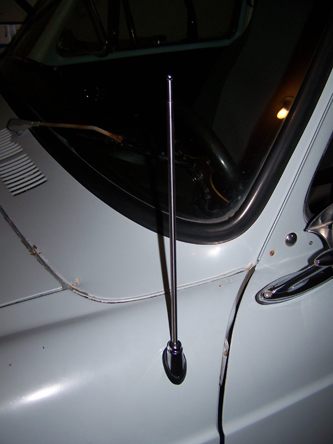

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Some shine!
Image may have been reduced in size. Click image to view fullscreen.


Back to the electrical. Oh, and perhaps someone with some history knowledge can shed some light on where this steering wheel came from. It's obviously not the sweet stock set up.

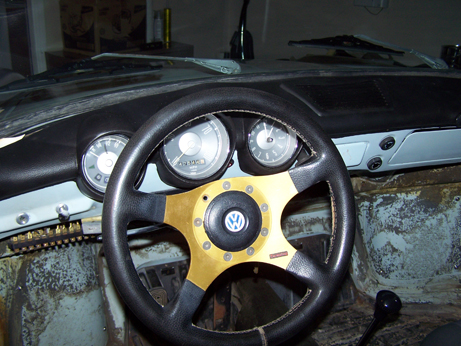

Image may have been reduced in size. Click image to view fullscreen.

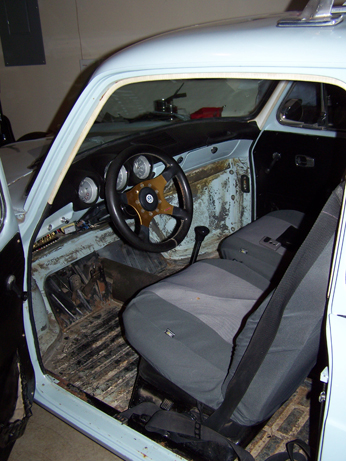

Wiring harness 95% complete! The tabs on the fuse box are broken off so she is just kind of dangling, but at least she looks better than the rats nest I started with. The car also came from the PO with a dash. Installed it, but I'm not sure it's the right year for the car. It looks wierd where it meets the pillars.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temmett
Samba Member


Joined: April 19, 2010
Posts: 334
Location: Ferndale, CA
Temmett is offline

PostPosted: Thu Aug 19, 2010 6:41 pm    Post subject: Reply with quote

A few pics I did up of Bettie! With the help of a little Photoshop magic I cleaned up some minor front end blimishes. A couple things that hit me liek aslap to the face are - the one over rider looks like a snagle tooth. I removed it and am now running a blade up front. And the antenna hole needed plugged.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Plugged antenna courtesy of West Coast Metric and my pocket book.
Image may have been reduced in size. Click image to view fullscreen.

_________________
1978 Westfalia - pre-purchase walk around
1969 Squareback http://squarebackresto.wordpress.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MLTIGGER2
Samba Member


Joined: May 01, 2006
Posts: 1154
Location: Fort Wayne, In
MLTIGGER2 is offline

PostPosted: Thu Aug 19, 2010 7:07 pm    Post subject: Reply with quote

Russ Wolfe wrote:


And can I make a suggestion on your photos. Reduce your resolution on your camera to less than 3 megapixel. Some people on here still use dial-up, and it takes forever to load.


Dial up still exists? Rolling Eyes Laughing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MLTIGGER2
Samba Member


Joined: May 01, 2006
Posts: 1154
Location: Fort Wayne, In
MLTIGGER2 is offline

PostPosted: Thu Aug 19, 2010 7:10 pm    Post subject: Reply with quote

That looks like an off the rack Grant GT steering wheel, very popular in the late eighties early nineties.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 16, 17, 18  Next
Jump to:
Page 1 of 18


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
