Been doing some work on the SR. It has been brutal hot here, at least for this old guy.

Murzi asked me a question about strengthening a fiberglass fender that cracked due to flexing at the bend. I figured I would go over how I reinforced part of the trunk panel that showed stress cracks in the gelcote.

Image may have been reduced in size. Click image to view fullscreen.


Unfortunately it is hard to see but the gelcote on the horizontal edge seen in the picture had stress cracks in it. To reinforce this edge I cleaned the bend from the inside using a drill with a wire wheel.


Image may have been reduced in size. Click image to view fullscreen.



I cleaned off the paint down to the chopped glass.

Image may have been reduced in size. Click image to view fullscreen.

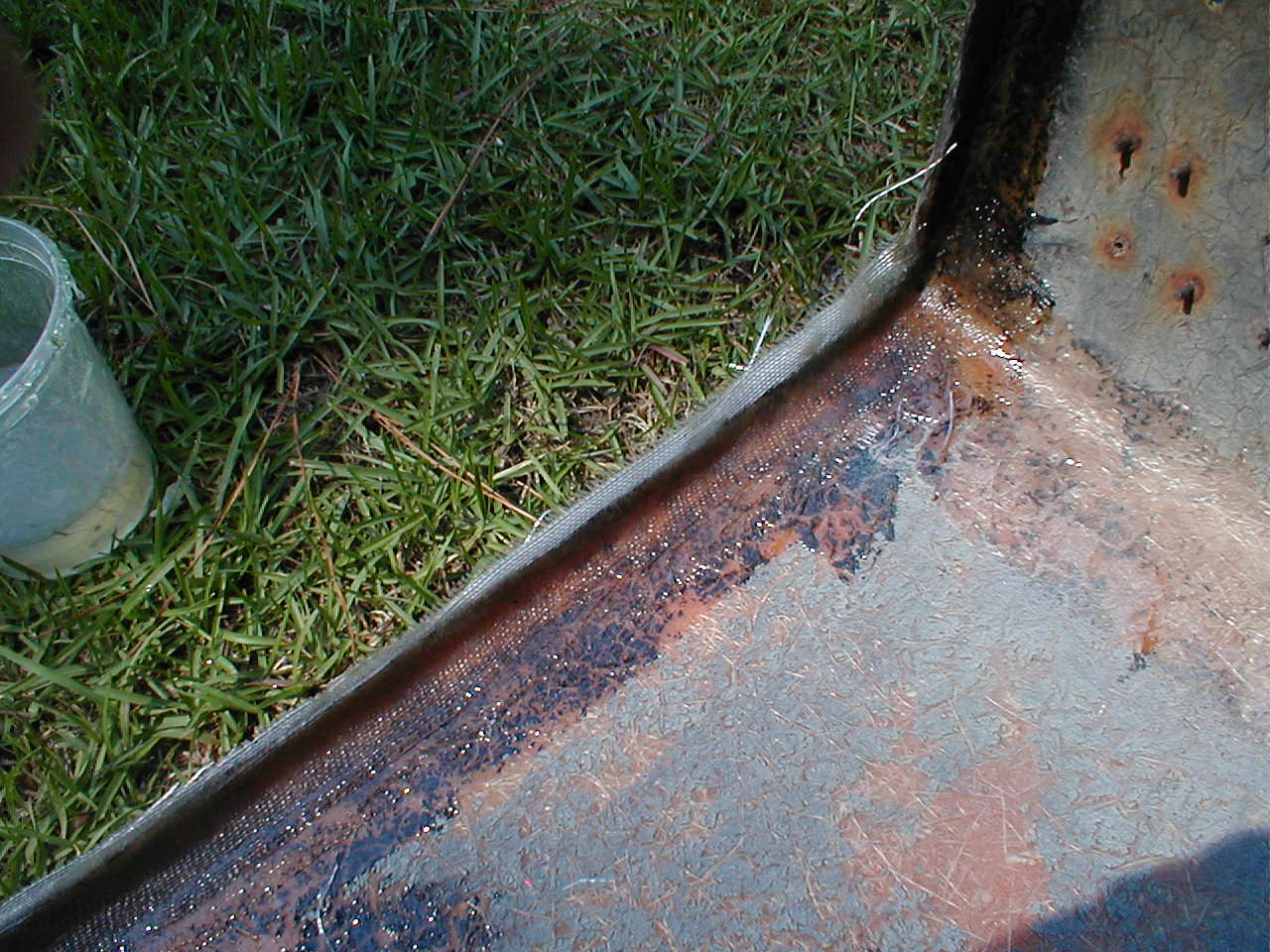

I brushed some resin onto the trunk with a chip brush to wet it out.

Image may have been reduced in size. Click image to view fullscreen.

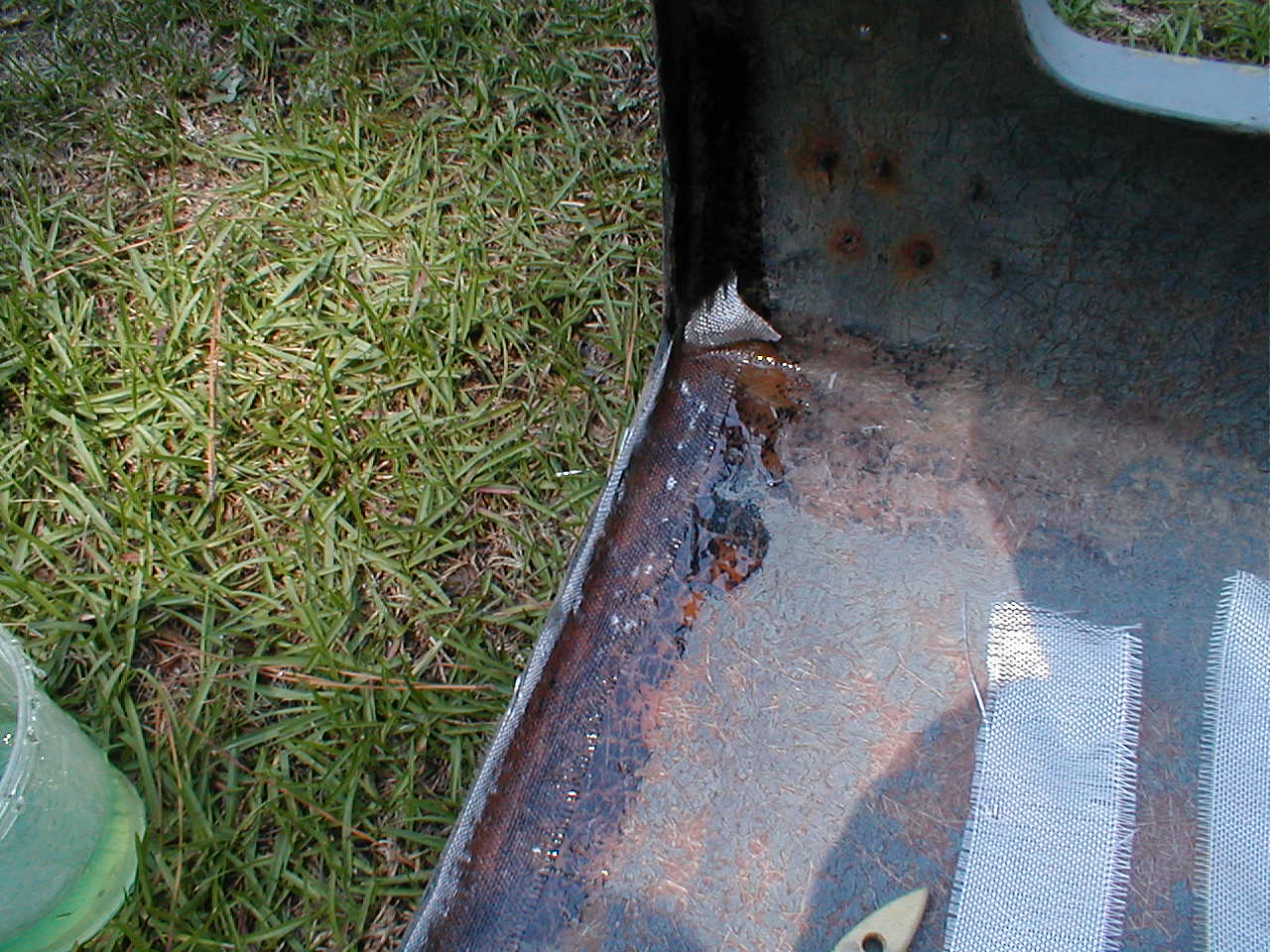

I also had some precut 6oz glass cloth ready to start laminating.

Image may have been reduced in size. Click image to view fullscreen.


Use the chip brush to push the glass into the resin and into the bend up the lip.

Image may have been reduced in size. Click image to view fullscreen.


Get as much air out as you can then add more layers of glass.

Image may have been reduced in size. Click image to view fullscreen.


After 3-4 layers you should have something that looks like this. Also note that the resin in the cup has gone clear/tan from the earlier blue/green. This means that it has kicked or gelled. Don't worry about the ragged edge. You can grind/sand it to the panel edge or you can do this.

Image may have been reduced in size. Click image to view fullscreen.


You can cut it off clean with a razor. The resin has to be gelled to the point of not pulling but not too much that it will not cut. It takes a few tries to get the timing but once you do you will find that you can save yourself alot of sanding/grinding and make a very clean edge with little time and effort.

"Action and Drama"

Vince
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
MURZI
Samba Member


Joined: August 25, 2005
Posts: 5063
Location: Madisonville, La
MURZI is offline

PostPosted: Wed Jun 23, 2010 7:34 pm    Post subject: Reply with quote

Thanks Vince!!! Now do the gel coat part. I am dumb and neeeds to get some learning. LOL

and oh yea. My action and drama build is in the offroad forum. I was afraid the forum police would lock me up if I posted it here. Hehehe
_________________
62 vert
2276
Timís welded heads
45 Dells
A1 sidewinder
Fk44 cam
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4927
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Wed Jun 23, 2010 8:46 pm    Post subject: Reply with quote

Murzi - so you're planning to kill fences in the Offroad forum now? Laughing

Vince - nice work!

Bryan
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
surfnc
Samba Member


Joined: September 29, 2006
Posts: 948
Location: OBX, NC
surfnc is offline

PostPosted: Mon Oct 18, 2010 5:20 pm    Post subject: Reply with quote

Been a while, but it has cooled down and I wanted to tackle the fender.

One of the POs (Not Bryan) must have had a fender bender (breaker) and repaired it with 2 license plates and a bunch of bondo.

Image may have been reduced in size. Click image to view fullscreen.


This is toward the end of the repair but shows one of the plates location.

They also cut out all the broken fibers which made piecing it back together a lot of fun.


Image may have been reduced in size. Click image to view fullscreen.


First I bolted the fender back on to keep its original shape.

Image may have been reduced in size. Click image to view fullscreen.


I then glassed the first section closest to the tub. The bungie is there to help align the front section. The wax paper is there to keep the fender from sticking to the tub.

Image may have been reduced in size. Click image to view fullscreen.


I then took the center broken piece and hot glued some bamboo skewers to it so I could align the fender lines.

Image may have been reduced in size. Click image to view fullscreen.


I then took a jack, wratchet strap, gorilla tape and a piece of surfboard foam to get the front part of the fender to line up. (Fender changed shape over the years, heat time etc.)

Image may have been reduced in size. Click image to view fullscreen.


I then glassed the corner/fender edge to keep it from moving since it was cracked all the way to the nose as well as the section closest to the tub. I did this in sections so I could adjust the broken center piece as I glassed.

Image may have been reduced in size. Click image to view fullscreen.


I then used a piece of surfboard foam to hold the center section up to align with the rear section and glassed another section.

Image may have been reduced in size. Click image to view fullscreen.


I then used a wratchet strap to align the bottom rear section of the center piece and glassed it and removed the skewers.

Image may have been reduced in size. Click image to view fullscreen.


I then glassed the front of the center section to the front of the fender. I also ground the bondo out of the fender edge and the nose.

Image may have been reduced in size. Click image to view fullscreen.


I then glassed the fender edge and the nose.

Image may have been reduced in size. Click image to view fullscreen.


This all had to be done before I unbolted the fender flipped it over and removed the pop rivets and the plate.

Image may have been reduced in size. Click image to view fullscreen.


I then roughed up the glass near the breaks and removed all the bondo before glassing.

Image may have been reduced in size. Click image to view fullscreen.


I thought I took a picture of the glassed bottom but I cannot find it. This is a pic of the fender bolted on and the glass being faired out. The next step is to do the filler. Then sand fill sand fill sand fill etc!!


Last edited by surfnc on Tue Oct 19, 2010 2:53 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4927
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Mon Oct 18, 2010 6:16 pm    Post subject: Reply with quote

Vince -

The 'glasswork looks really good - but I am a bit concerned about the use of pine needles & pine cones as filler materials...

I don't recall ever seeing the 2nd license plate in the time that I had the SR -

Keep up the good work, old man. When you get bored, you can take over for me on the Rascal... Laughing

bnc
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wythac
Samba Member


Joined: August 02, 2004
Posts: 2791

wythac is offline

PostPosted: Tue Oct 19, 2010 7:50 am    Post subject: Reply with quote

Nice FG work. I would expect nothing less, as I rather unabashedly stole your method for installing a flush mount fuel door in my hood.........

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
surfnc
Samba Member


Joined: September 29, 2006
Posts: 948
Location: OBX, NC
surfnc is offline

PostPosted: Tue Oct 19, 2010 2:46 pm    Post subject: Reply with quote

Bryan
There is nothing better than some natural filler, they sand easily and do not pollute the environment. Very Happy
The tag was actually right under the center broken section with about 6 pop rivets and bondo about an inch wide by 1/4 in thick. It is no wonder that it cracked.

wythac
Nice looking work!! Looks like a late tank, but I do not recognize the cap setup. Looks very clean, can you turn the cap easily with the fill cover on?

Today I used filler on the fender and faired it out.

Image may have been reduced in size. Click image to view fullscreen.


It took about 3 coats with sanding between each.

I then painted it with flat black paint to see if the lines looked right. It is very hard (for me anyway) to see the lines properly with all the different colors going on.

Image may have been reduced in size. Click image to view fullscreen.


They turned out pretty good. I will sand off the black paint before I do the high build primer coats and will be able to true up the lines a little better at that time.
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
Thanatos
Samba Psychopomp


Joined: October 14, 2009
Posts: 1729
Location: Earth
Thanatos is offline

PostPosted: Tue Oct 19, 2010 3:28 pm    Post subject: Reply with quote

Try using crinkle-finish or Hammerite paint with a semigloss clear coat over it on that dash... Manx SRs are one of the more desirable 70s kit cars, and should be kept as original as possible. Since you have all the other era-correct parts, and the grey would create glare problems as said before, that might be a better solution. Also, for a period-correct stereo system if you want one, there are still unopened or working used Kraco, Learjet and Jensen AM/FM/8-track car stereos on eBay, and you can still find 70s-era Kraco speaker covers in junkyards and at swap meets to cover modern speakers with.

Great build, I'll definitely be following it. Smile
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4927
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Tue Oct 19, 2010 3:57 pm    Post subject: Reply with quote

Vince does good work & could probably 're-vinyl' texture the dash if he wanted to. SR's aren't the 'goldmine' that everyone thinks they are.

bnc
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wythac
Samba Member


Joined: August 02, 2004
Posts: 2791

wythac is offline

PostPosted: Tue Oct 19, 2010 11:04 pm    Post subject: Reply with quote

surfnc, It was a custom fill neck on a late tank. That's an F150 fuel door. Its a rather small cap, so there is (just) enough room to turn it. Seeing your extensive documentation of your fuel door job was a great blueprint.

I saw my first SR2 last summer, a guy here in my area had one at a vw event....pretty unusual car with a cool history, much more of a complete car than our fiberglass tubs, which I am sure presents a few unique challenges to restoration. Good luck on the build, it looks like you are well on your way.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
LouisB
Samba Member


Joined: August 16, 2004
Posts: 1027
Location: Tallahassee, FL
LouisB is offline

PostPosted: Wed Oct 20, 2010 5:11 am    Post subject: Reply with quote

Nice fiberglass work!

--louis
_________________
Louis Brooks
'67 Manx II

Old people at weddings always poke me and say "Your next." So, I started doing the same to them at funerals.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
66 Shorty
Samba Member


Joined: May 10, 2007
Posts: 916
Location: Rhode Island
66 Shorty is offline

PostPosted: Thu Oct 21, 2010 5:24 am    Post subject: Reply with quote

wythac wrote:
surfnc, It was a custom fill neck on a late tank. That's an F150 fuel door. Its a rather small cap, so there is (just) enough room to turn it. Seeing your extensive documentation of your fuel door job was a great blueprint.


Can you point me in the right direction to find this "extensive documentation", please? I'm interested in seeing the way some people do it.
_________________
~X-Man~

'60's Spatz Buggy body on '74 Chassis (Budget Build)
'69 Bug (Baja-to-be partial daily)
'10 Silverado (My daily)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
surfnc
Samba Member


Joined: September 29, 2006
Posts: 948
Location: OBX, NC
surfnc is offline

PostPosted: Thu Oct 21, 2010 5:57 am    Post subject: Reply with quote

66 shorty
Here is the link:

http://www.thesamba.com/vw/forum/viewtopic.php?t=259228&highlight=fill
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
66 Shorty
Samba Member


Joined: May 10, 2007
Posts: 916
Location: Rhode Island
66 Shorty is offline

PostPosted: Thu Oct 21, 2010 6:47 am    Post subject: Reply with quote

Thank you VERY Much!

I did remember seeing it, I just couldn't find it when I searched "gas" & "cap" & all those other words... I guess I couldn't have looked up "fill" or "filler" too... Laughing

With this style filler cover, is it really hard to open & close the cap on the tank itself? I mean, getting your hand in there & all... I'm torn between using an integrated cap/filler, or just a cover for the opening, like you did. I see a few advantages with both set-ups. I don't know if I'll have enough room between the hood & gas tank to get my fat arm/hand in there to tighten a hose clamp if I go integrated... & I don't know if I'll be able to get my fat hand in there to remove the gas cap, if I go with a just a cover... Embarassed

Sorry for the slight "thread-jack"!

Your project is coming out great though! Very Happy
_________________
~X-Man~

'60's Spatz Buggy body on '74 Chassis (Budget Build)
'69 Bug (Baja-to-be partial daily)
'10 Silverado (My daily)
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
BuggyFaron
Samba Member


Joined: September 01, 2005
Posts: 441
Location: Canyon Lake, Texas
BuggyFaron is offline

PostPosted: Thu Oct 21, 2010 9:00 pm    Post subject: Reply with quote

didget69 wrote:
SR's aren't the 'goldmine' that everyone thinks they are.

bnc


Is any Dune Buggy a Goldmine? I love them and I think every person who posts here does as well, but have not seen one that I felt was worth more then $10,000.00. They are custom built cars, nothing "original" about them.
They are all awesome in one way or another but not the most expensive car on the road. Sorry, just my 2 cents, hope I don't upset anyone..
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
surfnc
Samba Member


Joined: September 29, 2006
Posts: 948
Location: OBX, NC
surfnc is offline

PostPosted: Mon Nov 08, 2010 3:55 pm    Post subject: Reply with quote

Been doing some work.

Image may have been reduced in size. Click image to view fullscreen.


Built up the fender roll to take the stress off the fender arch. This was probably caused by tire rub. I used some spare foam covered with wax paper as a backing and built up a few layers of 20oz glass to strengthen the area. I then sanded it to follow the curve.

I then sanded it down for priming. (All black paint removed.)

Image may have been reduced in size. Click image to view fullscreen.


Then primed with Duratec VE primer.

Image may have been reduced in size. Click image to view fullscreen.


Then guide coated, sanded, more primer, guide, sand.

Then I sprayed it with red gelcote mixed with Duratec Clear High Gloss Gel Coat additive. (Looks better in person)

Image may have been reduced in size. Click image to view fullscreen.


This allows you to spray gelcote like paint and allows it to cure without a wax/surfacing agent. This is the first time I have tried it and I am very pleased with the results. I chose this path so that if I had any scratches or dings I could wetsand and buff them out. The Duratec gelcoat additive cost about $90 for a gallon and that is the smallest amount you can get it in but you can add it to any gelcoat color you want. I will use it for the interior. (black or gray still up in the air.)
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
LouisB
Samba Member


Joined: August 16, 2004
Posts: 1027
Location: Tallahassee, FL
LouisB is offline

PostPosted: Mon Nov 08, 2010 4:00 pm    Post subject: Reply with quote

Veddy nice! Can I just send the Manx to you for final body work and paint? Razz

--louis
_________________
Louis Brooks
'67 Manx II

Old people at weddings always poke me and say "Your next." So, I started doing the same to them at funerals.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GS guy
Samba Member


Joined: December 03, 2007
Posts: 968
Location: Maryland
GS guy is offline

PostPosted: Mon Nov 08, 2010 5:29 pm    Post subject: Reply with quote

Looks great Vince! Sure hope you share the assembly steps of your SR as it goes back togther. Every time I see SR bodywork partially disassembled, there seems to be more and more different parts!
Opportunity here to create an assembly guide - with what to watch out for, what mods to consider, etc.

Jeff
_________________
70's vintage Deserter GS buggy - undergoing transformation to Super GS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4927
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Tue Nov 09, 2010 8:00 am    Post subject: Reply with quote

Wow - my old car is looking better!

What color did you end up using for the color coats?

bnc
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MURZI
Samba Member


Joined: August 25, 2005
Posts: 5063
Location: Madisonville, La
MURZI is offline

PostPosted: Tue Nov 09, 2010 8:06 am    Post subject: Reply with quote

Vince...That is the best pic we get???? Come on man!!! Laughing Laughing

LOOKING GOOD!!!! LOOKING GOOD!!!
_________________
62 vert
2276
Timís welded heads
45 Dells
A1 sidewinder
Fk44 cam
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Kit Car/Fiberglass Buggy/356 Replica All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3  Next
Page 2 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
