PostPosted: Sun Jun 20, 2010 7:32 pm    Post subject: Taking Apart Your Door Handles w/ Pics Reply with quote

Since I've painted my door handles a couple times now and they continue to chip, I've decided to have them powder coated. Luckily, I have a couple extras, so I sat down today and took the time to take them apart. Below is a step by step guide for those who have never taken their handle apart. If this post has been done before, I apologize. If not, hopefully someone can use this write-up.

Moderator note: All these threads are related:
http://www.thesamba.com/vw/forum/viewtopic.php?t=553954
http://www.thesamba.com/vw/forum/viewtopic.php?t=392080
http://www.thesamba.com/vw/forum/viewtopic.php?t=553863


This is what your door handle should look like after removing the handles from the car.


Image may have been reduced in size. Click image to view fullscreen.

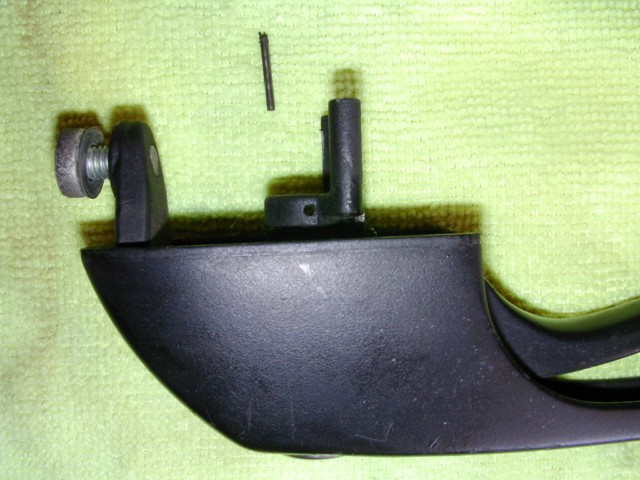

First, remove the punch pin as seen in the photo:


Image may have been reduced in size. Click image to view fullscreen.

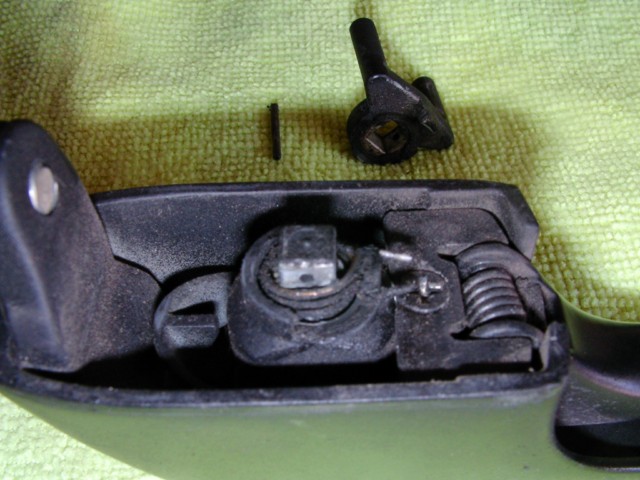

Second, remove the forked piece. This is a good picture of the location of the punch pin and the removed fork piece:


Image may have been reduced in size. Click image to view fullscreen.



Be sure to note or photograph the handle at this point so you will have a reference as to how the spring is supposed to be place on the handle. See photo directly below.


Image may have been reduced in size. Click image to view fullscreen.

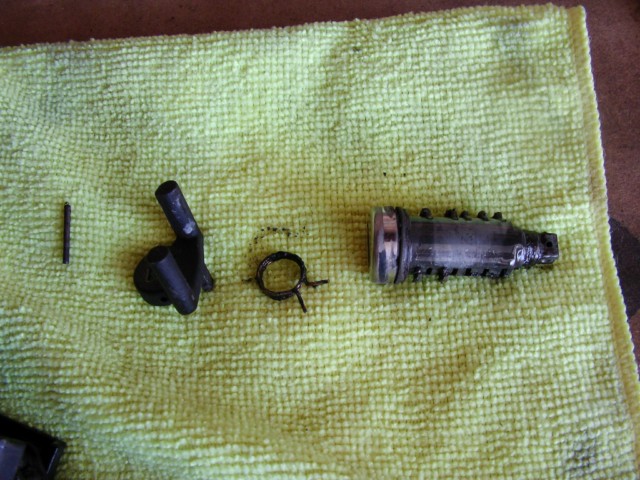

After you make note, pull the spring off. Try placing all of the pieces on a rag in the order your remove them.


Image may have been reduced in size. Click image to view fullscreen.



Then, after removing that spring, remove the lock tumbler (be careful not to allow the metal pieces to fall out of it).


Image may have been reduced in size. Click image to view fullscreen.

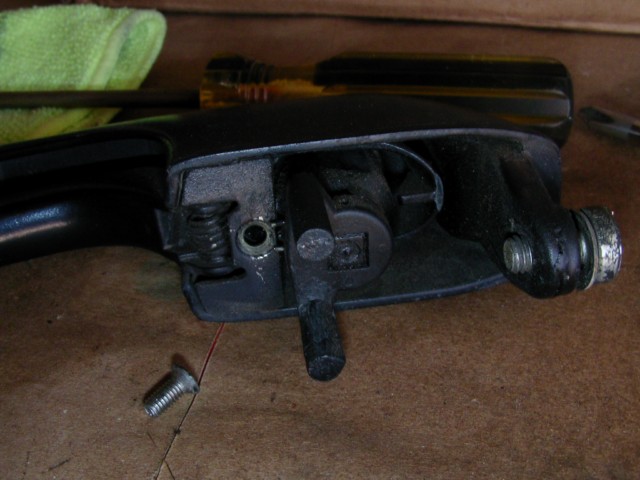

Next, remove the small screw and then the small plate being held by the screw.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

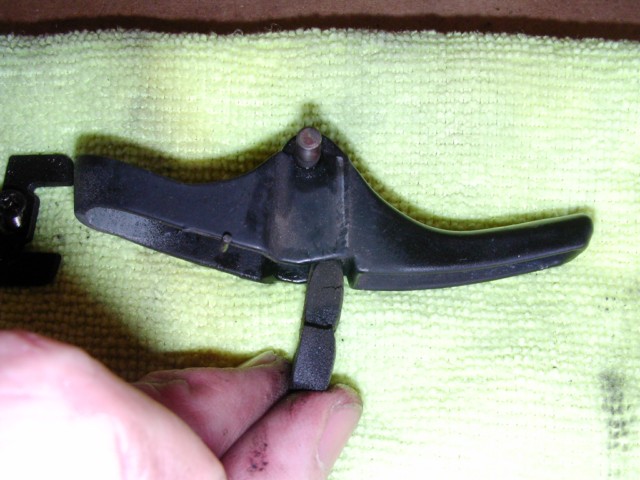

After removing the plate, the trigger part of the handle will pull straight out.


Image may have been reduced in size. Click image to view fullscreen.

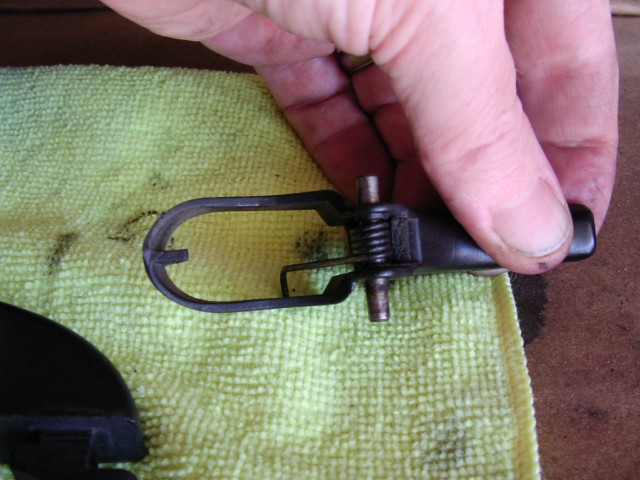

Again, take a picture of the trigger with the spring on it so you'll know how to reassemble it later.

Image may have been reduced in size. Click image to view fullscreen.



Finally, remove the foam water guard and, you're done.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Your handle is now completely disassembled.

_________________
'82 1.9 TD Westy (Tortuga Veloce)
2014 Honda Pilot
2021 VW Atlas
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15086
Location: New York
insyncro is offline

PostPosted: Sun Jun 20, 2010 7:40 pm    Post subject: Reply with quote

A+++.
Nice detailed how to.

Please show how to rekey each lock too.

dylan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mikeyb
Samba Member


Joined: April 02, 2007
Posts: 133
Location: Arcadia, CA
Mikeyb is offline

PostPosted: Sun Jun 20, 2010 7:45 pm    Post subject: Reply with quote

Quote:
Please show how to rekey each lock too.


Wish I knew how to do that! My plan is to simply transfer the tumbler right into the newly powder coated handles. . . hopefully without screwing up the keying.

Mike
_________________
'82 1.9 TD Westy (Tortuga Veloce)
2014 Honda Pilot
2021 VW Atlas
Back to top
View user's profile Send private message Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Sun Jun 20, 2010 8:06 pm    Post subject: Reply with quote

thx much! I want to do that this winter.

- is this for your '85 or your '82?
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mikeyb
Samba Member


Joined: April 02, 2007
Posts: 133
Location: Arcadia, CA
Mikeyb is offline

PostPosted: Sun Jun 20, 2010 8:13 pm    Post subject: Reply with quote

randywebb, you're very welcome. My little way of repaying everyone on the Samba for all the info I've received from this site. They have helped me out beyond words.

randywebb wrote:

Quote:
is this for your '85 or your '82?


I'm having the handles from the '85 powder coated to put them on the '82. Don't know if you saw my post a couple months ago, but I lent my '85 to my nephew and he trashed it beyond belief. So I'm pulling all of the parts off of it and using the ones in better condition to improve the '82.
_________________
'82 1.9 TD Westy (Tortuga Veloce)
2014 Honda Pilot
2021 VW Atlas
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BushChicken
Samba Member


Joined: March 11, 2010
Posts: 250
Location: California
BushChicken is offline

PostPosted: Sun Jun 20, 2010 8:44 pm    Post subject: Reply with quote

Mikeyb wrote:
Quote:
Please show how to rekey each lock too.


Wish I knew how to do that! My plan is to simply transfer the tumbler right into the newly powder coated handles. . . hopefully without screwing up the keying.

Mike


Here is a quick and dirty way to rekey your lock cylinders:

1) Remove lock cylinders from handle.
2) Insert key you wish to use.
3) Grind off exposed tumblers so lock cylinder will rotate with key inserted.

Note: Yes this will make it so many different keys will be able to open the lock, but, it does work.
Back to top
View user's profile Send private message Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Sun Jun 20, 2010 9:28 pm    Post subject: Reply with quote

Quote:
Wish I knew how to do that! My plan is to simply transfer the tumbler right into the newly powder coated handles. . . hopefully without screwing up the keying.

Stick the key into the cylinder and it will pop into it's new home easily.
Once you get your powdercoated handles back remove any powdercoating from the hole that the clyinder drops into along with the rectangular trough that the wafers drop into to lock with some paint remover on a Q-tip. The little area where the phillips head screw goes in the back should be clean also.
If I remember correctly the punch needed to drive out the pin is 1/16".
Tutorials are great.
Unfortunately I remember your van being TRASHED. Evil or Very Mad
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mikeyb
Samba Member


Joined: April 02, 2007
Posts: 133
Location: Arcadia, CA
Mikeyb is offline

PostPosted: Mon Jun 21, 2010 3:54 am    Post subject: Reply with quote

Quote:
Unfortunately I remember your van being TRASHED. Evil or Very Mad


Yeah, I see it everyday when I walk out my back door (although I've put a cover on it. I've decided to just part it out. I'll disassemble it over the summer, keep the parts I want or think I'll need, and sell the rest of it. R.I.P. '85 Vanagon.

Quote:
If I remember correctly the punch needed to drive out the pin is 1/16".
OOOOORRRR. . . . you can use a very small finishing nail. Wink
_________________
'82 1.9 TD Westy (Tortuga Veloce)
2014 Honda Pilot
2021 VW Atlas
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Central Syncronizer
Samba Member


Joined: November 19, 2008
Posts: 302
Location: Vancouver
Central Syncronizer is offline

PostPosted: Mon Jun 21, 2010 9:28 am    Post subject: Reply with quote

For rekeying, just switch the wafers around to match your key, or hand file a key to match the wafers.

Hand filing is really quite easy. Just file each section of the the blank key until the wafers don't protrude.


I hand filed a blank key. There are a couple of posts on my blog for those interested.


http://88syncrodoka.blogspot.com/search?updated-ma...esults=100
_________________
Ongoing restoration/maintenance of my syncro double cab (and soon Westy):

http://88syncrodoka.blogspot.com/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 743
Location: Salt Lake City
Classicvibe is offline

PostPosted: Mon Jun 21, 2010 3:49 pm    Post subject: Reply with quote

Mikeyb wrote:
Quote:
Unfortunately I remember your van being TRASHED. Evil or Very Mad


Yeah, I see it everyday when I walk out my back door (although I've put a cover on it. I've decided to just part it out. I'll disassemble it over the summer, keep the parts I want or think I'll need, and sell the rest of it. R.I.P. '85 Vanagon.

Quote:
If I remember correctly the punch needed to drive out the pin is 1/16".
OOOOORRRR. . . . you can use a very small finishing nail. Wink


Mikeyb, do you have some brown interior parts I can buy from you? I need a couple of handles, the e-brake cover and both window rollers.

I am going to try to re-key mine this week. I will update.
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2022...see you there!

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender Transporter
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mikeyb
Samba Member


Joined: April 02, 2007
Posts: 133
Location: Arcadia, CA
Mikeyb is offline

PostPosted: Tue Jun 22, 2010 3:52 am    Post subject: Reply with quote

Quote:
do you have some brown interior parts I can buy from you? I need a couple of handles, the e-brake cover and both window rollers.


I'll look this weekend. I know I have the brown shifter boot and I "think" the e-brake boot might be brown as well. The window cranks are definitely black.

What, specifically, do you mean by "handles"? The hand grab handle on the door?

I'll look at them this weekend to determine their condition.
_________________
'82 1.9 TD Westy (Tortuga Veloce)
2014 Honda Pilot
2021 VW Atlas
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vw76westy
Samba Member


Joined: May 06, 2007
Posts: 1584
Location: so cal
vw76westy is offline

PostPosted: Wed Aug 11, 2010 10:31 am    Post subject: Reply with quote

are all locks the same 80-91
or did they change design at some point
are the handles the same if you have power locks
_________________
order your BAY WINDOW T-SHIRT here http://www.thesamba.com/vw/classifieds/detail.php?id=1526918

quote from bay window bus buyers guide........
The Type 4 engine is considered by many to be VW's finest air-cooled motor,
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Wed Aug 11, 2010 4:00 pm    Post subject: Reply with quote

All the handles are the same through the years except the slider door. There are early and late versions of them. The handles don't have anything to do with the power lock system so they are the same.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Wed Aug 11, 2010 4:32 pm    Post subject: Reply with quote

any info on the year that breaks the early and late versions of the sliding door handles?
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davideric9
Samba Member


Joined: January 21, 2009
Posts: 998
Location: Oakland CA
davideric9 is offline

PostPosted: Wed Aug 11, 2010 8:03 pm    Post subject: Reply with quote

Nice pictures. A few notes:

a. Ask your powder coater to tape off the openings for the cylinders so you wont have to remove the paint afterwards.

b. When removing the cylinder, best to have the key in the cylinder to keep all tumblers and springs in place

c. Check this thread for rekeying. Not complete but its a start.
_________________
1987 Syncro Westfalia, stock (bought 1994)
1986 Syncro Westfalia SVX, 3 knob (bought 2008)
1987 Westfalia (bought 2010)
1988 Wolfsburg GL (bought 2012)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mikeyb
Samba Member


Joined: April 02, 2007
Posts: 133
Location: Arcadia, CA
Mikeyb is offline

PostPosted: Thu Aug 12, 2010 4:47 am    Post subject: Reply with quote

Quote:
any info on the year that breaks the early and late versions of the sliding door handles?


Pretty sure it was '85. The earlier handles are longer and expensive. Around $100.00 new. Ouch. Shocked Ask me how I know.
_________________
'82 1.9 TD Westy (Tortuga Veloce)
2014 Honda Pilot
2021 VW Atlas
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 15119
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Thu Aug 12, 2010 6:32 am    Post subject: Reply with quote

I was going to rekey a few of mine to take a BLANK key for the doors only.
how many people walk around with an uncut key?
_________________
Abscate wrote:
These are the reasons we have words like “wanker”
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
mikey9
Samba Member


Joined: January 05, 2009
Posts: 126
Location: Inverness, Scotland
mikey9 is offline

PostPosted: Tue Dec 28, 2010 2:27 pm    Post subject: And a big thankyou from me.... Reply with quote

Got the courage (and time) tonight to try to fix the stuck lock on the drivers door.

The pics and description in this thread illustrated nicely for me so - following the advice - got the lock barrel out - took handle off (you don't need to take the inside door panel off - I did - but no need to as the handle comes off easily when you undo the bolt in the door lock mechanism ).

I found that the barrel wafers were clogged horribly with what looked like either thick graphite grease or grease and alu oxide...? Flushed through thoroughly with WD40 - cleaned up nicely.

Could see that the end wafer (furthest in) was not dropping - due to clog at the inner end of the barrel. So reassembled and there ended 9 months of locking and getting out through the slider.....

Oh I love this forum - I have warm glow and a bottle of Inveralmond Brewery - Ossian ale as a reward.

Many thanks mikeyb - from mikeya Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cold Steel
Samba Member


Joined: March 11, 2010
Posts: 587

Cold Steel is offline

PostPosted: Tue Dec 28, 2010 3:49 pm    Post subject: Reply with quote

STICKY!
_________________
91 Syncro
I am a samba thread just waiting to happen!
"Advanced Syncroist"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Sun Apr 08, 2012 2:17 pm    Post subject: Reply with quote

does anyone know of a source for parts?

things like the foam water guards, sealing ring for the lock cylinder, and the tiny roll pins that hold the yoke onto the end of the lock?
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
