some questions i need answered please

[rob69tam]

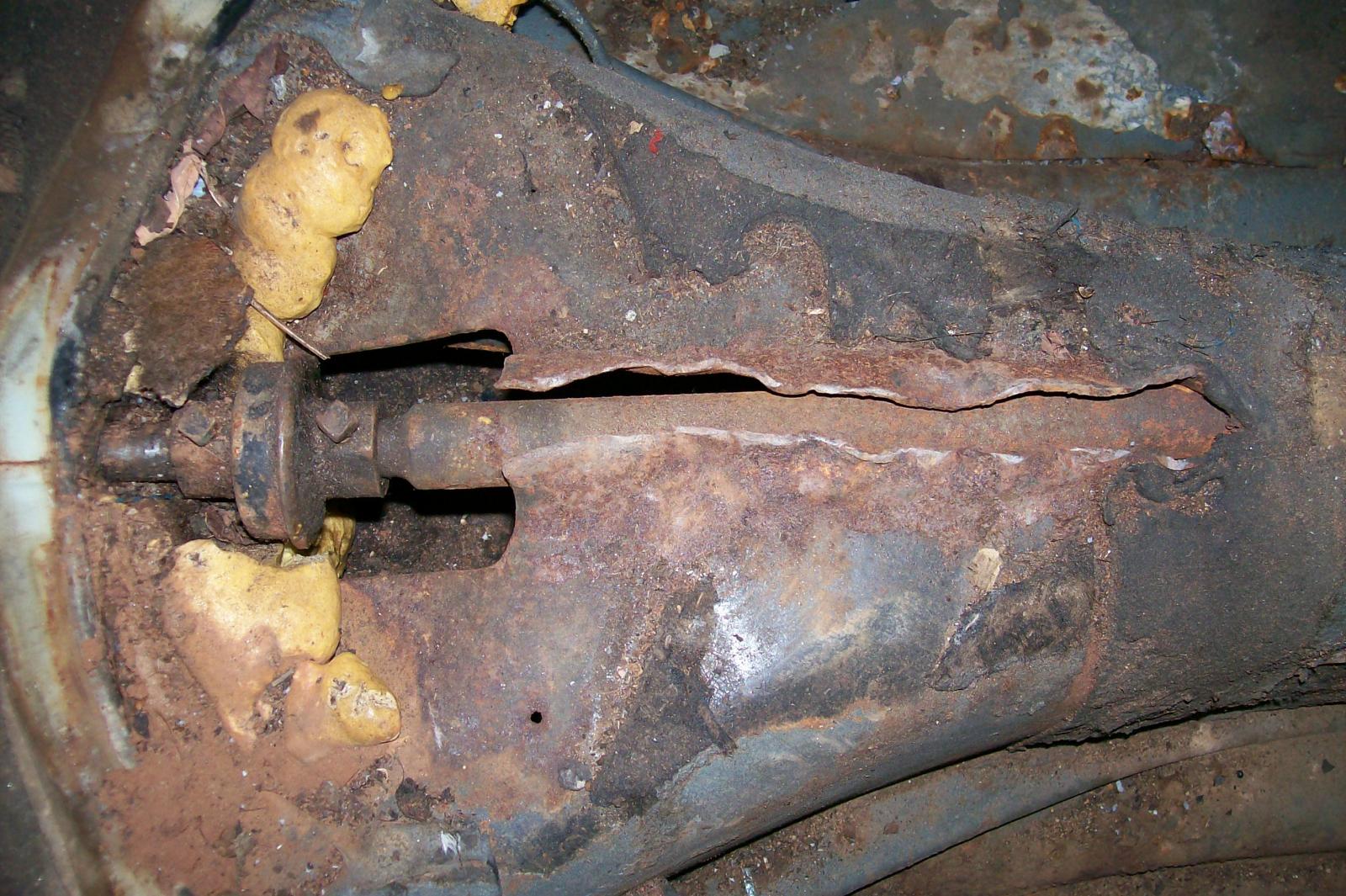

ok gentlemen, removed the body off our 58 and this is what we see. twisted spring plate, both sides about the same amount. the tunnel which we seen before, has a cut in it and the shift rod sits a bit high, and a transaxle from maybe the 60's? any ideas and or fixes would be appreciated.
_________________
58 ragtop

[AlteWagen]

post pics of the plates

when installing a 61 up trans in a 59 and earlier chassis you need either an adapter front mount or a early bus nose cone and hockey stick with regular mount.

Back in the day when these conversions were done without the above options some hacking of the pan tunnel was usually required. Ive seen the hack so bad that they cut the vin numbers to clear the shift rod.
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet

[rob69tam]

am an idiot with the puter. have to wait till my son gets home and have him do it. thought I could but no.
_________________
58 ragtop

[KTPhil]

Plates normally twist as part of the suspension movement. The twist comes near the end of suspension travel, as a design feature to give a progressive spring rate-- soft at center for soft ride, stiffer at extremes to prevent bottoming.

I'm no expert but the gallery pic does not look extraordinary to me.

[rob69tam]

sweet. if you click on the gallery then you can see pics. I amaze myself. thanks KTPhil
_________________
58 ragtop

[AlteWagen]

As mentioned the twist on the spring plates looks normal



On the other hand he extreme hack on the pan, which in the process removed the vin number, has made it useless. Maybe in your state they can re assign a vin but good luck getting that car registered.

_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet

[drscope]

Direct link to his gallery pics so you don't have to go looking so hard:
http://www.thesamba.com/vw/forum/album_search.php?search_author=rob69tam

Spring plates look normal. Without the weight of the body on the car the rear wheels go to positive camber a little more then they normally would otherwise. That puts a little more twist to the spring plates.

The hack on the tunnel needs to be fixed. You may be able to make some special pulling tools that would allow you to get the pieces back in place and weld them back together. Or cut that hack cut out and replace it with new metal.

The VIN may be a problem, but If I knew the history of the car was good and legal I wouldn't have any problem with making up an aluminum plate to cover the hacked area of the vin stamp, and stamping the original VIN onto that. But in sme states they require a VIN inspection and that may not fly.
_________________
Mother Nature is a Mean Evil Bitch!

[rob69tam]

I do have a title and it is already registered in my name so I don't see a problem there. thanks for all the input
