Tschuette
Samba Member


Joined: January 07, 2008
Posts: 111
Location: Johnson City, TN
Tschuette is offline

PostPosted: Wed Oct 13, 2010 7:42 am    Post subject: Reply with quote

I bet it was a wheel stander, that is how you turn one, with left and right rear brakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Faulty_Ground
Samba Member


Joined: October 07, 2010
Posts: 3
Location: Austin, TX
Faulty_Ground is offline

PostPosted: Mon Oct 11, 2010 1:03 am    Post subject: Reply with quote

lovethatconvertable wrote:
Is the body removable or did the weld it onto the pan?

No idea, need to clean it out, and jack it up. Everything else he did was welded, so I'm afraid that might be the case... Its got a couple weak spots in the pan, so here's to hoping for some nice simple bolts...

chickengeorge wrote:
Does it look like it had seats or do you just sit on the package tray?

I've been wondering myself. Its got two seatbelts in it, so I'm assuming it had some sort of seating mechanism, but I couldn't guarantee it wasn't two pieces of plywood wrapped in a mexican blanket posing as a bench seat...

dreadpiraterobert wrote:
What's with that tubing around the shifter?

Turning brake levers! One left, one right, each connected directly to the parking brake cable for that sides rear drum. On the flip side, no parking brake...

65'1300Deluxe wrote:
That looks just like an Empi Sportster!

See, I was thinking it looked more like...
Image may have been reduced in size. Click image to view fullscreen.


vws-microcars4jim wrote:
The heavy look of it reminds me of my own crazy homebuilt steel buggy.
Good luck with the project!

I dig, and thanks!

Quote:
no roll-over protection (something Faulty Ground may want to consider with his new buggy).

I said it back in high-school, and I'll say it again.... WE DON'T NEED NO STEENKING ROLLOVER PROTECTION! (Exhibit A: Me in my first car)

Image may have been reduced in size. Click image to view fullscreen.

_________________
Build a man a fire, and he is warm for a night.
Set fire to a man, and he will be warm for the rest of his life.
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
LeviMan2001
Samba Post Whore


Joined: April 11, 2009
Posts: 3855
Location: Alaska
LeviMan2001 is offline

PostPosted: Sun Oct 10, 2010 2:17 pm    Post subject: Reply with quote

vws-microcars4jim wrote:
Scott H wrote:
Not to hijack Faulty Ground's thread but do you have a pic of the rear/engine area of this? That looks like it'd go damn near anywhere.


Here's a shot of it "at work", pulling something around the yard.
I'd like to off-road it, but am hesitant to with no roll-over protection (something Faulty Ground may want to consider with his new buggy).

Image may have been reduced in size. Click image to view fullscreen.


Does that thing have super beetle front suspension? Confused
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=366056 - My '73 Super Build. 2332cc, 16" Fuchs
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vws-microcars4jim
Samba Member


Joined: September 25, 2005
Posts: 314
Location: Chicago
vws-microcars4jim is offline

PostPosted: Sun Oct 10, 2010 7:00 am    Post subject: Reply with quote

Scott H wrote:
Not to hijack Faulty Ground's thread but do you have a pic of the rear/engine area of this? That looks like it'd go damn near anywhere.


Here's a shot of it "at work", pulling something around the yard.
I'd like to off-road it, but am hesitant to with no roll-over protection (something Faulty Ground may want to consider with his new buggy).

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Scott H
Samba Luddite


Joined: August 15, 2003
Posts: 3023
Location: NorthCarolina,USA
Scott H is offline

PostPosted: Sat Oct 09, 2010 9:12 pm    Post subject: Reply with quote

vws-microcars4jim wrote:
I like it.

The heavy look of it reminds me of my own crazy homebuilt steel buggy.
Good luck with the project!
Jim
Image may have been reduced in size. Click image to view fullscreen.

Not to hijack Faulty Ground's thread but do you have a pic of the rear/engine area of this? That looks like it'd go damn near anywhere.
_________________
Scott
oc92 wrote:
I like the soul of an old car to be visible...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vws-microcars4jim
Samba Member


Joined: September 25, 2005
Posts: 314
Location: Chicago
vws-microcars4jim is offline

PostPosted: Sat Oct 09, 2010 8:00 pm    Post subject: Reply with quote

I like it.

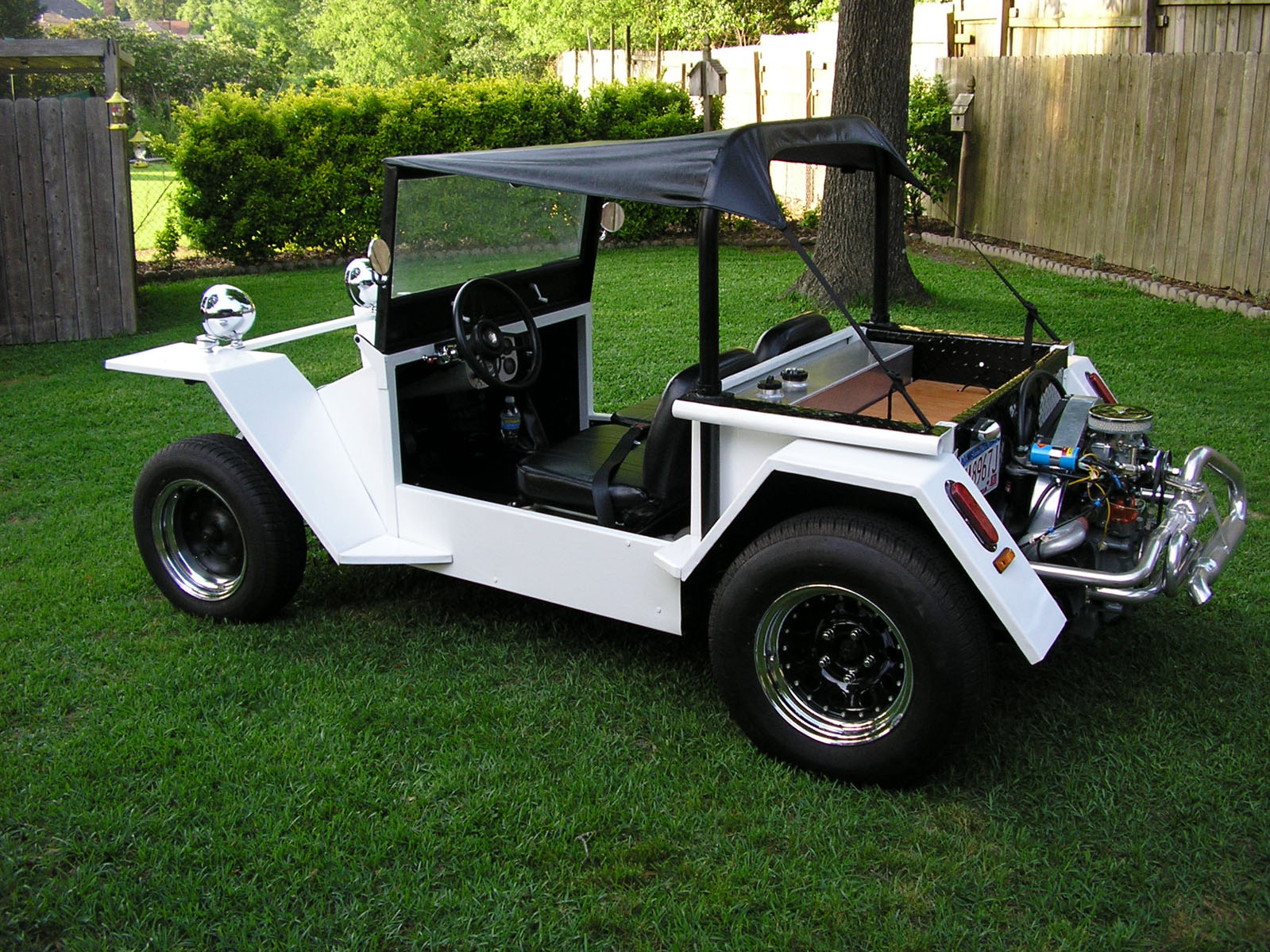

The heavy look of it reminds me of my own crazy homebuilt steel buggy.
Good luck with the project!
Jim
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Russ Wolfe
Samba Member


Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
Russ Wolfe is offline

PostPosted: Sat Oct 09, 2010 1:53 pm    Post subject: Reply with quote

That is what some people say about bugs.
Wink
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
LeviMan2001
Samba Post Whore


Joined: April 11, 2009
Posts: 3855
Location: Alaska
LeviMan2001 is offline

PostPosted: Fri Oct 08, 2010 7:09 pm    Post subject: Reply with quote

65'1300Deluxe wrote:
That looks just like an Empi Sportster! (U.S Patent 3,309,795). There's one in the Aug. 1996 edition of Hot VW's. They're supposed to be rare.

Image may have been reduced in size. Click image to view fullscreen.


I can see why it's rare Shocked
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=366056 - My '73 Super Build. 2332cc, 16" Fuchs
Back to top
View user's profile Send private message Gallery Classifieds Feedback
65'1300Deluxe
Samba Member


Joined: November 24, 2009
Posts: 575
Location: Eatonville, Washington
65'1300Deluxe is offline

PostPosted: Fri Oct 08, 2010 5:10 pm    Post subject: Reply with quote

That looks just like an Empi Sportster! (U.S Patent 3,309,795). There's one in the Aug. 1996 edition of Hot VW's. They're supposed to be rare.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1965 Deluxe Beetle "Camilla"
1972 Super Beetle Barnfind "Roland"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NoBudgetVWGarage
Samba Member


Joined: November 27, 2008
Posts: 691
Location: Quartz Hill,CA
NoBudgetVWGarage is offline

PostPosted: Fri Oct 08, 2010 4:46 pm    Post subject: Reply with quote

Shifters gotta have roll bars too. LOL. Just kiddin. It is interesting though. I bet that thing has stories to tell.

Slammed with early Porsche rims would look sweet.
_________________
1972 Transporter aka: "Toaster" - Weekend Driver
2.0 w/Dual Dellortos 091
Click to view image
67 Beetle - 1835 W Dual 40's - Toy Smile
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
dreadpiraterobert
Samba Member


Joined: January 17, 2010
Posts: 269
Location: Richmond, VA
dreadpiraterobert is offline

PostPosted: Fri Oct 08, 2010 12:36 pm    Post subject: Reply with quote

Cool project. What's with that tubing around the shifter?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
chickengeorge
Samba Ricer


Joined: August 18, 2004
Posts: 5475
Location: Spokompton Warshington
chickengeorge is offline

PostPosted: Fri Oct 08, 2010 8:22 am    Post subject: Reply with quote

You know what I would do? I'd lower it. No, I'd slam it. Then I'd put some cool wheels on it. Maybe something with a Porsche pattern. Oh, I know! some earlies! Yeah, slam it on earlies.

It's actually a pretty cool little rig. Does it look like it had seats or do you just sit on the package tray?
It's built like a tank. I'd roll it.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
NoBudgetVWGarage
Samba Member


Joined: November 27, 2008
Posts: 691
Location: Quartz Hill,CA
NoBudgetVWGarage is offline

PostPosted: Fri Oct 08, 2010 8:15 am    Post subject: Reply with quote

That thing is pretty cool. I've seen one of those as a kid, basically in the same condition you found yours in. The metal on that is pretty thick. NOTHING like a normal body. Pretty cool project. Keep us posted on how it turns out.
_________________
1972 Transporter aka: "Toaster" - Weekend Driver
2.0 w/Dual Dellortos 091
Click to view image
67 Beetle - 1835 W Dual 40's - Toy Smile
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
lovethatconvertible
Samba Member


Joined: August 22, 2008
Posts: 1434
Location: Las Vegas N. V.
lovethatconvertible is offline

PostPosted: Fri Oct 08, 2010 8:10 am    Post subject: Reply with quote

Looks like a Cool project. Is the body removable or did the weld it onto the pan? I really would like to know how much that puppy weighs. Looks like a tank. Keep us updated and keep the pic's coming.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Faulty_Ground
Samba Member


Joined: October 07, 2010
Posts: 3
Location: Austin, TX
Faulty_Ground is offline

PostPosted: Fri Oct 08, 2010 1:06 am    Post subject: 1964(?) Steel body buggy Reply with quote

I promised the nice people in the member introduction thread a link to some pictures. Besides, I will probably need a project page of some sort as time progresses. And its always nice to have some photos to link to when I ask a tech question...

Anyhow, before we get all frisky with the pictures, let me tell you the story... People say I'm good at that.

My sister was renting a country home from her best friend a few years back. The first time I went out to visit, I peered out the window in the office, squinting as hard as I could to see the opposite corner of the 5 acre lot...

"Whats that?"

"What?"

"That green contraption out there past the deer feeder"

"Good lord, how did I know you would gravitate to that thing? It's Casey's (her friends husband). Some sort of dune buggy thing"

So I hoofed it over there to check it out. What a mess! The wheels were sunken about 2 inches into the dirt. The towbar (more on that later) was still attached, and buried about 8 inches. What paint was left on it was beyond shot... All 4 tires were flat and crumbling, the seats were gone, as was the engine... the main seal on the transmission input shaft was missing. So too the fuel tank. The shifter wasn't connected to anything, all three pedals were jammed, and only using a prybar, was I able to hoist the dual turning brake levers far enough to be sure they weren't working either. But it was unique, and the body was welded together with some THICK steel. I might not even call is sheet metal, I would refer to this as steel plate. This was in 2006... The tags has expired in '94.

Naturally, I had to have it. I asked my sister for Casey's number, called him, and asked what he wanted for "whats left of that old dune buggy". He told me him, his brother, and grandfather built it together, and he has intended on restoring it someday, but he would part with it for $750. I restrained myself from laughing and told him I wasn't that interested. (I really was, but didn't have $750 to offer him) As it turns out, this was a good move. The next morning around 7:30, my phone wakes me up. It's his wife. She said "Casey did some thinking last night, and he'll take $100 for that piece of s Embarassed t" DONE.

Since then, I hauled it from her place in central Texas, 1100 miles back to my home in New Mexico. Put on a set of mis-matched used tires that will hold air for a day or two, to allow me to roll it around as needed to keep it out of the way. Then, hauled it 1100 miles back when I moved to central Texas in 2007.

Just this week (Thanks TheSamba!) I found the one surviving VIN plate on the floor pan behind the shifter, and after re-reading it a couple times to correct some numbers I mis-read through the rust, decided the original chassis was a 1964 model. (I think it was blue)

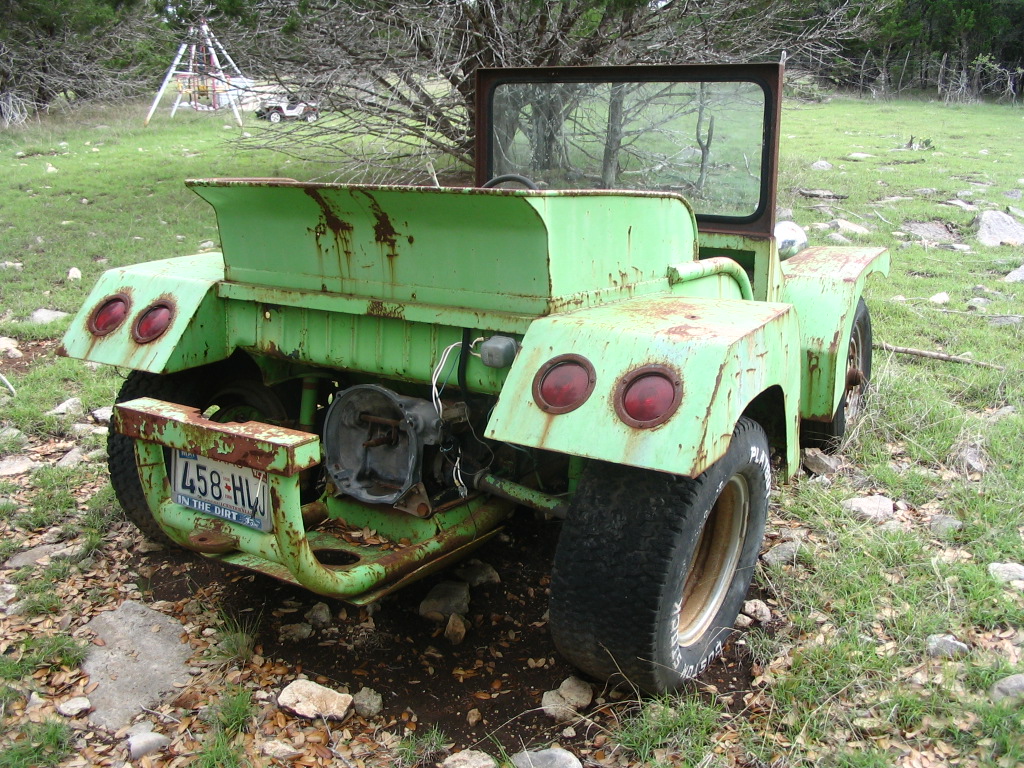

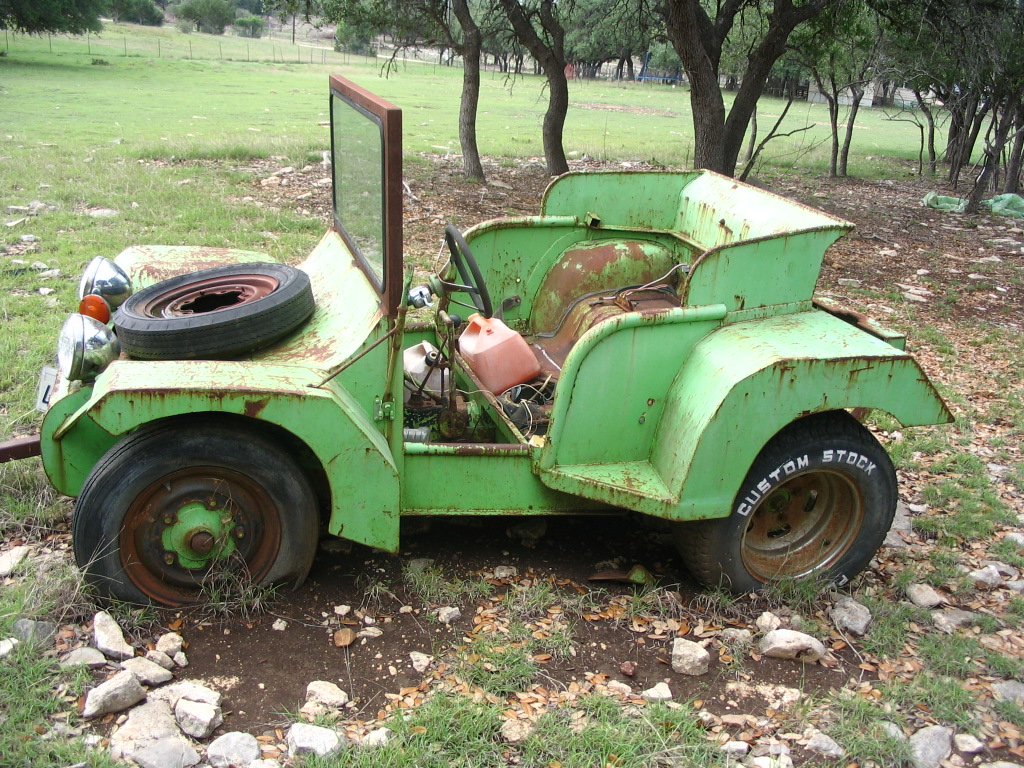

So without further delay... The (probably) 1964 buggy/roadster/scrapheap project!

Image may have been reduced in size. Click image to view fullscreen.


See that towbar there? I told you there would be more about that. That's a straight piece of rigid tube, that goes into a trailer receiver that's welded under the front bumper. You're supposed to jack up the front end until it will sit on the trailer ball on the tow vehicle, line them up perfectly, then lower it into the hitch.

Pros: Able to steer in reverse like a normal trailer
Cons: Have to carry a farm jack requires precise alignment of hitching

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Build a man a fire, and he is warm for a night.
Set fire to a man, and he will be warm for the rest of his life.
