PostPosted: Thu Nov 04, 2010 10:31 pm    Post subject: H-6 3L Conversion Reply with quote

Greetings from Germany!
I have an '85 Westy, and a 2001 H6 motor with all the trimmings. I need parts and advice. Cooling parts and advice. I have everything RJES has to offer, and I have the SmallCar manifold. I need an engine carrier and I need coolant plumbing.
I am giving myself another month to get stuff together. I can't afford to keep buying coolant for my van. I'm refilling and bleeding the system every week! I know where it's leaking, and I'd rather replace the motor with something better than do a tear-down and rebuild.

I've posted on half a million VW boards, and sick of going in circles.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
When All Else Fails: Lather, Rinse, Repeat!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
J Charlton Premium Member
Samba Member


Joined: August 24, 2007
Posts: 1544
Location: The True North Strong and Free
J Charlton is offline

PostPosted: Fri Nov 05, 2010 4:31 am    Post subject: list Reply with quote

If you postup a list of everything that you currently have, perhaps we could be of more assistance in suggesting sources for the remainder.
Cooling system: Tom Shiels Concept 5
Harness: Tom Shiels - it will work first time and everytime
Eg. from your post I don't know if you have the RJES bellhousing or not - if not, then Smallcar bellhousing and engine supports, but if you do - then what does RJES suggest?
_________________
NAHT hightop availability May 18 2023 -
Bend Oregon - for Oregon, California- (7 tot , 3 available), Kennewick Wa (6 tot, 3 available), Small Car Performance Fife Wa. (7 tot 5 avail ), Fairbanks Alaska (1 tot 0 avail)
Future availability TBD : Springfield Mass. Staunton Va, Florida, Colorado, Grand Junction Co., SLC probably late 2023
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Jon_slider
Samba Member


Joined: April 11, 2007
Posts: 5091
Location: Santa Cruz, Crowdifornia
Jon_slider is offline

PostPosted: Fri Nov 05, 2010 8:43 am    Post subject: Reply with quote

Burley has experience with H6 installs, including fabrication

Burl Beveridge
805-966-1378
[email protected]
106 Santa Barbara St.
Santa Barbara CA

http://www.burleymotorsportsdirect.com/index.php
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AnmlMthrM60
Samba Member


Joined: July 10, 2007
Posts: 228
Location: Prescott, AZ
AnmlMthrM60 is offline

PostPosted: Fri Nov 05, 2010 11:46 am    Post subject: Reply with quote

Thanks. I Burley Motorsports is another place I didn't need to know about... Looks like I'm eating ramen noodles for another year... Crying or Very sad
_________________
Justin
-------
86 Syncro - 2.2L WBX
69 Bug - 1776cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour
Samba Member


Joined: September 02, 2010
Posts: 2426
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Fri Nov 05, 2010 2:17 pm    Post subject: Reply with quote

Thanks for that, Jon. Burley says hi by the way. I spoke to him on the phone and I sent him a parts list. I sure hope he can help. This has been a bit of a fight.

These are the parts I have on hand or enroute:
H6 engine, wiring harness, computer, ignition key transponder, RJES bellhousing, fuel pump, engine mounts, throttle cable, VSS, filters, clutch shaft, starter, flywheel, clutch disk, pressure plate, SmallCar header, and assorted bolts.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
When All Else Fails: Lather, Rinse, Repeat!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Vango Conversions
Samba Member


Joined: October 04, 2010
Posts: 1054
Location: Seattle, WA
Vango Conversions is offline

PostPosted: Fri Nov 05, 2010 3:04 pm    Post subject: Reply with quote

In the meantime, if you're leaking tons of coolant from your current engine, just use water. The environment will thank you and as long as your engine isn't running super hot, it'll do fine with just water for a while. Of course if it's freezing out, you'll need the toxic green goo.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15086
Location: New York
insyncro is offline

PostPosted: Sat Nov 06, 2010 8:19 am    Post subject: Reply with quote

There are numerous H6 3.0 conversions being done here in the States right now. Be patient, pictures and info will start to trickle down.

dylan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour
Samba Member


Joined: September 02, 2010
Posts: 2426
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Sat Nov 06, 2010 2:27 pm    Post subject: Reply with quote

Vango Conversions wrote:
In the meantime, if you're leaking tons of coolant from your current engine, just use water. The environment will thank you and as long as your engine isn't running super hot, it'll do fine with just water for a while. Of course if it's freezing out, you'll need the toxic green goo.


Ok, so it's not 'pouring' out, but rather, I have a hole in the sealant on the 2/4 side bottom. It's not enough to really push the coolant out (I've tried the sealants, no luck!). I think what it is, is as the system cools, it draws air in. And pushes it out the overflow. Just about every day, I am draining the overflow into a 1 liter juice bottle, opening the pressure tank, and refilling it. If I leave my overflow empty, I can get to work and back ok. It's the longer drives that make the light blink.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
When All Else Fails: Lather, Rinse, Repeat!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
derekdrew
Samba Member


Joined: October 14, 2007
Posts: 245
Location: Far Northwest CT
derekdrew is offline

PostPosted: Sun Nov 07, 2010 4:50 am    Post subject: Reply with quote

What starter did you choose? RJES starter for the same engine.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
thummmper
Samba Member


Joined: November 25, 2009
Posts: 2015
Location: Meadow Valley, California Republic
thummmper is offline

PostPosted: Sun Nov 07, 2010 10:17 am    Post subject: Reply with quote

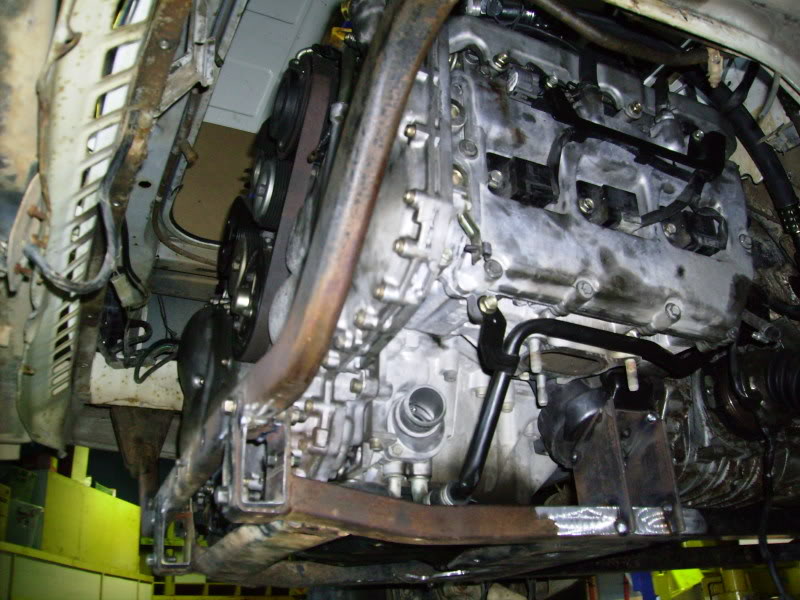

different project I was admiring a year ago in australia--
someone said they wanted related photos-so here
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I thought these might help--not trying to steal the thread
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Team WorldTour
Samba Member


Joined: September 02, 2010
Posts: 2426
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Sun Nov 07, 2010 1:34 pm    Post subject: Reply with quote

thummmper wrote:

Image may have been reduced in size. Click image to view fullscreen.

I thought these might help--not trying to steal the thread


Yeah, um, NOT stealing it... more like helping me to see what it will look like. Thank you. What is this black box? I don't have that one. The starter I have is a reman from my shop. Who did the engine carrier, and where can I get the schematics for it? I think I could find a German guy here to fabricate it for me....

This is great. Looks good.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
When All Else Fails: Lather, Rinse, Repeat!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
86syncrowesty
Samba Member


Joined: September 23, 2010
Posts: 115
Location: Colorado Front Range
86syncrowesty is offline

PostPosted: Sun Nov 07, 2010 1:36 pm    Post subject: Reply with quote

thummmper wrote:
different project I was admiring a year ago in australia--


Do you have the write-up link for this project?
_________________
1986 Vanagon -- Syncro, Westy
2.5L Subaru
Back to top
View user's profile Send private message Classifieds Feedback
thummmper
Samba Member


Joined: November 25, 2009
Posts: 2015
Location: Meadow Valley, California Republic
thummmper is offline

PostPosted: Sun Nov 07, 2010 3:54 pm    Post subject: Reply with quote

oh, I wish I did. I'll look out there for it. I found this last january while researching my second project. the vintage is

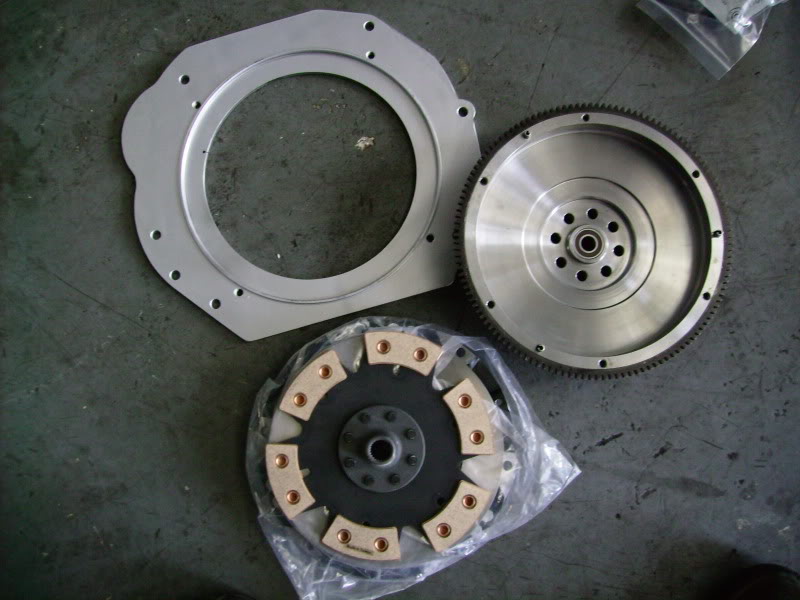

2001 to 2004 from an LL Bean outback. very difficult to find. this was a synchro conversion with the obvious conversion
bell housing plate and flywheel. It will lay aft that much further than yours. this guy welded a bunch of steel under it for
protection too. kind of heavy. He left the cat off too. strange, because this was the cleanest engine subaru
had built to date [emissions]
the black box is the vanagon ecu and shield...is that what you are referring to? I'll look.....
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
thummmper
Samba Member


Joined: November 25, 2009
Posts: 2015
Location: Meadow Valley, California Republic
thummmper is offline

PostPosted: Sun Nov 07, 2010 4:28 pm    Post subject: Reply with quote

found it!
http://aussieveedubbers.com/viewtopic.php?tid=76142
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Team WorldTour
Samba Member


Joined: September 02, 2010
Posts: 2426
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Sun Nov 07, 2010 5:24 pm    Post subject: Reply with quote

derekdrew wrote:
What starter did you choose? RJES starter for the same engine.

No, I didn't get one from him. But he did tell me which one to get. A starter from a manual xmsn Impreza, NOT the automatic.
The clutch is for the turbo Impreza, the clutch disk is a 228mm from CB Performance, and the pressure plate is for the same turbo'd Impreza.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
When All Else Fails: Lather, Rinse, Repeat!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
mackaymanx
Samba Member


Joined: October 12, 2006
Posts: 479
Location: Australia
mackaymanx is offline

PostPosted: Sun Nov 07, 2010 7:08 pm    Post subject: Reply with quote

I would factor in a gearbox rebuild in your budjet, I have seen the gearbox from the above syncro conversion and it is not pretty what a H6 can do to gearbox. It smashed the pinion bearing nut, destroyed the crownwheel and pinion and pushed the pinion shaft into the gearbox.

Syncro boxes are very hard and expensive to come by here in Australia.

Vanagon boxes are probably cheap and more plentiful in Germany, but an overhaul and some heavy duty internal would be a good choice.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour
Samba Member


Joined: September 02, 2010
Posts: 2426
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Sun Nov 07, 2010 7:34 pm    Post subject: Reply with quote

Richard from RJES says the stocker is good, mate. No worries. Cheers though.
And no, T3 parts here are getting to be hens teeth. All the wreckers here packed it all in, and shipped the lot to South Africa. For scrap. If I want a new tranny, mate, I gotta ring up GoWesty for a new one.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
When All Else Fails: Lather, Rinse, Repeat!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
a914622
Samba Member


Joined: July 29, 2004
Posts: 835
Location: Westend of HWY2 , Wash
a914622 is offline

PostPosted: Sun Nov 07, 2010 8:37 pm    Post subject: Reply with quote

I ran into a conversion for sale

http://www.914world.com/bbs2/index.php?showtopic=110573&hl=subaru


Not mine.

jcl
_________________
87 gl powerd buy 2.5subaru
75 914 getting 2.2t subaru scratch that SVX subaru
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour
Samba Member


Joined: September 02, 2010
Posts: 2426
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Sun Nov 07, 2010 9:58 pm    Post subject: Reply with quote

Yeah, too bad that is a 914 Porsche. I already have the motor plus alot of the little bits. This is interesting, but not much help for me. Thanks though.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
When All Else Fails: Lather, Rinse, Repeat!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
thummmper
Samba Member


Joined: November 25, 2009
Posts: 2015
Location: Meadow Valley, California Republic
thummmper is offline

PostPosted: Sun Nov 07, 2010 10:39 pm    Post subject: Reply with quote

2001 is a good year for the engine--the sand car guys like the 2005 to 2008 ez30r because it has reflowed heads and a more complex cam timing control system. 6 exhaust ports as well. but all of that is managed by a stand-alone ecu, and there is no suby trans to wire to.
for wiring simplicity the 01 is a good one. no immobilizers. You get to use the suby starter too with the rjes kit?
If I ever hang another engine off the fantail, it will be the ez30d.
gorgeous!


Last edited by thummmper on Mon Jan 10, 2011 6:09 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7  Next
Page 1 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
