How did you wire your illuminated headlight/foglight switch
Page: 1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 737
Location: Salt Lake City
Classicvibe is offline

PostPosted: Wed Nov 17, 2010 4:23 pm    Post subject: How did you wire your illuminated headlight/foglight switch Reply with quote

I am resolved to install these tonight, but I have not really considered the right way to do it.

I am guessing I want my new-to-me headlight switch to light up when the lights are on (either parking of full). The headlight switch has a big hole (circle) in the back and I am assuming this is the one people illuminate by inserting some bulb (which?) and wiring it (where, to what?).

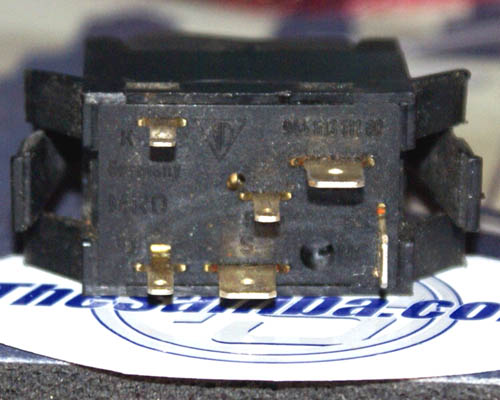

My fog light switch looks like it has the bulb inside. I don't have fog lights yet because I am patiently waiting for a set of these:
Image may have been reduced in size. Click image to view fullscreen.


so...I realize there is nothing to hook it to right now as far as lights go, but there are a bunch of prongs on that little sucker, so I imagine I can hook it up to some other mysterious wires right now while I scheme on those Zwos?!

Thanks you for your expertise!
Peace, Johnny
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2019...you goin?

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
climberjohn
Samba Member


Joined: January 11, 2005
Posts: 1840
Location: Portland Orygun
climberjohn is offline

PostPosted: Wed Nov 17, 2010 6:57 pm    Post subject: Reply with quote

heyo Johnny,

Perhaps this diagram will help. I recently filched it from somewhere off the interweb.

I just wired up my aux driving lights nearly this exact way, and it works great.

Comments:
I really did not understand your rather rambling post . . . but this is how I recently wired mine.

Bought an illuminated rocker switch at the FLAPS for about $5. This lights up when it has power.
Drilled a 1/2" hole in the dash.
Mounted the switch in the hole.
Ran a power wire from female hole marked #2 on the fuse panel to the left of the steering column.
The rest is pretty much as is from the diagram.

I hope you find this helpful.

xoxo,
CJ

Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 Westy, 2.5 Subaru power
Know your limits. Exceed them often.


Last edited by climberjohn on Wed Nov 17, 2010 8:49 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
vanaru
Samba Member


Joined: November 02, 2005
Posts: 167
Location: Sykesville, Maryland
vanaru is offline

PostPosted: Wed Nov 17, 2010 7:22 pm    Post subject: the vw foglight switch Reply with quote

the one wih the little amber indicator light?

you are correct there are i think six contacts and what feels like a three way action.

think it is supposed to be used to turn on both a fog taillight and foglights or only one of them based on the switch action...
_________________
1962 sunroof beetle
1982 porsche 911 SC
1991 vanagon WRX powered
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 737
Location: Salt Lake City
Classicvibe is offline

PostPosted: Wed Nov 17, 2010 7:31 pm    Post subject: Re: the vw foglight switch Reply with quote

vanaru wrote:
the one wih the little amber indicator light?

you are correct there are i think six contacts and what feels like a three way action.

think it is supposed to be used to turn on both a fog taillight and foglights or only one of them based on the switch action...


Aha! Great info...thanks Vanaru! That explains a bit of the mystery!
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2019...you goin?

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11371
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Wed Nov 17, 2010 7:40 pm    Post subject: Reply with quote

position 1- fog lights
position 2- fog lights and rear fog light (we don't have a stock provision for that- the EU taillights do)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11371
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Wed Nov 17, 2010 7:45 pm    Post subject: Reply with quote

Headlight switch mod- http://www.thesamba.com/vw/forum/viewtopic.php?t=2...p;start=80
You have to do some wiring and the light clips need to be sourced.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3660
Location: Maine
Timwhy is offline

PostPosted: Thu Nov 18, 2010 5:10 am    Post subject: Reply with quote

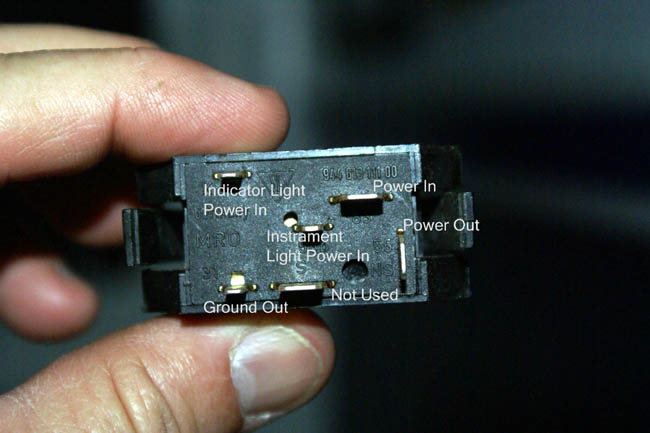

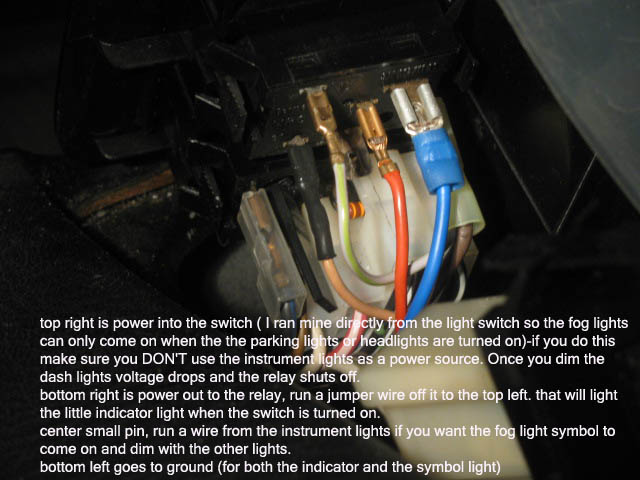

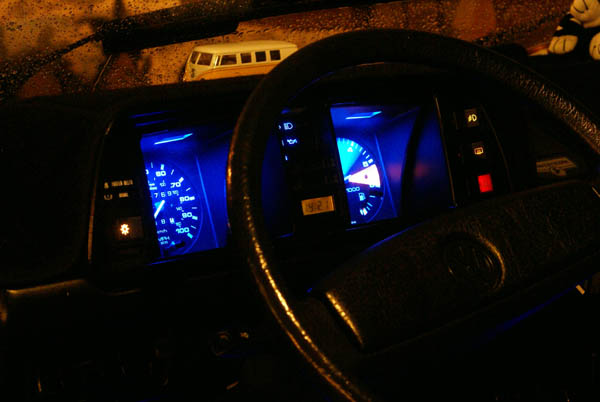

The fog light switches have a light inside the switch itself. You do have to get the correct one though, they don't all light up with the head lights turn on. You'll need a Porsche 944 switch from the same era.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Thu Nov 18, 2010 6:35 am    Post subject: Reply with quote

Timwhy wrote:
The fog light switches have a light inside the switch itself. You do have to get the correct one though, they don't all light up with the head lights turn on. You'll need a Porsche 944 switch from the same era.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Nice job, thanks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
snuf
Samba Member


Joined: April 15, 2008
Posts: 123
Location: TN
snuf is offline

PostPosted: Thu Nov 18, 2010 8:03 am    Post subject: Reply with quote

Another optional wiring diagram for OEM foglight switch.

http://www.haywood-sullivan.com/vanagon/foglight_wiring.gif
_________________
86' Wolfsberg Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 737
Location: Salt Lake City
Classicvibe is offline

PostPosted: Thu Nov 18, 2010 9:06 am    Post subject: Reply with quote

SyncroDoka & Timwhy...awesome, as usual! Thank you!
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2019...you goin?

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
climberjohn
Samba Member


Joined: January 11, 2005
Posts: 1840
Location: Portland Orygun
climberjohn is offline

PostPosted: Thu Nov 18, 2010 11:58 am    Post subject: Reply with quote

Timwhy,

That's a great post!
Thanks for taking the time to add such instructive comments to the images.

(This seems to be the answer the OP was looking for, rather than mine . . .)

-CJ
_________________
'86 Westy, 2.5 Subaru power
Know your limits. Exceed them often.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 737
Location: Salt Lake City
Classicvibe is offline

PostPosted: Thu Nov 18, 2010 12:20 pm    Post subject: Reply with quote

SyncroDoka, your thread on the LED post is really great, and that mod does not look too bad, but I am wondering, how were these switches intended to light up? Is there some NLA light & holder? Is it something I can pull out of a Porsche or something? One way or another I will go through with it, just wondering if I can hunt down a part so I don't have to make another Johnny-Franken-mod...yours does look good though! Thanks.
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2019...you goin?

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwlovr
Samba Member


Joined: May 21, 2006
Posts: 1122
Location: on the road
vwlovr is offline

PostPosted: Thu Nov 18, 2010 12:30 pm    Post subject: Reply with quote

anyone figure out how to LED the rear defroster switch? it's the only one on my gauge pod left with a regular bulb.
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 737
Location: Salt Lake City
Classicvibe is offline

PostPosted: Thu Nov 18, 2010 1:49 pm    Post subject: Reply with quote

Iopened it up and looked inside, and if I recall correctly, it is the same setup (inside) as the fog light switch. It uses something like, umm, crap, I forgot the name, but it is similar to the LED you use for the environmental lighting, a skinny tall thing. There are actually 2 light in the fog light switch, I can't remember if it is the same on defrost. In the end, I decided I would deal with it when the time came and the bulb(s) burned out. The bulb size, color and socket all made this ridiculously small mod a complete pain.

Dude I dunno, maybe I made it out to be harder than I should have. I am still at the point where I look for the easy wins on my Van. Everywhere I look I see something that needs an upgrade, so if I cannot justify my time on a mod, there are 50 more waiting for me.

Installed my new tires this morning (and rims), and installing my new OME tonight, and installing my big break tomorrow night. Big wins, and combined will probably take the same time as making that defrost light work (source light, source socket, take apart and install and test).

Maybe next week Laughing
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2019...you goin?

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11371
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Thu Nov 18, 2010 4:21 pm    Post subject: Reply with quote

Quote:
but I am wondering, how were these switches intended to light up?

They aren't supposed to light up from the factory. There isn't any wiring or bulb holder provisions for a bulb in the factory harness in any NA spec vanagon that I have ever seen.
It could possibly be for the european spec vanagons or ?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2276
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Thu Nov 18, 2010 4:33 pm    Post subject: Reply with quote

syncrodoka wrote:
It could possibly be for the european spec vanagons or ?

Now that you mention it, I'm not sure if or what switches in Domo light up. When I drive home from work tomorrow, I will have a look for you.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11371
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Thu Nov 18, 2010 4:37 pm    Post subject: Reply with quote

The headlight switch is the only one in the US that doesn't light up- figure that one out Confused
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2276
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Thu Nov 18, 2010 4:42 pm    Post subject: Reply with quote

I do know that when you hit the fog light switch, there is a tiny light that comes on, on the elevated part of the rocker switch. I had a small green light that came on, but it quit. It was just above the parking brake indicator.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3660
Location: Maine
Timwhy is offline

PostPosted: Thu Nov 18, 2010 4:45 pm    Post subject: Reply with quote

There can be atleast two different Fog Light switches. Both will light up on the
side of them when they are turned on. The Porsche switch also lights up the Icon.

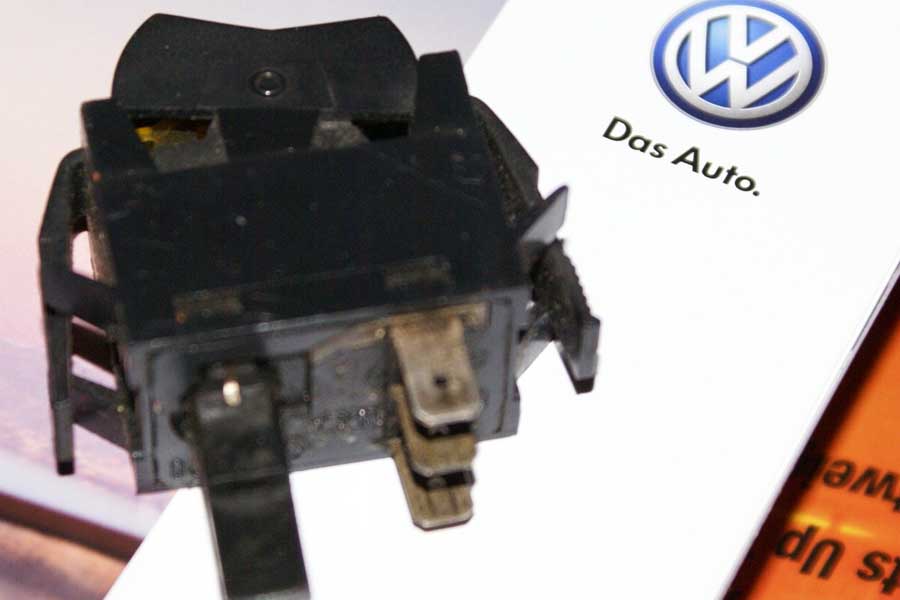

Non illuminated switch
Image may have been reduced in size. Click image to view fullscreen.

Illuminated switch
Image may have been reduced in size. Click image to view fullscreen.

_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Kombi
Samba Member


Joined: August 02, 2002
Posts: 562
Location: Edmonton, AB, Canada
Kombi is offline

PostPosted: Sun Apr 22, 2012 5:16 pm    Post subject: Dash lights Reply with quote

Timwhy wrote:

Image may have been reduced in size. Click image to view fullscreen.


couldn't seem to phrase the search right, so thought I'd just ask you.

What bulbs did you use to illuminate your dash?



Thanks
Dave
_________________
Air and Water are needed to survive,
you just can't live as long without air!

Air Riders, VW Club
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
