 Posted: Thu Mar 29, 2018 7:16 pm Post subject: 1971 mirror question |
 |
|
I have a few of question about my mirror. First , it is frozen in place. I put a little PB Blaster on it but that didn't help. Should I try some heat?
Second , the little black knob is also frozen in place. I would assume that this is the on/off switch for the light. I don't want to break anything. Lastly , is there a replaceable bulb inside? The white cover is very dirty. I would like to remove it to do a cleaning but I dont want to damage it. I am hoping that someone in the community has some answer. Thanks |
|
| Back to top |
|
 |
helowrench
Samba Member
Joined: August 27, 2003
Posts: 567
Location: dallas texas
|
| Posted: Thu Mar 29, 2018 11:21 pm Post subject: Re: 1971 mirror question |
|
|
The black knob does control the light.
3 position like modern cars. 1 on with door open 2 off always 3 on always
Yes, replaceable lamp inside.
It may not be "frozen" at the adjustment ball.
One way to "fix" a loose mirror was to put a prop of super glue in, and adjust it to where the driver liked it. I hope this has not happened to you.
Anywho, the full up mirror assembly is the same as a beetle convertible, if you go looking for a replacement.
Rob
_________________
Current VWs:
70 bug vert for wifey
73Thing bucket o rust
73 914 1.7
12 Passat 2.5 Highway cruiser |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32989
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
NOVA Airhead
Samba Member
Joined: July 20, 2005
Posts: 5225
Location: Richmond, VA
|
| Posted: Fri Mar 30, 2018 1:50 pm Post subject: Re: 1971 mirror question |
|
|
| helowrench wrote: |
The black knob does control the light.
3 position like modern cars. 1 on with door open 2 off always 3 on always
Yes, replaceable lamp inside.
It may not be "frozen" at the adjustment ball.
One way to "fix" a loose mirror was to put a prop of super glue in, and adjust it to where the driver liked it. I hope this has not happened to you.
Anywho, the full up mirror assembly is the same as a beetle convertible, if you go looking for a replacement.
Rob |

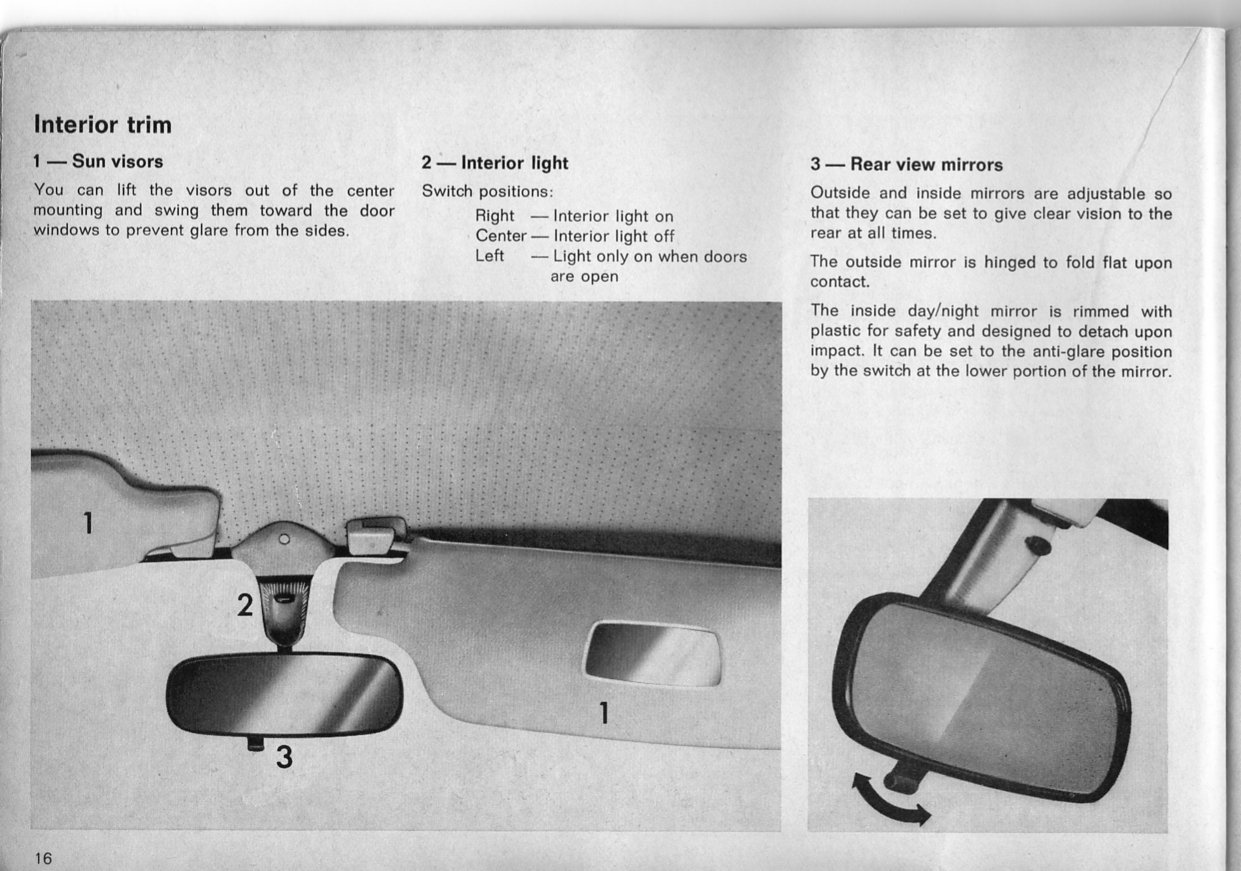

Which mirror is the same as a Beetle Convertible? I am not aware of any side view or rear view mirror that is shared between a 71 Ghia and a Beetle. A Beetle mirror will not work or fit right if used on a Ghia. If you have a good original be careful with it as they are hard to find and repros are generally of poor quality. As for the operation of the interior light here is the owner's manual.
https://www.thesamba.com/vw/archives/manuals/8_70ghia/16.jpg
_________________
Ghia Owner Emeritus |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32989
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
helowrench
Samba Member
Joined: August 27, 2003
Posts: 567
Location: dallas texas
|
| Posted: Sat Mar 31, 2018 1:17 am Post subject: Re: 1971 mirror question |
|
|
| NOVA Airhead wrote: |
| helowrench wrote: |
The black knob does control the light.
3 position like modern cars. 1 on with door open 2 off always 3 on always
Yes, replaceable lamp inside.
It may not be "frozen" at the adjustment ball.
One way to "fix" a loose mirror was to put a prop of super glue in, and adjust it to where the driver liked it. I hope this has not happened to you.
Anywho, the full up mirror assembly is the same as a beetle convertible, if you go looking for a replacement.
Rob |
Which mirror is the same as a Beetle Convertible? I am not aware of any side view or rear view mirror that is shared between a 71 Ghia and a Beetle. A Beetle mirror will not work or fit right if used on a Ghia. If you have a good original be careful with it as they are hard to find and repros are generally of poor quality. As for the operation of the interior light here is the owner's manual.
https://www.thesamba.com/vw/archives/manuals/8_70ghia/16.jpg |
Since he was talking about the black adjuistment knob and the dome light, I assumed it was the interior rear view mirror.
My 71 Ghia had the exact same assy as my 70 convertible beetle. Aircooled backs this up, as John shows the same unit for both.
Rob
_________________
Current VWs:
70 bug vert for wifey
73Thing bucket o rust
73 914 1.7
12 Passat 2.5 Highway cruiser |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4759
Location: Seattle
|
| Posted: Sat Mar 31, 2018 7:41 am Post subject: Re: 1971 mirror question |
|
|
Yes, they are the same part
_________________
70 Ghia Black convert-9/69 build date-stock w/133k 1600 SP-barn find now with a rebuilt tranny and engine
77 Westy 2.0L w/Ljet, Camper Special engine-95hp and with LSD!(sold)
76 Porsche 914 2.1L L20c, 120hp Djet (sold)
87 Syncro Westy Titan Red 2.1L 2 knob 100k miles |
|
