 Posted: Sun Dec 19, 2010 10:53 am Post subject: Is this a 60 style trans mount ? |
 |
|
This is my 59 pan and I dont think its the same as 60 pan but someone said that might be the problem im having so thought I would post a pic to make sure.
_________________
59 bug slammed with cosmics |
|
| Back to top |
|
 |
lovethatconvertible
Samba Member
Joined: August 22, 2008
Posts: 1434
Location: Las Vegas N. V.
|
| Posted: Sun Dec 19, 2010 12:24 pm Post subject: |
|
|
Jason it Doesn't look like my 1960 mount. If your pan is a verified 1959 it's a different mount. 1960 is a one year only. You can see where it mounts directly to the torsion tube.
|
|
| Back to top |
|
|
Jason Eden
Samba Member
Joined: July 04, 2003
Posts: 952
Location: Inland Empire
|
| Posted: Sun Dec 19, 2010 2:04 pm Post subject: |
|
|
thanks I know mine is a 59 so that is not the problem Im having. Thanks
_________________
59 bug slammed with cosmics |
|
| Back to top |
|
|
bill may
Samba Member
Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
|
|
| Back to top |
|
|
smkn_vw
Samba Member
Joined: August 22, 2004
Posts: 809
|
| Posted: Mon Dec 20, 2010 4:42 am Post subject: |
|
|
Yours looks like a normal 59' pan. Below is my 59' pan and the stock rubber front trans mount that sits between the pan and trans.
_________________
"So didja?" -Bob Hoover |
|
| Back to top |
|
|
bill may
Samba Member
Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
|
| Posted: Mon Dec 20, 2010 6:58 am Post subject: |
|
|
| smkn_vw wrote: |
Yours looks like a normal 59' pan. Below is my 59' pan and the stock rubber front trans mount that sits between the pan and trans.
|
i missed that. yes the 61-72 would hang lower and be less bulky. look at how the clutch tube exits the nice 59 pan and the exit of tube from J.Eden's frame.bent? or just angle of picture?
_________________
Admin note: Bill Passed away - July, 2017
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617 |
|
| Back to top |
|
|
HBH72
Samba Member
Joined: March 29, 2005
Posts: 45
Location: Europe
|
| Posted: Wed Apr 08, 2015 2:45 am Post subject: |
|
|
Hi all.
After I recently purchased a early 1960 beetle, I have made some study regarding the "one year only" transmission mount - and why this was made..
I believe I found out why, and like to share it here.

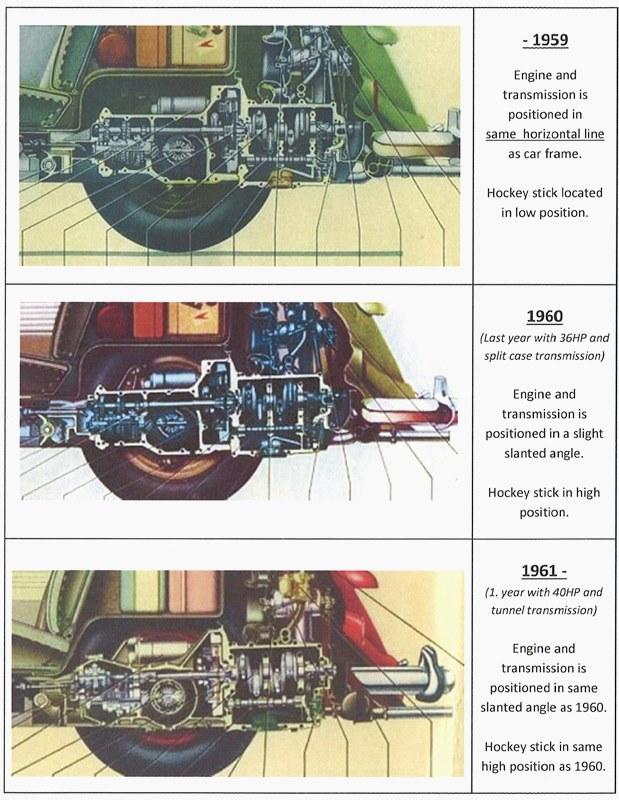

Looking at the position of the transmission hockey stick - 1960 is the 1. model year where hockey stick location is placed in high position - see below picture:
The reason for moving the position of the hockey stick is written in this book published in California, 1960:
http://www.thesamba.com/vw/forum/viewtopic.php?p=1598827
On page 176-177 the writer explain about the advantage of having negative camber on rear wheels, and how the VW factory made a change to the transmission fork starting on the 1960 model to improve negative camber:
This means that 1960 is the 1. model year where the engine & tranny unit is located at a slight angle:
Also starting at the 1960 model, this change of the rear fork also consist of a change of the screw bolt for the rear shock absorber:
- just a little detailed info regarding why 1960 has a "one year only" front transmission mount.
Last edited by HBH72 on Wed Apr 08, 2015 5:39 am; edited 1 time in total |
|
| Back to top |
|
|
60ragtop
Bonneville Belt Bitch
Joined: March 13, 2006
Posts: 7801
Location: Big Wonderful WYO 82401
|
| Posted: Wed Apr 08, 2015 5:33 am Post subject: |
|
|
and this translates into the 60 only red handle dipstick because of the angle. One of the many pleasures of owning a stock 60
_________________
Rick
Certified Mechanic by the State of Michigan in 1977
ASA certified in 1987
Certified Hunter Wheel Alignment Master Technician 1986
| tasb wrote: |
I've restored a large number too, but I don't toot my horn quite as loud.
|
| sb001 wrote: |
maybe he just snapped cause his car sucked  |
|
|
| Back to top |
|
|
HBH72
Samba Member
Joined: March 29, 2005
Posts: 45
Location: Europe
|
| Posted: Wed Apr 08, 2015 5:58 am Post subject: |
|
|
Yes, that makes sense. Because of the engine angle, the full mark indication on the oil stick were lowered 4 mm:
1960 only - Oil dipstick painted red (at chassis 2528668/engine 3072320).
The full mark was set 40mm from the end, rather than the previous 44mm. The add mark was not changed. Part #111-115-611-A
The red making must have been introduced, to ensure that you always use a correct oil dip stick on a 36HP engine in a 1960 car. |
|
| Back to top |
|
|
GüteAndTite
Early Convertible Güru
Joined: June 16, 2005
Posts: 2144
Location: Low So Cal
|
|
| Back to top |
|
|
pdowty68
Samba Member
Joined: April 07, 2014
Posts: 224
Location: Long Island, New York
|
| Posted: Thu Apr 09, 2015 5:40 pm Post subject: |
|
|
| I love how this thread helped me to understand the reason for the 40mm dipstick full mark for 1960. Did it return to 44mm in 61? or was it just no longer painted red? |
|
| Back to top |
|
|
HBH72
Samba Member
Joined: March 29, 2005
Posts: 45
Location: Europe
|
| Posted: Fri Apr 10, 2015 12:15 am Post subject: |
|
|
1961 is the 1. year with the 40 HP engine case (no longer 36HP case). The 40 HP engine case use a shorter oil dip stick, so they are not directly comparable to the earlier 36 HP ones.
The red colored dip sticks must have been introduced only on 36 HP engines in 1960 model cars, simply to indicate the lowered oil level markings (since the 1960 dip stick has the same length as on earlier 36 HP engines).
Picture of different dip sticks can be seen on this link:
http://www.thesamba.com/vw/forum/viewtopic.php?p=6784360 |
|
