PostPosted: Tue Dec 28, 2010 6:34 am    Post subject: Cruise Control LED Indicator in Instrument Cluster Reply with quote

I finally got all the bugs worked out of my Rostra cruise install on my 1987 Syncro. One of the nice features is the unit provides a wire that goes to ground when the cruise is engaged so that you can lead it to an indicator light that always has 12+ running to it (kind of like the old Bug warning lights).

Anyone have any idea how I could use the vacant LED spot next to the OXS LED in the cluster? Any idea if I could get a custom screen made like they do for the conversions for the check engine light?

Another thing I thought of doing was using the front diff lock light as an indicator but that might confuse some people.
_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Tue Dec 28, 2010 8:01 am    Post subject: Reply with quote

Quote:
Any idea if I could get a custom screen made like they do for the conversions for the check engine light?

There is a guy in the classifieds that could probably make one up for you easily. http://www.thesamba.com/vw/classifieds/detail.php?id=557972
Back to top
View user's profile Send private message Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Tue Dec 28, 2010 8:56 am    Post subject: Reply with quote

Thanks--exactly what I was looking for.

Any ideas on the wiring/bulb, etc.?
_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
otiswesty
Samba Member


Joined: November 21, 2006
Posts: 1729
Location: Portland
otiswesty is offline

PostPosted: Wed Dec 29, 2010 10:09 pm    Post subject: Reply with quote

The simplest would be to just wire into the OXS circuit. There is no actual LED or foil wiring to the blank spot next to the OXS. The little colored "LED" there is really just a dummy.
_________________
1978 Sage Green P22 Westfalia
1989 T3 Syncro Single cab

Just a regular guy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Wed Dec 29, 2010 11:22 pm    Post subject: Reply with quote

2 issues--I really don't want a red light for this as it generally means a problem. Would like to go with a green or blue. Also I ordered a new insert that includes the OXS.

Can I knock out the dummy and put an LED in its place?
_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Tue Jan 11, 2011 12:32 pm    Post subject: Reply with quote

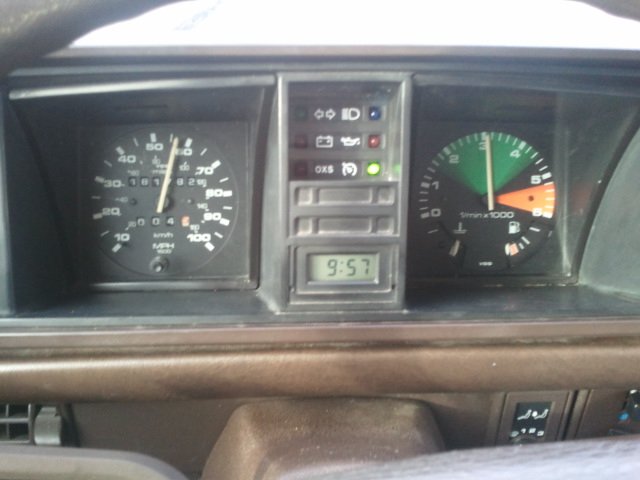

Finished product. 3.0 volt 5mm green LED, 470 ohm resistor. Panel insert from Klauswesty (outstanding, by the way!). Maybe I should have gone with a dimmer led. I will have to see how it is at night but I don't relish tearing it all apart again. I figure those foil connections only have so many disassemblies in them before something goes wrong.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 7877
Location: Arizona
kamzcab86 is offline

PostPosted: Tue Jan 11, 2011 1:49 pm    Post subject: Reply with quote

Clever! I like it; looks factory original! Cool
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Tue Jan 11, 2011 2:00 pm    Post subject: Reply with quote

Looks great man, dimmer LED next time for sure.

Whats this cruise control setup you speak of?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15086
Location: New York
insyncro is offline

PostPosted: Tue Jan 11, 2011 2:04 pm    Post subject: Reply with quote

Cool!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Tue Jan 11, 2011 2:13 pm    Post subject: Reply with quote

Rostra
_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 16972
Location: Retired South Florida
MarkWard is offline

PostPosted: Tue Jan 11, 2011 2:22 pm    Post subject: Reply with quote

Excellent.
_________________
☮️
Back to top
View user's profile Send private message Gallery Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Tue Jan 11, 2011 4:32 pm    Post subject: Reply with quote

Nice job.

Try a 1,000 ohm resistor instead of the 470 ohm. This will reduce the current by half thereby making the LED half the luminous intensity. This will appear to be about 2/3rds as bright.
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
Back to top
View user's profile Send private message Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Tue Jan 11, 2011 7:22 pm    Post subject: Reply with quote

Thanks. I'll see how it goes.
_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Tue Jan 11, 2011 7:24 pm    Post subject: Reply with quote

The resistor is kind of a PITA to get to but I can easily get to the line that feeds it. If I keep the existing 470 ohm resistor what ohm resistor should I use--another 470 or a 1000?
_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Tue Jan 11, 2011 8:25 pm    Post subject: Reply with quote

If you add another 470 ohm inline it will be like having one 940 ohm resistor. You could even add more 470 ohm resistors inline (in series) to lower it more. I'm guessing you bought a 5 pack of resistors at Radio Shack or something.
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
Back to top
View user's profile Send private message Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Tue Jan 11, 2011 8:27 pm    Post subject: Reply with quote

presslab wrote:
I'm guessing you bought a 5 pack of resistors at Radio Shack or something.


Exactly what I did. I will add them one by one until I find a brightness I like.
_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
7thing3
Samba Member


Joined: April 05, 2003
Posts: 473
Location: Cleveland, OH
7thing3 is offline

PostPosted: Thu Jan 13, 2011 11:16 am    Post subject: Reply with quote

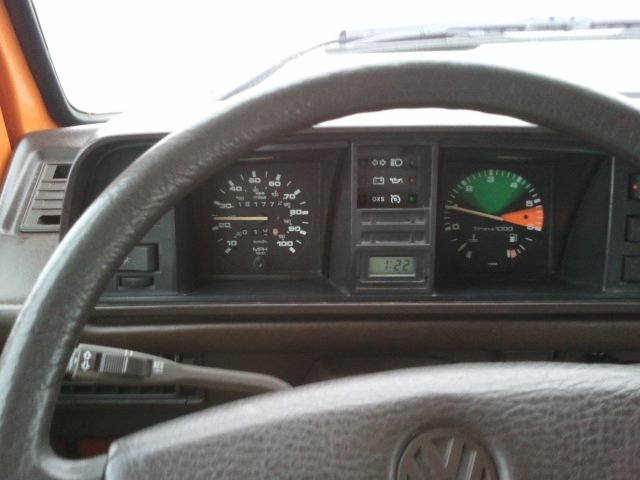

Added 2 more resistors and dimmed it out a bit. Turn signal used for comparison:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'73 Thing--Ted
'77 Super Beetle Convertible
'87 Vanagon GL Syncro
'84 Mercedes 280 CE
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Gallery Classifieds Feedback
coastdog
Samba Member


Joined: September 24, 2012
Posts: 74

coastdog is offline

PostPosted: Fri Sep 08, 2017 10:17 am    Post subject: Re: Cruise Control LED Indicator in Instrument Cluster Reply with quote

Does anyone know if WestyKlaus or 1971BugGuy are still able to make custom LED panel inserts? I'm installing the GW CRUISE CONTROL kit and would really like to put an LED indicator in the panel.

Thanks for any replies
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dbartisan
Samba Member


Joined: January 24, 2010
Posts: 14
Location: Aliso Viejo CA
dbartisan is offline

PostPosted: Fri Sep 08, 2017 11:09 am    Post subject: Re: Cruise Control LED Indicator in Instrument Cluster Reply with quote

I'd be up for a custom insert as well with a check engine light icon next to a cruise control icon on the bottom.

-Steve C.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
coastdog
Samba Member


Joined: September 24, 2012
Posts: 74

coastdog is offline

PostPosted: Mon Sep 11, 2017 3:55 pm    Post subject: Re: Cruise Control LED Indicator in Instrument Cluster Reply with quote

Can anyone tell me if a single LED bulb can simply be powered by a 12 volt power source or is there something required to lower the voltage to the light. I'm hoping to put an LED in a blank space in the warning cluster to indicate cruise control on/off.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
