 Posted: Sat Jan 22, 2011 2:08 pm Post subject: Iron Lion across Europe - EURO 2012 & London Olympics |
 |
|
Hi Guys,
Some of you may have been wondering what we have been up to since we drove our bus to Cape Town last summer. (or to Beijing in 2008)
Cape Town 2010
http://www.thesamba.com/vw/forum/viewtopic.php?t=370281
Beijing 2008
http://www.thesamba.com/vw/forum/viewtopic.php?t=241979
Of course the bus won't remain parked for very long and we've planned a new route with 2 major sporting events along the way. This time we'll start out from Amsterdam and travel to the UEFA EURO 2012 in Poland and Ukraine. From there we'll head out east towards the border of Europe at the Volga river in Volgograd (Stalingrad). We'll make a left turn and head the northernmost point of Europe, The North Cape in Norway. From there we'll travel down all the way through Norway. Then we'll catch a ferry to the UK, to reach our destination: The 2012 London Olympics. So that's 10 countries and about 8000 miles.
Of course some maintenance and upgrades need to be done and we'll keep you posted in this topic.
Once we got our bus back in Holland it went to the body shop to repair the damage that was done by a truck in Nairobi, Kenya. They also fixed up the bent chassis member (at the left front beam mount) and cleaned up some rust around the wind shield. While they were at it they also fabricated a little air scoop to aid airflow through the secondary oil cooler.
After the touché
Rear corner removed
The old panel clearly shows a PO hackjob repair.

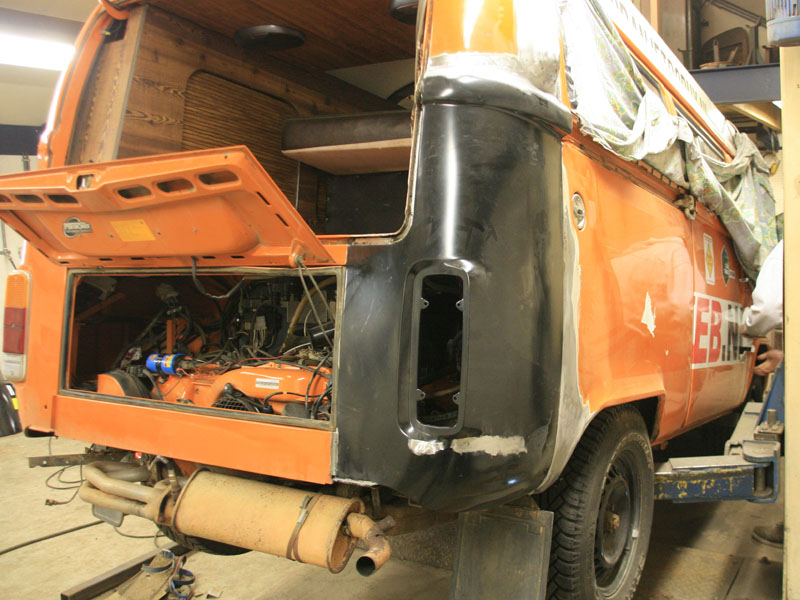

New panel in place
Windscreen removed and rust removed, there hardly was any rust actually, but the windscreen had to come out anyway since it cracked due to some flying debris.
All done here!

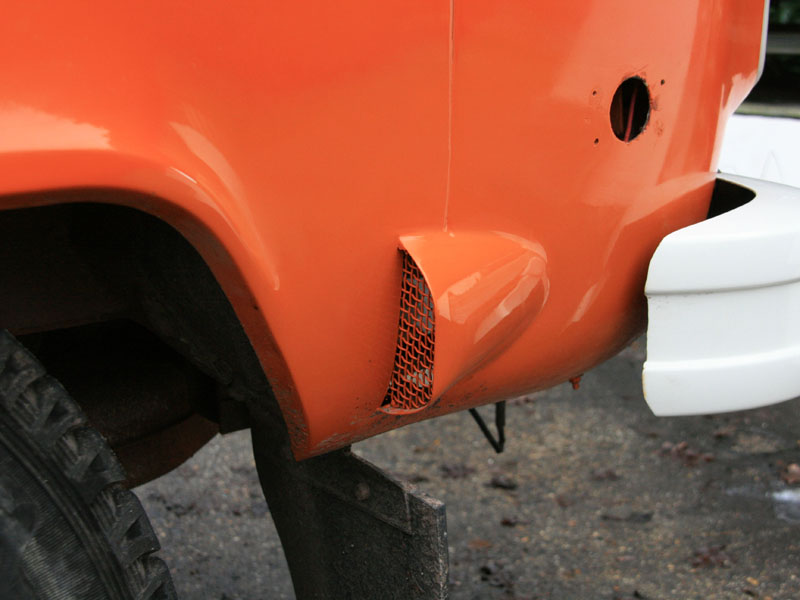

Oil cooler air scoop
Close up of the air scoop

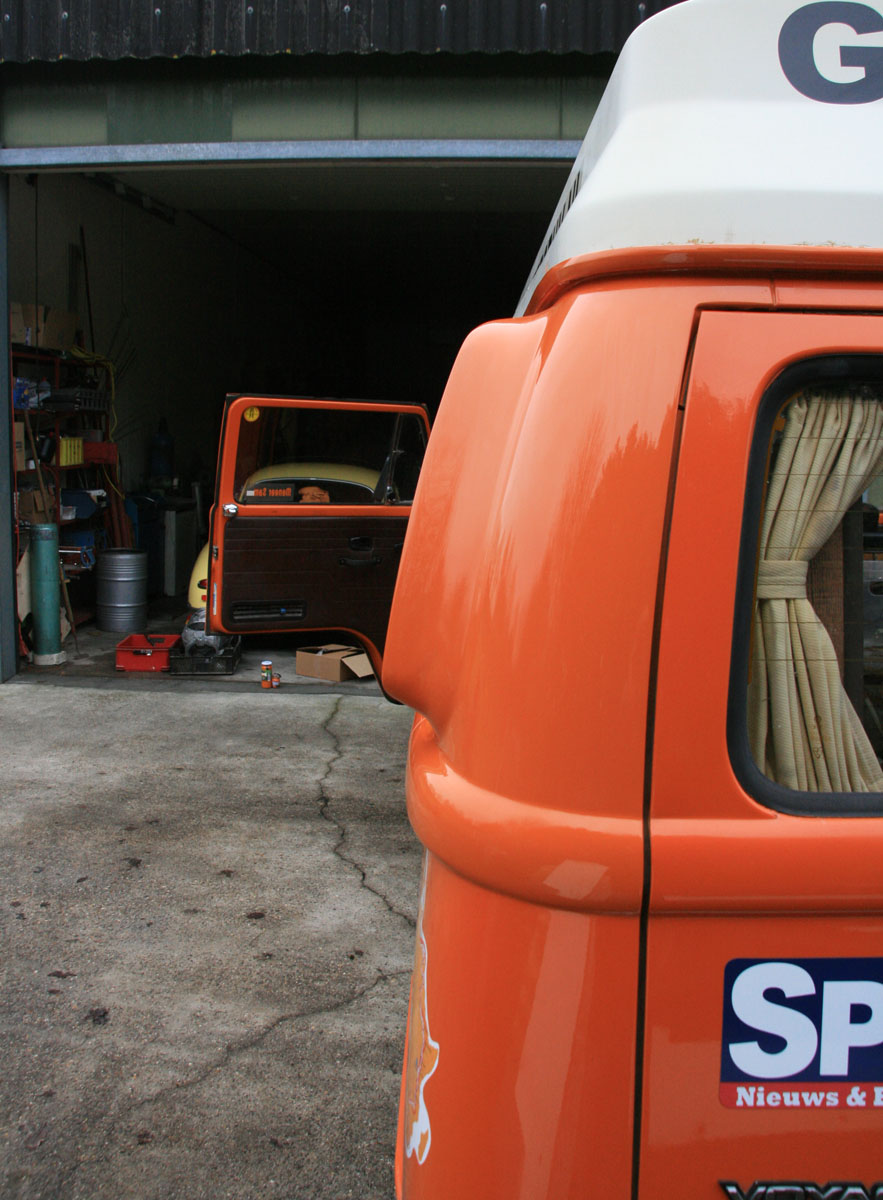

There is one more body mod, I wonder if anyone can spot it
On the to do list are a few things:
- Major maintenance, engine and transmission out, clean the whole thing up, test compression, clean injection system, engine bay etc etc.
- Upgrade to MegaSquirt 3
- Total audio system revamp with over 1000W rms and sound quality as top priority.
We'll keep you posted!
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member
Last edited by MadMax78 on Sat Jan 22, 2011 2:18 pm; edited 1 time in total |
|
| Back to top |
|
 |
DaKine
Samba Member
Joined: April 10, 2006
Posts: 620
Location: Florida
|
| Posted: Sat Jan 22, 2011 2:16 pm Post subject: |
|
|
Good luck on your trip. Bus looks hard as nails!
 |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 51145
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Jan 22, 2011 2:50 pm Post subject: |
|
|
Looking great guys, can't wait for the trip and a report!
Nice work on the upper cooling scoops too, very subtle.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
RatCamper
Samba Member
Joined: November 13, 2008
Posts: 3305
Location: Australia
|
| Posted: Sat Jan 22, 2011 3:10 pm Post subject: |
|
|
Excellent. Looking forward to following you (in spirit) and seeing all those places.
If I recall the Megasquirt failed on the last trip. Was a reason ever found for that? All I could think was that the impedance of the injectors killed it.
_________________
Vehicle: 1975 Special order delivery walkthrough panel based pop-top camper (LCA / Sunliner). Motor: Nippon 1.8L Single port Wasserboxer, Transmission: 3 rib 002. |
|
| Back to top |
|
|
Bursch
Samba Member
Joined: October 28, 2006
Posts: 448
Location: Netherlands
|
| Posted: Sat Jan 22, 2011 4:46 pm Post subject: |
|
|
| MadMax78 wrote: |
There is one more body mod, I wonder if anyone can spot it
|
| busdaddy wrote: |
| Nice work on the upper cooling scoops too, very subtle. |
We have a winner! Thanks
Should aid cooling, we'll see what happens
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt & EDIS // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply, Busted Bus & Aircooled Technology
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 28.000km
***********************
Camper Special Club Member |
|
| Back to top |
|
|
g16stu
Samba Member
Joined: January 12, 2009
Posts: 94
Location: NETHERLANDS
|
| Posted: Mon Jan 24, 2011 10:20 am Post subject: |
|
|
looks good guys, who did the bodywork?
_________________
'72 westie
All comments made are in accordance with the Rules of the Yorkshire County Cricket Club. |
|
| Back to top |
|
|
Jake Raby
Samba Member
Joined: August 23, 2003
Posts: 7433
Location: Aircooled Heaven USA
|
| Posted: Mon Jan 24, 2011 10:34 am Post subject: |
|
|
AWESOME! I wish I could travel with you.. Contact me for some "assistance"!
_________________
Jake Raby
Raby Engine Development
www.rabyenginedevelopment.com
"I've never given anyone Hell, I just told them the truth and they thought it was Hell" |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4752
Location: Seattle
|
| Posted: Mon Jan 24, 2011 12:39 pm Post subject: |
|
|
| Jake Raby wrote: |
| AWESOME! I wish I could travel with you.. Contact me for some "assistance"! |
Plan on the trip to Brazil in 2014! Bring a Camper or rather ship a Camper to Suriname and drive down to Brazil.
Aren't you Dutch guys coming in 2014? There are shipments to Suriname via Rotterdam and Suriname is a great place to start (forget Venezuela ) and the road goes to French Guyana onto Brazil..Well there are a few huge rivers to ferry across but I hear its safe nowdays on the road.
_________________
70 Ghia Black convert-9/69 build date-stock w/133k 1600 SP-barn find now with a rebuilt tranny and engine
77 Westy 2.0L w/Ljet, Camper Special engine-95hp and with LSD!(sold)
76 Porsche 914 2.1L L20c, 120hp Djet (sold)
87 Syncro Westy Titan Red 2.1L 2 knob 100k miles |
|
| Back to top |
|
|
MadMax78
Samba Member
Joined: May 26, 2007
Posts: 511
Location: The Netherlands
|
| Posted: Mon Jan 24, 2011 2:25 pm Post subject: |
|
|
| RatCamper wrote: |
| If I recall the Megasquirt failed on the last trip. Was a reason ever found for that? All I could think was that the impedance of the injectors killed it. |
Yea, that's true. Just about two weeks before we set of I discovered I skipped the setting for the injector pulse width modulation, which has something to do with the voltage that the injectors operate at. Because it ran fine I didn't want to tinker with this because it could change the entire tune of the engine. If I messed something up there would be little time to get it right afterwards.
After a couple of days we got into trouble, the engine started to run lean and misfire, this may be due to this setting and the injectors overheating. We'll upgrade to the MS3 soon and start a clean setup, this time we'll have more than enough time to get the engine tuning dialled in.
The main reasons to upgrade to the MS3 is because it does real time data logging 100% of the time on a memory card, which is pretty useful. Also it has the possibility of closed loop idle control, which is pretty sweet.
| Bleyseng wrote: |
| Jake Raby wrote: |
| AWESOME! I wish I could travel with you.. Contact me for some "assistance"! |
Plan on the trip to Brazil in 2014! Bring a Camper or rather ship a Camper to Suriname and drive down to Brazil.
Aren't you Dutch guys coming in 2014? There are shipments to Suriname via Rotterdam and Suriname is a great place to start (forget Venezuela ) and the road goes to French Guyana onto Brazil..Well there are a few huge rivers to ferry across but I hear its safe nowadays on the road. |
The route for 2014 is yet to be determined but it could be an option, kind of depends whether or not we'll also drive across North America/Canada or just stick to South America.
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member |
|
| Back to top |
|
|
RatCamper
Samba Member
Joined: November 13, 2008
Posts: 3305
Location: Australia
|
| Posted: Mon Jan 24, 2011 4:26 pm Post subject: |
|
|
I just remember reading that early injectors in general were low resistance or impedance (someone help me with the right term) and this can be hell on ECUs and such. Possibly because it's closer to a short circuit. I don't know. If I had one I'd have a lot more reason to read about specifics.
no matter what it was good that you kept the OE system intact for just in case.
Full logging sounds excellent. It would be so easy to find issues before they become problems.
Where the spare wheel mount is attached to the body, is it reinforced or anything? I only noticed on the recent photos that it is anchored to a panel. How well does it stay put?
_________________
Vehicle: 1975 Special order delivery walkthrough panel based pop-top camper (LCA / Sunliner). Motor: Nippon 1.8L Single port Wasserboxer, Transmission: 3 rib 002. |
|
| Back to top |
|
|
TomWesty
Samba Member
Joined: November 23, 2007
Posts: 3482
Location: Wyoming,USA
|
| Posted: Mon Jan 24, 2011 6:44 pm Post subject: |
|
|
Ratcamper, Impedance is the dynamic version of resistance.
_________________
If you haven't bled on them, you haven't worked on them.
Visit: www.tomcoryell.com and check out my music! |
|
| Back to top |
|
|
MadMax78
Samba Member
Joined: May 26, 2007
Posts: 511
Location: The Netherlands
|
| Posted: Tue Jan 25, 2011 2:13 am Post subject: |
|
|
| RatCamper wrote: |
I just remember reading that early injectors in general were low resistance or impedance (someone help me with the right term) and this can be hell on ECUs and such. Possibly because it's closer to a short circuit. I don't know. If I had one I'd have a lot more reason to read about specifics.
no matter what it was good that you kept the OE system intact for just in case.
Full logging sounds excellent. It would be so easy to find issues before they become problems.
Where the spare wheel mount is attached to the body, is it reinforced or anything? I only noticed on the recent photos that it is anchored to a panel. How well does it stay put? |
Well, it was almost a year ago I did the basic setup, so I don't remember the measurements on the injectors. However, they are high impedance if their resistance is above 10 ohms, and otherwise they are low impedance which means they cannot run on 12V.
This is also why the original setup runs with the series resistors. Again, I'm not sure about my measurements anymore. I did set the basic PWM right, but skipped the step where you have to tune from there. You basically keep lowering the voltage untill you notice a difference in idle, from there you raise it a couple of percent and of you go.
So, need to do that some time soon and hope that solves the problems we had.
(btw, impedance is the alternating current cousin of resistance, on DC systems impedance = resistance)
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member |
|
| Back to top |
|
|
Lionhart94010
Samba Member
Joined: January 04, 2005
Posts: 1417
Location: SF Bay Area / Silicon Valley / So Cal
|
| Posted: Tue Jan 25, 2011 10:35 am Post subject: |
|
|
Look forward to following an other of your adventures :0)
_________________
Current VWs 71 T2 Westy SO-72/6(Miami), 71 Crew Cab, 2015 GSW TDI
Other owned VW’s 59, 68 1500s, 69 & 71 Bug’s; 72 & 73 S-Bug’s; 67 Westy, 67 Deluxe, Other 71 DC, 72 KG GT that now lives in Australia, 12 JSW TDI, 2015 GSW TDI, 2023 Tiguan
VW technical information sights
thesamba - www.ratwell.com - www.shoptalkforums.com/ - www.vw-resource.com - http://www.type2.com/
http://bobhooversblog.blogspot.com/ - www.aircooled.net/gnrlsite/resource/articles.htm |
|
| Back to top |
|
|
Bursch
Samba Member
Joined: October 28, 2006
Posts: 448
Location: Netherlands
|
| Posted: Thu Jan 27, 2011 7:21 am Post subject: |
|
|
| Jake Raby wrote: |
| AWESOME! I wish I could travel with you.. Contact me for some "assistance"! |
Thanks man! CS Powerrrr!
| Bleyseng wrote: |
| Plan on the trip to Brazil in 2014! Bring a Camper or rather ship a Camper to Suriname and drive down to Brazil. |
2014 kickoff will most likely be in New Amsterdam, better known by its current name, New York. But i'm sure we'll meet somewhere along the way!
| g16stu wrote: |
| looks good guys, who did the bodywork? |
Bodywork was done by 356 Body Repair here in the Netherlands
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt & EDIS // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply, Busted Bus & Aircooled Technology
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 28.000km
***********************
Camper Special Club Member |
|
| Back to top |
|
|
Jim Bear
Samba Member
Joined: March 25, 2006
Posts: 670
Location: Watkinsville, GA
|
| Posted: Thu Jan 27, 2011 7:57 pm Post subject: See ya off... |
|
|
| Bursch wrote: |
| 2014 kickoff will most likely be in New Amsterdam, better known by its current name, New York. But i'm sure we'll meet somewhere along the way! |
Look forward to seeing your itinerary and possibly camping with you guys. I bet you could tell some solid VW stories.
How do you expect the terrain/travel ease in the states to affect your experience? Would you hit some back country? How much would be highway? Rural routes?
Thanks for documenting so well what many of us dream about doing someday...
_________________
"You're either on the bus, or you're off the bus." ~kk
'85 Vanagon Westy - George In the Stable 2020-?/'74 Weekender - Ophelia In the Stable 2007- ?/'69 Beetle Convertible - SOLD 2017-2020/'67 Beetle - September SOLD 2013-2016  /'67 SO42 Westy - Sage SOLD 1996-2001 /'69 Transporter - Baby Blue SOLD 1995-1995/'72 Westy - Nelly - SOLD 1990-1995--STOP FRACKING |
|
| Back to top |
|
|
MadMax78
Samba Member
Joined: May 26, 2007
Posts: 511
Location: The Netherlands
|
| Posted: Tue Feb 15, 2011 3:05 pm Post subject: Re: See ya off... |
|
|
| Jim Bear wrote: |
How do you expect the terrain/travel ease in the states to affect your experience? Would you hit some back country? How much would be highway? Rural routes?
|
We don't know yet, but it will obviously include some detours
We finalized our audio setup, parts are on their way!
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4752
Location: Seattle
|
| Posted: Tue Feb 15, 2011 3:25 pm Post subject: |
|
|
Wow, "Radar Love" will sound awesome with that!
There is a New Amsterdam here too ya know....
_________________
70 Ghia Black convert-9/69 build date-stock w/133k 1600 SP-barn find now with a rebuilt tranny and engine
77 Westy 2.0L w/Ljet, Camper Special engine-95hp and with LSD!(sold)
76 Porsche 914 2.1L L20c, 120hp Djet (sold)
87 Syncro Westy Titan Red 2.1L 2 knob 100k miles |
|
| Back to top |
|
|
Jake Raby
Samba Member
Joined: August 23, 2003
Posts: 7433
Location: Aircooled Heaven USA
|
| Posted: Tue Feb 15, 2011 3:25 pm Post subject: |
|
|
I'd like to travel with you in 2014.. Lets start organizing that!
_________________
Jake Raby
Raby Engine Development
www.rabyenginedevelopment.com
"I've never given anyone Hell, I just told them the truth and they thought it was Hell" |
|
| Back to top |
|
|
Bleyseng
Samba Member
Joined: July 03, 2005
Posts: 4752
Location: Seattle
|
| Posted: Tue Feb 15, 2011 3:42 pm Post subject: |
|
|
Might be a good idea to have a Marine along if you travel in South America as its getting a bit rough down here.
_________________
70 Ghia Black convert-9/69 build date-stock w/133k 1600 SP-barn find now with a rebuilt tranny and engine
77 Westy 2.0L w/Ljet, Camper Special engine-95hp and with LSD!(sold)
76 Porsche 914 2.1L L20c, 120hp Djet (sold)
87 Syncro Westy Titan Red 2.1L 2 knob 100k miles |
|
| Back to top |
|
|
CJL
Samba Member
Joined: April 12, 2006
Posts: 19
Location: The Hague, The Netherlands
|
| Posted: Wed Feb 16, 2011 9:21 am Post subject: |
|
|
| Sweet, I am busy planning the same trip the other way around ... |
|
| Back to top |
|
|
|
