PostPosted: Sun Feb 06, 2011 8:10 pm    Post subject: 70 Beetle Resto-Mod Project Reply with quote

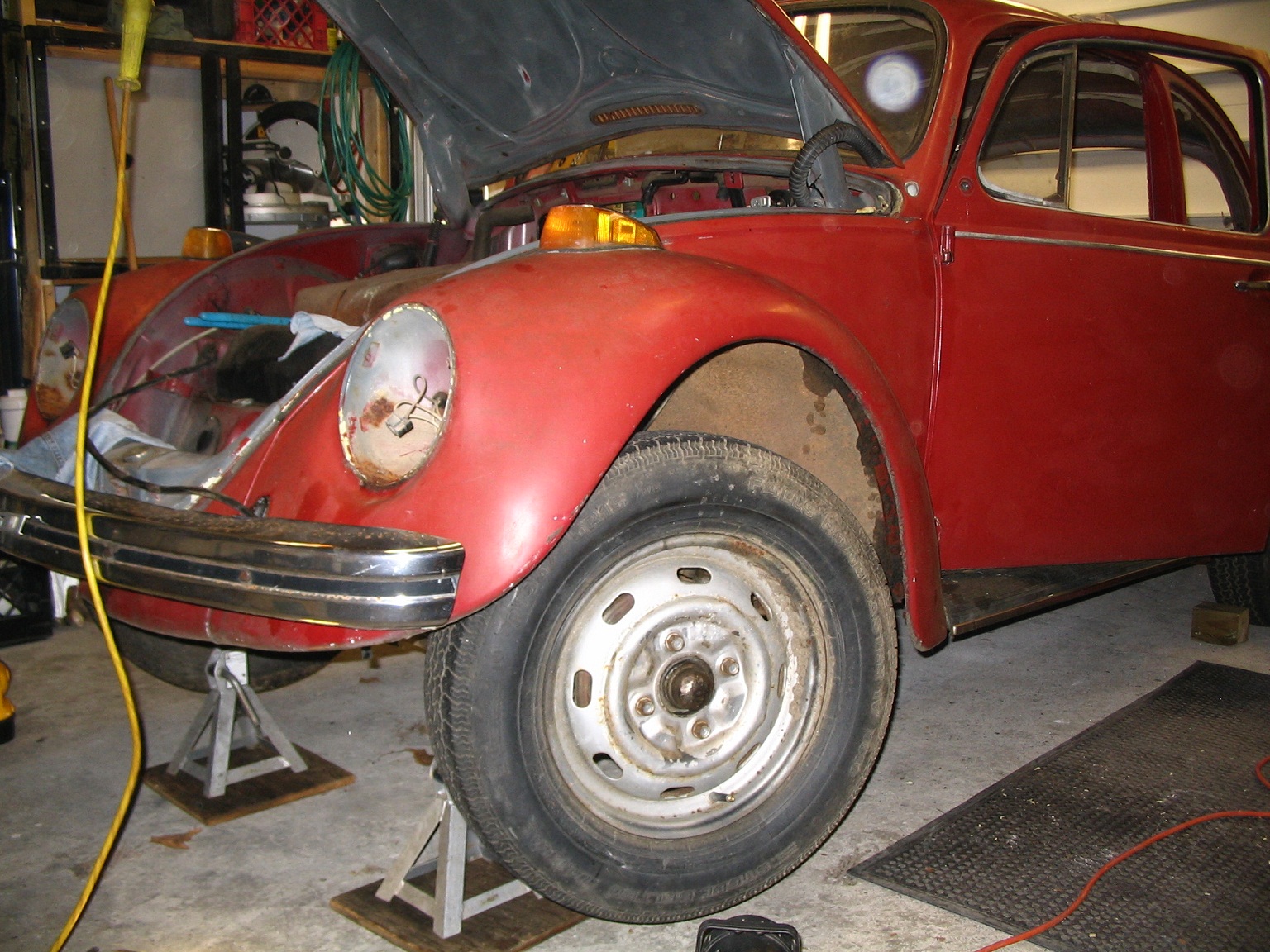

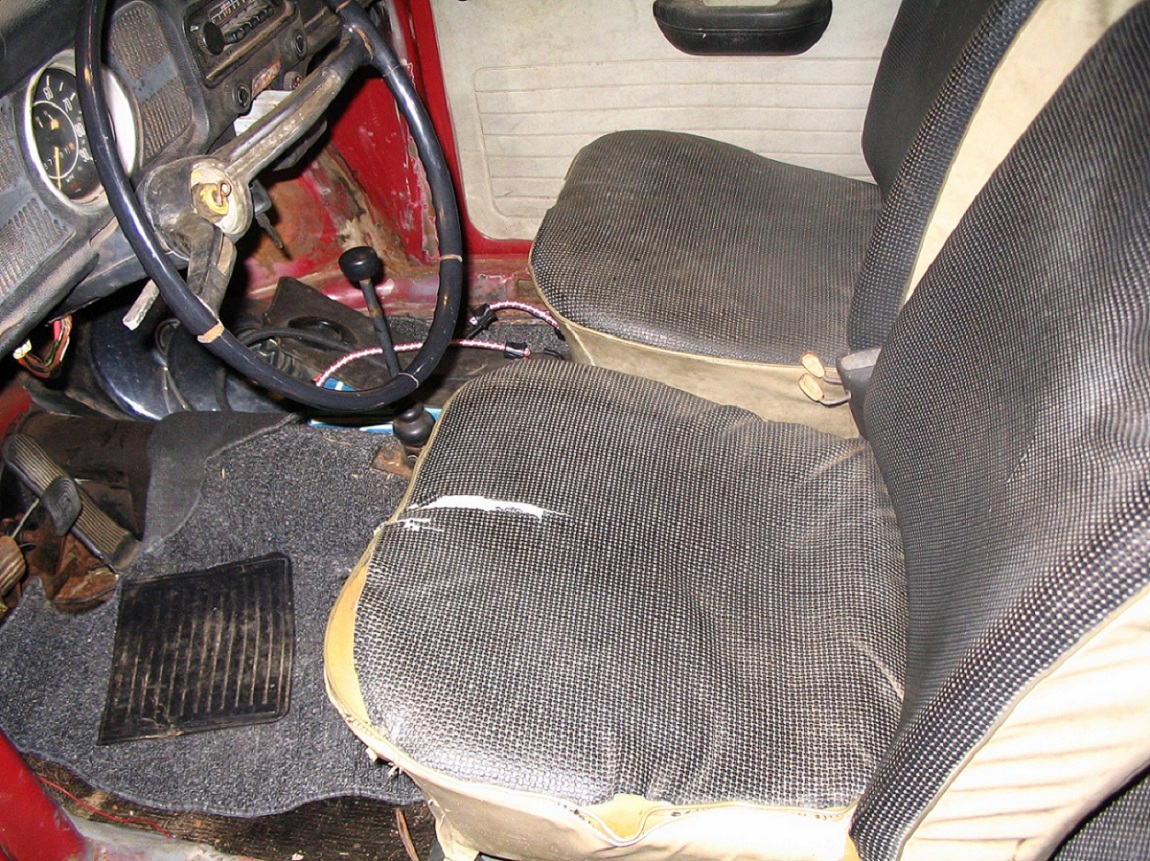

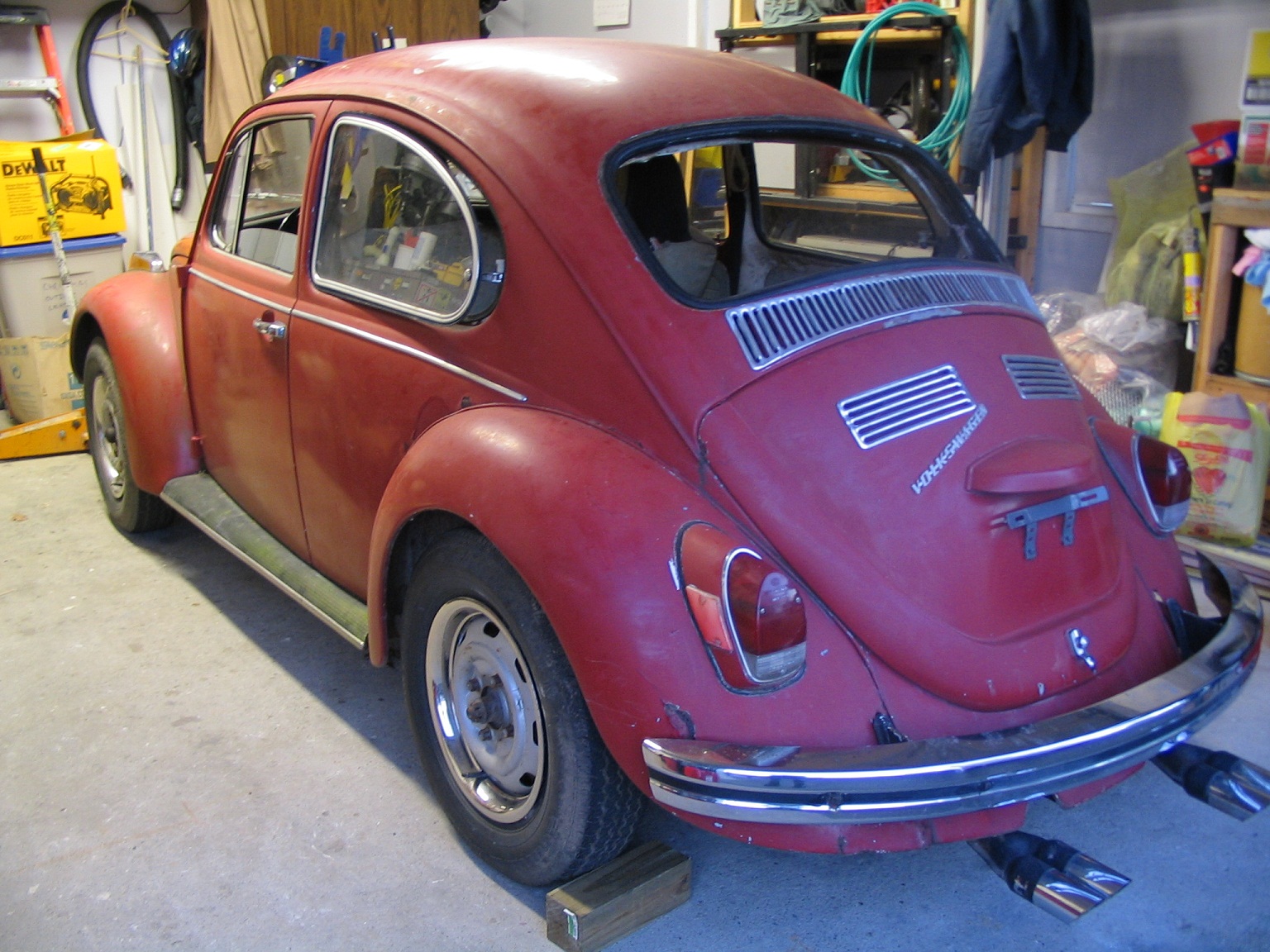

Here's my 70 I bought back in 06. Jusy started uploading pics and figured I start a page. The project had stopped for 2 years after I finished the pan due to home improvements. I just got back in the garage this winter to start again! I'm still learning things while keeping it fun. Hope i could help anyone in need of info or pictures. I'll be adding more pictures of the work thats done up to date.
Matt

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GreeneHoosier
Samba Member


Joined: August 16, 2004
Posts: 370
Location: Southern Indiana
GreeneHoosier is offline

PostPosted: Mon Feb 07, 2011 5:29 am    Post subject: Reply with quote

Looks like a nice find. Especially for an eastern car. I have a 70 that is the same Ruby Red, by the best you can afford when it comes to parts, there is a lot of crappy stuff out there for these little cars. Good luck!
_________________
1967 Beetle, 1974 Super Adventure OTR build. 1994 300zx, 1990 TT 300zx
1951 Willys CJ3A

2005 Mercedes Benz AMG CL55 Kompressor. 493 HP, 186MPH. May trade for a nice Cal-looker or Oval.

Teacher, Southern Indiana
Back to top
View user's profile Send private message Gallery Classifieds Feedback
redrum71
Samba Member


Joined: August 07, 2006
Posts: 494
Location: No-wheresville KS
redrum71 is offline

PostPosted: Mon Feb 07, 2011 6:24 am    Post subject: Reply with quote

GreeneHoosier wrote:
Looks like a nice find. Especially for an eastern car. I have a 70 that is the same Ruby Red, buy the best you can afford when it comes to parts, there is a lot of crappy stuff out there for these little cars. Good luck!


New looking bug, I wish I had pop out rear windows on mine, I love those! and, Trust me, if you can't afford quality parts, don't buy them because your gonna end up replacing them down the road! Been there done that a time or two Embarassed
_________________
VW Logo 72 FAT chick Blue Bug
VW Logo 71 baywindow Red Bay Bus -
VW Logo 67 Baja Green Bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Mon Feb 07, 2011 1:03 pm    Post subject: Reply with quote

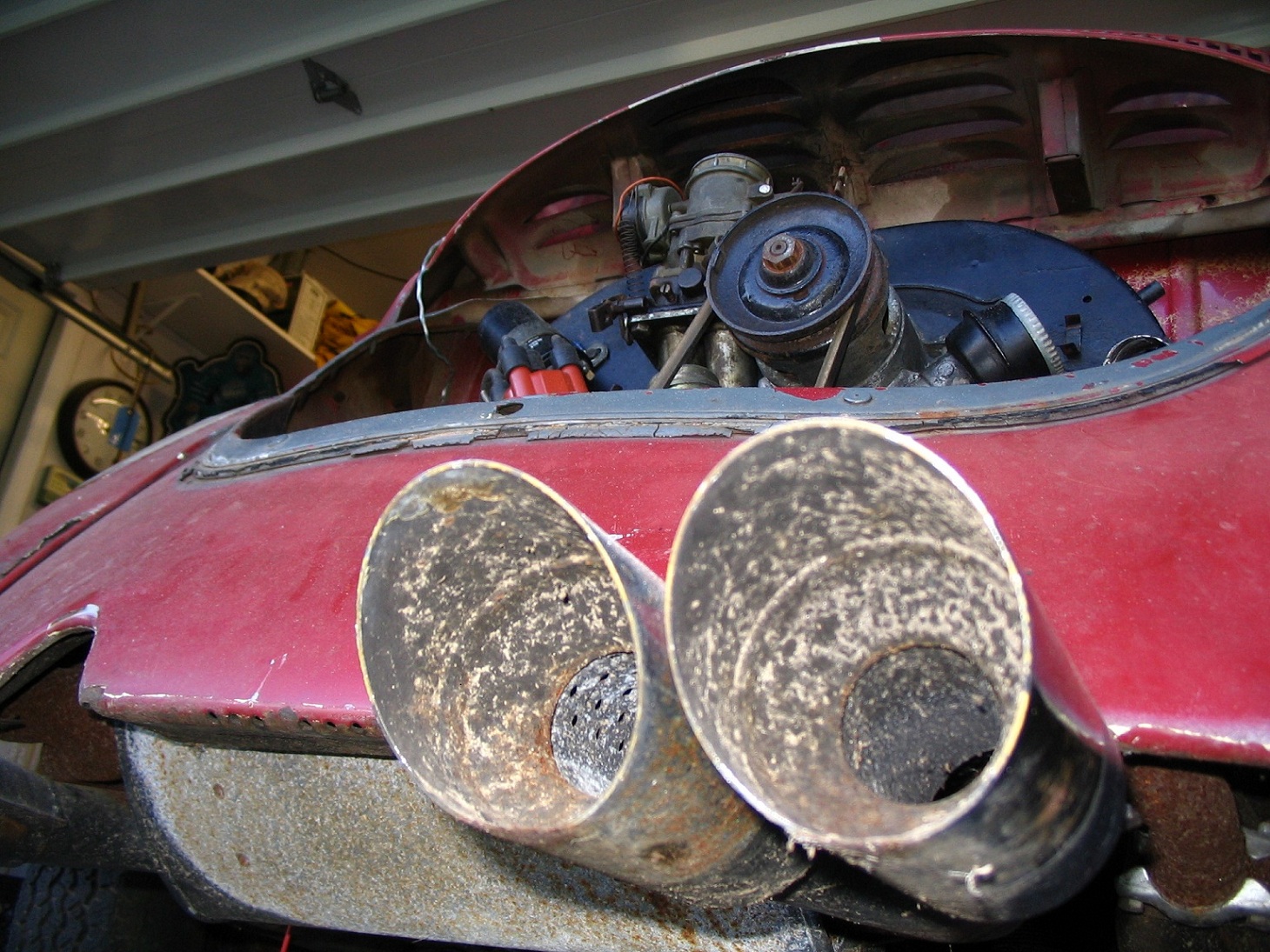

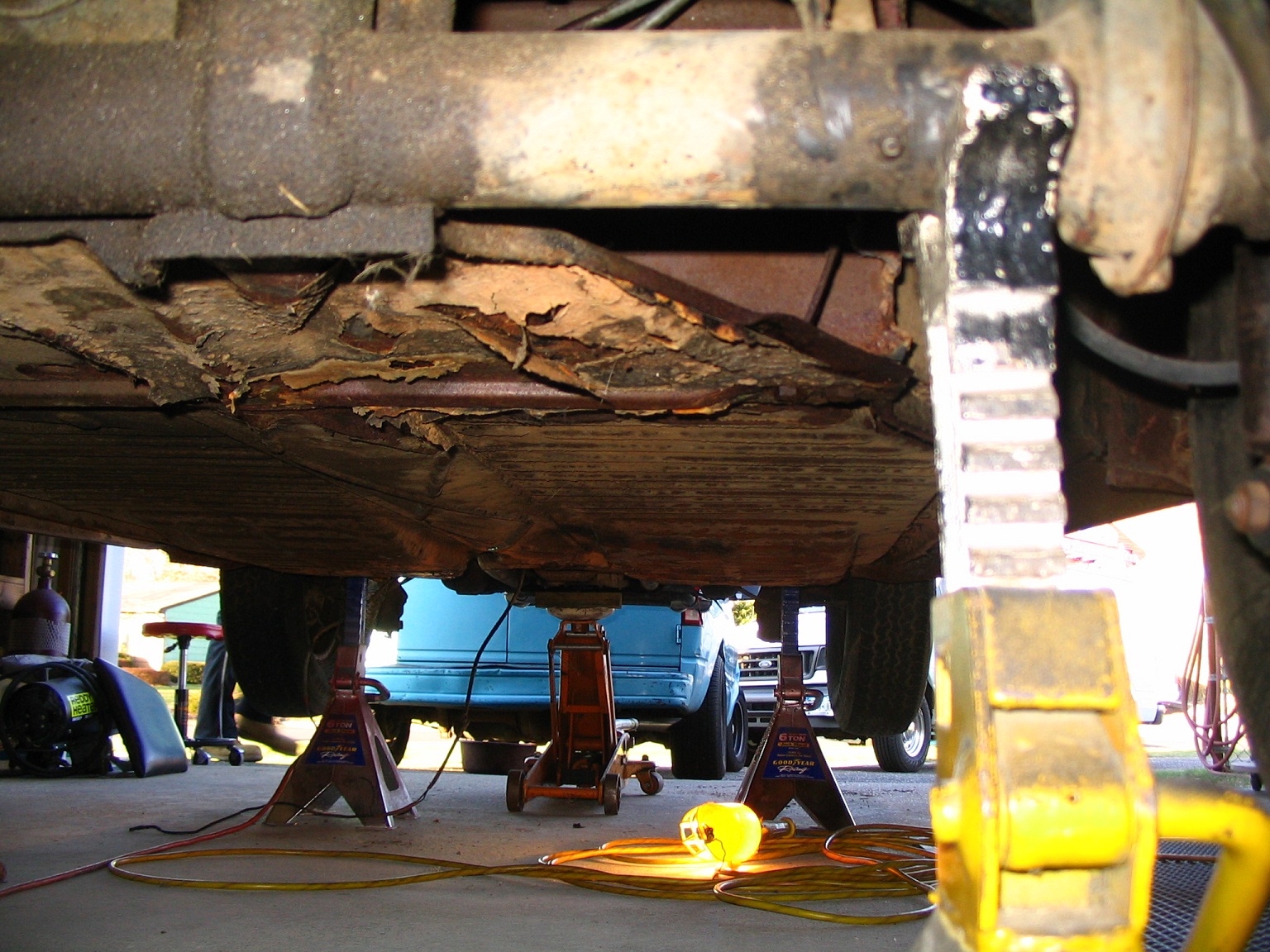

Thanks, it does need some surgery, pans, heaterchannels and to correct some PO hacking. Thanks for the advice! I've been buying the best i can. This site has been great for researching feedback on parts and suppliers. Heres a couple more shots.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Mon Feb 07, 2011 1:18 pm    Post subject: Reply with quote

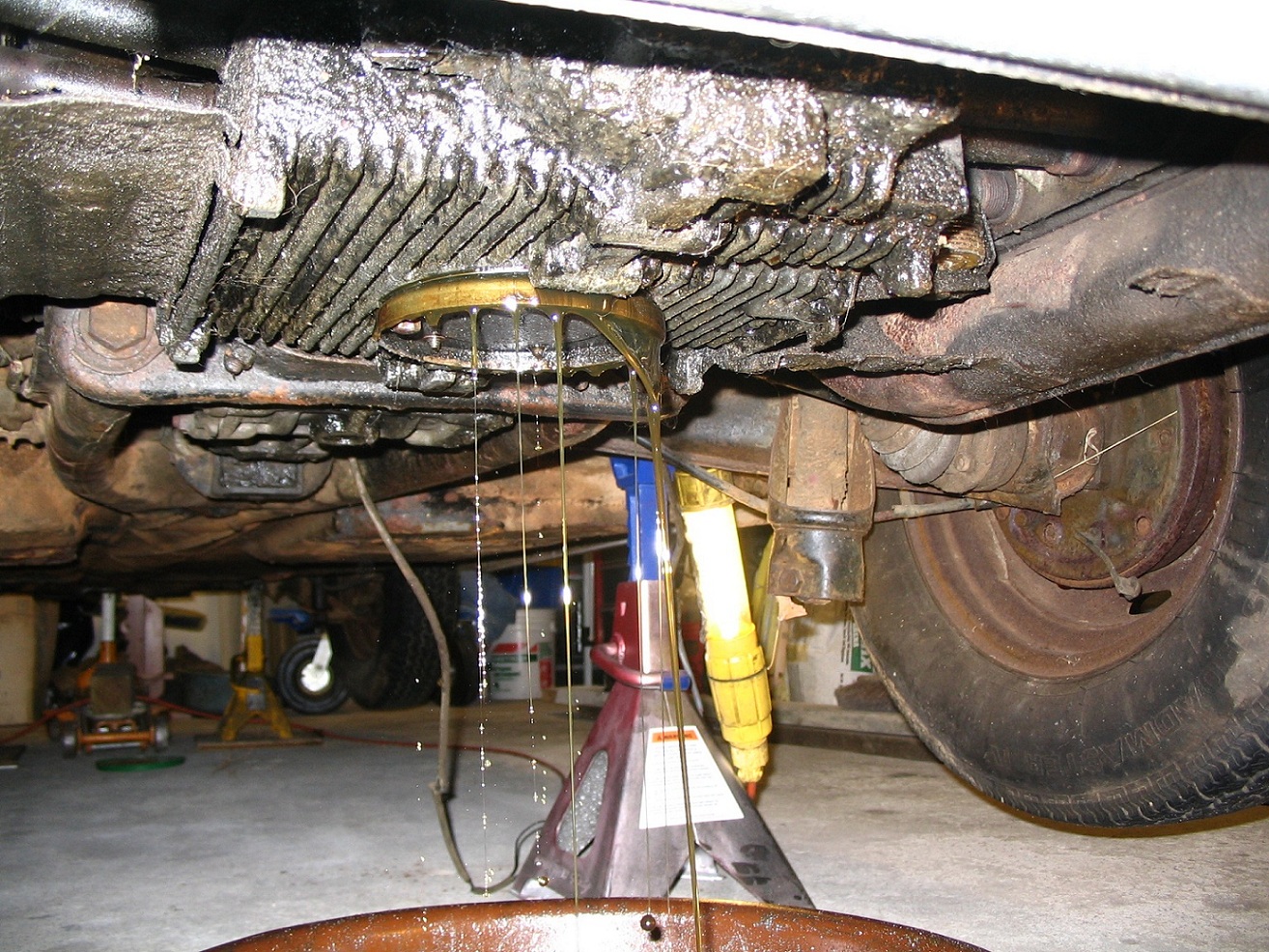

Drained oil
Image may have been reduced in size. Click image to view fullscreen.

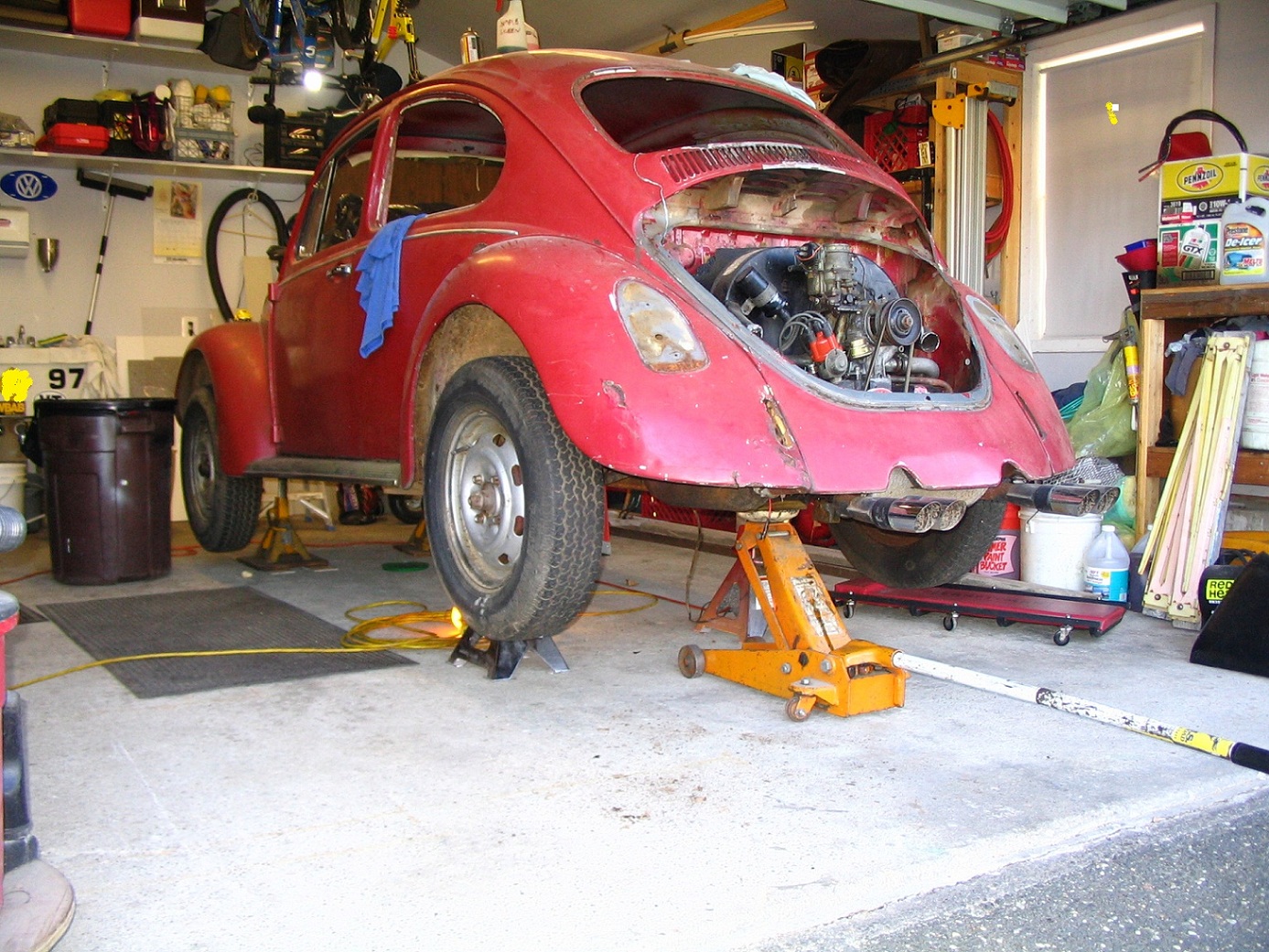

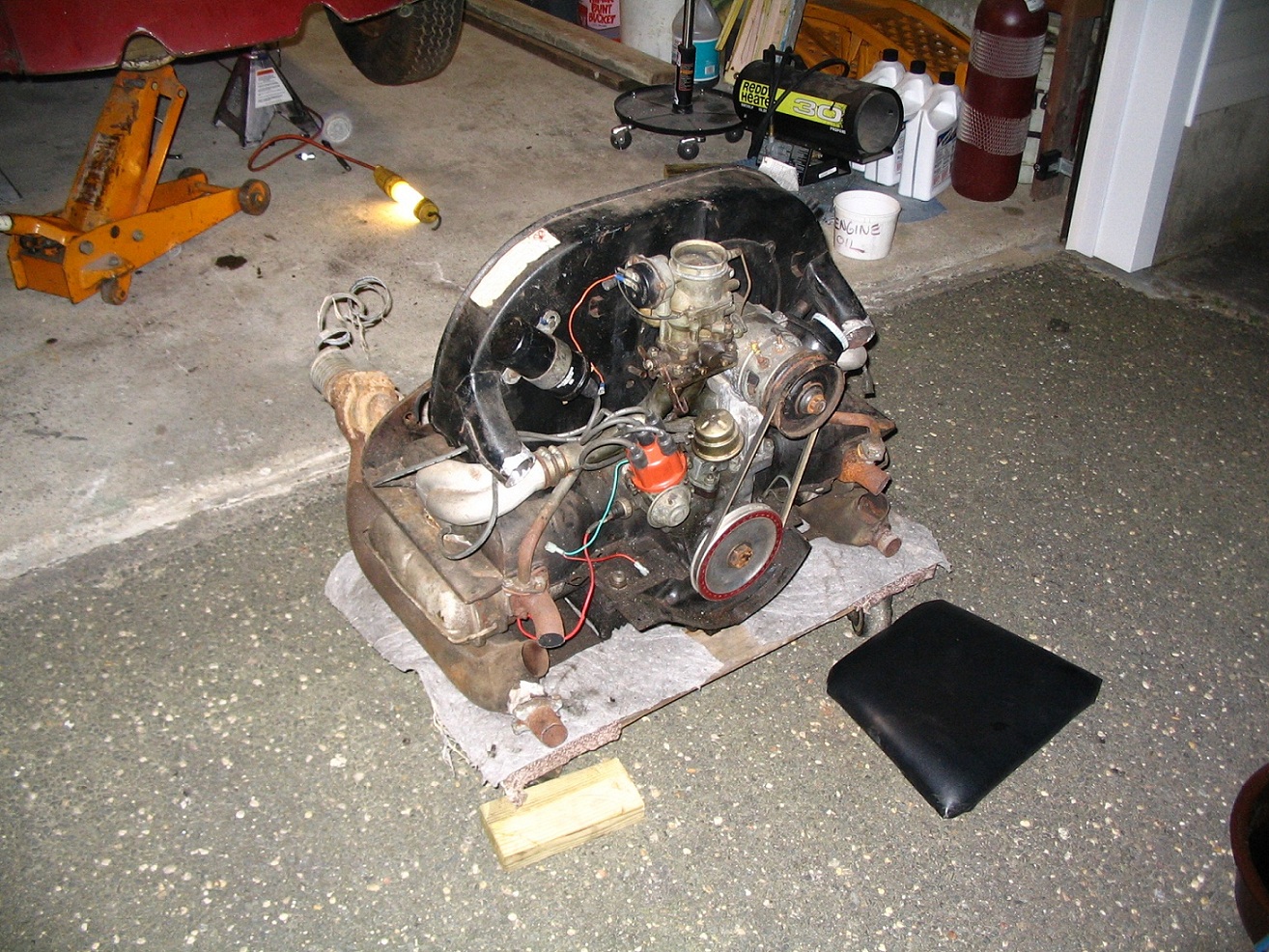

Pulled engine
Image may have been reduced in size. Click image to view fullscreen.

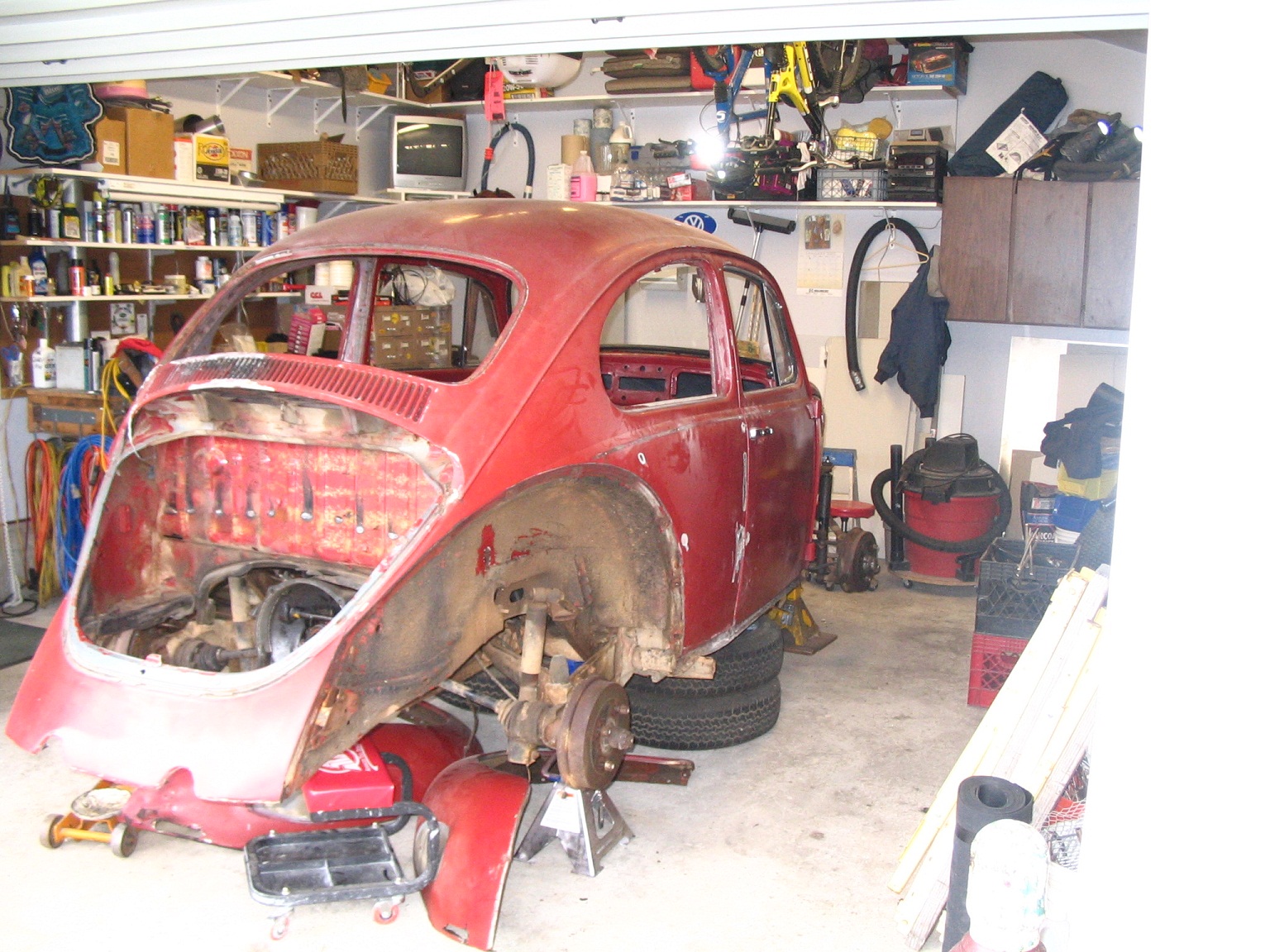

Removed wheels, fenders, interior, doors, electrical etc.
Image may have been reduced in size. Click image to view fullscreen.

Welded braces in for heaterchannel removal
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Mon Feb 07, 2011 4:51 pm    Post subject: Reply with quote

Removed the body and stored it outside
Image may have been reduced in size. Click image to view fullscreen.

Removed pedal cluster, trans and axle shafts
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

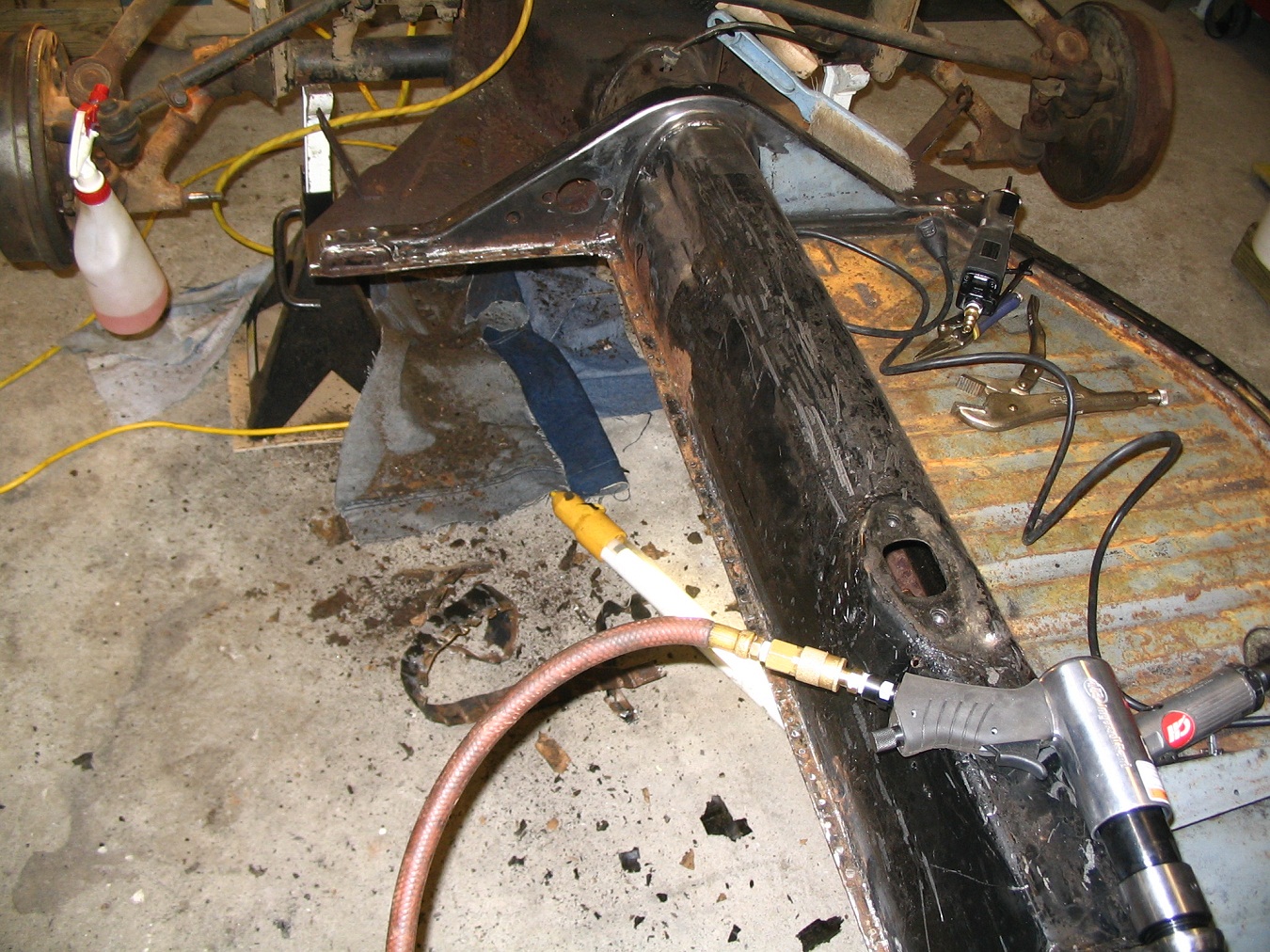

Started cutting out floor pans using sawzall, air body saw and air chisel for leftover spot welds. Spotweld drill to drill other areas out.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Removed the trailing arms.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Mon Feb 07, 2011 6:14 pm    Post subject: Reply with quote

Removed the front beam
Image may have been reduced in size. Click image to view fullscreen.

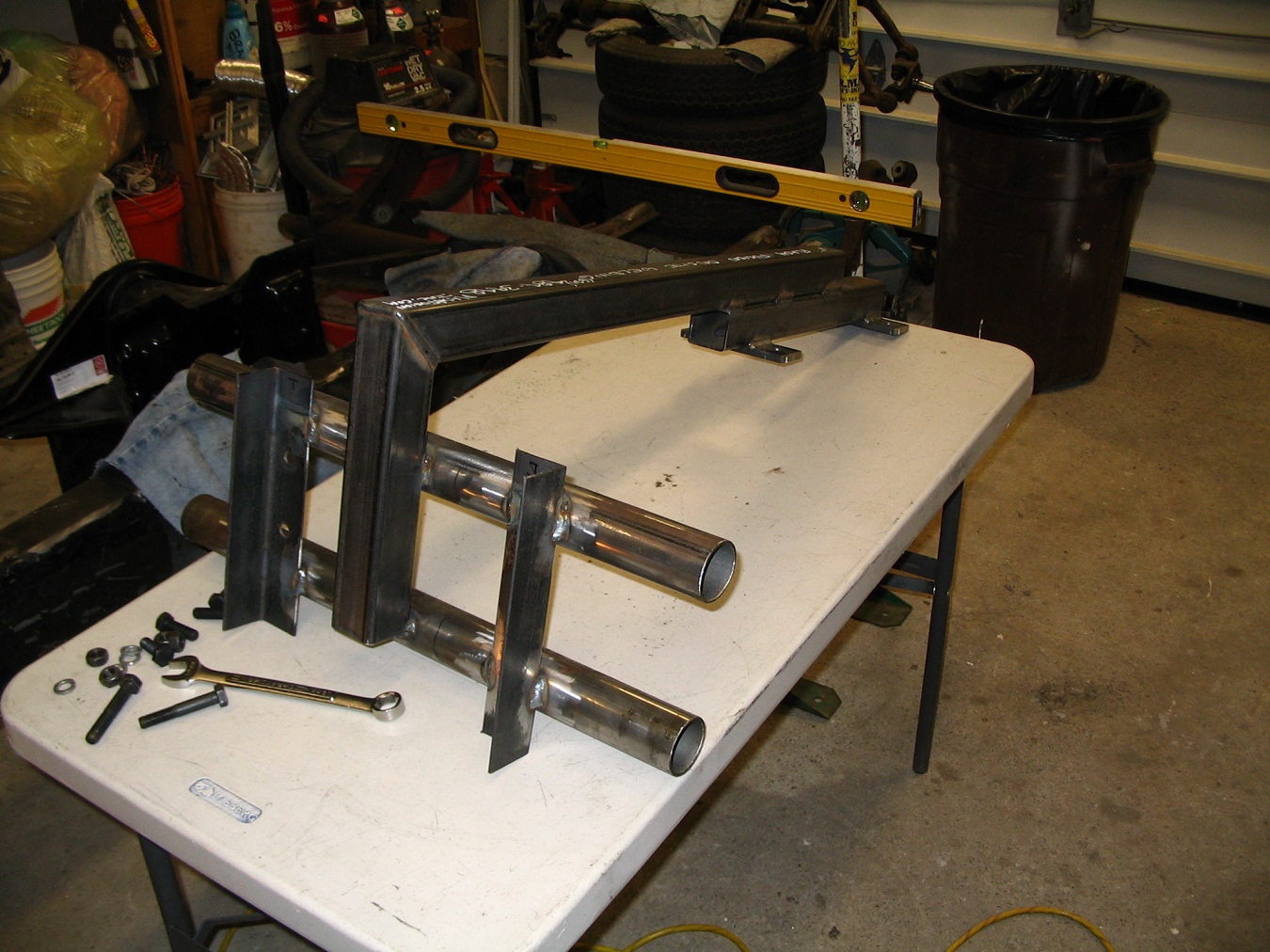

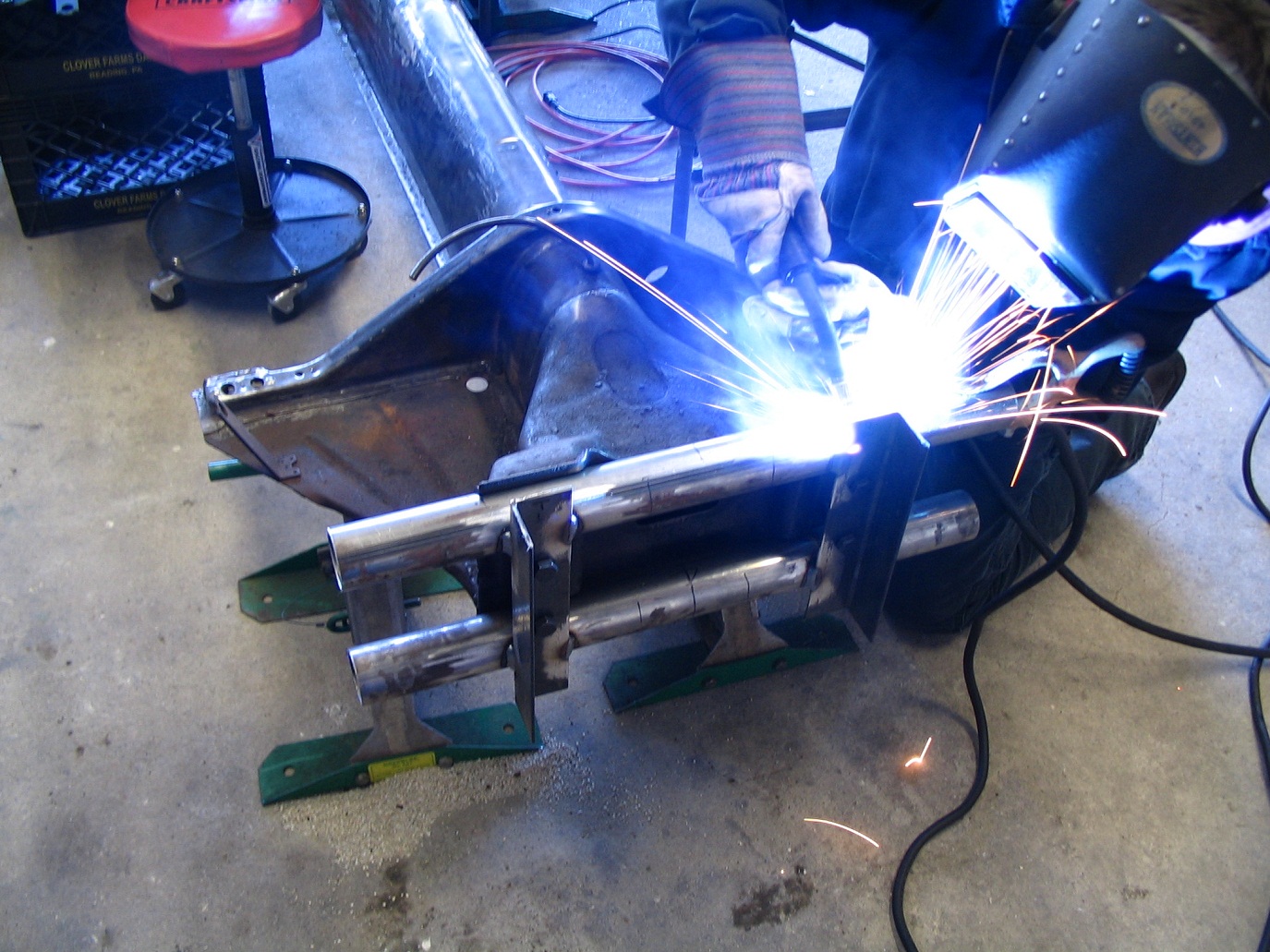

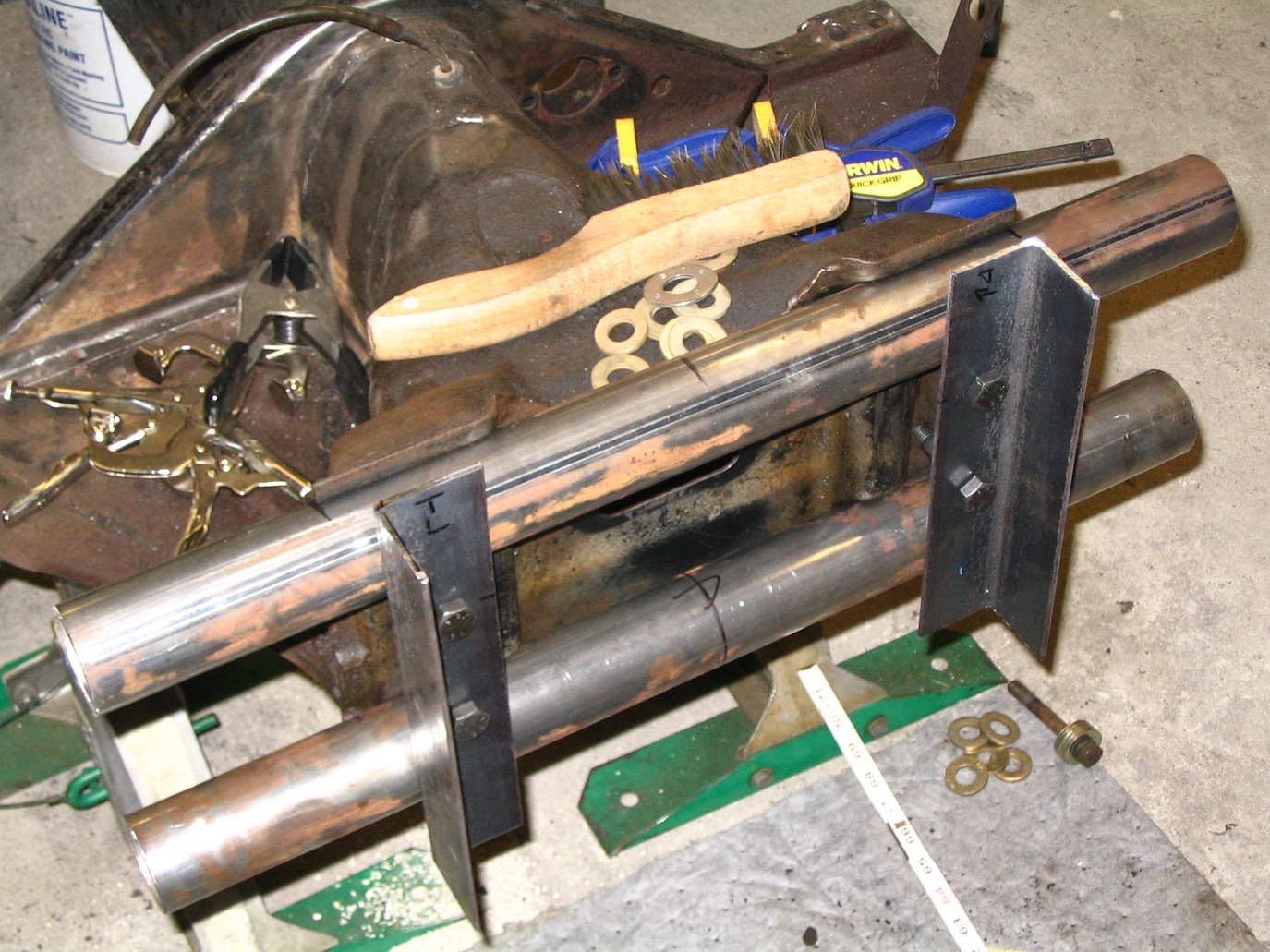

Started to fab and weld a jig to replace the framehead
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Finish product-worked great!
Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
redrum71
Samba Member


Joined: August 07, 2006
Posts: 494
Location: No-wheresville KS
redrum71 is offline

PostPosted: Mon Feb 07, 2011 11:53 pm    Post subject: Reply with quote

Damn Shocked your not messin around huh? looking good!
_________________
VW Logo 72 FAT chick Blue Bug
VW Logo 71 baywindow Red Bay Bus -
VW Logo 67 Baja Green Bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Tue Feb 08, 2011 8:31 am    Post subject: Reply with quote

Thanks red, I like to try to make it better than it was in 1970. Also helps to have a friend who's a welder and owes you some work time! Wink
_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Redvolk65
Samba Member


Joined: September 07, 2010
Posts: 290
Location: Los Angeles,CA
Redvolk65 is offline

PostPosted: Tue Feb 08, 2011 9:31 am    Post subject: Reply with quote

nice work keep doing it
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Tue Feb 08, 2011 1:48 pm    Post subject: Reply with quote

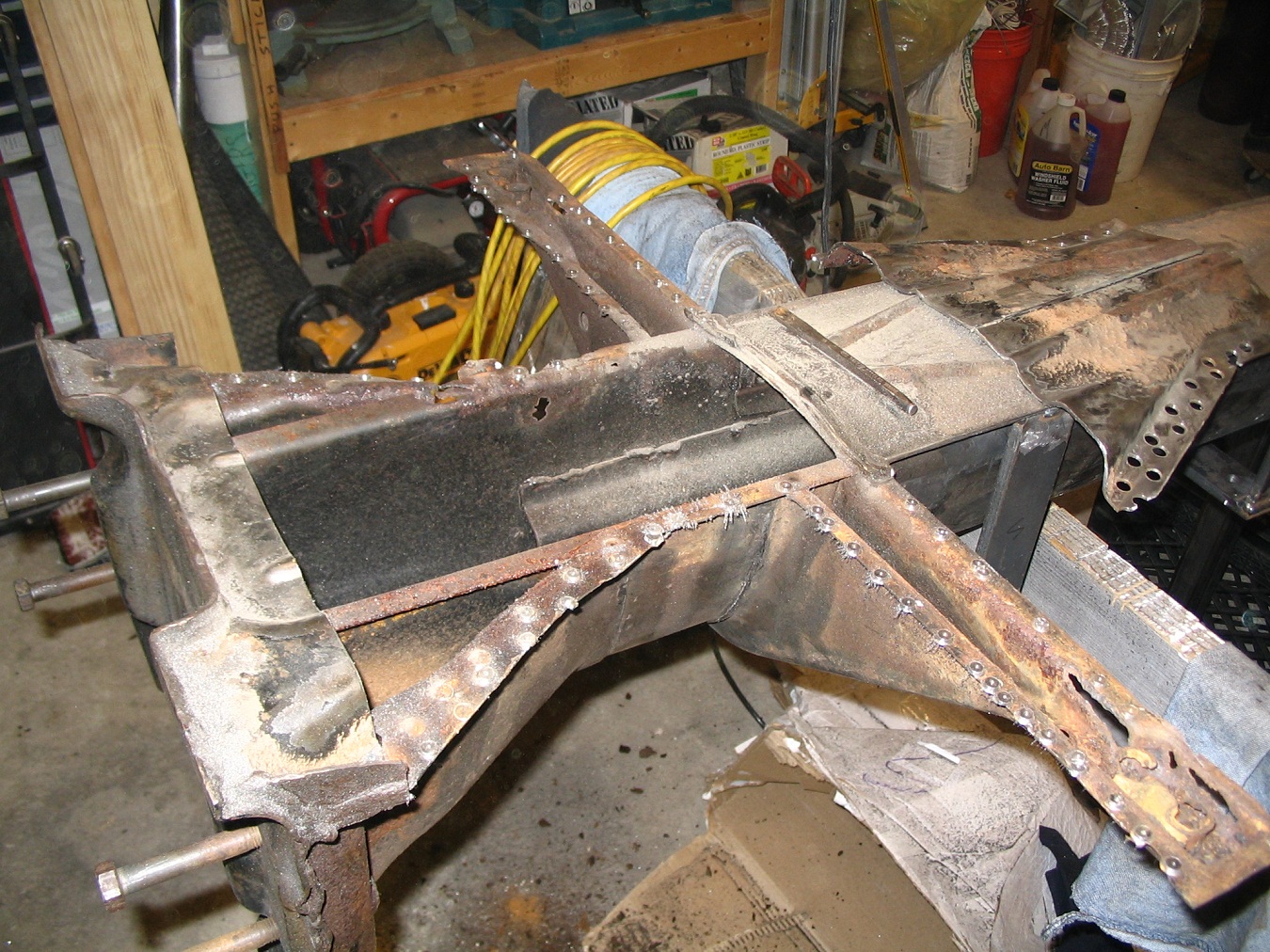

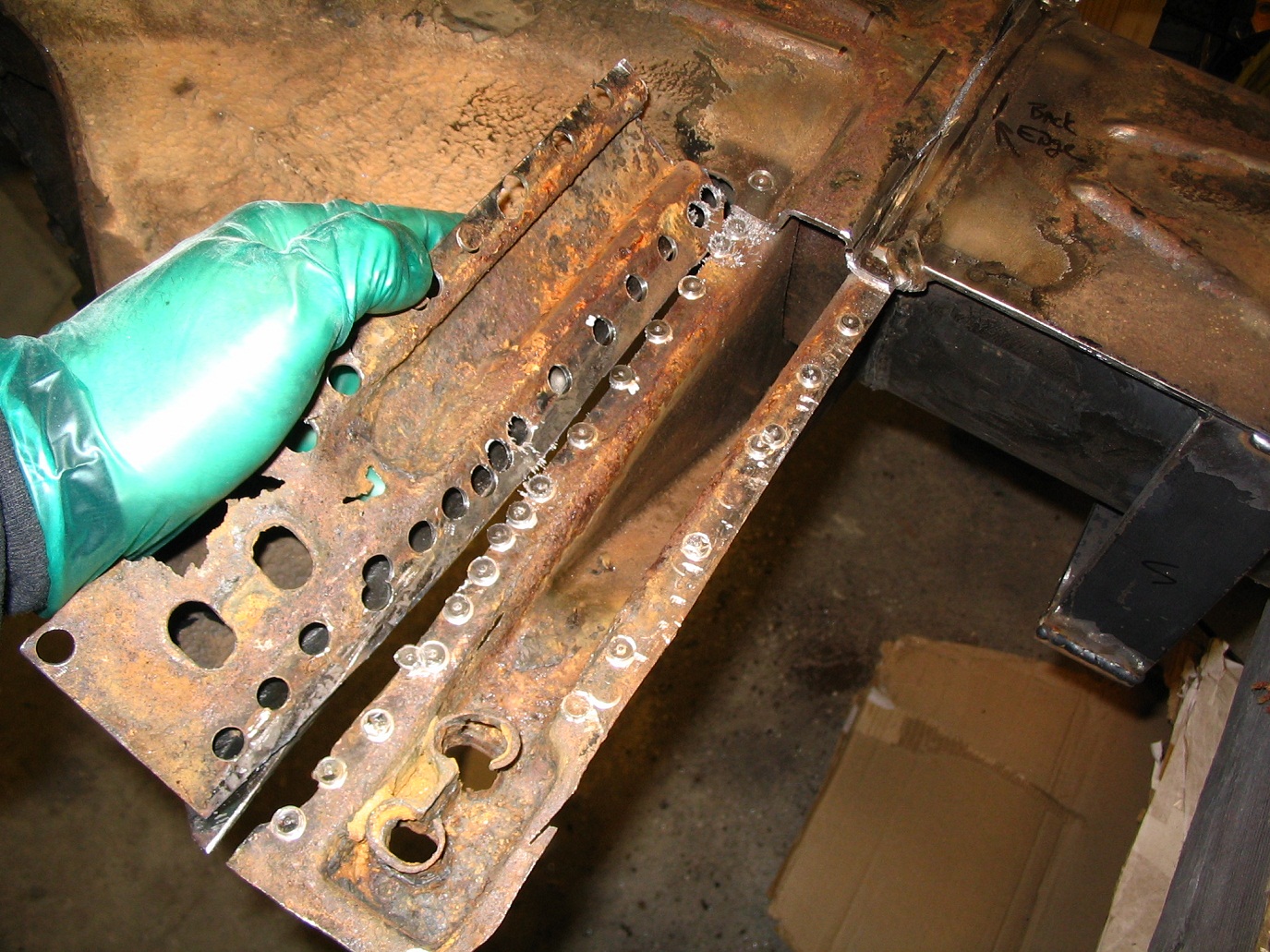

Started drilling spot welds and cutting mainly to understand how the framehead is assembled and to cut in the right spot. Alot of drilling
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

New parts
Image may have been reduced in size. Click image to view fullscreen.

Sliced off the old head! Goo Byeee!
Image may have been reduced in size. Click image to view fullscreen.

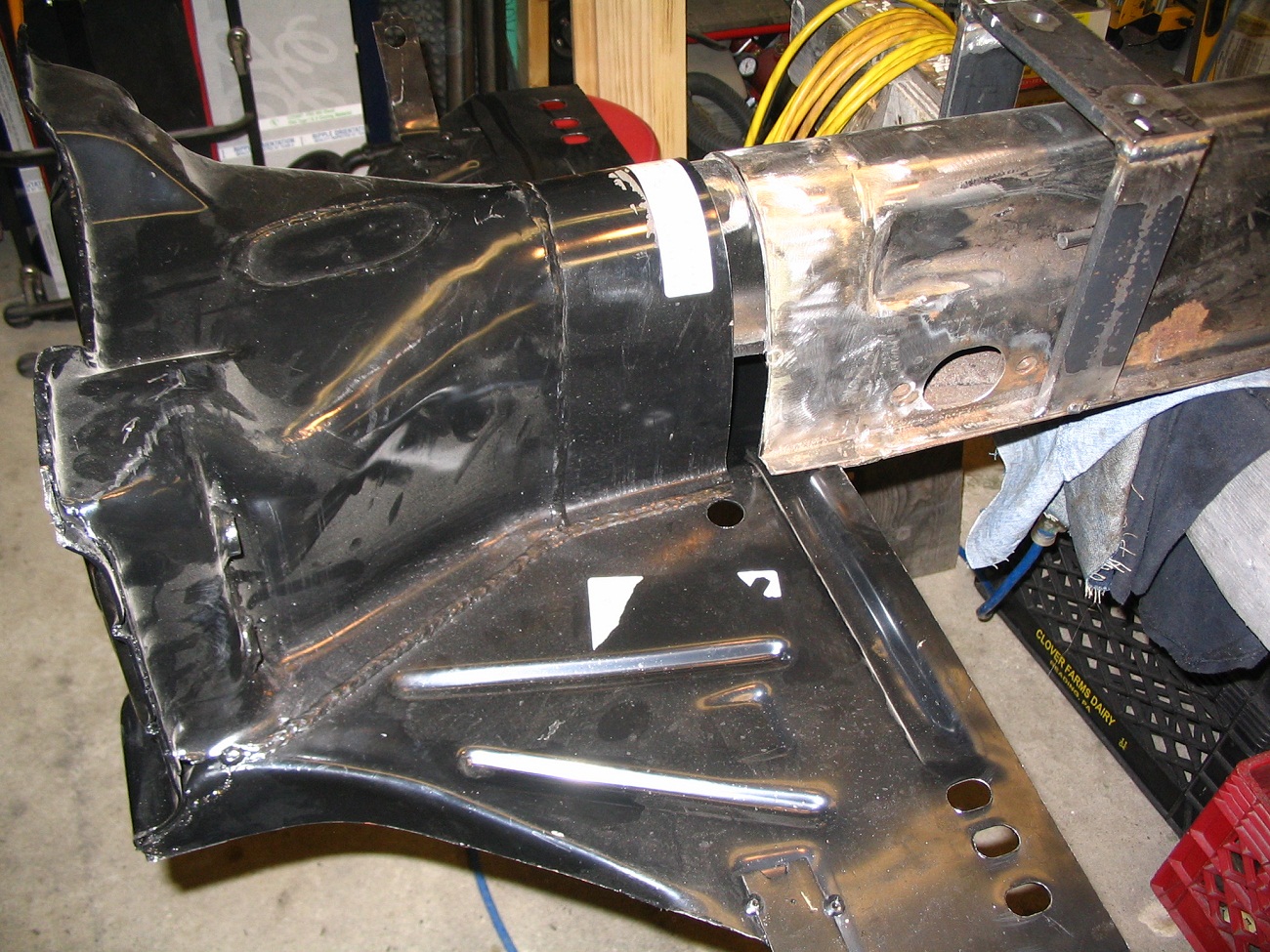

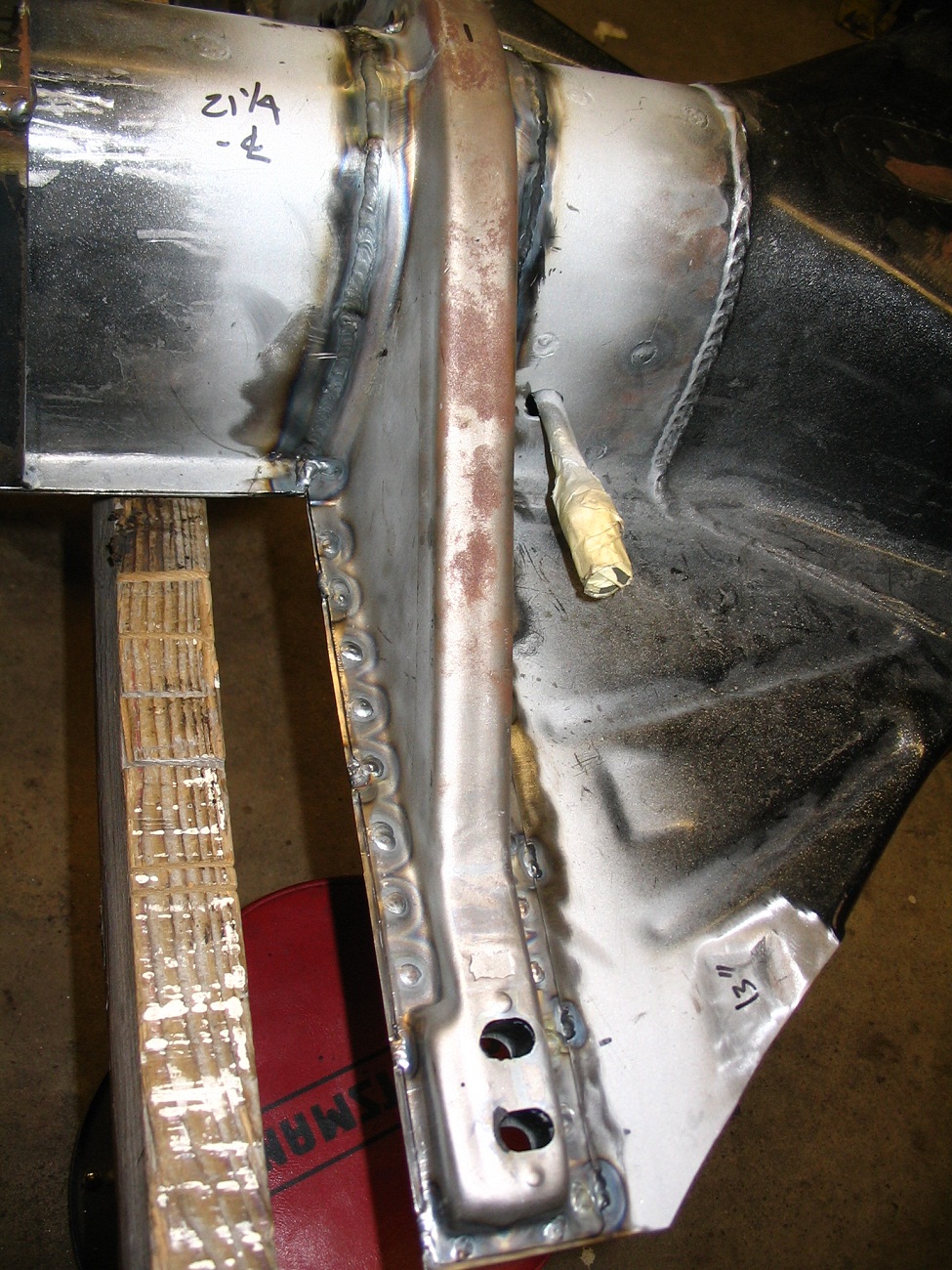

Did some trimming and placed the new head for the first time only to find it needs more.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gtxbullet
Samba Member


Joined: July 29, 2010
Posts: 248
Location: Pewaukee, Wisconsin, 53072, United States
gtxbullet is offline

PostPosted: Tue Feb 08, 2011 1:57 pm    Post subject: Reply with quote

WOOOOOW!!!!

that's a lot of work you're putting into it. nice job!
_________________
Technician/Mechanic
current vehicle line up:

1988 Fiero 2.5L 5-speed
1985 Vanagon GL 2.5L EJ25 and Subaru 5MT with LSD, Vintage Air Gen II Super
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jays
Samba Member


Joined: August 22, 2010
Posts: 599
Location: miami
jays is offline

PostPosted: Tue Feb 08, 2011 2:05 pm    Post subject: Reply with quote

oh wow i wish i couldve gotten this into the restoration of my bug :[ making me sad man
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Tue Feb 08, 2011 2:47 pm    Post subject: Reply with quote

Thanks, it is alot of work but it will be like a brand new bug n I get the experience of wrenching on it myself. I love working on it and each stage I get through the confidence level rises also. All said and done i could step back and say " I brought this bug back!"
_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
flierbob
Samba Member


Joined: August 21, 2008
Posts: 538
Location: Silverdale WA
flierbob is offline

PostPosted: Tue Feb 08, 2011 3:02 pm    Post subject: Reply with quote

Got to love the VW wiring, make sure the fresh air drain is hooked up so the water won't ruin the trunk.
Wow is right, that looks like you are going after it!!!
Very Happy Very Happy Very Happy
Bob
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Tue Feb 08, 2011 4:03 pm    Post subject: Reply with quote

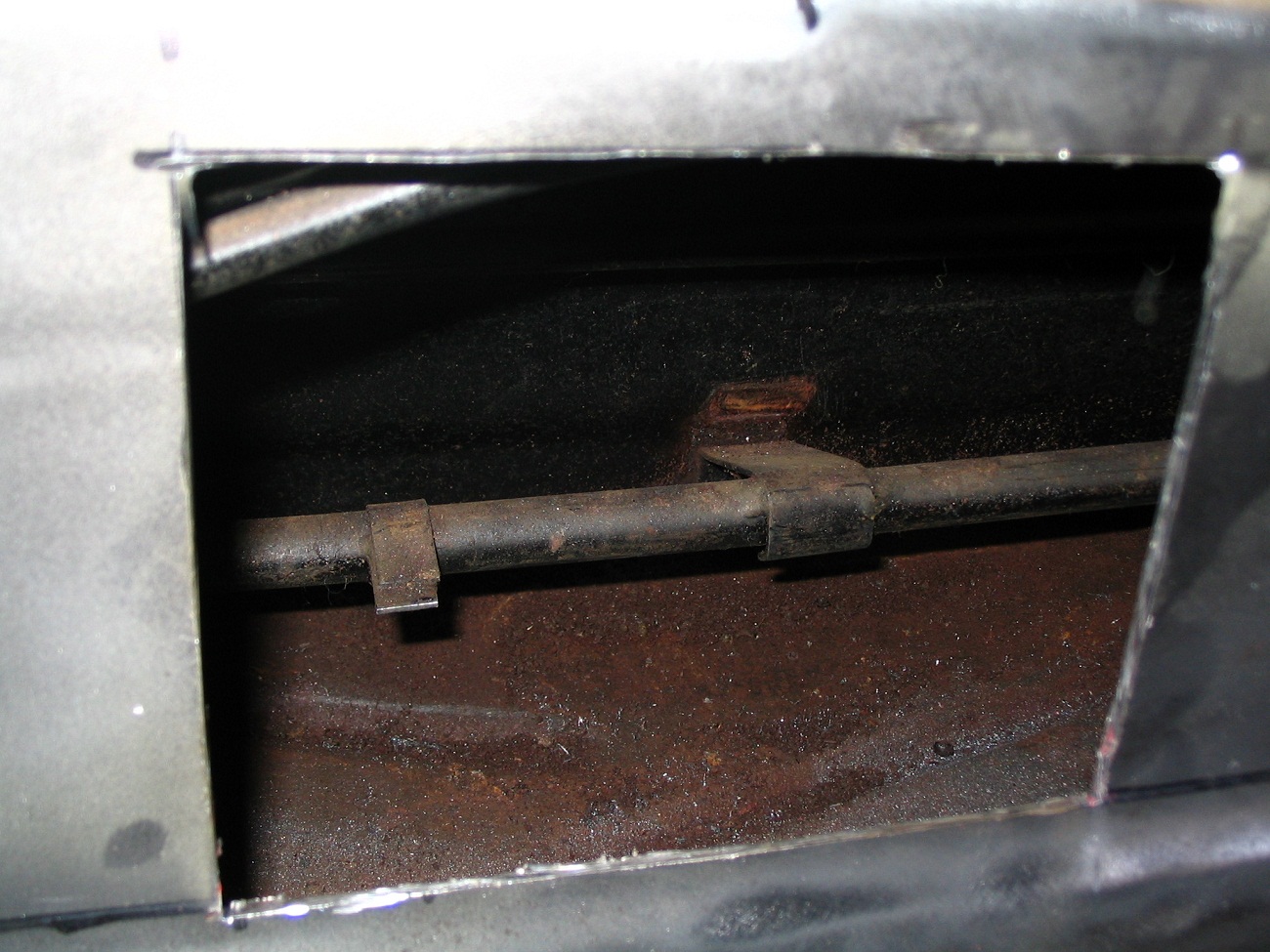

Cut 2 access holes in side of tunnel to weld clutch tube bracket and run new fuel line.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Degreased the inside of the tunnel and it took of all the paint also!
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Then discovered broken clutch tube bracket at the cluster hole
Image may have been reduced in size. Click image to view fullscreen.

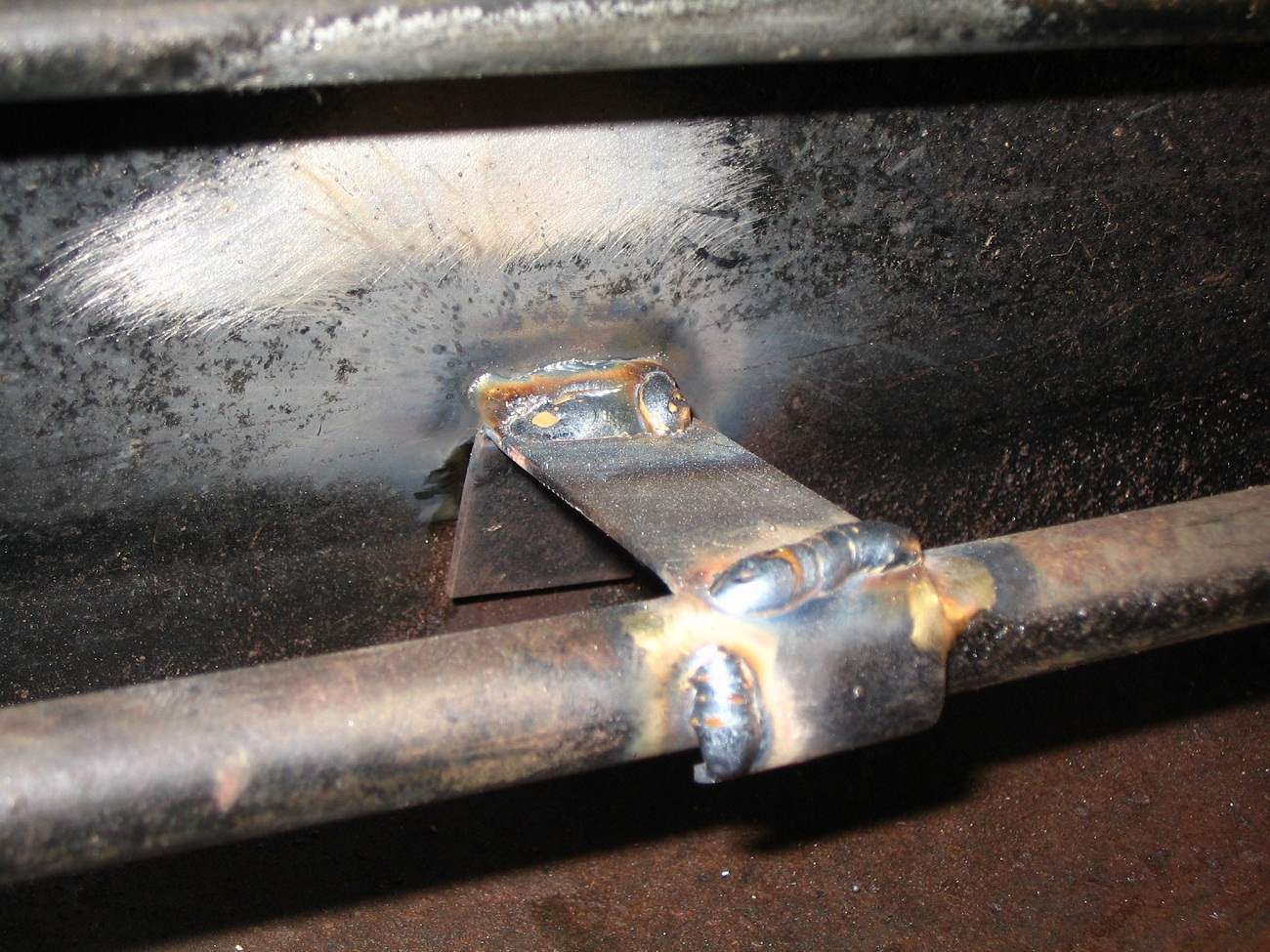

All welded up
Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DaniG
Samba Member


Joined: January 06, 2011
Posts: 82
Location: Colorado
DaniG is offline

PostPosted: Wed Feb 09, 2011 12:58 pm    Post subject: Reply with quote

Not only did you bring it back, you'll be able to keep her running darn-near forever! Very impressive. I have a weakness for red VW Beetles anyway. Laughing
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Wed Feb 09, 2011 2:35 pm    Post subject: Reply with quote

Thanks DaniG! The OG paint is nice but its under about 4 other colors!!

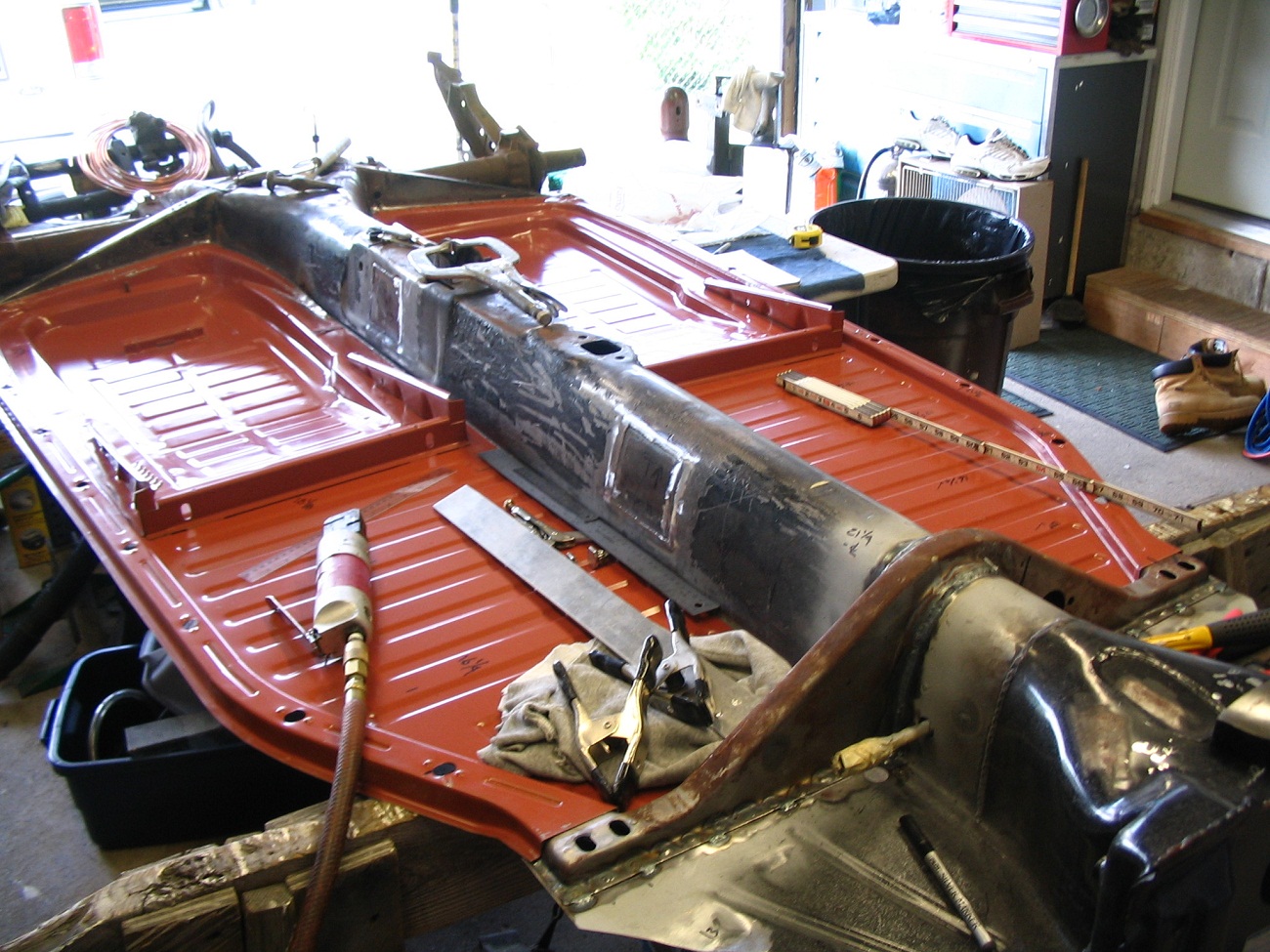

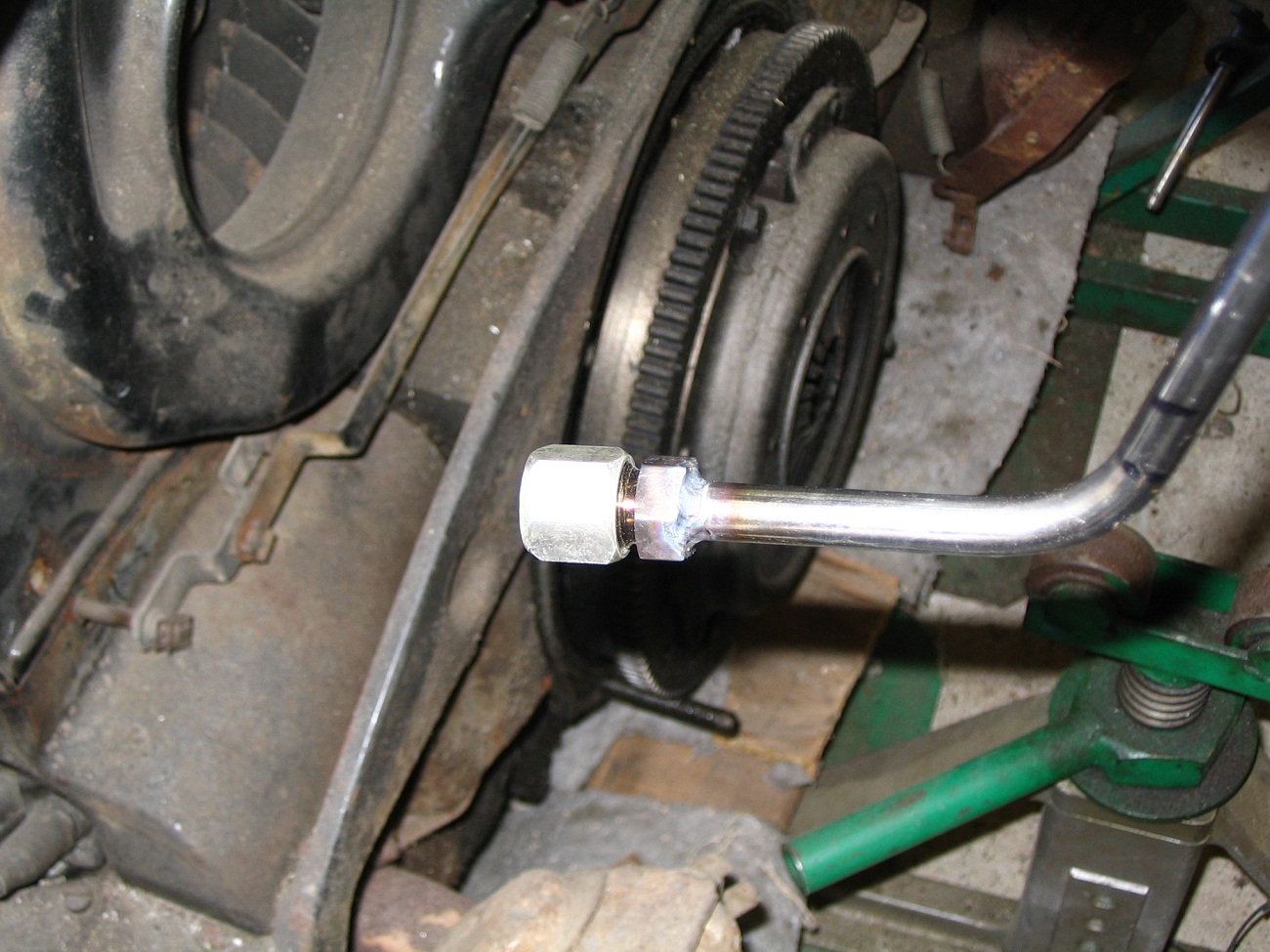

Uploaded some more shots. I wanted to keep the german brake hose brackets.
Image may have been reduced in size. Click image to view fullscreen.

Considerable difference in thickness
Image may have been reduced in size. Click image to view fullscreen.

Started running the 3/8 SS fuel line through the tunnel
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Welded on SS 6AN fittings on each end
Image may have been reduced in size. Click image to view fullscreen.

PO took a air chisel and opened up the tunnel to the side of the inspection cover to run a rubber fuel line out of. Started straightenig out the metal
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
T8kitease
Samba Member


Joined: March 17, 2006
Posts: 163
Location: Long Island, N.Y.
T8kitease is offline

PostPosted: Thu Feb 10, 2011 5:17 pm    Post subject: Reply with quote

Welded in some extra steel for support. Silver paint is Weld-thru II weldable primer. crap for tig welding.
Image may have been reduced in size. Click image to view fullscreen.

Framehead welded up
Image may have been reduced in size. Click image to view fullscreen.

Framehead support modified and blasted
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

First fit for floorpans. Needed a trim here and there but worked out real good.
Image may have been reduced in size. Click image to view fullscreen.

Cleaned them up and punched holes with air flange/punch tool
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Removed th seat tracks in order to install custom seat brackets
Image may have been reduced in size. Click image to view fullscreen.

_________________
Matt

70 Beetle Resto
http://www.thesamba.com/vw/forum/viewtopic.php?t=450346
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
flierbob
Samba Member


Joined: August 21, 2008
Posts: 538
Location: Silverdale WA
flierbob is offline

PostPosted: Thu Feb 10, 2011 5:50 pm    Post subject: Reply with quote

Great work, that looks like the hard way to install new gas line unless you are fixing every thing else also. nice welding also. Shocked Shocked
Bob
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Late Model/Super - 1968-up All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5  Next
Page 1 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
