 Posted: Wed Jul 20, 2016 6:57 pm Post subject: Go Westy skid plate with flood LED's on Syncro |
 |
|
Finally installed my GW front skid plate. I came up with an idea to install a pair of flood LED's to mount on the skid plate. I bought a pair of Rigid Ignite flush mount flood beams. Link below:
http://www.rigidindustries.com/led-lighting?f[0]=field_product_family%3a5485
I originally planned to cut a pair of 1" holes on the skidplate & put the floods on either side, but I discovered that the the angle wasn't correct. I ended up making some brackets from a piece of u channel I had. I bolted them up to the most aft holes on the sides of the plate.
Here's the skid plate. It's a nice piece & heavy duty
http://www.gowesty.com/product-details.php?v=&id=4153
Here are some pics. I only got one side LED mounted. I'll finish it up tomorrow & get some nighttime pics...
|
|
| Back to top |
|
 |
newfisher
Samba Member
Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
|
| Posted: Wed Jul 20, 2016 7:45 pm Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|
| Awesome. The added light will be great off road. |
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Wed Jul 20, 2016 8:01 pm Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|
Yeah I hope. I've always wanted to get some lights mounted low for slow wheelin & hill climbing.
BTW, I think I should add a disclaimer on those "Ignite" lights. Just in case someone is thinking about using these lights as fog lights, they are way too intense (almost arc like). You will blind oncoming traffic for sure. They should only be used for off roading
If you want fogs, use these below
http://www.rigidindustries.com/products/sae
|
|
| Back to top |
|
|
Skidub
Samba Member
Joined: December 29, 2014
Posts: 204
Location: PNW
|
| Posted: Thu Jul 21, 2016 7:55 am Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|
Love that idea and how you accessorized the skid plate. I have the GW skid plate too.
Can you share what size channel you used and your wiring schematic, switch, etc...?
_________________
86 Syncro GL Tin Top
Subaru 2.5L Swap
Rblt Transaxle w/ R Locker + Decoupler |
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Thu Jul 21, 2016 8:19 am Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|
| Skidub wrote: |
Love that idea and how you accessorized the skid plate. I have the GW skid plate too.
Can you share what size channel you used and your wiring schematic, switch, etc...? |
Thanks. BTW, I'm not done accessorizing it yet. I'm going to see if a RotoPax water container will fit above it...
http://rotopax.com/1.75-Gallon-Water.html
I bought the aluminum section from McMaster-Carr. Rigid also makes a that light with a pedestal (surface) mount. It may be a better option. The nice thing about the aluminum is that it should move a lot of heat away from the light.
You can just get a section of 90 deg 3/16" 2"x2" L channel & save yourself a couple of cuts & a few bucks. $11 for a 1 foot piece.
http://www.mcmaster.com/#aluminum/=13dodjg
This is what I have (for another project)
Highly Corrosion-Resistant 6063 Aluminum, U-Channel, 1/8" Thick, 2-1/2" Base, 2" Legs, 4'
http://www.mcmaster.com/#catalog/122/3706/=13do25u
Wiring is not done yet. It will be relay controlled. |
|
| Back to top |
|
|
WLD*WSTY
Samba Member
Joined: November 04, 2009
Posts: 438
Location: Arizona
|
| Posted: Thu Jul 21, 2016 3:45 pm Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|
| tjet wrote: |
| Finally installed my GW front skid plate. I came up with an idea to install a pair of flood LED's to mount on the skid plate. I bought a pair of Rigid Ignite flush mount flood beams. |
Maybe you can rig up some headlight washers to keep the mud off.
_________________
'82 SyncroWesty, the first ever conversion.'06 Subaru 2.5L |
|
| Back to top |
|
|
0cean
Samba Member
Joined: February 29, 2012
Posts: 1153
Location: California
|
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Fri Jul 29, 2016 9:50 pm Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|

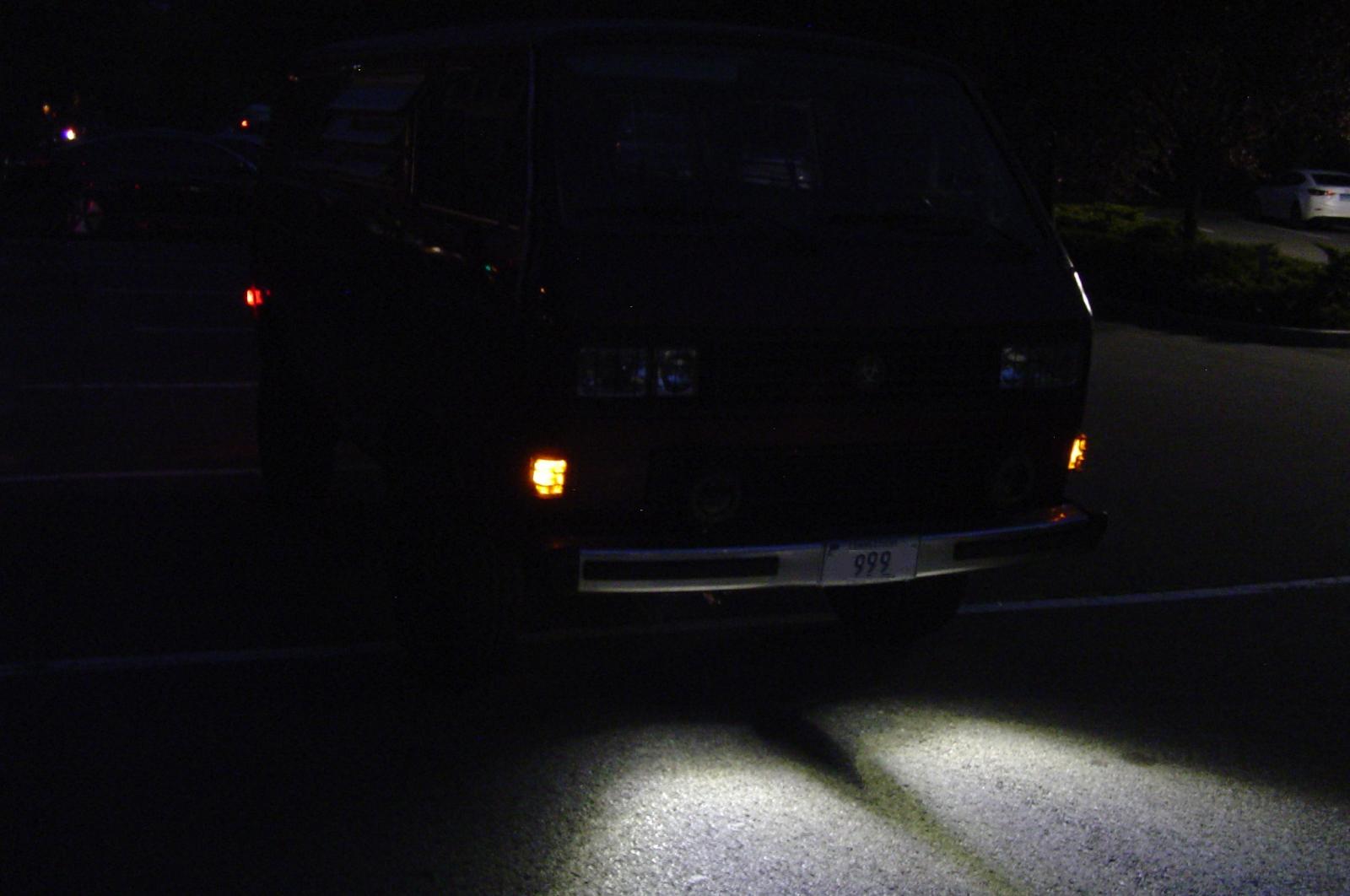

I got the other side installed. For the small size, they really throw out a nice flood pattern.
Using these alone, you probably wont be able to go more than 15-20 mph. I plan on getting a Rigid Dually spot lamp to mount onto the driver mirror (I have LT mirrors) |
|
| Back to top |
|
|
Steve M.
Samba Member
Joined: July 30, 2013
Posts: 6925
Location: Fort Lauderdale, Fl.
|
| Posted: Sat Jul 30, 2016 5:48 am Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|
Do you happen to have a picture taken from the drivers seat?
It's a good project.
btw. has anybody told you it looks like you ran over Kermit?  |
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Sat Jul 30, 2016 8:20 am Post subject: Re: Go Westy skid plate with flood LED's on Syncro |
|
|
| Steve M. wrote: |
Do you happen to have a picture taken from the drivers seat?
It's a good project.
btw. has anybody told you it looks like you ran over Kermit? |
I tried, but the camera I have dosent like night photos without a flash. I'll try to adjust that setting & get a pic.
Kermit - All the green primer? It will be Waxoyl Hardbody Black soon.  |
|
