| Author |
Message |
bassam
Samba Member
Joined: November 22, 2006
Posts: 293
|
 Posted: Thu Jun 16, 2011 5:21 am Post subject: Tachometer question |
 |
|
I bought one of those tachometers you put on the dashboard. I tested it in the engine bay first. So needle does not go up very fast nor does it come back down fast either. I've never seen a tach on a vw before. but is that normal cuz the engine is a slow one or am i missing something?
_________________
1973 VW Squareback |
|
| Back to top |
|
 |
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18046
Location: Eugene, OR
|
| Posted: Thu Jun 16, 2011 5:30 am Post subject: |
|
|
A cheap generic tachometer is Unlikely to read correctly. Better hook up a good tachometer/dwell meter at the same time and compare the 2 tachometers.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
blankmange
Type 3 Darksider
Joined: July 17, 2004
Posts: 11498
Location: Bloßer Stahl-preapocalyptic MidCoast
|
| Posted: Thu Jun 16, 2011 5:34 am Post subject: Re: Tachometer question |
|
|
| bassam wrote: |
| I've never seen a tach on a vw before. |

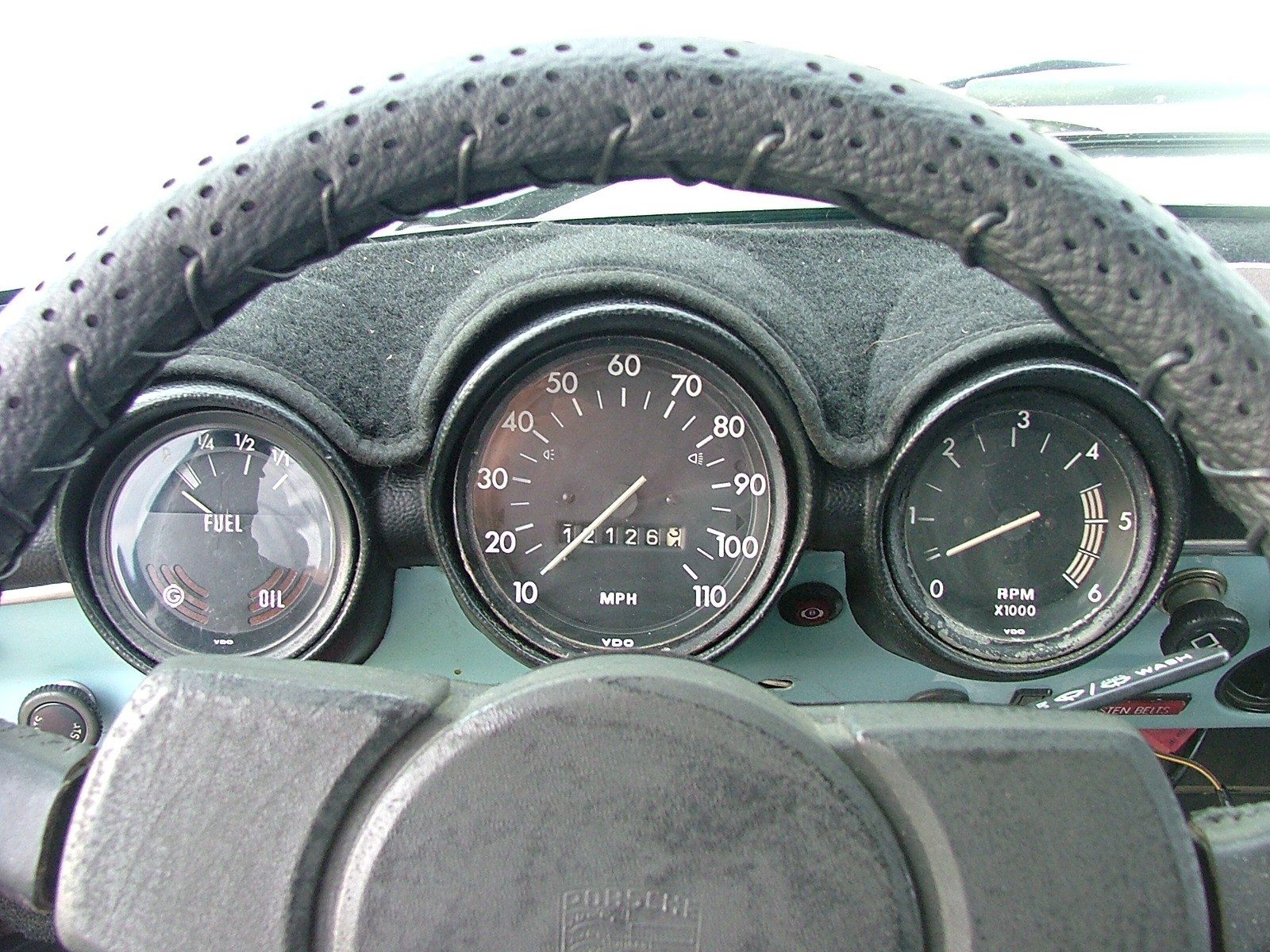

now you have...
_________________
póg mo thóin
Certified DHS Technician
Samba Member # 24517 |
|
| Back to top |
|
|
FastyinaField
Samba Member
Joined: December 25, 2009
Posts: 48
Location: New Hampshire
|
| Posted: Fri Jun 17, 2011 12:35 am Post subject: |
|
|
And a second one for good measure:
|
|
| Back to top |
|
|
Gizmobob
Samba Member
Joined: December 06, 2006
Posts: 1001
Location: Apple Valley, CA
|
| Posted: Fri Jun 17, 2011 8:45 am Post subject: |
|
|
When they aren't available... some just make your own.
_________________
"And now, in the interest of equal time, here is a message from the National Institute of Pancakes: It reads, and I quote, "Fuck waffles." " - George Carlin
'61 Type 311-Black
'62 Type 311-Gulf Blue (Germany)
'62 Type 313-Anthracite (Germany)
'62 Type 311-Gulf Blue (Italy)
'63 Type 361-Anthracite (Sweden)
'64 Type 343-Pacific Blue/Blue-White (Germany) |
|
| Back to top |
|
|
Komissar
Samba Member
Joined: May 18, 2008
Posts: 894
Location: Bucharest, Romania
|
| Posted: Fri Jun 17, 2011 9:58 am Post subject: |
|
|
I dont' have my type3 "at hand" to measure... what's the width of the clock face opening ? Or the width of the clock with or without the chrome bezel?
_________________
1965 Sunroof Beetle
1972 Type 3 Squareback
1978 Skoda 105S |
|
| Back to top |
|
|
OhHerrooo
Samba Member
Joined: September 12, 2010
Posts: 1291
Location: Costa Mesa, CA
|
|
| Back to top |
|
|
supaninja
Samba Member
Joined: July 03, 2010
Posts: 4020
Location: houston
|
|
| Back to top |
|
|
VW-Variant-L
Samba Member
Joined: March 09, 2006
Posts: 160
Location: Victoria, Australia
|
| Posted: Fri Jun 17, 2011 7:33 pm Post subject: |
|
|
| Komissar wrote: |
| I dont' have my type3 "at hand" to measure... what's the width of the clock face opening ? Or the width of the clock with or without the chrome bezel? |
Clock and fuel gauge housing is 85mm, and with bezel the face is about 90mm, Cheers. |
|
| Back to top |
|
|
toddgsanford
Samba Member
Joined: January 21, 2003
Posts: 456
|
| Posted: Mon Jun 20, 2011 12:43 pm Post subject: |
|
|
| to answer your original question most generic tachs are set up to run a 4,6, 0r 8 cylinder motor if the needle is very erratic check for a switch to adjust this setting. I have heard of people putting the Jiggler/vibrator like on the gas guage to accomplish a cleaner needle movement but have not tried this. the green wire on most generic tachs goes to the same point on your coil as your condensor. and there is a seperate power wire (red) as well. I have never seen one I could not get to work smoothly . Sun makes a tach the same size as the clock in most type 3 and I did the same to mine. Although Gizmobobs looks a whole lot more stock than mine. I will post a link to my phot bucket once I verify I have that pic up |
|
| Back to top |
|
|
Woreign
Samba Member
Joined: June 04, 2006
Posts: 2841
Location: Crestview FL
|
| Posted: Mon Jun 20, 2011 12:48 pm Post subject: |
|
|
| supaninja wrote: |
Did somebody say tach?
 |
Why is your horn button Pink???? (Not there's anything wrong with that...) |
|
| Back to top |
|
|
supaninja
Samba Member
Joined: July 03, 2010
Posts: 4020
Location: houston
|
|
| Back to top |
|
|
baggabones
Samba Member
Joined: October 13, 2004
Posts: 71
Location: wales, uk
|
| Posted: Tue Jun 21, 2011 5:15 am Post subject: |
|
|
| How do you guys run the wire to coil (squareback) ? |
|
| Back to top |
|
|
blankmange
Type 3 Darksider
Joined: July 17, 2004
Posts: 11498
Location: Bloßer Stahl-preapocalyptic MidCoast
|
| Posted: Tue Jun 21, 2011 6:38 am Post subject: |
|
|
| baggabones wrote: |
| How do you guys run the wire to coil (squareback) ? |
I ran a long wire from the dash, along the tunnel (under the carpet) and out through the grommet under the rear seat in the battery compartment, and back into the engine bay...
_________________
póg mo thóin
Certified DHS Technician
Samba Member # 24517 |
|
| Back to top |
|
|
Brent
Samba Member
Joined: April 28, 2010
Posts: 1622
Location: San Tan Valley, AZ
|
| Posted: Tue Jun 21, 2011 7:38 am Post subject: |
|
|
| baggabones wrote: |
| How do you guys run the wire to coil (squareback) ? |
Without the FI, I've been thinking of running the wire through the extra fuel line since I've got the pan off. |
|
| Back to top |
|
|
MOCHABILL
Samba Member
Joined: June 12, 2008
Posts: 584
Location: BY THE BAY
|
| Posted: Tue Jun 21, 2011 8:07 am Post subject: |
|
|
| baggabones wrote: |
| How do you guys run the wire to coil (squareback) ? |
Recall seeing a post about using the unused red wire in the loom that is not used in manual trans models.
I know that my square has it in the engine wiring and in the wiring under the dash.
Bill
_________________
'71 Squareback FI
'07 Passat wagon 2.0
'03 Ranger 4door 4.0 |
|
| Back to top |
|
|
68squareizm
Samba Member
Joined: December 07, 2007
Posts: 179
Location: Huntington Beach
|
| Posted: Tue Jun 21, 2011 9:30 am Post subject: Re: Tachometer question |
|
|
Dude are those 914 gauges?
| blankmange wrote: |
| bassam wrote: |
| I've never seen a tach on a vw before. |
now you have... |
|
|
| Back to top |
|
|
blankmange
Type 3 Darksider
Joined: July 17, 2004
Posts: 11498
Location: Bloßer Stahl-preapocalyptic MidCoast
|
| Posted: Tue Jun 21, 2011 9:56 am Post subject: Re: Tachometer question |
|
|
| 68squareizm wrote: |
Dude are those 914 gauges?
|
no - Type 3 gauges.. from Australia...
_________________
póg mo thóin
Certified DHS Technician
Samba Member # 24517 |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23435
Location: Kimball, Mi
|
| Posted: Tue Jun 21, 2011 2:04 pm Post subject: |
|
|
| MOCHABILL wrote: |
| baggabones wrote: |
| How do you guys run the wire to coil (squareback) ? |
Recall seeing a post about using the unused red wire in the loom that is not used in manual trans models.
I know that my square has it in the engine wiring and in the wiring under the dash.
Bill |
Yup, that's what I used on my 71 Square-vert.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Komissar
Samba Member
Joined: May 18, 2008
Posts: 894
Location: Bucharest, Romania
|
| Posted: Sun Jun 26, 2011 1:39 pm Post subject: |
|
|
I've just up-graded mine with a tachometer which looks "at home" in my dash...
It's a vintage Smiths (made in UK) vintage 70's something tach. it's a perfect fit into the clock opening.
With a redline that you can setup wherever you like
Uploaded with ImageShack.us
_________________
1965 Sunroof Beetle
1972 Type 3 Squareback
1978 Skoda 105S |
|
| Back to top |
|
|
|
