PostPosted: Sun Jun 14, 2015 3:29 pm    Post subject: 1973 high roof bus. Where is the bed? HELP Reply with quote

Ok! I am a split bus guy that just came across a late 1972 high roof bus. My question is where is the bed? Z bed or cots? What should it have. I am knew to th e camper scene but the bus dose look complete inside.
Please help
_________________
Gas, Grass or Ass ? No one rides to the show for free!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 8099
Location: Where?
?Waldo? is offline

PostPosted: Sun Jun 14, 2015 4:15 pm    Post subject: Reply with quote

You're in the wrong forum. '72 is a bay not a vanagon/eurovan. It's doubtful that anyone here knows what bed is in a stock '72 high top.
Back to top
View user's profile Send private message Classifieds Feedback
goskiracer
Samba Member


Joined: January 15, 2009
Posts: 323
Location: Oslo, Norway
goskiracer is offline

PostPosted: Mon Aug 03, 2015 1:36 am    Post subject: Reply with quote

goskiracer wrote:
I visited Paul and Linda of vwcamperroof.com and picked up one of their freshly finished roofs in Norwich. Really great folks, wouldn't let me leave without a fesh coffee and biscuts Smile

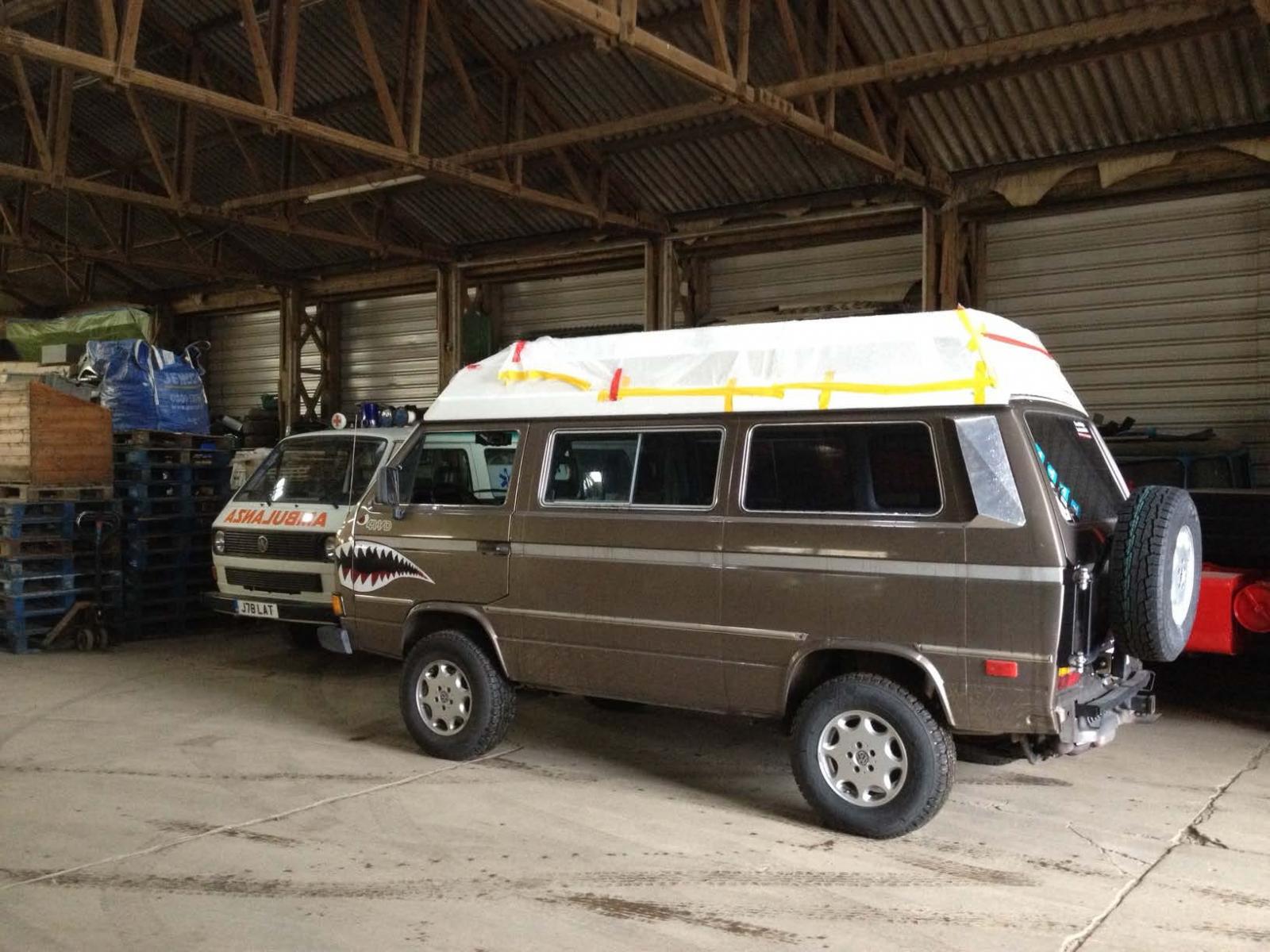

Drove up to Simon at t3volution.com and started getting into fitting the roof. That syncro ambulance in the background has 47000 km on it!

Image may have been reduced in size. Click image to view fullscreen.


Here is the top underside.
Image may have been reduced in size. Click image to view fullscreen.


detail of the back corner.
Image may have been reduced in size. Click image to view fullscreen.


The top...wow, the build quality is really a generation ahead of anything else out there. The roof stringers really add some serious strength and stiffness.

The pièce de résistance is the moulded flange that mates to the roof, matching the seams and creases perfectly. Folks with bonded joint experince understand why this approach is the correct way to bond a roof on...

Swabbing the deck
Image may have been reduced in size. Click image to view fullscreen.


Decorating the cake. Here you can see the massive joint area. No messing about in the gutter.

Image may have been reduced in size. Click image to view fullscreen.


The roof adds 13"/33cm interior height at the arch peak. Perfect for my needs.

##### The interior standing height is 180 cm #####

Image may have been reduced in size. Click image to view fullscreen.


Wind noise/ handling? Nope/ "Full sock" crosswinds from Gothenberg, drove like my tintop normally did.
Gas mileage? Dunno, can't keep my foot out of the 10c engine.
Weight. I can lift it myself.
Cost £1250, worth the quality and fit alone. Paul doesn't work the delivery, chat with Simon at t3volution.com

_________________
86' Syncro 2.2 Vanistan, WBXhaust, ski-pole shifter for +11hp


Last edited by goskiracer on Mon Aug 24, 2015 11:56 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
goskiracer
Samba Member


Joined: January 15, 2009
Posts: 323
Location: Oslo, Norway
goskiracer is offline

PostPosted: Thu Aug 06, 2015 3:08 am    Post subject: Reply with quote

A few more photos of the intallation of the vwcamperroof.com top. The top was pulled from the mold just 3 days prior. Still has that new glass fiber smell Cool

https://www.facebook.com/simon.whitmore.75/media_s...amp;type=3
_________________
86' Syncro 2.2 Vanistan, WBXhaust, ski-pole shifter for +11hp
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kernewek
Samba Member


Joined: December 09, 2012
Posts: 44
Location: France/UK
kernewek is offline

PostPosted: Sun Aug 09, 2015 4:46 pm    Post subject: Reply with quote

That's a nice looking roof, and very solidly made. It's a shame that it's not a little higher as there doesn't seem enough space up top for anyone to sleep up there? Or perhaps I'm wrong?

Craig
_________________
1998 T4 2.5 TDI with Timber Technicians high top
1985 T3 1.6TD hightop camper
Back to top
View user's profile Send private message Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2251
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Sun Aug 09, 2015 9:15 pm    Post subject: Reply with quote

Hey- do you have better contact info for this guy, Paul? The email on his page is bad, and there was no answer on his listed landline.
That looks very close to what I want, from over in the Aluminum Roof thread;
http://www.thesamba.com/vw/forum/viewtopic.php?t=575530&highlight=aluminum
Image may have been reduced in size. Click image to view fullscreen.


Wanna send me a PM, what it cost, and how it went down, and how you like it?
Cheers!
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
goskiracer
Samba Member


Joined: January 15, 2009
Posts: 323
Location: Oslo, Norway
goskiracer is offline

PostPosted: Sun Aug 09, 2015 11:57 pm    Post subject: Reply with quote

kernewek wrote:
That's a nice looking roof, and very solidly made. It's a shame that it's not a little higher as there doesn't seem enough space up top for anyone to sleep up there? Or perhaps I'm wrong?

Craig


Like the adventurewagen roofs, you would have to drop the bed platform a bit to provide enough room to sleep up top in the vwcamperroof.com top. My needs were standing room, and ample storage for sleeping bags and ski gear with bombproof construction. The floor to ceiling height of my roof is 180cm, perfect for my needs.

If you want space for sleeping up top, it's gonna have to be a "sky-top" like the original westy roofs or the NAHT roof made by Jon.

With top selection it really helps to write down as many objective requirements as you can, then pick a top from there.
_________________
86' Syncro 2.2 Vanistan, WBXhaust, ski-pole shifter for +11hp
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kernewek
Samba Member


Joined: December 09, 2012
Posts: 44
Location: France/UK
kernewek is offline

PostPosted: Mon Aug 10, 2015 12:35 am    Post subject: Reply with quote

goskiracer wrote:
kernewek wrote:
That's a nice looking roof, and very solidly made. It's a shame that it's not a little higher as there doesn't seem enough space up top for anyone to sleep up there? Or perhaps I'm wrong?

Craig


If you want space for sleeping up top, it's gonna have to be a "sky-top" like the original westy roofs or the NAHT roof made by Jon.

With top selection it really helps to write down as many objective requirements as you can, then pick a top from there.


I'm looking for a roof to replace the 30 year old French-made hightop currently on my van (the one on the right, not my buddy's Reimo). The gelcoat is starting to deteriorate so it's going to have to be replaced at some point. My primary need is space, as you can see this top is pretty voluminous.

Image may have been reduced in size. Click image to view fullscreen.


Craig
_________________
1998 T4 2.5 TDI with Timber Technicians high top
1985 T3 1.6TD hightop camper
Back to top
View user's profile Send private message Classifieds Feedback
goskiracer
Samba Member


Joined: January 15, 2009
Posts: 323
Location: Oslo, Norway
goskiracer is offline

PostPosted: Mon Aug 10, 2015 3:41 am    Post subject: Reply with quote

Hmm, I am not sure who makes new roofs here in Europe that are as large as the top you have.

Reimo may still be producing their roofs new.

Autovan Services in the UK is producing the Komet and Kameo roofs, might still not be tall enough for you.
http://www.ebay.co.uk/itm/ROOF-FIBREGLASS-for-KOME...35ef166bcc

If you like the form and function of your current roof, it might be best to repair the gelcoat?
_________________
86' Syncro 2.2 Vanistan, WBXhaust, ski-pole shifter for +11hp
Back to top
View user's profile Send private message Gallery Classifieds Feedback
goskiracer
Samba Member


Joined: January 15, 2009
Posts: 323
Location: Oslo, Norway
goskiracer is offline

PostPosted: Mon Aug 10, 2015 3:56 am    Post subject: Reply with quote

Side windows, roof vents, roof hatches?

High top folks, I'd love to get your experinces and impressions on having side windows and roof vents.

When I met an English couple while waiting for the ferry in Rotterdam they told me how they love the side windows on their high roof, since they gave them fresh air, and a ability to peek outside without removing curtains... alowing some privacy.

Roof vents, especially in hot climates are certainly useful. Looking at my roof I have a 60cm X 100cm area above the center area, and between two roof stringers where I can put a vent.

Why not install the largest possible roof vent? Is using a marine deck hatch a terrible idea? Such as a Lewmar size 60 ocean hatch. Or, for the more traditional route a reimo heki roof hatch.

Those of you who have side windows or roof hatches, what do you enjoy about them, and what would you do differently if you could?
_________________
86' Syncro 2.2 Vanistan, WBXhaust, ski-pole shifter for +11hp
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kernewek
Samba Member


Joined: December 09, 2012
Posts: 44
Location: France/UK
kernewek is offline

PostPosted: Tue Aug 11, 2015 4:16 am    Post subject: Reply with quote

A side window on each side will give you best ventilation. If you can afford it the Seitz windows are excellent, I used them on my T4 hightop when I built it, they're double glazed, easy to fit and have integrated mosquito net and blind. My T3 has cheaper sliding windows which are okay but not so convenient and less well sealed against the weather.

As for roof hatches, you should think about whether you'll eventually put anything else up there, such as a rack or solar panels, as a bigger hatch will reduce your rooftop space. I have a 28cm Fiamma which is compact but features an electric fan so can refresh the air pretty quickly and help evacuate cooking smells.

Craig
_________________
1998 T4 2.5 TDI with Timber Technicians high top
1985 T3 1.6TD hightop camper
Back to top
View user's profile Send private message Classifieds Feedback
thasty07
Samba Member


Joined: May 16, 2014
Posts: 310
Location: Bend, OR
thasty07 is offline

PostPosted: Wed Aug 12, 2015 8:18 am    Post subject: Reply with quote

I really like that mating surface, really nice to ensure a very strong bond!
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
emmetleahy
Samba Member


Joined: February 18, 2014
Posts: 17
Location: Fort Collins
emmetleahy is offline

PostPosted: Wed Aug 12, 2015 9:15 am    Post subject: Awning Question Reply with quote

What awning of you guys/gals using with your hightops? I have an 84 adventurewagen and would like to install an awning but I am worried about the top interfering with the awning install.

Anyone have pictures/brand/mounts/ of an awning installed on a AW top?

Thanks!
_________________
1984 Adventurewagen
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thasty07
Samba Member


Joined: May 16, 2014
Posts: 310
Location: Bend, OR
thasty07 is offline

PostPosted: Wed Aug 12, 2015 9:45 am    Post subject: Re: Awning Question Reply with quote

emmetleahy wrote:
What awning of you guys/gals using with your hightops? I have an 84 adventurewagen and would like to install an awning but I am worried about the top interfering with the awning install.

Anyone have pictures/brand/mounts/ of an awning installed on a AW top?

Thanks!


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Rhinorack awning (Same as ARB) with Gowesty mounting brackets. Had to shorten one of the brackets feet that sit in the rain gutter, but that was done with a grinder, took a few minutes is all. Other than that, goes on without issue.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Team WorldTour Premium Member
Samba Member


Joined: September 02, 2010
Posts: 2251
Location: Der Vaterland
Team WorldTour is offline

PostPosted: Wed Aug 12, 2015 10:47 am    Post subject: Reply with quote

Fiamma still makes kits for T3's.
_________________
1990 Feldjäger Syncro AAZ
Click to view image
H6 Subaru Engine Swap Thread
WV2ZZZ25ZFH094138(x)/ WV2YB0257LH057308(x)/ WV2ZZZ25ZLG113270/
"Where am I going? And what am I doing in this handbasket?" -Nicodemus Jordan
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Gallery Classifieds Feedback
parteephoto
Samba Member


Joined: February 21, 2013
Posts: 13
Location: Portland, OR
parteephoto is offline

PostPosted: Mon Aug 17, 2015 10:45 pm    Post subject: poptop lifting hardware alternatives for diy high-pop Reply with quote

Hello all. Do the Reimo or Carthago poptop owners have photos of how those open and close? specifically the hardware that isn't in the way of a high top poptop?

I'm making a custom high roof "bubble" onto my existing westy poptop, but haven't exactly resolved how to lift and hold the top up. I just don't want the stock lifting bar in the middle of my new headspace.

I hope this makes sense, and if I had pictures I'd post them.

Thanks!
_________________
'86 wolfy westy wkndr syncro bostig, in progress Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
adv rider
Samba Member


Joined: September 09, 2012
Posts: 287
Location: Everett,wa
adv rider is offline

PostPosted: Sun Oct 25, 2015 8:58 pm    Post subject: Reply with quote

[quote="clift_d"]Here's our Syncro Westy Club Joker High Top.

I think this is what I want. Is there a good place to look for these for sale? Or a forum about them? I will take a 2wd . How is the 1.6 TD for power? compared to a 2.1 wbx?
_________________
86' Wolfsburg weekender 2.1, 4spd, , merian brown
Back to top
View user's profile Send private message Gallery Classifieds Feedback
germanairsucker
Samba Member


Joined: June 29, 2006
Posts: 24
Location: St-colomban,Quebec,Canada
germanairsucker is offline

PostPosted: Wed Nov 18, 2015 7:08 pm    Post subject: Re: Official High-roof Thread Reply with quote

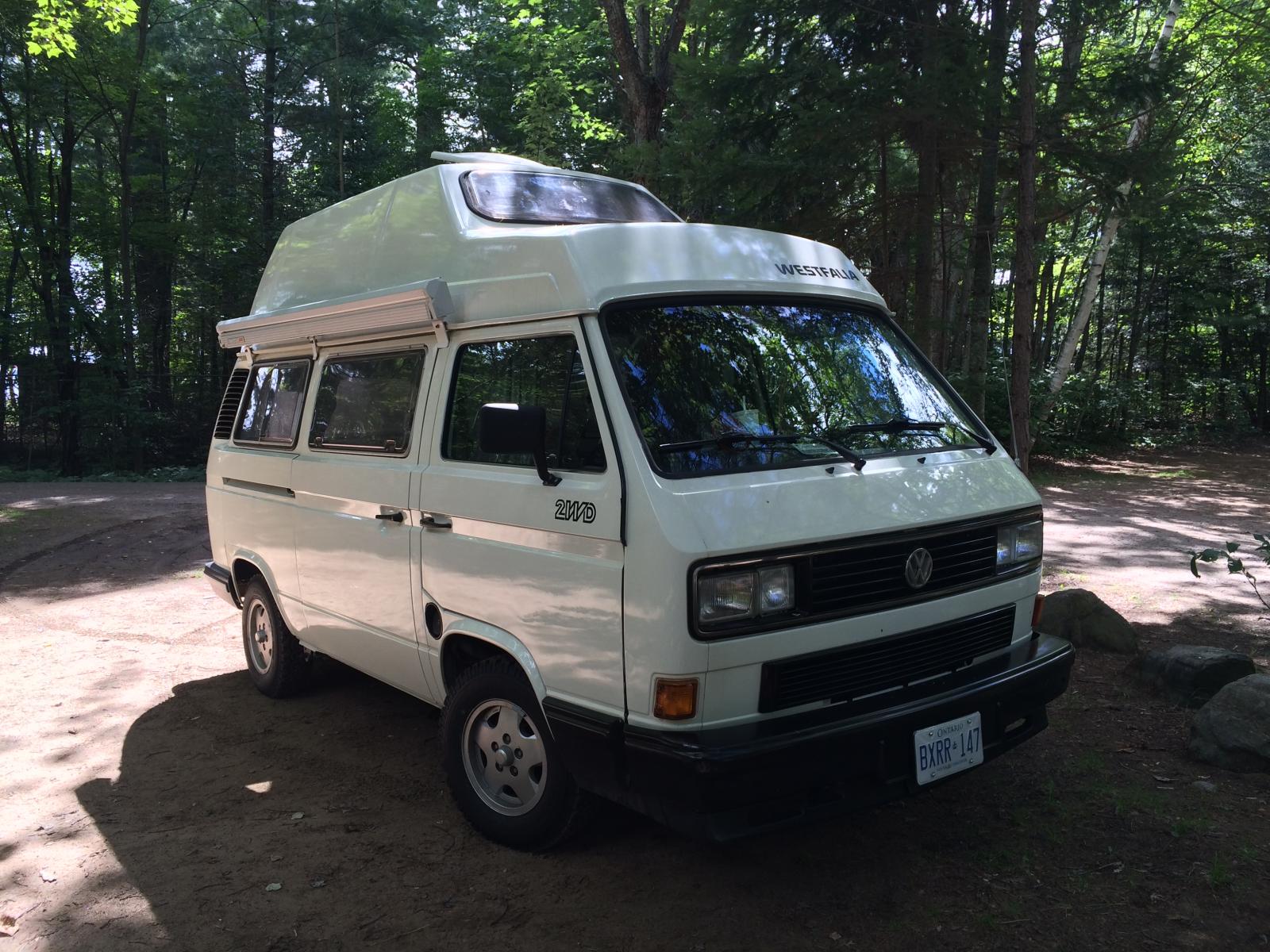

Just bought this Getaway van.
Just need a Syncro to put underneath this roof!

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
1986 Syncro tintop
1991 Carat vanagon weekender
1986 westfalia
1989 wrek Syncro westfalia


Invest in precious metal!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vanagonhopefull
Samba Member


Joined: September 02, 2014
Posts: 35
Location: The Great White North
vanagonhopefull is offline

PostPosted: Wed Nov 18, 2015 8:35 pm    Post subject: Re: Official High-roof Thread Reply with quote

Here is my 1989 Vanagon Westfalia California Hightop.

Image may have been reduced in size. Click image to view fullscreen.


5 speed, 1.6 Turbo Diesel. imported to Canada from Germany by the previous owner approx 15 years ago.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bene ben ben
Samba Member


Joined: May 03, 2012
Posts: 13
Location: Gillingham, Medway, Kent, England
bene ben ben is offline

PostPosted: Thu Nov 19, 2015 7:22 am    Post subject: Re: Official High-roof Thread Reply with quote

Are Factory High tops allowed?
I plan on installing a westfalia high top bed (hopefully it wont feel too much like a coffin up there)

This is my RHD Factory High top syncro...

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 20, 21, 22, 23, 24  Next
Jump to:
Page 21 of 24


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
