 Posted: Tue Jul 03, 2007 9:27 am Post subject: 67 Only Battery Tray |
 |
|
I searched but came up empty.
I would like to see a picture of a stock 67 battery tray with the strap and everything. I just bought an nos battery tray, but I have no idea how the battery straps down. When I replace it, I want it to look factory.
Thanks!
_________________
'67 13 Window
'77 Westy
'69 Sunroof Beetle
'65 Honda Dream |
|
| Back to top |
|
 |
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Tue Jul 03, 2007 1:14 pm Post subject: |
|
|
There are no straps. A 67 clamps the battery from the base. On the back side there is an L-shaped clip, fixed in place like what you would see on a late bug pan. On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. Come on by this week and check out the original tray and clamp in my 67 if you would like to take exact measurements. I think you have my number. I'll be on vacation until the 14  |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19828
Location: Land of Whine and Phonies
|
| Posted: Tue Jul 03, 2007 1:36 pm Post subject: |
|
|
| Major Woody wrote: |
| On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. o |
Similar to a bay window bus
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Tue Jul 03, 2007 2:24 pm Post subject: |
|
|
| crofty wrote: |
| Major Woody wrote: |
| On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. o |
Similar to a bay window bus |
Damn, I'm proud to say I wouldn't know.  |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19828
Location: Land of Whine and Phonies
|
| Posted: Tue Jul 03, 2007 7:35 pm Post subject: |
|
|
| Major Woody wrote: |
| crofty wrote: |
| Major Woody wrote: |
| On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. o |
Similar to a bay window bus |
Damn, I'm proud to say I wouldn't know. |
You need to get your "'67 only" learn on then partner!
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
Jerry J
Samba Member
Joined: June 12, 2004
Posts: 1257
Location: Portland, OR
|
| Posted: Wed Jul 04, 2007 10:19 am Post subject: |
|
|
| Major Woody wrote: |
| There are no straps. A 67 clamps the battery from the base. On the back side there is an L-shaped clip, fixed in place like what you would see on a late bug pan. On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. Come on by this week and check out the original tray and clamp in my 67 if you would like to take exact measurements. I think you have my number. I'll be on vacation until the 14 |
A photo would be really cool.  My bus has remenants of a battery tray and fitted sheet of plywood. I'm waiting for the day when I see my battery go bouncing down the highway.
_________________
Jerry
'58 Bug
'63 KGhia
'67 Squareback
'67 Standard Bus
'60 Single cab |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19828
Location: Land of Whine and Phonies
|
| Posted: Wed Jul 04, 2007 11:15 am Post subject: |
|
|
| Jerry J wrote: |
| Major Woody wrote: |
| There are no straps. A 67 clamps the battery from the base. On the back side there is an L-shaped clip, fixed in place like what you would see on a late bug pan. On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. Come on by this week and check out the original tray and clamp in my 67 if you would like to take exact measurements. I think you have my number. I'll be on vacation until the 14 |
A photo would be really cool. My bus has remenants of a battery tray and fitted sheet of plywood. I'm waiting for the day when I see my battery go bouncing down the highway. |
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
Jerry J
Samba Member
Joined: June 12, 2004
Posts: 1257
Location: Portland, OR
|
| Posted: Wed Jul 04, 2007 1:45 pm Post subject: |
|
|
| crofty wrote: |
| Jerry J wrote: |
| Major Woody wrote: |
| There are no straps. A 67 clamps the battery from the base. On the back side there is an L-shaped clip, fixed in place like what you would see on a late bug pan. On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. Come on by this week and check out the original tray and clamp in my 67 if you would like to take exact measurements. I think you have my number. I'll be on vacation until the 14 |
A photo would be really cool. My bus has remenants of a battery tray and fitted sheet of plywood. I'm waiting for the day when I see my battery go bouncing down the highway. |
|
Thank you...that will work. I looked on the Failsure sited but couldn't find anything like this. I musta not looked hard enough.
Brian, where did you find that battery tray? I've never seen an NOS or any '67 specific trays advertised here on TheSamba.
_________________
Jerry
'58 Bug
'63 KGhia
'67 Squareback
'67 Standard Bus
'60 Single cab |
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Wed Jul 04, 2007 1:57 pm Post subject: |
|
|

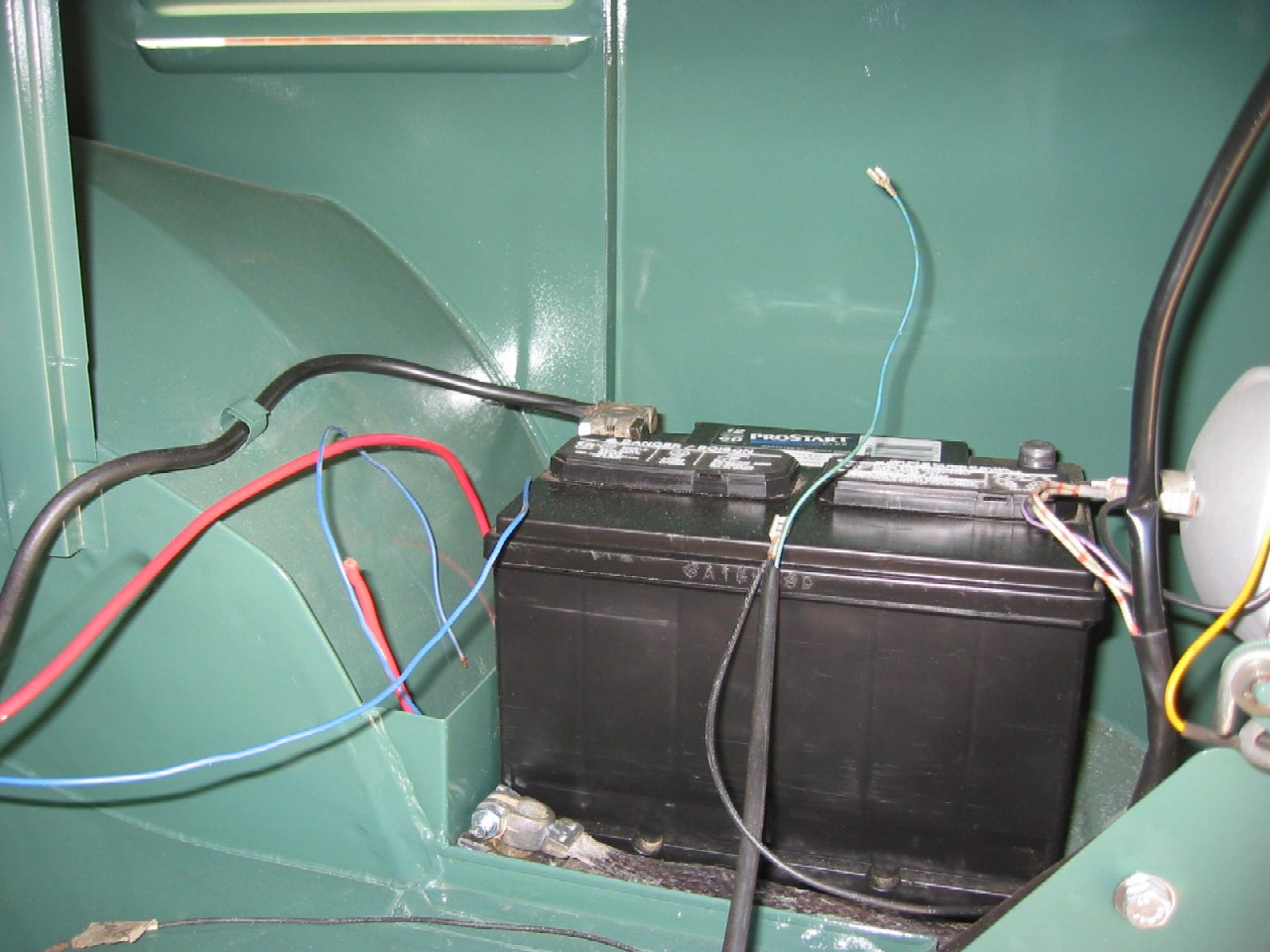

One other thing about a 67 is the vertical piece at the forward edge of the tray where the tray meets the rear edge of the wheelwell. I presume that the intended purpose of the piece is to keep the battery from sliding forward, but what it really does is trap dust and crap that comes in the vents, where it accumulates, gets wet and rusts out. I had to patch mine. Here is a photo of the tray area of my bus. The clamp is not on because I am having it hot dip galvanized. I can take another one with the battery out if necessary.
The battery strap is just sitting there as the bus is apart at the current time.
And yes Dave, all my hardware is original Kamax, re-plated!
|
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19828
Location: Land of Whine and Phonies
|
| Posted: Wed Jul 04, 2007 2:02 pm Post subject: |
|
|
| Major Woody wrote: |
One other thing about a 67 is the vertical piece at the forward edge of the tray where the tray meets the rear edge of the wheelwell. I presume that the intended purpose of the piece is to keep the battery from sliding forward, but what it really does is trap dust and crap that comes in the vents, where it accumulates, gets wet and rusts out. I had to patch mine. Here is a photo of the tray area of my bus. The clamp is not on because I am having it hot dip galvanized. I can take another one with the battery out if necessary.
The battery strap is just sitting there as the bus is apart at the current time.
And yes Dave, all my hardware is original Kamax, re-plated!
|
What's the yellow wire for?
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Wed Jul 04, 2007 2:08 pm Post subject: |
|
|
| crofty wrote: |
| Major Woody wrote: |
One other thing about a 67 is the vertical piece at the forward edge of the tray where the tray meets the rear edge of the wheelwell. I presume that the intended purpose of the piece is to keep the battery from sliding forward, but what it really does is trap dust and crap that comes in the vents, where it accumulates, gets wet and rusts out. I had to patch mine. Here is a photo of the tray area of my bus. The clamp is not on because I am having it hot dip galvanized. I can take another one with the battery out if necessary.
The battery strap is just sitting there as the bus is apart at the current time.
And yes Dave, all my hardware is original Kamax, re-plated!
|
What's the yellow wire for? |
Alarm trigger. Pinswitch is mounted underneath the hatch seal so the switch opens when the seal is compressed by the decklid. From that angle you can see it if you know what to look for. I do have a locking handle as well. |
|
| Back to top |
|
|
splitpile
Samba's Worst Speller
Joined: May 03, 2000
Posts: 5928
Location: back to living where hell meets the suface
|
| Posted: Wed Jul 04, 2007 2:25 pm Post subject: |
|
|
| Jerry J wrote: |
| crofty wrote: |
| Jerry J wrote: |
| Major Woody wrote: |
| There are no straps. A 67 clamps the battery from the base. On the back side there is an L-shaped clip, fixed in place like what you would see on a late bug pan. On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. Come on by this week and check out the original tray and clamp in my 67 if you would like to take exact measurements. I think you have my number. I'll be on vacation until the 14 |
A photo would be really cool. My bus has remenants of a battery tray and fitted sheet of plywood. I'm waiting for the day when I see my battery go bouncing down the highway. |
|
Thank you...that will work. I looked on the Failsure sited but couldn't find anything like this. I musta not looked hard enough.
Brian, where did you find that battery tray? I've never seen an NOS or any '67 specific trays advertised here on TheSamba. |
Kassic Fab make 67 only trays. I have a couple coming on my next shippment.
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line" |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15238
Location: Casa de Oro, California
|
| Posted: Wed Jul 04, 2007 3:33 pm Post subject: |
|
|
Ronnie I'll probably be getting one for the wrecked '67 Westy. Here's a shot of the '67s battery area. It's been coated with epoxy and red oxide primer a couple times to stop the acid.
Here's the battery bracket.
Here's the battery holddown. Notice the bolt has a self cutting tip. It's missing a washer I think.
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71538
Location: Phoenix 602
|
|
| Back to top |
|
|
Jerry J
Samba Member
Joined: June 12, 2004
Posts: 1257
Location: Portland, OR
|
| Posted: Wed Jul 04, 2007 8:18 pm Post subject: |
|
|
| splitpile wrote: |
| Jerry J wrote: |
| crofty wrote: |
| Jerry J wrote: |
| Major Woody wrote: |
| There are no straps. A 67 clamps the battery from the base. On the back side there is an L-shaped clip, fixed in place like what you would see on a late bug pan. On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. Come on by this week and check out the original tray and clamp in my 67 if you would like to take exact measurements. I think you have my number. I'll be on vacation until the 14 |
A photo would be really cool. My bus has remenants of a battery tray and fitted sheet of plywood. I'm waiting for the day when I see my battery go bouncing down the highway. |
|
Thank you...that will work. I looked on the Failsure sited but couldn't find anything like this. I musta not looked hard enough.
Brian, where did you find that battery tray? I've never seen an NOS or any '67 specific trays advertised here on TheSamba. |
Kassic Fab make 67 only trays. I have a couple coming on my next shippment. |
Ronnie, do you have prices for the tray? Does it come with the part "82" from the drawing?
I also need to get prices on a passenger side rocker which would include the outer, the inner-inner and the inner rocker for my '67, please.
_________________
Jerry
'58 Bug
'63 KGhia
'67 Squareback
'67 Standard Bus
'60 Single cab |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19828
Location: Land of Whine and Phonies
|
| Posted: Wed Jul 04, 2007 8:26 pm Post subject: |
|
|
| Jerry J wrote: |
Ronnie, do you have prices for the tray? Does it come with the part "82" from the drawing?
I also need to get prices on a passenger side rocker which would include the outer, the inner-inner and the inner rocker for my '67, please. |
http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=111701433
I thought the rockers were $85 at BOR, but I may be wrong.
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
splitpile
Samba's Worst Speller
Joined: May 03, 2000
Posts: 5928
Location: back to living where hell meets the suface
|
| Posted: Wed Jul 04, 2007 10:58 pm Post subject: |
|
|
| Jerry J wrote: |
| splitpile wrote: |
| Jerry J wrote: |
| crofty wrote: |
| Jerry J wrote: |
| Major Woody wrote: |
| There are no straps. A 67 clamps the battery from the base. On the back side there is an L-shaped clip, fixed in place like what you would see on a late bug pan. On the front side there is a removable galvanized clamp with a bolt going downward through it to clamp the battery in place. The bolt threads into a weldnut mounted to the underside of the tray. Come on by this week and check out the original tray and clamp in my 67 if you would like to take exact measurements. I think you have my number. I'll be on vacation until the 14 |
A photo would be really cool. My bus has remenants of a battery tray and fitted sheet of plywood. I'm waiting for the day when I see my battery go bouncing down the highway. |
|
Thank you...that will work. I looked on the Failsure sited but couldn't find anything like this. I musta not looked hard enough.
Brian, where did you find that battery tray? I've never seen an NOS or any '67 specific trays advertised here on TheSamba. |
Kassic Fab make 67 only trays. I have a couple coming on my next shippment. |
Ronnie, do you have prices for the tray? Does it come with the part "82" from the drawing?
I also need to get prices on a passenger side rocker which would include the outer, the inner-inner and the inner rocker for my '67, please. |
I am curently on my 1st family Vacation in 15 years (closed till July 10th). Off the top of my head the cargo door rocker and strethener are 885 dollars, the 67 only battery tray I believe between 80 and 90. It does nnot come with the clamp but that is a very common item and if I took a magnet in the yard behind my shop 'd probaly find some
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line" |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19828
Location: Land of Whine and Phonies
|
| Posted: Wed Jul 04, 2007 11:30 pm Post subject: |
|
|
| splitpile wrote: |
I am curently on my 1st family Vacation in 15 years (closed till July 10th). Off the top of my head the cargo door rocker and strethener are 885 dollars, the 67 only battery tray I believe between 80 and 90. It does nnot come with the clamp but that is a very common item and if I took a magnet in the yard behind my shop 'd probaly find some |
Holy f'n mark-ups Batman!!
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
Metalwizard
Samba Member
Joined: October 21, 2003
Posts: 696
Location: Archdale, NC
|
| Posted: Thu Jul 05, 2007 6:36 am Post subject: |
|
|

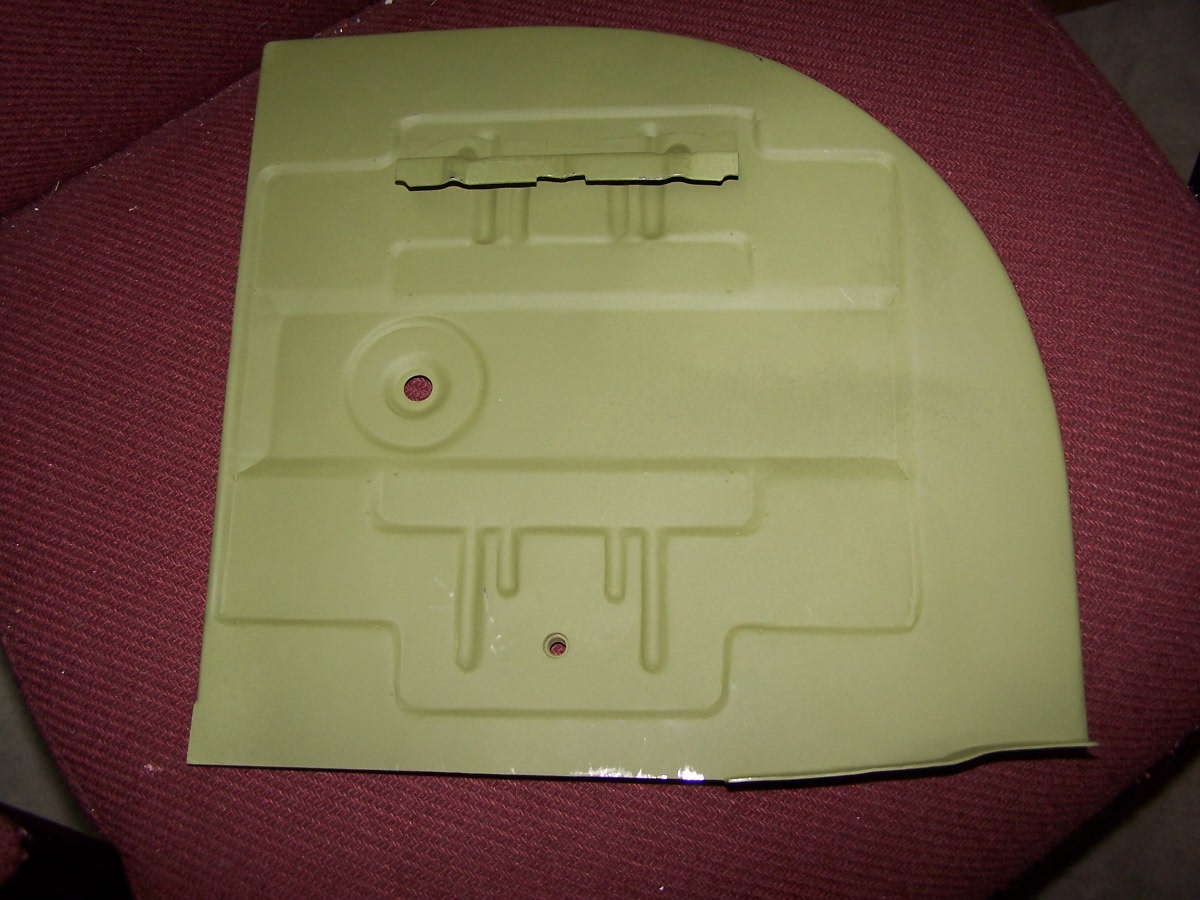

Here you go, i think its runs from mid 66 -67. as i have did a couple 66 with this style tray.
battery tray $85.00, I have 1 in stock.
also the rocker cost is
outer and strengther $85.00
outer, strenghter, inner rocker $120.00 that $5.00 discount by buying all 3 pcs at once.
_________________
http://s461.photobucket.com/albums/qq335/Metalwizard/
Kelly aka
"Bubble & Nut Buster for wannabe BadBoy's of Restoration"
"There is no cure for Stupid"
ITMC "Drill SGT"
Last edited by Metalwizard on Thu Jul 05, 2007 6:39 am; edited 1 time in total |
|
| Back to top |
|
|
Metalwizard
Samba Member
Joined: October 21, 2003
Posts: 696
Location: Archdale, NC
|
| Posted: Thu Jul 05, 2007 6:37 am Post subject: |
|
|
LOL, don't have a cornary Crofty. Ronnie had a miss type. ROFLMAO
