Trip meter mistake...yep, I did it..I pushed it

oldhuldy67

Who has not heard the advice to only reset the trip meter when stopped? Who knows what to do if you...well...pushed it like I did rolling away from the gas station? I searched the forum, found lots of speedo repair posts but didn't locate how to repair the trip meter.
Anyone have the post? Thanks!
_________________
Currently:1980 Westy Westfalia Poptop (a total stock-look rebuild with all my favorite camping mods)
1967 stock Sunroof Beetle
Formerly:
1978 Westy Campmobile, the"EM50 Urban Assault Vehicle" code named "The Pickle"
1973 Squareback (sold on a lark)
1973 Super Beetle (crashed..walked away without a scratch)
1972 Standard Beetle (lost in a relationship..)
1966 Beetle (the Black Beauty, my Dad's)
1964 Beetle (the Beige Bug, my beginning beater, also my Dad's) Thanks, Dad.

Ahwahnee

vanagonjr · Posted: Sun Nov 01, 2015 10:46 am Post subject:

Image may have been reduced in size. Click image to view fullscreen.

_________________
John - 86 Wolfsburg Westfalia "Weekender"
Flint reversed 1.8T W/Passat 5-Speed
LiMBO (late model bus club) www.limbobus.org
LiMBO is on Facebook too! https://www.facebook.com/groups/
FAQ thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=525798

oldhuldy67 · Posted: Sun Nov 01, 2015 3:13 pm Post subject:

Thanks Awahanee...fairly detailed info. Given all the difficulties,
Do you think anyone has replaced the speedo with a lookalike or close enough
From a Jetta..Audi?
_________________
Currently:1980 Westy Westfalia Poptop (a total stock-look rebuild with all my favorite camping mods)
1967 stock Sunroof Beetle
Formerly:
1978 Westy Campmobile, the"EM50 Urban Assault Vehicle" code named "The Pickle"
1973 Squareback (sold on a lark)
1973 Super Beetle (crashed..walked away without a scratch)
1972 Standard Beetle (lost in a relationship..)
1966 Beetle (the Black Beauty, my Dad's)
1964 Beetle (the Beige Bug, my beginning beater, also my Dad's) Thanks, Dad.

Vanagon Nut · Posted: Sun Nov 01, 2015 3:46 pm Post subject:

I've heard the advice but have also heard that it might be an old wives tail.

Having taken apart and repaired two speedos
now, looking at the lever operation, wheels
etc. I don't think that resetting the trip odo
while driving harms the speedo wheels, gears etc.

here's an album of pics and comments on
one I repaired. I'd take the comments with
a grain of salt; some could be considered conjecture. I ain't no expert! Wink

https://picasaweb.google.com/musomuso/1985VanagonTransporterSpeedometerGuts

Neil.
_________________
1981 Westy DIY 15º ABA
(VW Gas I4)

1988 Westy DIY 50º ABA

VE7TBN

Sodo · Posted: Sun Nov 01, 2015 5:04 pm Post subject:

Never heard this one before. I've reset the tripmeter while driving many times. Does it cause problems once they get old?
_________________

'90 Westy EJ25, NEW oil rings (!) 2Peloquins, 3knobs, SyncroShop pressure-oiled pinion-bearing & GT mainshaft, filtered, cooled gearbox.
'87 Tintop w ~~47k~~ 53k, '12 SmallCar EJ25, cooled filtered original gearbox
....KTMs, GasGas, SPOT mtb

crazyvwvanman · Posted: Sun Nov 01, 2015 5:22 pm Post subject:

Unless you have a Syncro you can't use the speedo from a VW car because the 2wd Vanagon speedo cable turns way too slow.

Mark

Jake de Villiers · Posted: Mon Nov 02, 2015 9:22 am Post subject:

Weird, eh? I've been pushing Vanagon trip meter reset buttons while moving for 20 years and over 225,000 miles with no issues, usually while driving away from gas stations.

Touching wood now.
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7.5 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com

dobryan · Posted: Mon Nov 02, 2015 9:27 am Post subject:

Sodo · Posted: Mon Nov 02, 2015 10:25 am Post subject:

If you're moving, there are gears trying to advance the odometer number wheels. I would expect, that the mechanism that zeroes the number wheels has to disengage them from the drive gears to do so. Otherwise how can it spin them?

Perhaps as it gets older, there could be a gray area in the mechanism, where it's trying to advance while your finger is holding them at 000. I don't recall mine resisting, but I don't hold it down. If some odometers "resist" it seems prudent that if you are moving, do your reset with a quick button push; at lower speeds.
_________________

'90 Westy EJ25, NEW oil rings (!) 2Peloquins, 3knobs, SyncroShop pressure-oiled pinion-bearing & GT mainshaft, filtered, cooled gearbox.
'87 Tintop w ~~47k~~ 53k, '12 SmallCar EJ25, cooled filtered original gearbox
....KTMs, GasGas, SPOT mtb

BlueGrasser · Posted: Mon Nov 02, 2015 10:29 am Post subject:

I push it in motion all the time and haven't had a problem (yet).
_________________
Going to where the grass is bluer...
1985 Vanagon Westfalia Camper with 1.8T

?Waldo? · Posted: Mon Nov 02, 2015 10:35 am Post subject:

I don't believe the hype. A few years back I studied the workings of the odometer and tripmeter and came to the conclusion that it was purely a myth that pushing the button when moving increased the odds of breaking the odo. I don't have one apart right now and don't recall the details the specific details but I believe that the gist was that the reset mechanism moves the main tripmeter gear away from the drive gear while still allowing the driven gear to rotate. It is not until the drive and driven gears are unmeshed that it resets the numbers. My memory could be faulty though. YMMV.
_________________
I am a high-functioning autistic into VW diesels and Vanagons along with other things that are unrelated to this site.

kennyw · Posted: Mon Nov 02, 2015 10:37 am Post subject:

That advise sounds like an old BS reason for not covering a warranty issue.
When I worked in a bike shop, I would hear bike companies say similar things to get out of honoring a warranty.
_________________
'15 Tiguan - Victor
'88 Westy - Maggy

Sodo · Posted: Mon Nov 02, 2015 10:39 am Post subject:

?Waldo? · Posted: Mon Nov 02, 2015 1:29 pm Post subject:

This thread inspired me to pull out a spare speedometer I had. I removed the tripmeter section. On the end near the 1/10ths is a black gear on the outside which is spun by the odometer portion of the gauge. I can spin that easily by hand and there is not any change to the resistance at any point during the depression or release of the button. The button unmeshes the gears prior to resetting the numbers. If you spin the black gear quickly while pushing the button very, very slowly, you can feel when the gears start skipping at a slightly meshed position, but there isn't any added resistance during that time. I am convinced that there is not any relationship between the odometer failing and pressing the button while moving.
_________________
I am a high-functioning autistic into VW diesels and Vanagons along with other things that are unrelated to this site.

Vanagon Nut · Posted: Mon Nov 02, 2015 2:10 pm Post subject:

^^

moreover, I'd suggest that the gears are moving relatively slowly.

I'd venture a guess that if a gear is ready to fail, resetting the trip odo will hasten its' demise and cause the odo or trip odo to fail.

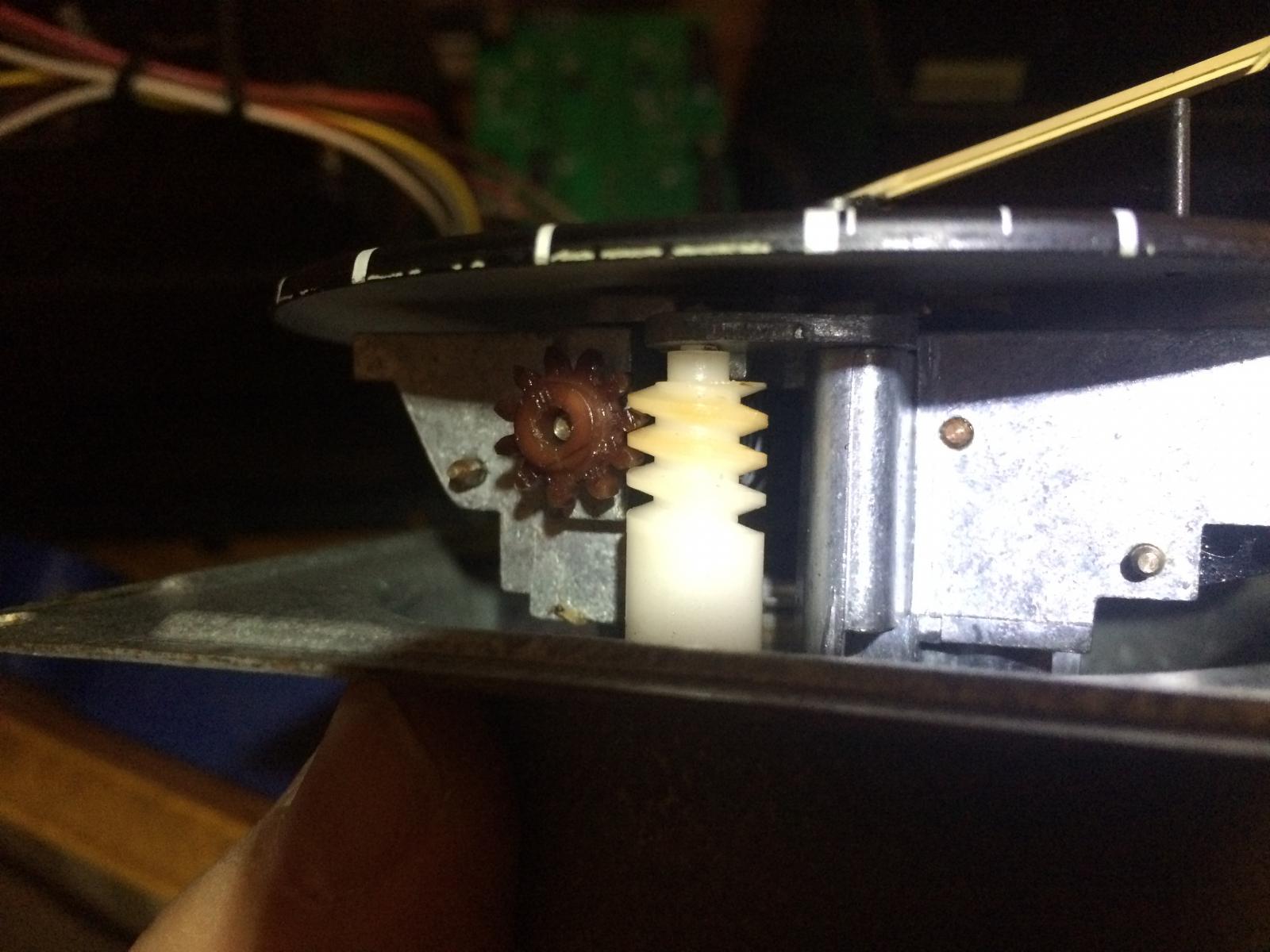

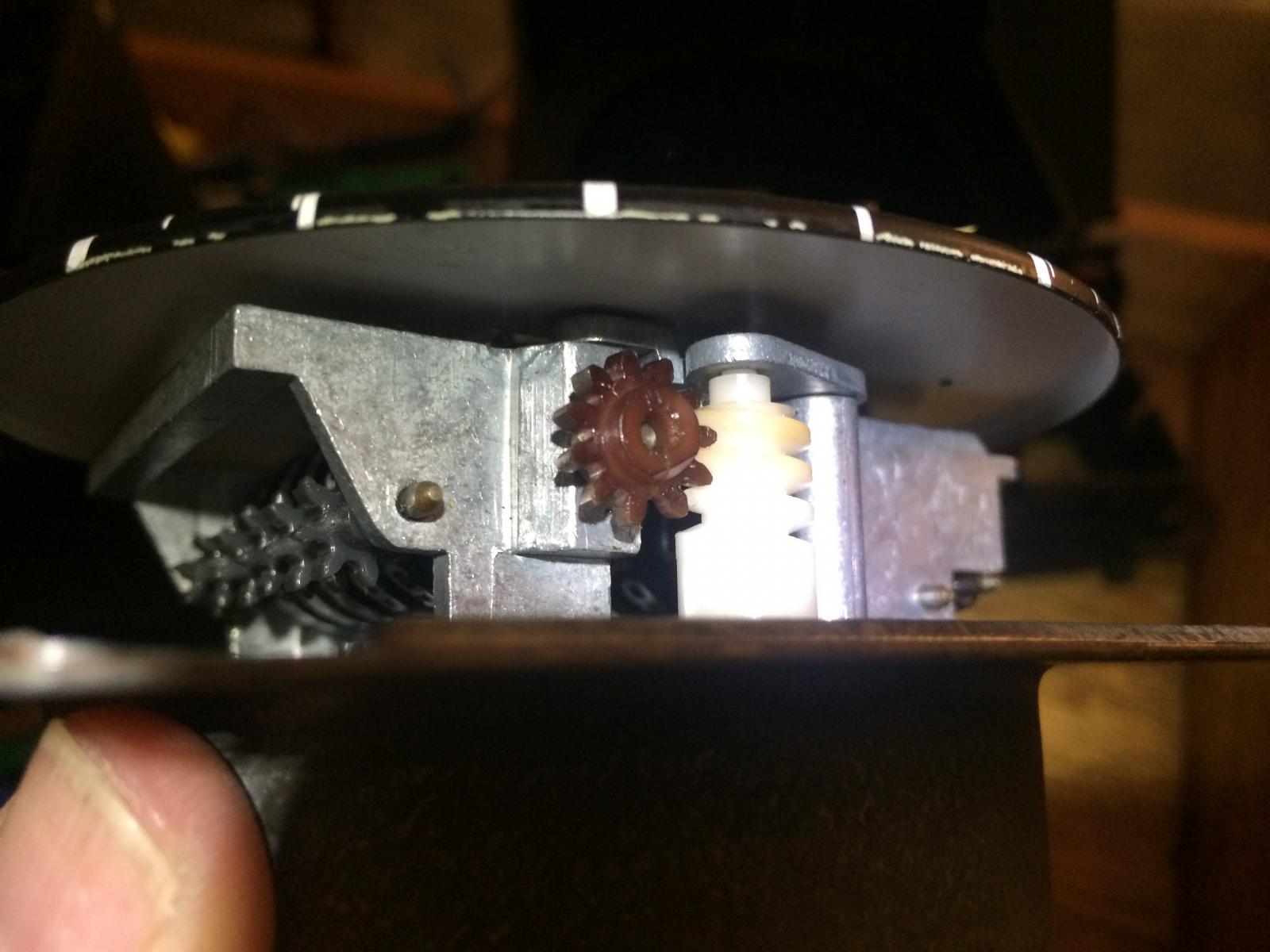

relevant pics of speedo I repaired

_________________
1981 Westy DIY 15º ABA
(VW Gas I4)

1988 Westy DIY 50º ABA

VE7TBN

rcook52459 · Posted: Mon Nov 02, 2015 2:53 pm Post subject:

my odometer started slowly down then stopped working about a month ago.thanks to this thread I took it apart and seen those gears were just jammed together and I fixed them(I did push it while moving).when I took it apart on the back of the speedo plate was 159,235 dec. 2001(now 238,943),so was fixed before.just thought it was interesting.thanks for the info from everybody
_________________
85 westy tiico conversion.auto trans triumph TR250 1980 Suzuki GS1000l

oldhuldy67 · Posted: Sat Nov 07, 2015 4:28 pm Post subject:

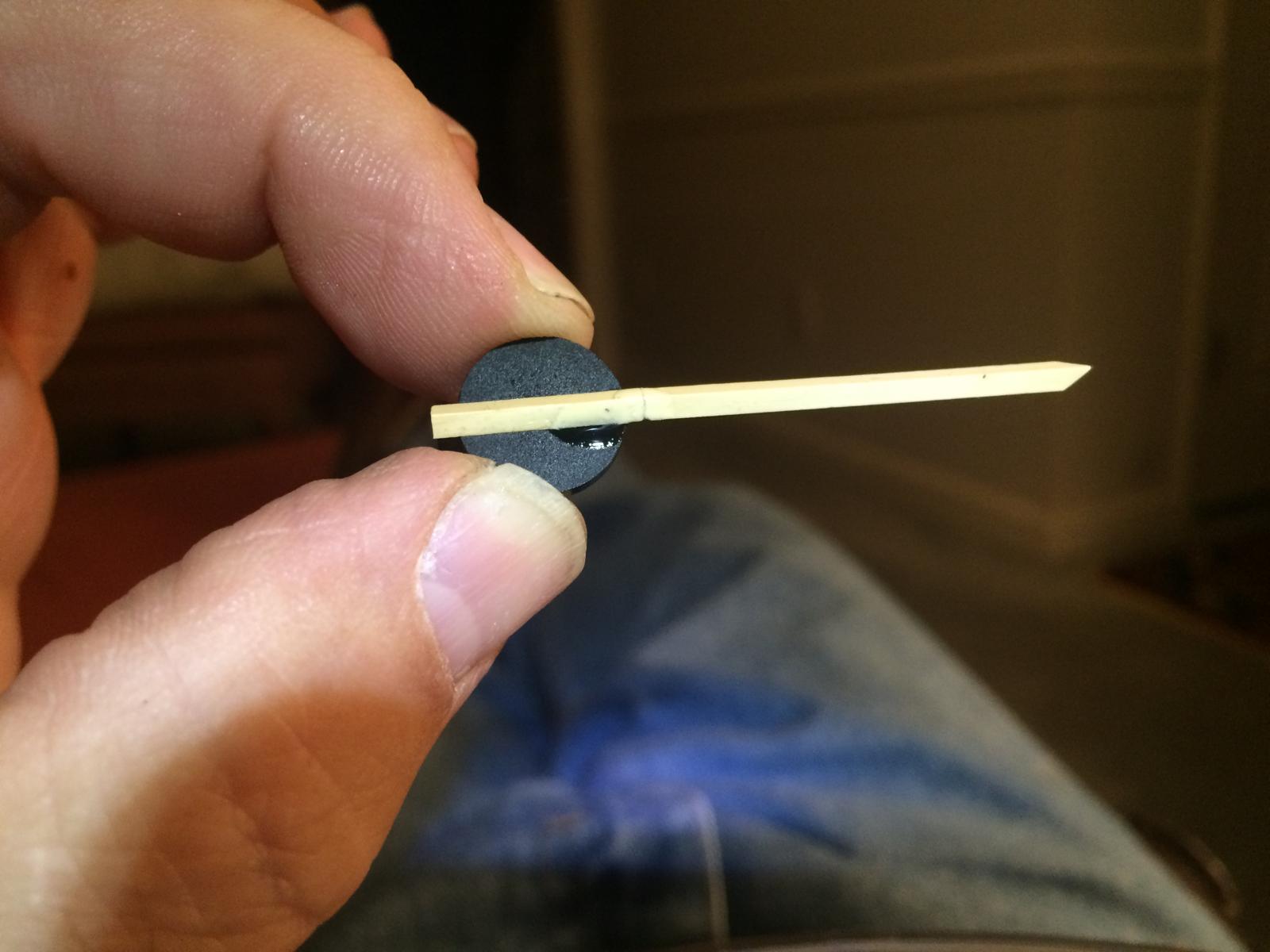

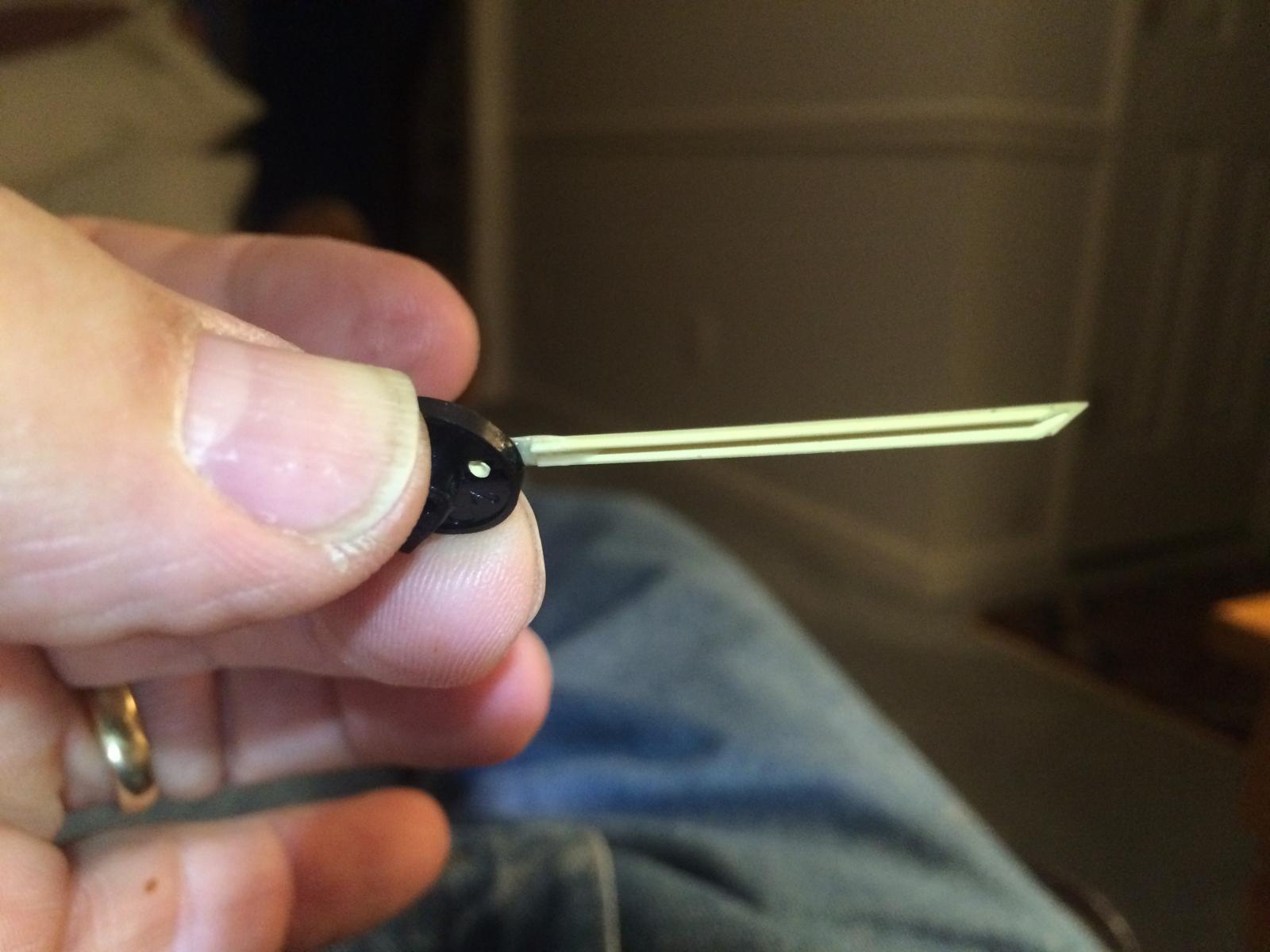

Thanks for the great photos and advice...but, I broke the needle anyway.
Superglue, deftly applied seems to be holding. I knurled the shaft with small wire snips and the little brown gear will be as hard to work itself off as the speedo needle was to get back on...without breaking again.
Now, for the road test..

_________________
Currently:1980 Westy Westfalia Poptop (a total stock-look rebuild with all my favorite camping mods)
1967 stock Sunroof Beetle
Formerly:
1978 Westy Campmobile, the"EM50 Urban Assault Vehicle" code named "The Pickle"
1973 Squareback (sold on a lark)
1973 Super Beetle (crashed..walked away without a scratch)
1972 Standard Beetle (lost in a relationship..)
1966 Beetle (the Black Beauty, my Dad's)
1964 Beetle (the Beige Bug, my beginning beater, also my Dad's) Thanks, Dad.
