 Posted: Sat Sep 10, 2011 7:36 am Post subject: new air filter |
 |
|
I removed the old one and need to plug some holes. What was the hole for? There is a hole on the new one. What is it for? Thanks.
|
|
| Back to top |
|
 |
Borgdog
Samba Member
Joined: April 09, 2010
Posts: 76
Location: Renton, WA
|
| Posted: Sat Sep 10, 2011 7:58 am Post subject: |
|
|

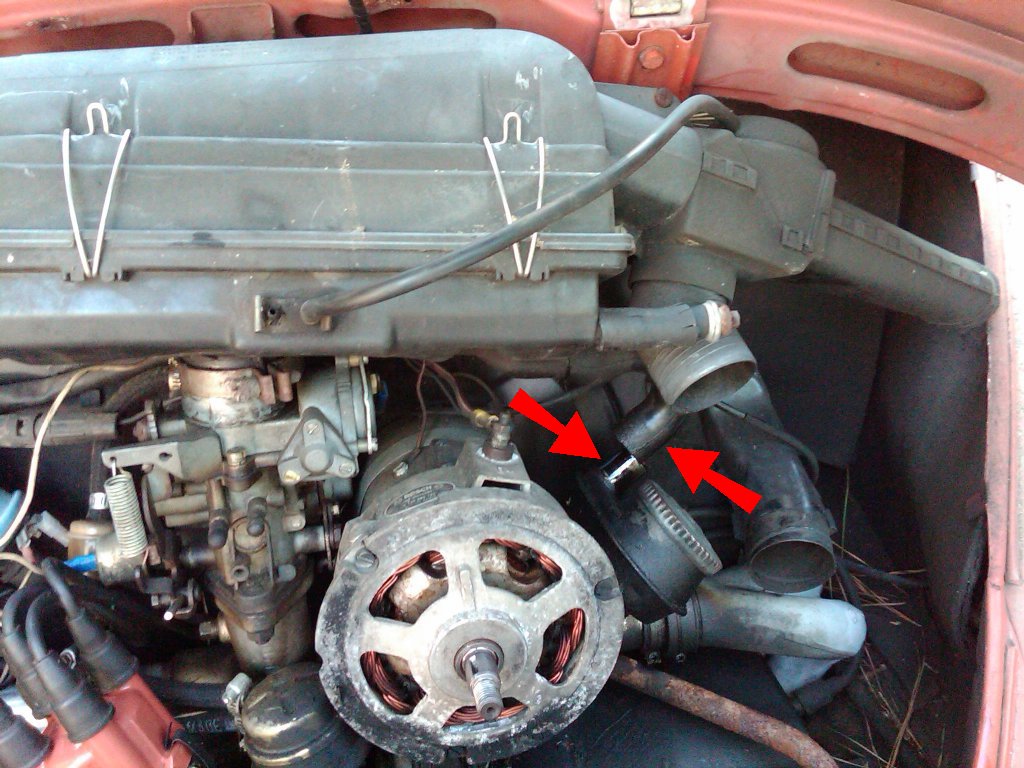

before the purists jump on and tell you to put the OE one back on, I'll give you the answer. That is for the vent next to the oil fill to hook to, same as should have been on the oe one. like below
_________________
-Dan
'71 Standard Bug project/daily driver
"Ye shall know the Bastard, and the Bastard will set you free."
Last edited by Borgdog on Sat Sep 10, 2011 8:04 am; edited 2 times in total |
|
| Back to top |
|
|
topofsteel
Samba Member
Joined: May 16, 2010
Posts: 100
|
| Posted: Sat Sep 10, 2011 8:03 am Post subject: |
|
|
| yea, that's where the old one went to, but what does it do? The hole on the new one is a lot smaller. Should I fit a hose to the same place as the old one? Thanks. |
|
| Back to top |
|
|
Borgdog
Samba Member
Joined: April 09, 2010
Posts: 76
Location: Renton, WA
|
| Posted: Sat Sep 10, 2011 8:05 am Post subject: |
|
|
yup, I just fit a hose, don't remember the size
_________________
-Dan
'71 Standard Bug project/daily driver
"Ye shall know the Bastard, and the Bastard will set you free." |
|
| Back to top |
|
|
Mudpump
Samba Member
Joined: May 11, 2007
Posts: 750
|
| Posted: Sat Sep 10, 2011 9:56 am Post subject: |
|
|
| Borgdog wrote: |
before the purists jump on and tell you to put the OE one back on, I'll give you the answer. That is for the vent next to the oil fill to hook to, same as should have been on the oe one. like below
|
Put the OE one back on
But nothing to do with purity-it's functionally a better air filter
. |
|
| Back to top |
|
|
vw_hank
Samba Member
Joined: February 07, 2001
Posts: 5371
Location: Everett WA
|
| Posted: Sat Sep 10, 2011 2:01 pm Post subject: |
|
|
I'll take the purity to the next level,, find A oil bath filter! 2nd pick would be to run A well oiled gauze filter, IE: K&N.. that little foam filter looks A lot better then it well ever work.
_________________
1302s sunroof..
1600cc motor. Glenn ring 010. full toplineparts.com suspension. factory front disk brakes. Tram type-3 rear brakes. Hurst shifter. empi-8's. low-back's. tons of mods! |
|
| Back to top |
|
|
gt1953
Samba Member
Joined: May 08, 2002
Posts: 13948
Location: White Mountains Arizona
|
| Posted: Sat Sep 10, 2011 2:47 pm Post subject: |
|
|
An oil bath filter does a superior job then the chromey one. The oil bath has a built in velocity stack also.
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.
72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold}) |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32989
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79790
Location: Sneaking up behind you
|
| Posted: Sat Sep 10, 2011 6:21 pm Post subject: |
|
|
Run the original filter... it will do a better job of taking the crap out of the air.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
CarlIseminger
Samba Member
Joined: May 12, 2008
Posts: 842
Location: Grand Forks, ND
|
| Posted: Mon Sep 12, 2011 12:09 pm Post subject: |
|
|
OK, the original PO asked what the hose was for. Not if he should or shouldn't run the chrome airfilter.
That hose sucked crankcase fumes and sent them to be burned. VW's first smog control device. |
|
| Back to top |
|
|
Shewster
Samba Member
Joined: February 26, 2011
Posts: 200
Location: Modesto, CA
|
| Posted: Mon Sep 12, 2011 1:15 pm Post subject: |
|
|

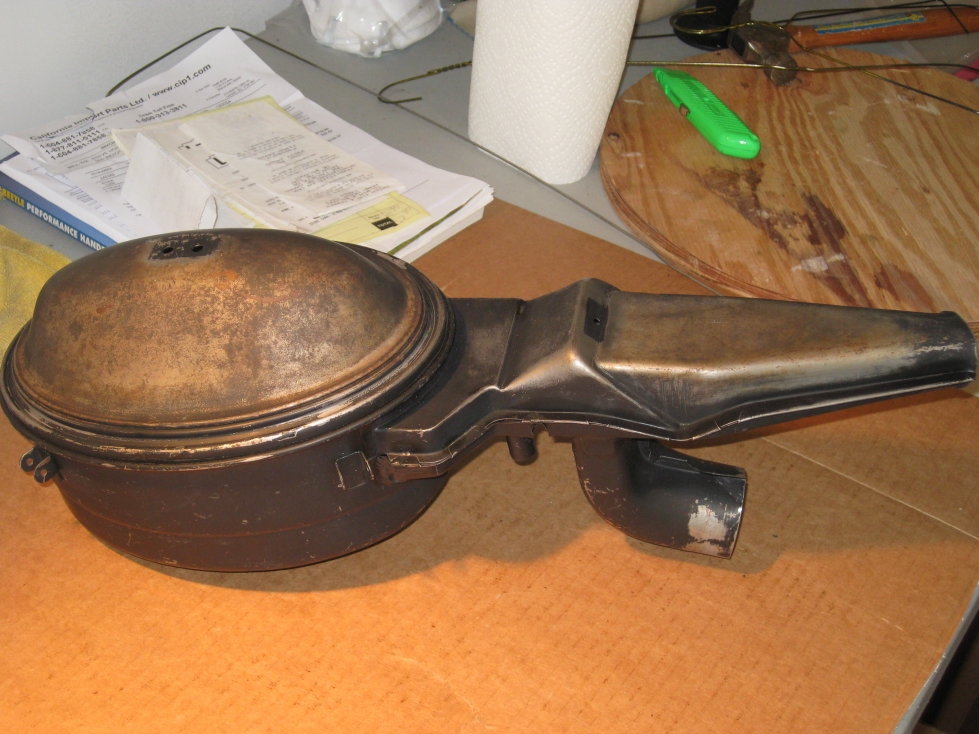

Now that the question has been answered, I will pile on the original oil bath train. In addition to the functionality, I find a certain elegance in the design. They are just sexy to me  . I just bought an oil bath (here) for under $25 and restored it.
From...
To...
_________________
'72 Bug, One-family car, 350k happy miles (ok, a few of those miles were not so happy) |
|
| Back to top |
|
|
thomas.
Samba Member
Joined: July 31, 2010
Posts: 1366
Location: South West (Pa.)
|
| Posted: Mon Sep 12, 2011 2:33 pm Post subject: |
|
|
| That came out real nice .A beaut. |
|
| Back to top |
|
|
vw_hank
Samba Member
Joined: February 07, 2001
Posts: 5371
Location: Everett WA
|
| Posted: Mon Sep 12, 2011 4:52 pm Post subject: |
|
|
| CarlIseminger wrote: |
OK, the original PO asked what the hose was for. Not if he should or shouldn't run the chrome airfilter.
That hose sucked crankcase fumes and sent them to be burned. VW's first smog control device. |
He got hes ancer,,, now its open season!!
_________________
1302s sunroof..
1600cc motor. Glenn ring 010. full toplineparts.com suspension. factory front disk brakes. Tram type-3 rear brakes. Hurst shifter. empi-8's. low-back's. tons of mods! |
|
| Back to top |
|
|
vw_hank
Samba Member
Joined: February 07, 2001
Posts: 5371
Location: Everett WA
|
| Posted: Mon Sep 12, 2011 4:58 pm Post subject: |
|
|
| Shewster wrote: |
Now that the question has been answered, I will pile on the original oil bath train. In addition to the functionality, I find a certain elegance in the design. They are just sexy to me . I just bought an oil bath (here) for under $25 and restored it.
From...
To...
|
Wow!! nice work  I'm with you, the oil bath just looks like it belongs on the VW motor, It's part of the 'ART' the one thing I hate about having Kadrons(no oil bath)
_________________
1302s sunroof..
1600cc motor. Glenn ring 010. full toplineparts.com suspension. factory front disk brakes. Tram type-3 rear brakes. Hurst shifter. empi-8's. low-back's. tons of mods! |
|
| Back to top |
|
|
DrDarby
Samba Member
Joined: May 12, 2004
Posts: 6543
Location: Northern Illinois
|
| Posted: Mon Sep 12, 2011 8:48 pm Post subject: |
|
|
I adapted 36hp oil bath air cleaners to the Kadrons. Works great and has a velocity stack.
_________________
Midwest Autosavers, Inc. Crystal Lake, IL |
|
| Back to top |
|
|
sxuxrxf
Samba Member
Joined: May 18, 2005
Posts: 1338
Location: Oceanside, CA
|
| Posted: Mon Sep 12, 2011 9:04 pm Post subject: |
|
|
| DrDarby wrote: |
| I adapted 36hp oil bath air cleaners to the Kadrons. Works great and has a velocity stack. |
Pictures???
_________________
(ignore the X's ) |
|
| Back to top |
|
|
Lingwendil
Samba Member
Joined: February 25, 2009
Posts: 3999
Location: Antioch, California, a block from the hood
|
|
| Back to top |
|
|
vw_hank
Samba Member
Joined: February 07, 2001
Posts: 5371
Location: Everett WA
|
| Posted: Tue Sep 13, 2011 12:37 am Post subject: |
|
|
| sxuxrxf wrote: |
| DrDarby wrote: |
| I adapted 36hp oil bath air cleaners to the Kadrons. Works great and has a velocity stack. |
Pictures??? |
X2!!!!!! Id love to see that..
| Lingwendil wrote: |
| I also would like to see pix, thats one of the things keeping me from duals is that i might have to ditch my oil bath obsession! |
Sorry I guess I'm X3 not 2
_________________
1302s sunroof..
1600cc motor. Glenn ring 010. full toplineparts.com suspension. factory front disk brakes. Tram type-3 rear brakes. Hurst shifter. empi-8's. low-back's. tons of mods! |
|
| Back to top |
|
|
DrDarby
Samba Member
Joined: May 12, 2004
Posts: 6543
Location: Northern Illinois
|
| Posted: Tue Sep 13, 2011 3:58 pm Post subject: |
|
|
Sorry, no pictures, the car and engine were seperated car is gone and engine is in Souix Falls.
_________________
Midwest Autosavers, Inc. Crystal Lake, IL |
|
| Back to top |
|
|
burdpete
Samba Member
Joined: October 24, 2007
Posts: 544
Location: Nebraska
|
| Posted: Tue Sep 13, 2011 6:33 pm Post subject: |
|
|
| DrDarby wrote: |
| I adapted 36hp oil bath air cleaners to the Kadrons. Works great and has a velocity stack. |
So how much power and or milage do you get with the "velocity stack"?
