 Posted: Sun Jan 26, 2014 9:05 pm Post subject: Opinion on painting engine parts |
 |
|
I am rebuilding my engine and painted the intake manifold, throttle body and alternator stand in black/brownich paint. It is a Rustoleum paint, i suposed to be BLACK but got a kind of brown color.
I weanted to know your opinion about the painted parts and the original aluminium color part.
Here are some pictures.
I got 2 alternator stands, one which is brand new and the old one wich i painted.
|
|
| Back to top |
|
 |
vwracerdave
Samba Member
Joined: November 11, 2004
Posts: 15603
Location: Deep in the 405
|
| Posted: Sun Jan 26, 2014 9:16 pm Post subject: |
|
|
Be sure the surface the Alt straps to is unpainted so is has a good strong electrical ground.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK |
|
| Back to top |
|
|
baja2000
Samba Member
Joined: June 07, 2011
Posts: 3
Location: WHITTIER
|
| Posted: Sun Jan 26, 2014 9:18 pm Post subject: |
|
|
| nice |
|
| Back to top |
|
|
SweetCars
Samba Member
Joined: July 23, 2009
Posts: 219
Location: Dominican Republic
|
| Posted: Sun Jan 26, 2014 9:25 pm Post subject: |
|
|
| Quote: |
| Be sure the surface the Alt straps to is unpainted so is has a good strong electrical ground. |
GOOD POINT! Didnt think about that. as well as the surface a bolt on the alt stand to case. |
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 9340
Location: Canada
|
| Posted: Sun Jan 26, 2014 10:34 pm Post subject: |
|
|
| vwracerdave wrote: |
| Be sure the surface the Alt straps to is unpainted so is has a good strong electrical ground. |
Make sure the saddle of the stand is unpainted as well as the alternator body where it sits in the saddle. I've always painted my straps but left these areas clean.
brad |
|
| Back to top |
|
|
Danwvw
Samba Member
Joined: July 31, 2012
Posts: 8895
Location: Oregon Coast
|
| Posted: Sun Jan 26, 2014 10:56 pm Post subject: |
|
|
There is certainly no shame in a nice un-painted VW engine as far as the Magnesium goes! But the Iron does need to be painted so it won't rust. Cylinders and Pushrod tubes, Flywheel and clutch too. Gray does not look to bad on the alternator. Clear coat is what I would use on the Magnesium if anything at all.
_________________
1960 Beetle And 1679cc DP W-100 & Dual Zeniths! |
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 9340
Location: Canada
|
| Posted: Mon Jan 27, 2014 7:03 am Post subject: |
|
|
I paint all my steel parts to stop rust and I've painted most of the bolt on aluminum bits on my Bonneville engine to stop corrosion. That $#!^ is corrosive as hell. I've always painted mag cases as I think they look like hell even when clean. Never seen any difference in heat painted or raw.
brad |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80276
Location: Sneaking up behind you
|
| Posted: Mon Jan 27, 2014 7:21 am Post subject: |
|
|
| Danwvw wrote: |
| Pushrod tubes, |

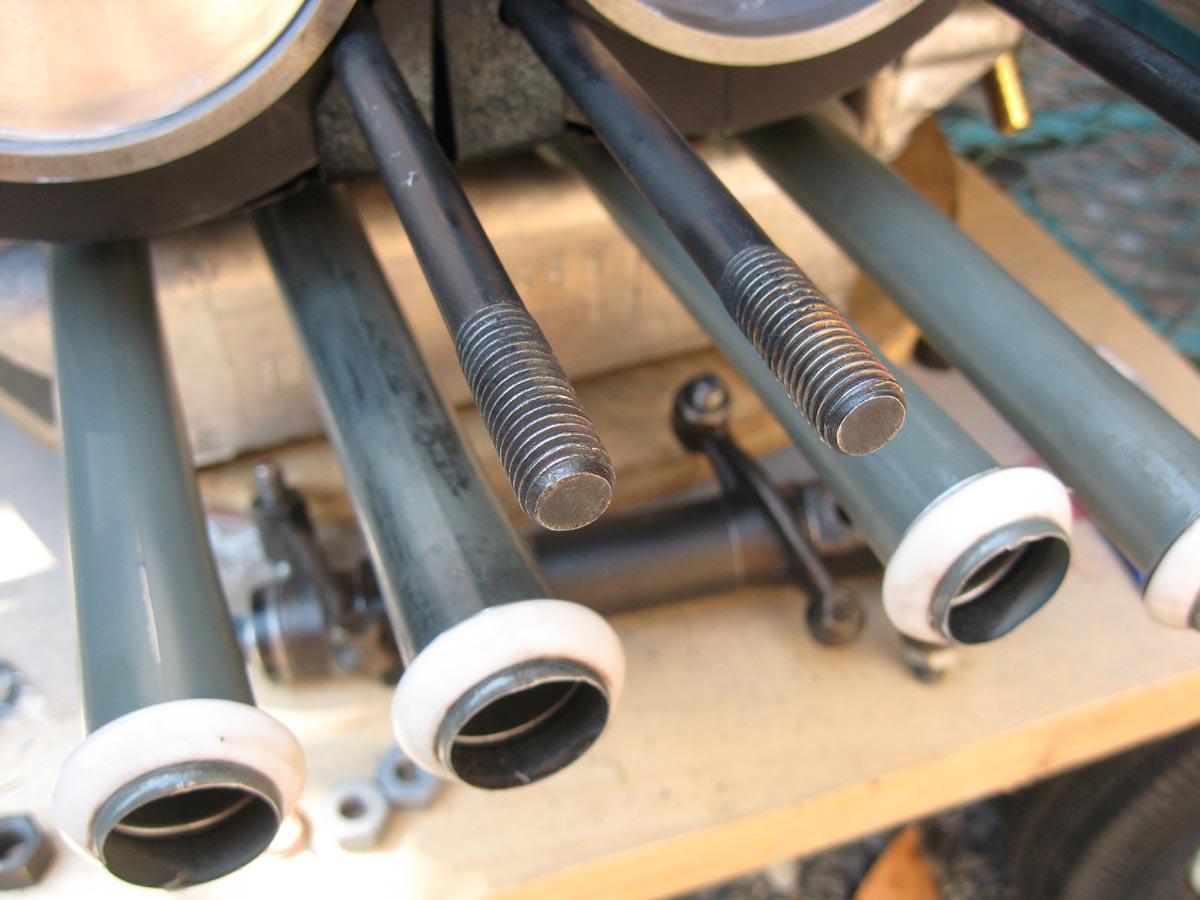

Stainless steel push rod tubes don't rust.

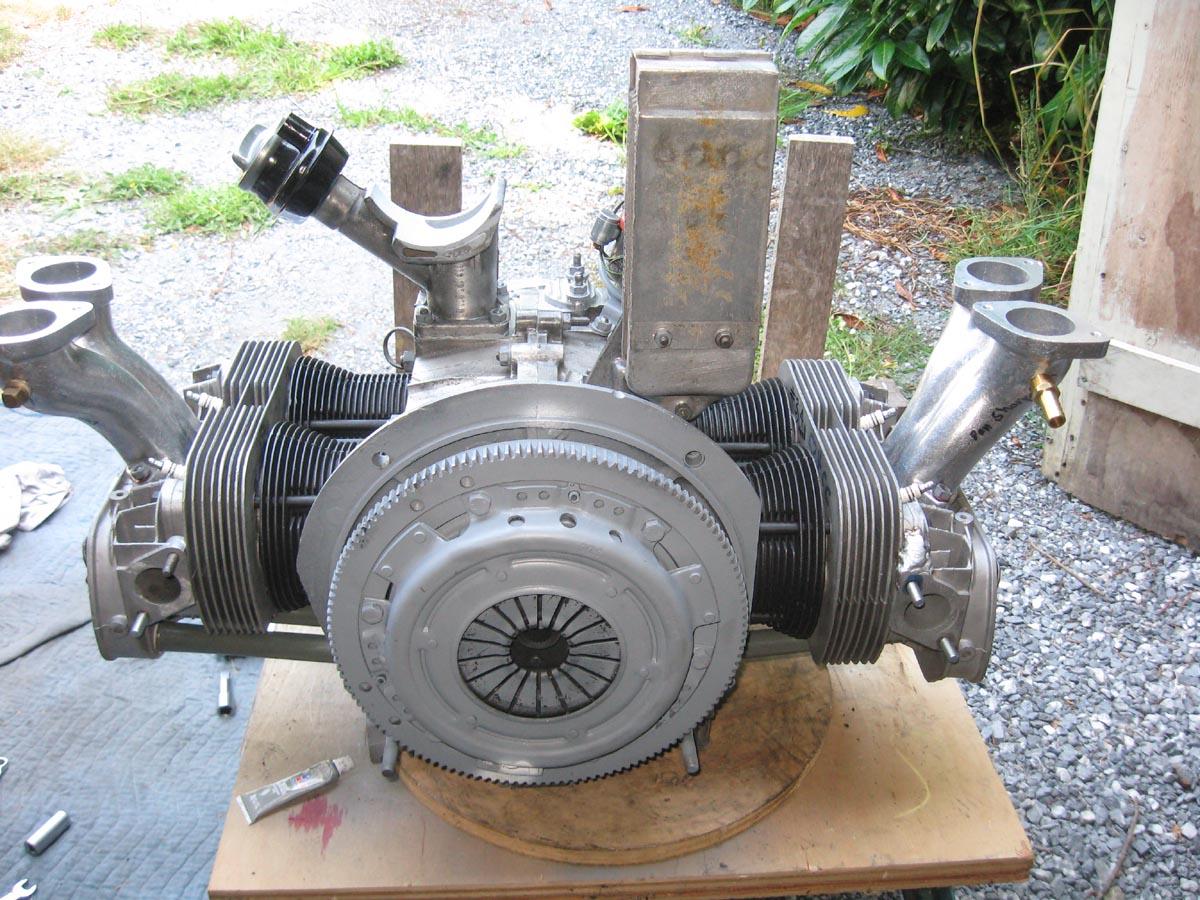

These have 25,000 miles on them.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Danwvw
Samba Member
Joined: July 31, 2012
Posts: 8895
Location: Oregon Coast
|
| Posted: Mon Jan 27, 2014 11:50 am Post subject: |
|
|
Yes if you spring for the extra $ for the stainless push rod tubes, don't paint them as they would handle heat exchange better un-painted. It's hard to say which is going to be hotter though: The air off the heads or the oil off the heads in the push rod tubes. (Probably the Oil) at least when the outside air temp is cool and the engine is hot.
_________________
1960 Beetle And 1679cc DP W-100 & Dual Zeniths! |
|
