 Posted: Sun Dec 26, 2021 3:12 pm Post subject: 1967 ignition removal |
 |
|
I’ve gotten as far as pulling the mechanical key switch out but the electrical switch does want to slide out. Maybe only moves a 1/2 inch. Do I need to unsolder the thee wires first?
|
|
| Back to top |
|
 |
Porschedave
Samba Member
Joined: July 01, 2004
Posts: 461
Location: Vancouver, Canada
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71500
Location: Phoenix 602
|
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4507
Location: Illinois
|
| Posted: Mon Dec 27, 2021 8:54 am Post subject: Re: 1967 ignition removal |
|
|
| I normally remove the entire column before removing the switch. It's easier to install/remove parts and see what I'm doing. |
|
| Back to top |
|
|
Greaser2
Samba Member
Joined: June 03, 2021
Posts: 34
Location: Houston
|
| Posted: Sun Jan 02, 2022 3:17 pm Post subject: Re: 1967 ignition removal |
|
|
Still can’t seem the get the switch to slide out, only goes about a 1/2 inch and stops. Feels like it’s hitting metal??
|
|
| Back to top |
|
|
Greaser2
Samba Member
Joined: June 03, 2021
Posts: 34
Location: Houston
|
| Posted: Sun Jan 02, 2022 3:36 pm Post subject: Re: 1967 ignition removal |
|
|
| Well, I put the mechanical key switch back in and turned it a bit and it’s sliding more finally. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71500
Location: Phoenix 602
|
| Posted: Sun Jan 02, 2022 10:50 pm Post subject: Re: 1967 ignition removal |
|
|

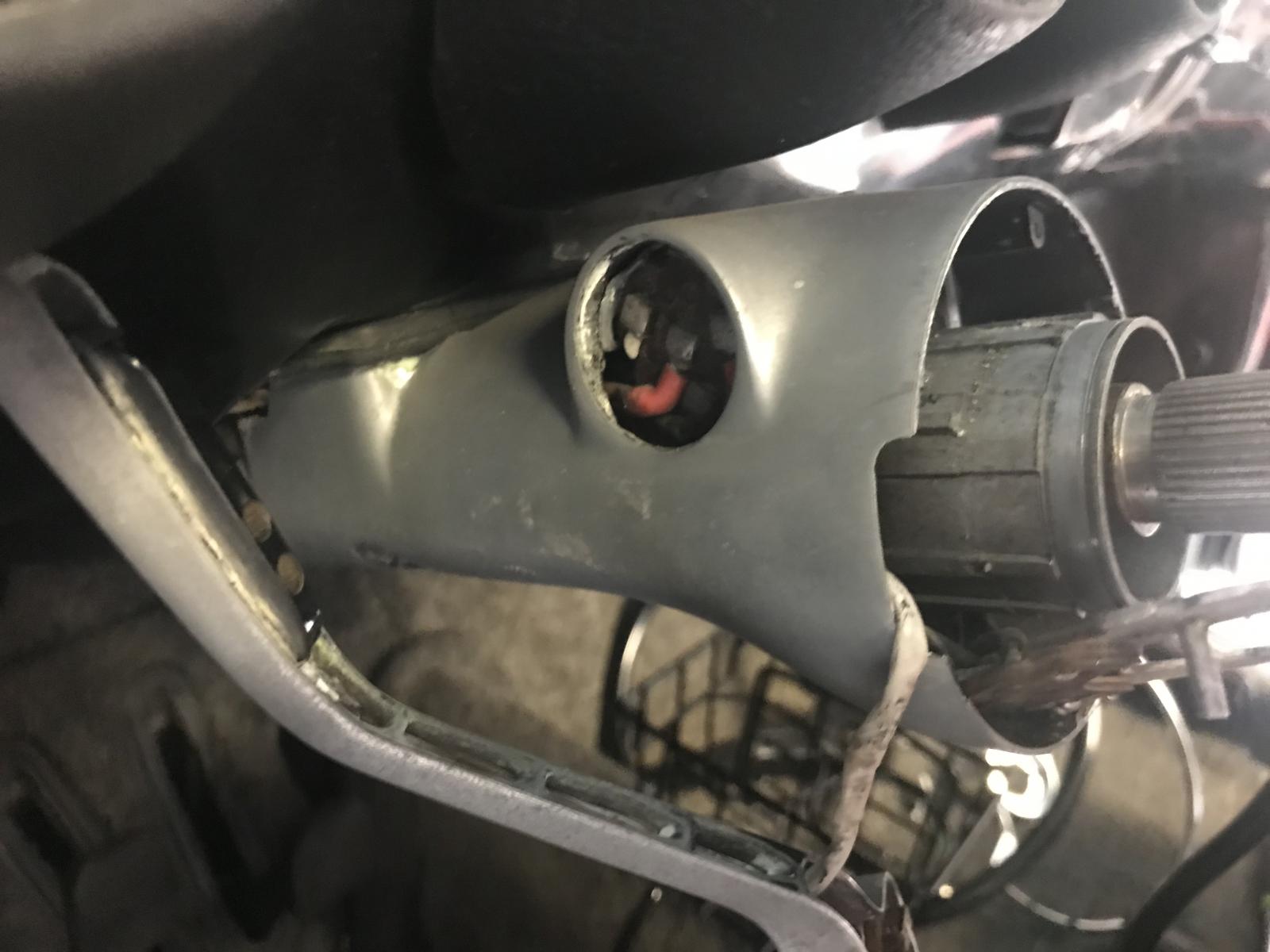

Maybe the lock tab was sticking out?
You can see it at the top here sticking out:
I usually remove the ignition with the key in it as something to grab with my hand but also so the key is turned and not in the fully locked position where the lock tab pops out
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Greaser2
Samba Member
Joined: June 03, 2021
Posts: 34
Location: Houston
|
| Posted: Mon Jan 03, 2022 1:45 pm Post subject: Re: 1967 ignition removal |
|
|
| Exactly the issue |
|
| Back to top |
|
|
57dbldoorpanel
Samba Member
Joined: February 11, 2004
Posts: 115
Location: Yuma, AZ
|
| Posted: Tue Oct 22, 2024 2:18 pm Post subject: Re: 1967 ignition removal |
|
|
Can the switch be removed with the lock tab in the locked position? Keys were lost and trying to get the numbers to re key.
_________________
1960 L346 L347 Standard |
|
| Back to top |
|
|
rustyfastback
Samba Member
Joined: July 31, 2002
Posts: 841
Location: Georgia
|
| Posted: Tue Oct 22, 2024 3:59 pm Post subject: Re: 1967 ignition removal |
|
|
A true ‘67 switch will have a “K” code tumbler that is removable. See the slot press the spring to remove the key part. Some photos where the key goes I would be able to tell. I have a lot of photos of those early switches in my gallery. See photo.
|
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22659
Location: Escondido CA
|
| Posted: Wed Oct 23, 2024 1:55 pm Post subject: Re: 1967 ignition removal |
|
|
That happened to me on my 63 notch. I took the whole column off and sent it to Gabriel to put a new key in the original ignition.
