 Posted: Wed Dec 20, 2017 10:43 am Post subject: need a picture |
 |
|
anybody have a photo of underneath their type 3? I need to see what the seam between the bottom of the door threshold and the pan itself. Should there be a gap there where you can see the heater channels?
Just wondering before I do anything stupid
_________________
John
65 square 1500S (weezer) sold but always on my mind
60 beetle (Ned)
Quoting John Muir -- Open the rear boot. Get out the stool and sit down. Contemplate the air-cooled beauty before you. - How to Keep Your Volkswagen Alive -- Step-By-Step Procedures for the Compleat Idiot |
|
| Back to top |
|
 |
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4507
Location: Illinois
|
| Posted: Wed Dec 20, 2017 12:56 pm Post subject: Re: need a picture |
|
|
This is under the passenger's side of my 64 S:
|
|
| Back to top |
|
|
6T5 square
Samba Member
Joined: September 15, 2005
Posts: 1103
Location: Dover, DE
|
| Posted: Wed Dec 20, 2017 2:30 pm Post subject: Re: need a picture |
|
|
Thanks but I'm looking for more of a direct shot from under the car.

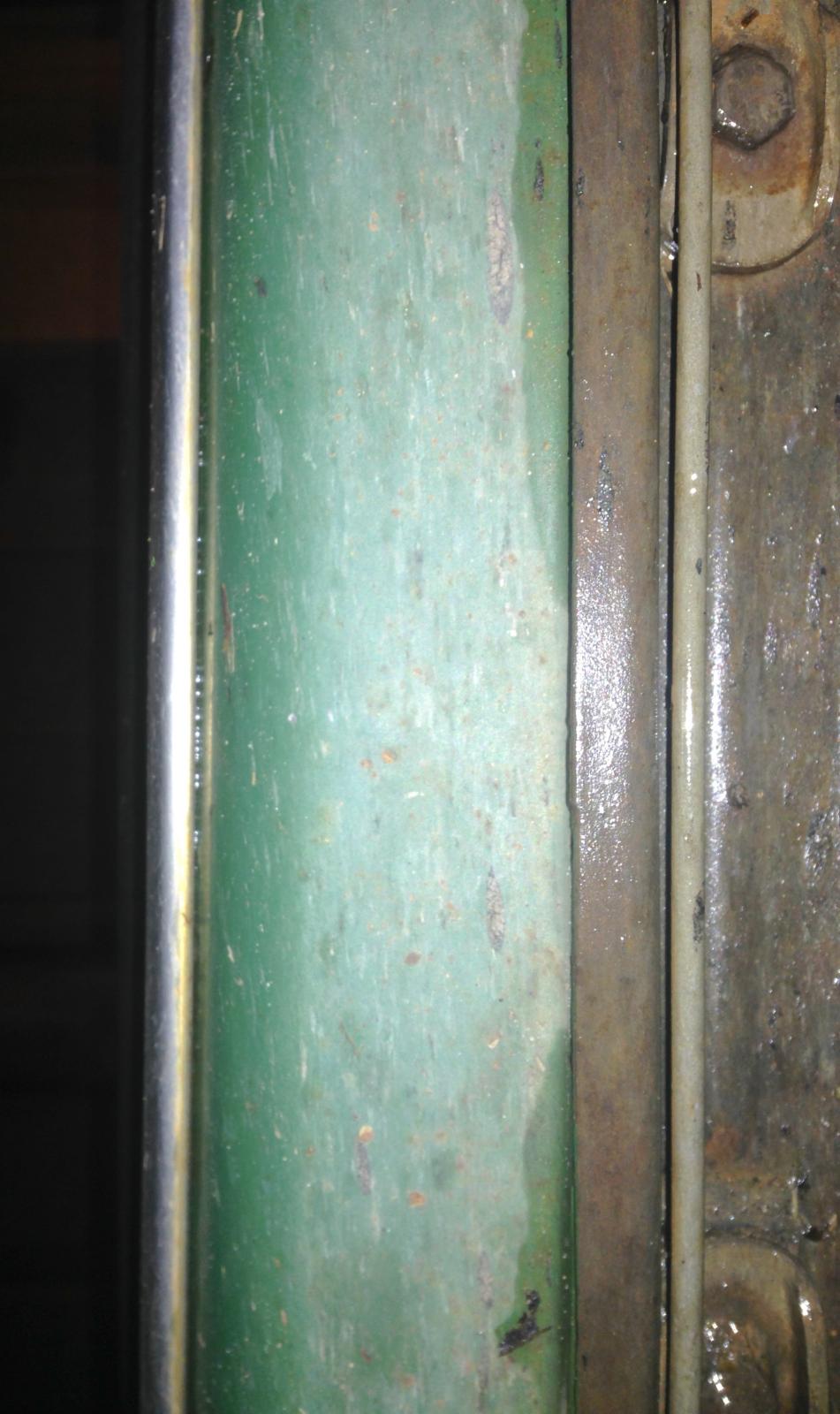

This is a photo directly beneath my door sill (threshold). There is a half inch gap between the painted door sill and the floor pan shoulder. I'm wondering if this should be open like this or is it a faulty sill repair.
_________________
John
65 square 1500S (weezer) sold but always on my mind
60 beetle (Ned)
Quoting John Muir -- Open the rear boot. Get out the stool and sit down. Contemplate the air-cooled beauty before you. - How to Keep Your Volkswagen Alive -- Step-By-Step Procedures for the Compleat Idiot |
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4507
Location: Illinois
|
| Posted: Wed Dec 20, 2017 3:12 pm Post subject: Re: need a picture |
|
|
The rocker/heater channel is multiple layers of sheet metal. That does not look like a good repair, IMO.

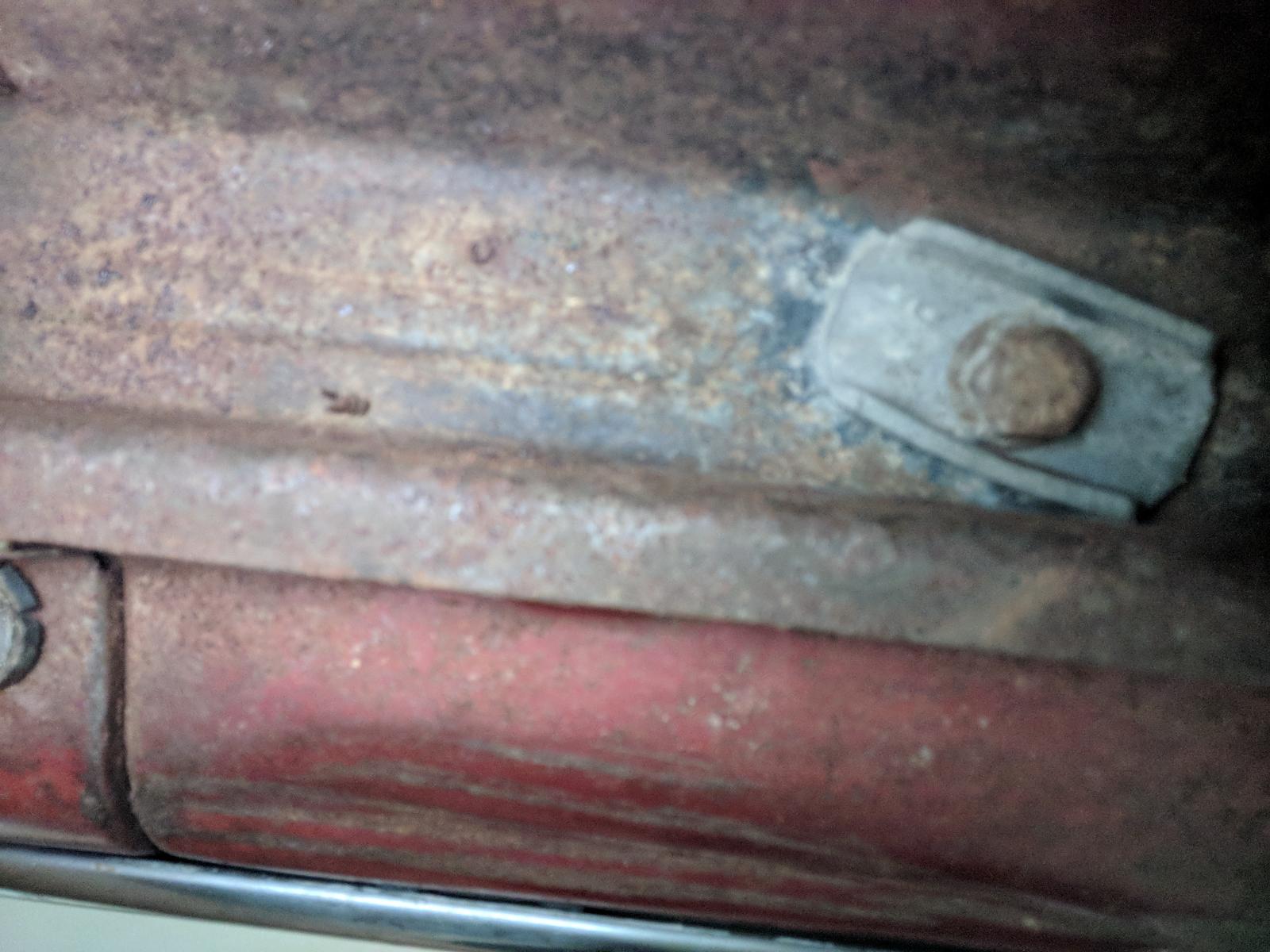

I couldn't get a clear shot of the underside of my car but here's what I got:
|
|
| Back to top |
|
|
Donnie strickland
Samba Member
Joined: December 21, 2009
Posts: 2403
Location: Moody, AL
|
| Posted: Wed Dec 20, 2017 3:53 pm Post subject: Re: need a picture |
|
|
Here's mine, passenger side:
And driver's side (the tubing is for the evap canister):
_________________
71 Elm Green FI A/T Squareback |
|
| Back to top |
|
|
6T5 square
Samba Member
Joined: September 15, 2005
Posts: 1103
Location: Dover, DE
|
| Posted: Wed Dec 20, 2017 4:49 pm Post subject: Re: need a picture |
|
|
Thanks guys- I think my question has been answered-crappy repair
