Setting EDIS 36-1 wheel

[bug_n_67]

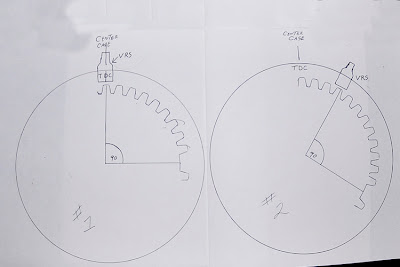

Ok I'm looking at mounting my 36-1 wheel and just want to make sure I have the right idea when I do it. From what I've read with the pulley at TDC and if I mount the VRS right at the case line it should look like the first picture on the left and or as the picture on the right shows still with the pulley at TDC but I move the VRS 30deg the 36-1 wheel will move 30deg as well. As long as the VRS and the missing tooth are at 90deg, is that right.

[modok]

yep, that's right

[bug_n_67]

Good.

Thanks

[Dale M.]

Good "live" graphic here....

http://www.autosportlabs.net/Ford_EDIS_technical_information

Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...

[Mr. Unpopular]

From my understanding, you don't HAVE to have the -1 90 degrees from the sensor, you set it up in the megasquirt software. If you don't have it at 90 degrees, you lose the EDIS limp home function. Can anyone verify this?
_________________
"In any racing engine, the nearer you are to it disintegrating, the better it's performance will be"
-Keith Duckworth, creator of the Ford/Cosworth DFV

[miniman82]

If you uses the EDIS module, you must have the 90* trigger angle or the module will fire at the wrong advance and limp home mode will be off by the same amount. If you are running sans EDIS module and MS is direct firing, you can put in whatever trigger angle you want.
