PostPosted: Mon Nov 28, 2011 7:25 pm    Post subject: My H6 Install (EZ30) Reply with quote

Well, I made the leap to change out my EJ25 to something with a little more torque, my primary reasoning was mainly the updated engine and the added power and smoothness of the H6 was a huge benifit to me.

I purchased a "kit" from h6t3.com and took the plunge.

first step was preping the motor,

Image may have been reduced in size. Click image to view fullscreen.



Lookie, no timing belt...

Image may have been reduced in size. Click image to view fullscreen.


Prepin the covers with epoxy paint,

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

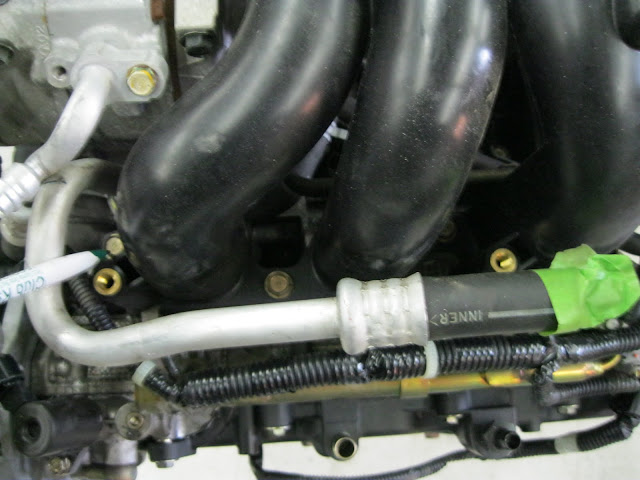

I needed to take the intake off in order to pull the engine wiring harness off, you'll find out that with most of the wiring harnesses you find that those big grey plugs that connect the engine to the firewall off factory cars are pretty hard to find, so I opted to use a one piece harness from each sensor all the way to the ECU

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Keep track of all the hoses!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Clean intake system eh?
Image may have been reduced in size. Click image to view fullscreen.

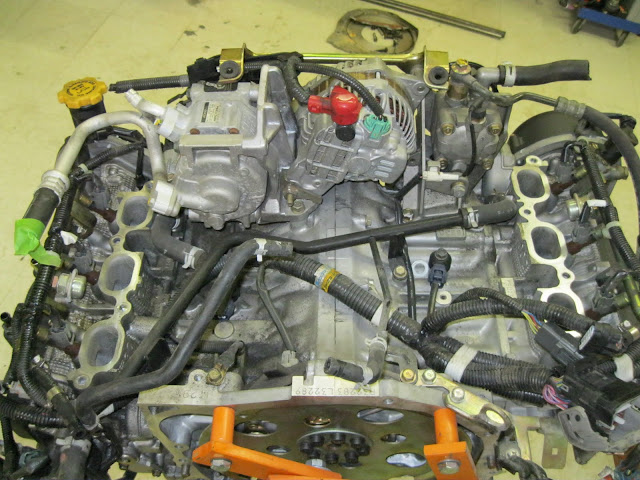

Good grief, look at this wiring harness mess....have I mentioned yet that I am a wiring retard? Wink

Image may have been reduced in size. Click image to view fullscreen.


This is the tee you need to put in for the heater core return line for the old hose on the drivers side
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


These puppies come out, the crossover pipe that goes across the the front (below the pulley) gets moved to the rear and nests along the engine mount, don't worry I didn't use this hammer...


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Two supplied plugs come in the kit, I used some JB weld and it worked pretty well.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Using the supplied thermostat adapter you get some threaded barbs and this allows you a little more room to move the coolant hoses to the rear, I made hard lines rather than using the suggested rubber heater hose.
[img]https://lh4.googleusercontent.com/-gQRciI9kF5U/TtQx5qJhI2I/AAAAAAAAAG8/ajguagKkimY/s640/IMG_0228.JPG][/img]


Intake is now bolted back on, this is the bolt hole where you'll bolt on the wire-to-cable throttle setup that is ran off the link ecu,

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


This port you'll need to figure out how to vent, I used a universal breather filter and it works great, it all depends on what air filter you use...I used a K&N filter so my options where limited.
Image may have been reduced in size. Click image to view fullscreen.


Okay, the kit also comes with a vanagon temp sending unit so breakout the 10x1.0 tap
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

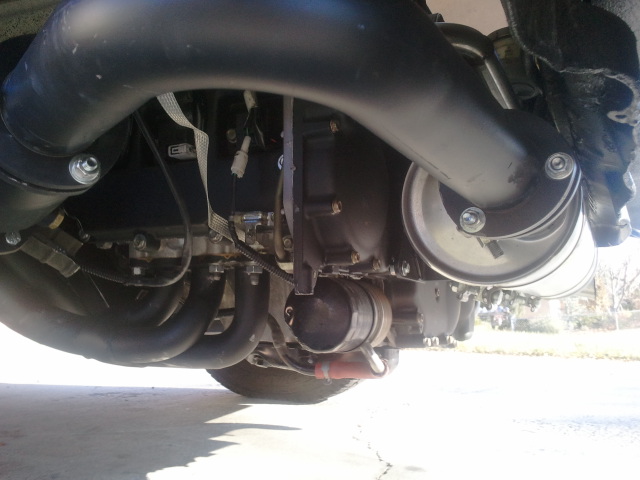

These are the nifty exhaust mounts, you'll need to remove 4 of the bolts from the t-chain cover
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

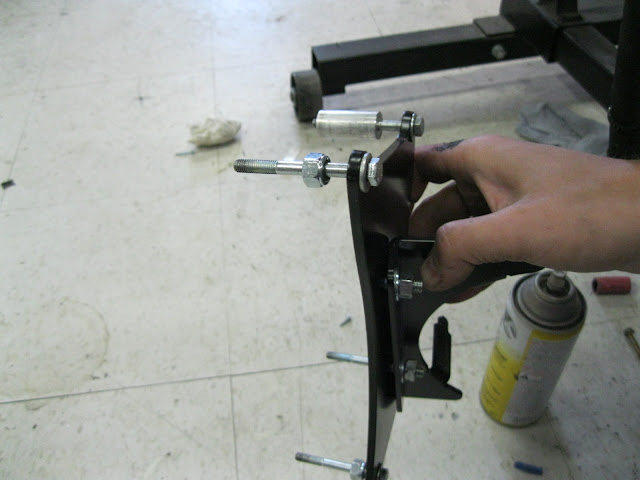

I used a KEP adapter plate, here you can also see the engine mount
Image may have been reduced in size. Click image to view fullscreen.


I skipped a few steps, you'll need to drill your own holes to mount the new engine mount, but thats easy stuff...I wanted to document what I thought would be the hard stuff...

Here is the fuel pressure regulator,
Image may have been reduced in size. Click image to view fullscreen.


You will also need to buy a wideband o2 sensor and gauge (LC1) the link ecu is designed to work with the LC1 so no getting around this...
I bought mine off amazon for about $180 bucks

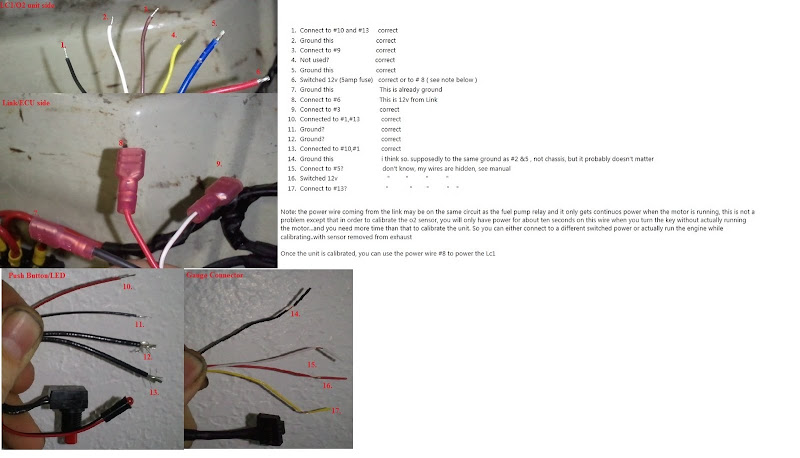

Here is the wiring setup I used for the LC1 to the link,

Image may have been reduced in size. Click image to view fullscreen.


Here is a wiring diagram for the throttle body to the link,

Image may have been reduced in size. Click image to view fullscreen.


Here's the alt wiring,
Image may have been reduced in size. Click image to view fullscreen.


Here is where I mounted the link, looooooots of wires eh?

Image may have been reduced in size. Click image to view fullscreen.


I decided I'd put the ecu in this location due to it being the spot where I plan on putting the rest of my electronics.

I have more pictures once I find my memory card, Its all finished now and I’ve put about 190 miles on it....I must say going from the 2.5 to the 3.0 was quite a surprise to me, the 2.5 was smooth compared to my wbx but this is miles above either and I have a nice power band in 3rd and 4th gear.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Mon Nov 28, 2011 7:40 pm    Post subject: Reply with quote

Oh I should add that I did this in 9 days, would have been a little quicker, but with watching a 3 year old at the same time I couldn't focus as much.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
connorsvw2
Samba Member


Joined: August 16, 2008
Posts: 286
Location: Denver, CO
connorsvw2 is offline

PostPosted: Mon Nov 28, 2011 7:48 pm    Post subject: Reply with quote

Nice post-I'd love to have one of those 3.0s in my van!

Can the coolant plugs be replaced with threaded NPT plugs and the alloy body tapped? I'm sure the JB Weld will work fine (love the stuff!) but I'd personally like the assurance of a tapped fitting "just in case".
_________________
'85 Westy Wolfsburg camper/2002 2.5 Subaru since 2003.
'85 GTI 1.8L 8v-awaiting 9A 2.0L 16v transplant-currently being rebuilt
'99 Passat 1.8T Variant-AKA "The Money Pit"
'09 Subaru Outback XT 5-speed, 245 hp rocket (wife's car)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Mon Nov 28, 2011 7:51 pm    Post subject: Reply with quote

connorsvw2 wrote:
Nice post-I'd love to have one of those 3.0s in my van!

Can the coolant plugs be replaced with threaded NPT plugs and the alloy body tapped? I'm sure the JB Weld will work fine (love the stuff!) but I'd personally like the assurance of a tapped fitting "just in case".


Not enough room there to turn the threads. , I was paranoid about this too. If it ever leaks i'll TIG it in place
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nelinor
Samba Member


Joined: March 21, 2008
Posts: 95
Location: Ventura County / SoCal
nelinor is offline

PostPosted: Mon Nov 28, 2011 8:00 pm    Post subject: Reply with quote

I'm jealous.
_________________
1983.5 VW Vanagon Westfalia - manual - EJ22
2002 Subaru Impreza Wrx
1990 Nissan 300zx tt
Back to top
View user's profile Send private message Facebook Twitter Classifieds Feedback
Alaric.H
Samba Member


Joined: March 28, 2009
Posts: 2529
Location: Sandy Springs GA
Alaric.H is offline

PostPosted: Mon Nov 28, 2011 8:12 pm    Post subject: Reply with quote

purplepeopleeater wrote:
connorsvw2 wrote:
Nice post-I'd love to have one of those 3.0s in my van!

Can the coolant plugs be replaced with threaded NPT plugs and the alloy body tapped? I'm sure the JB Weld will work fine (love the stuff!) but I'd personally like the assurance of a tapped fitting "just in case".


Not enough room there to turn the threads. , I was paranoid about this too. If it ever leaks i'll TIG it in place
I guess the older 3.0 go a little deeper.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Mon Nov 28, 2011 8:16 pm    Post subject: Reply with quote

Alaric.H wrote:
purplepeopleeater wrote:
connorsvw2 wrote:
Nice post-I'd love to have one of those 3.0s in my van!

Can the coolant plugs be replaced with threaded NPT plugs and the alloy body tapped? I'm sure the JB Weld will work fine (love the stuff!) but I'd personally like the assurance of a tapped fitting "just in case".


Not enough room there to turn the threads. , I was paranoid about this too. If it ever leaks i'll TIG it in place
I guess the older 3.0 go a little deeper.

Image may have been reduced in size. Click image to view fullscreen.


wow, there is a a slight change.

did you use stright barbs?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Alaric.H
Samba Member


Joined: March 28, 2009
Posts: 2529
Location: Sandy Springs GA
Alaric.H is offline

PostPosted: Mon Nov 28, 2011 8:20 pm    Post subject: Reply with quote

Tapered NPT threads and a little teflon tape.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 11760
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Tue Nov 29, 2011 7:48 am    Post subject: Reply with quote

*Fixed link so I could see pic
Quote:
Using the supplied thermostat adapter you get some threaded barbs and this allows you a little more room to move the coolant hoses to the rear, I made hard lines rather than using the suggested rubber heater hose.
Image may have been reduced in size. Click image to view fullscreen.

_________________
2019 Empire State VW camping events


May 17/18 Chenango Valley SP (Pine Bluff loop) Sites 194-207
June 7/8 Grass Point state park (waters edge sites)
July 27/28 Sacandaga Campsite near Wells, NY DEC on the River. Sites# (61-70 between the rivers)
August 22/23/24 Westcott beach state park. (sites nearest the lake loop)
Sept 20/21 Moffitt beach DEC at Speculator, NY (sites 238-248 down on the end)
Oct 11/12 FAIRHAVEN State park for Fall sunsets over lake Ontario. Lakeview loop.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 3543
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Tue Nov 29, 2011 10:08 am    Post subject: Reply with quote

Very nice pictures and write up Cool

I didn't know this H6TL link,thank you Wink
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Farfrumwork
Samba Member


Joined: October 10, 2008
Posts: 692
Location: Mile High
Farfrumwork is offline

PostPosted: Tue Nov 29, 2011 10:51 am    Post subject: Reply with quote

WOW
Nice work peopleeater.

Great photos and detail.

I've driven a EG33 powered syncro, which was very smooth and torquey, but I bet the more modern 3.0l is even more so.

-Chad
_________________
sold Sad -> '85 Wolfsburg Syncro / 'Built' DOHC EJ25 (a great machine!)
'07 Legacy spec.B, road tuned stgII
'17 4x4 Sprinter, stone grey, SMB pop-top, on 33"s

"Blood stains, speed kills - Fast cars, cheap thrills - Rich girls, fine wine - I've lost my sense, I've lost control, I've lost my mind"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scobax
Samba Member


Joined: July 27, 2007
Posts: 236
Location: Bend, Oregon
scobax is offline

PostPosted: Tue Nov 29, 2011 11:20 am    Post subject: Reply with quote

Thanks for your extremely thorough write-up, Purplepeopleeater! This is exactly the sort of thing that makes this public forum such a valuable asset to the greater Vanagon enthusiast community. It's all about an exchange of ideas, open source Vanagon hacking, if you will.

I have had a line on a half a dozen of these engines/harnesses, etc. for more than a year, but I was hesitant to move on one due to the lack of a comprehensive build thread. You deserve a big THANK YOU for taking the time to put together such a clear and comprehensive thread.

Can't wait to see the rest of your pics!
_________________
87 Syncro Westy w/ Suby 2.5
RIP: 2.1 WBX. You were a good dog 'ol feller

“The word adventure has gotten overused. For me, when everything goes wrong, that's when adventure starts” -Yvon Chouinard

"It's not expensive, its priceless" -Unknown
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrogreg
Samba Member


Joined: November 08, 2009
Posts: 676
Location: USA (Nashville TN)
syncrogreg is offline

PostPosted: Tue Nov 29, 2011 12:31 pm    Post subject: Reply with quote

Hi,

Good job! it's not easy to deal with all the mess the factory engine has.

Why do you relocate the water fittings? they are located before the thermostat to give you hot air in cold morning within a minute. The spacer that has the new fitting is located in the cold water side or the warm water erea? I don't get the point yet.

Thanks

GSB
_________________
conversions:
www.boxeer.com


travel pictures:
http://instagram.com/crepeattack/

- the Pastis build: http://www.thesamba.com/vw/forum/viewtopic.php?t=434656&highlight=subaru+diesel
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
stl_stadtroller
Samba Member


Joined: June 22, 2009
Posts: 305
Location: St. Louis
stl_stadtroller is offline

PostPosted: Tue Nov 29, 2011 1:01 pm    Post subject: Reply with quote

Awesome! Thanks for the write-up. I just purchased the same kit but for the earlier EZ30D (non drive-by-wire) engine and will be doing this conversion over the winter.

Very nice to see what I'll be in for in a few months. Currently I'm still in the tear-down phase. So far only posting to our local forum:
http://www.aircooledmissouri.com/Forums/viewtopic.php?f=21&t=5145
_________________
Brian W
St. Louis, MO
'64 SO-33 Hatch Top Westy | '73 Thing | '87 Syncro Westy: Subaru EZ30D powered | 2002 VW Winnebago Vista
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Classifieds Feedback
wontfalia
Samba Member


Joined: October 22, 2008
Posts: 103
Location: London KY
wontfalia is offline

PostPosted: Tue Nov 29, 2011 1:21 pm    Post subject: Reply with quote

SHOTGUN!!

Seriously. This is impressive. You make the install look and sound easy. And that engine looks brand spanking new. Is the adapter plate the same from your 2.5? I think I'll buy a lottery ticket this week.

Wontfalia
_________________
Don't break the law when you're breaking the law
Back to top
View user's profile Send private message Gallery Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Tue Nov 29, 2011 1:25 pm    Post subject: Reply with quote

wontfalia wrote:
SHOTGUN!!

Seriously. This is impressive. You make the install look and sound easy. And that engine looks brand spanking new. Is the adapter plate the same from your 2.5? I think I'll buy a lottery ticket this week.

Wontfalia


Yep, same adapter off the 2.5...it was kinda easy. mainly all the wiring was the biggest hassle.

I lost my memory card, so I'll take some new pics later today and post of finished product, I am setting up my idle table and tach signal right now.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
levi
Samba Member


Joined: February 11, 2005
Posts: 5129
Location: Las Vegas
levi is offline

PostPosted: Tue Nov 29, 2011 6:52 pm    Post subject: Reply with quote

So KEP adapter plate, and what clutch, and does it feel like it's enough for the torque?

I hope you'll give us your impression of the difference in gas consumption from ej25 to the 3.0 once you've run a couple tank fulls too. Wink


Awesome!
I thought you said you were a wiring dummy? Looking wizardly enough to me.

Laughing
_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way

https://youtu.be/cSrL0BXsO40
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Tue Nov 29, 2011 7:21 pm    Post subject: Reply with quote

Nice job with the conversion and the thread. Gonna be interesting following your progress. That motor looks good.
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'10 Wrangler 3.8 6SP Manual
'12 Ford E350
'12 Tiguan 2.0T 6SP Tiptronic - Lady Shadetree's
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 8062
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Tue Nov 29, 2011 7:46 pm    Post subject: Reply with quote

Dude.

Great pics, text and pen pointing. Not to mention nice looking QC.

All the best on your swap and thanks from the "Royal We" for taking time to post details.

Neil.


Link

_________________
1981 Westy air cooled to 15º ABA swap: http://tinyurl.com/y9n4xob8

50º ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Sun Dec 04, 2011 8:08 am    Post subject: Reply with quote

Here are a few more pictures,

Here's a shot of the beast, I used some epoxy primer then shot it with blitz black (this stuff is tougher then poweder coating when done right)

Image may have been reduced in size. Click image to view fullscreen.


My helper

Image may have been reduced in size. Click image to view fullscreen.


Wiring almost complete

Image may have been reduced in size. Click image to view fullscreen.



All tucked in the engine bay,

Image may have been reduced in size. Click image to view fullscreen.



Under shot, the engine mount needs some adjustment I think...The engine could sit a little further up and I could gain a little clearance, I also am going to find a way to modify the coolant line leading from the oil cooler, it needs to be on the back side.

Image may have been reduced in size. Click image to view fullscreen.


Here's the other side, I put some header tape around the coolant hoses...doesn't look realt pretty but after running it hard I can touch it still

Image may have been reduced in size. Click image to view fullscreen.


After the first test drive I had a fuel line pop off, it was after I shut it down went inside with the family to eat dinner and when we went to start it stumbled then I smelled gas, I guess this was the issue Shocked
Image may have been reduced in size. Click image to view fullscreen.


Gates hose is really crappy, it was brand new and meant to FI systems. I used a correct band OE style clamp too, I plan on further researching some new source for fuel line, I've been using the BMW stuff and never had issues yet, I gotta change fuel lines on 3 of my vans in a month or so.



Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
