 Posted: Sat Feb 18, 2012 8:32 am Post subject: Rear corner replacment need ideas?? updated pic heavy FAQ |
 |
|
hey guy's I need some idea's on how to replace the corners, I have looked(searched) but I am coming up with threads that have broken links on the pictures  . I have heard of cutting out and around the frame but I don't think i can do it to this one. I am also replacing the battery trays while I am there. Any help is appreciated

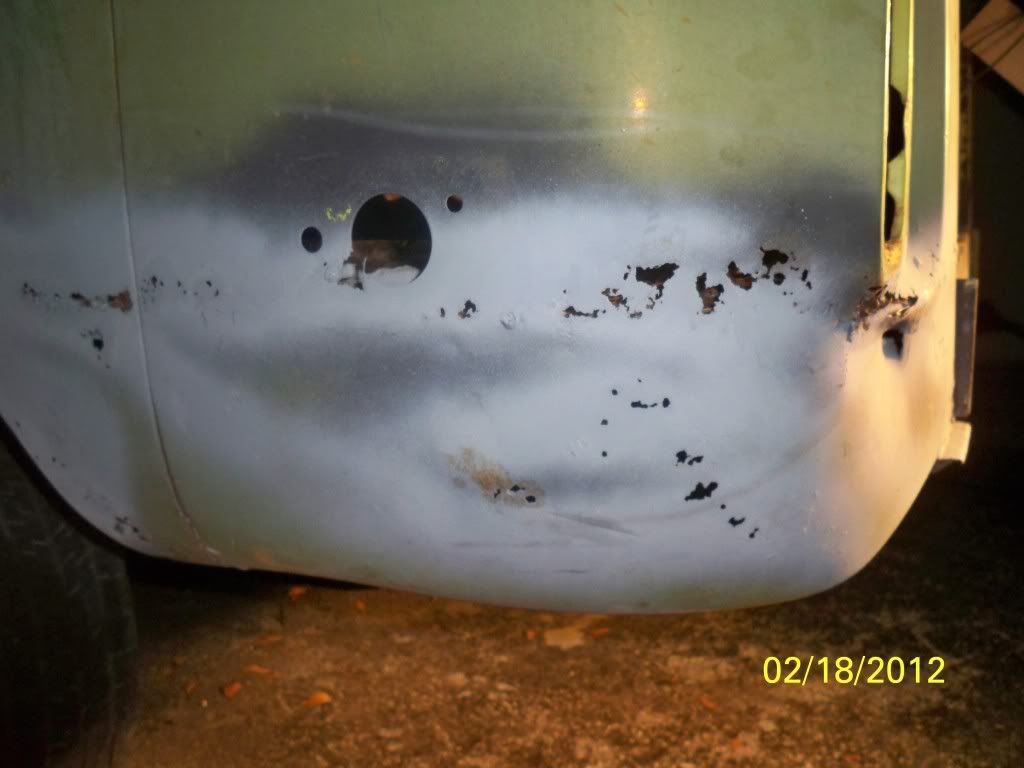

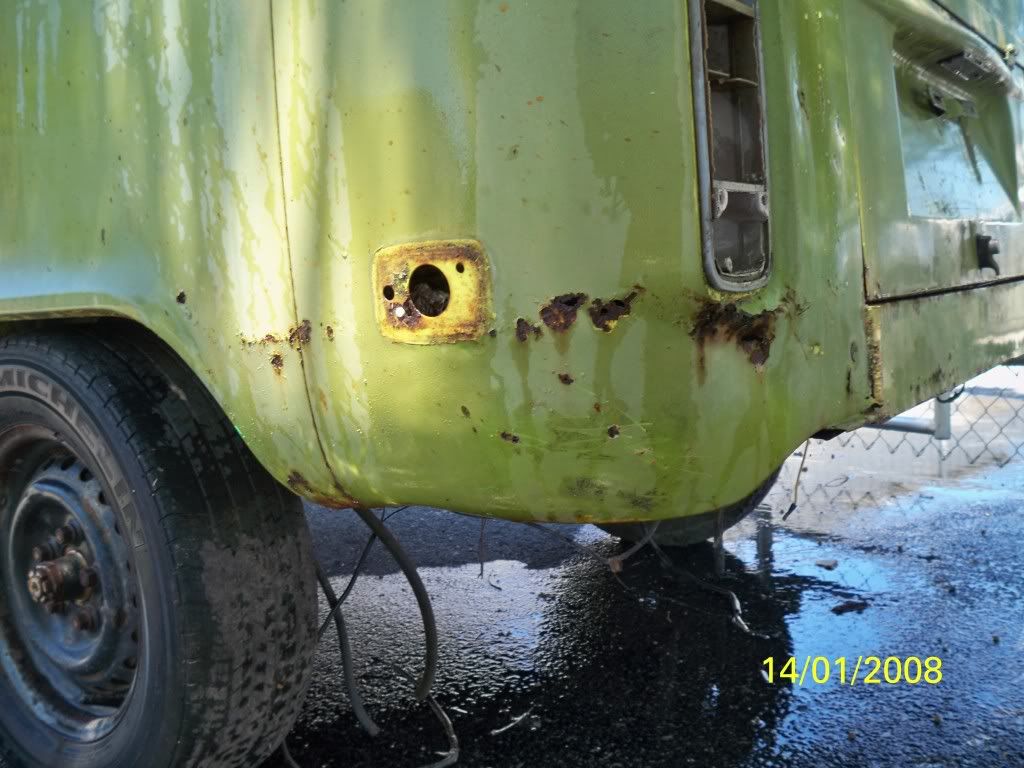

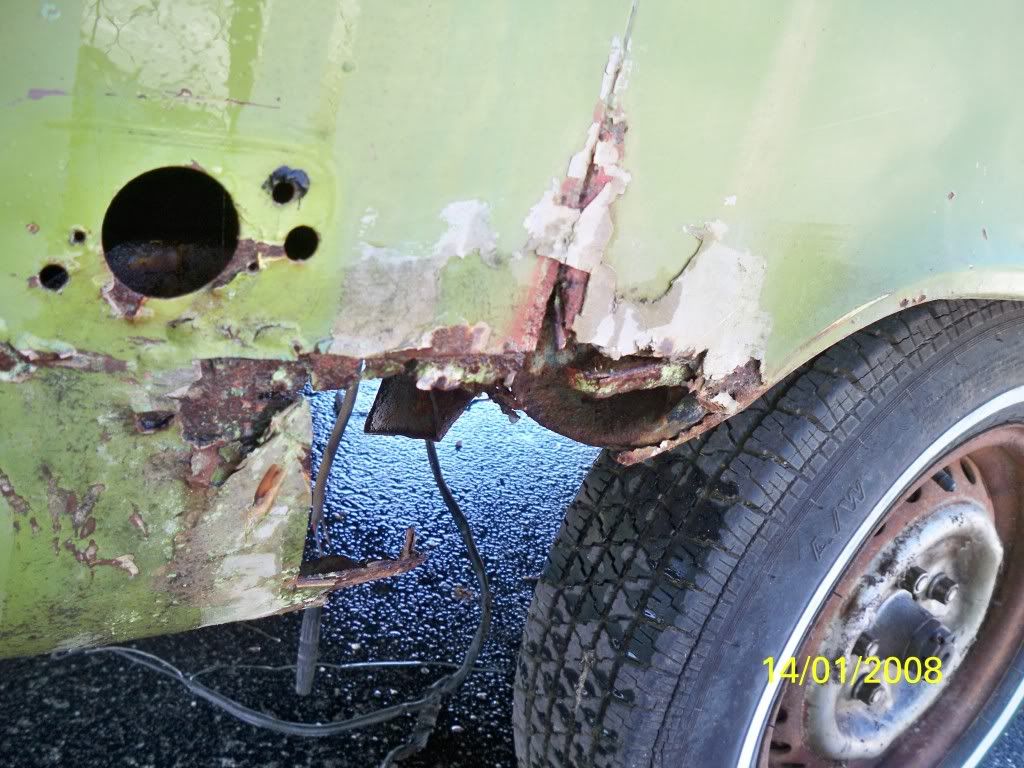

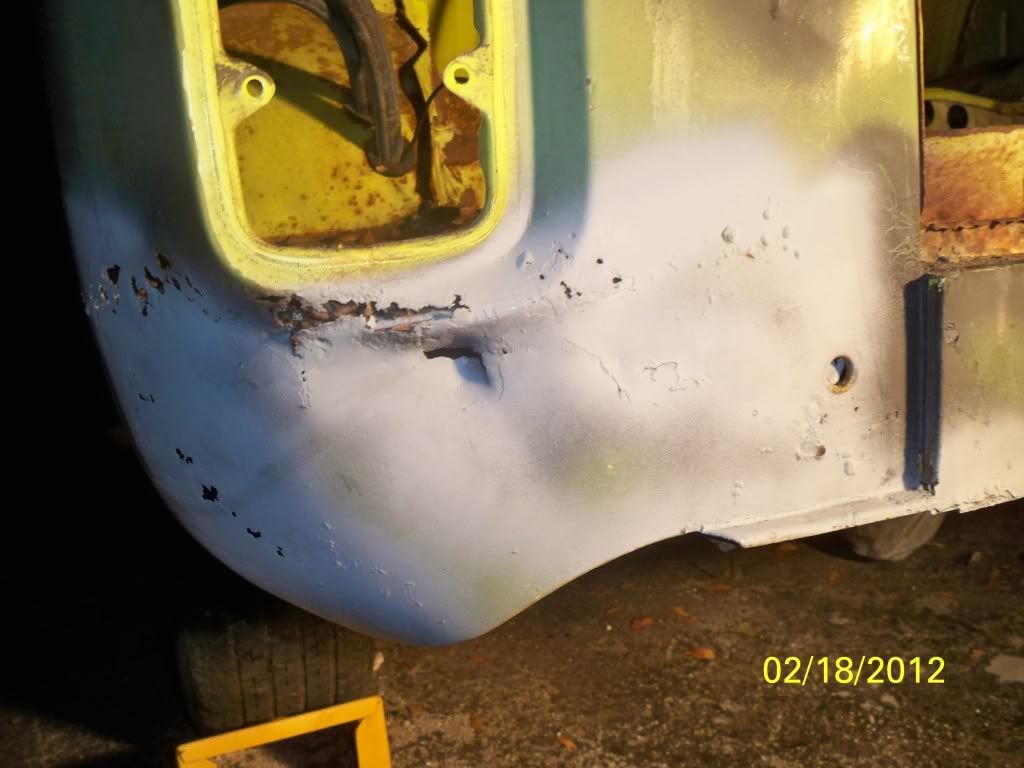

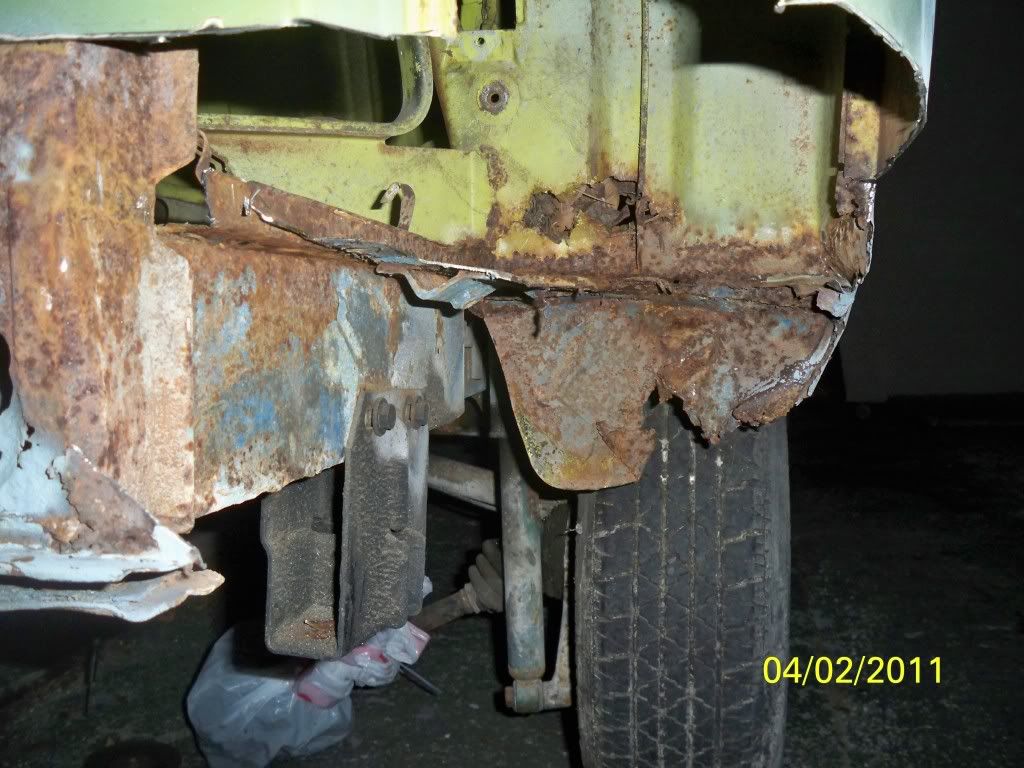

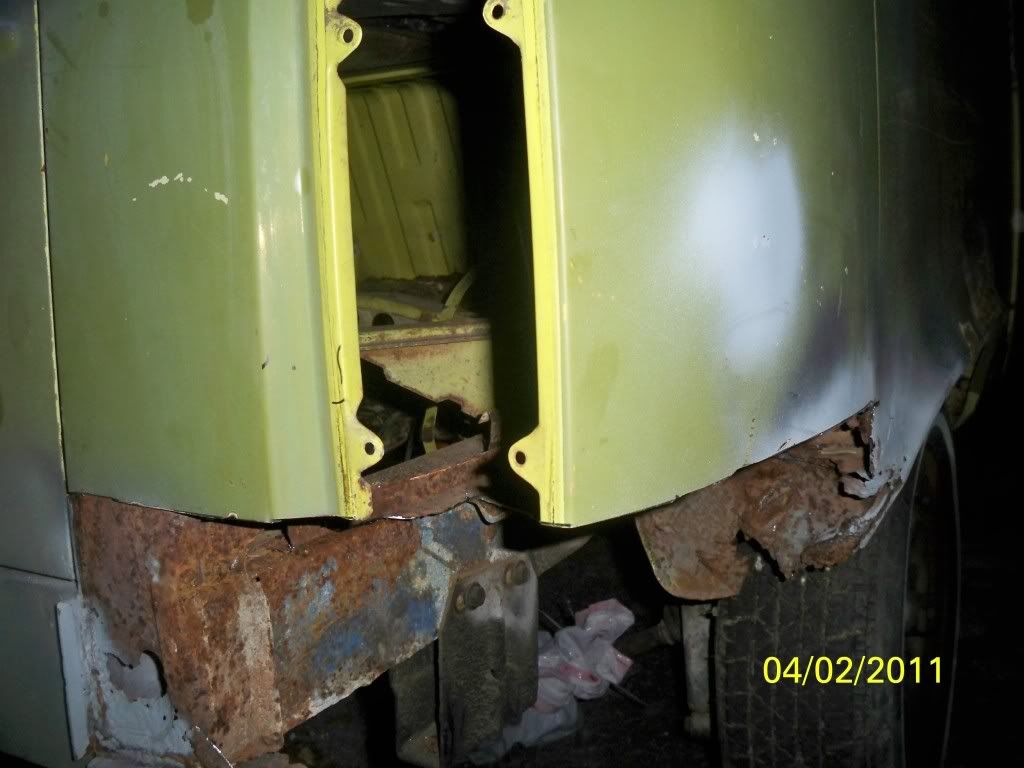

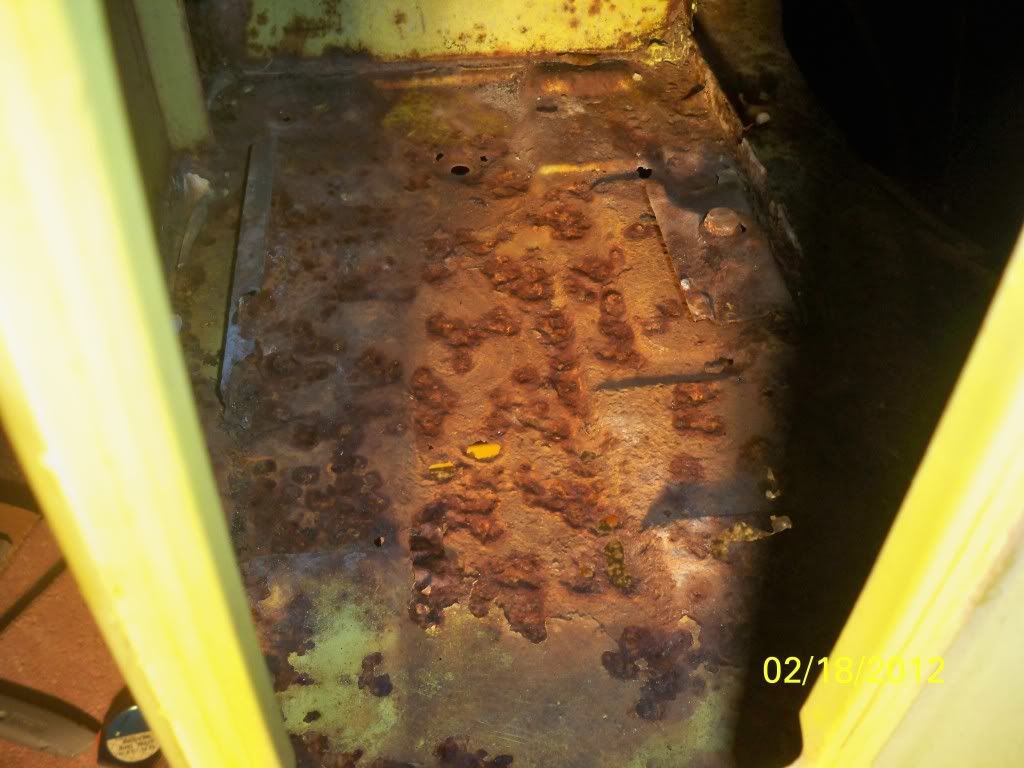

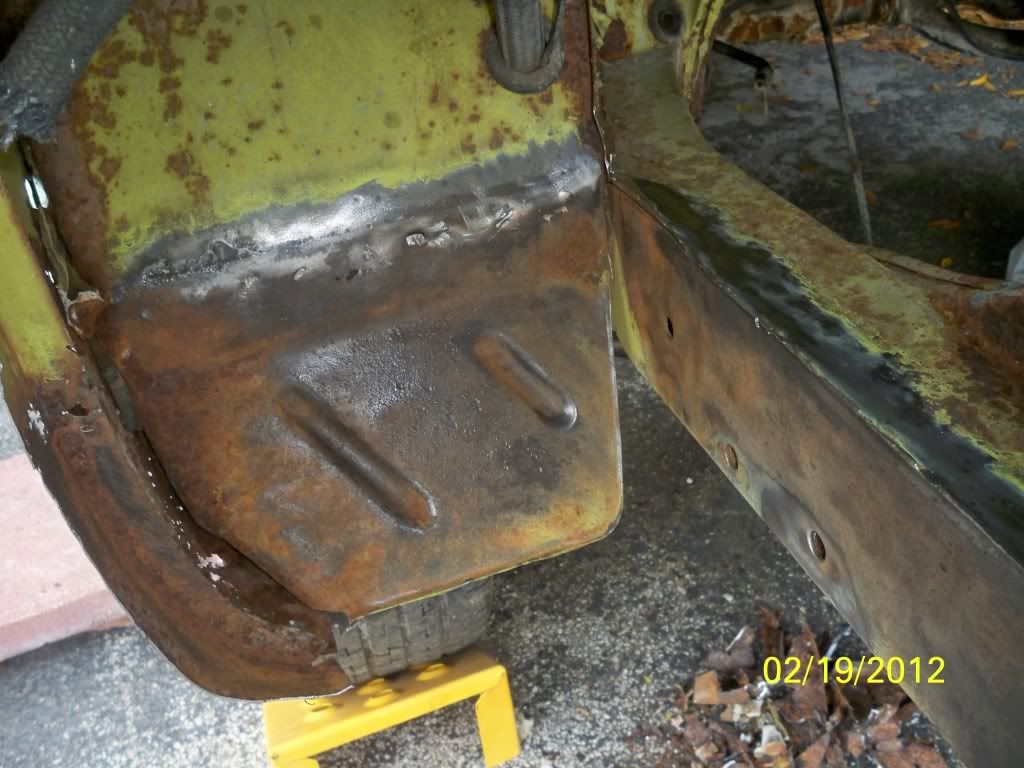

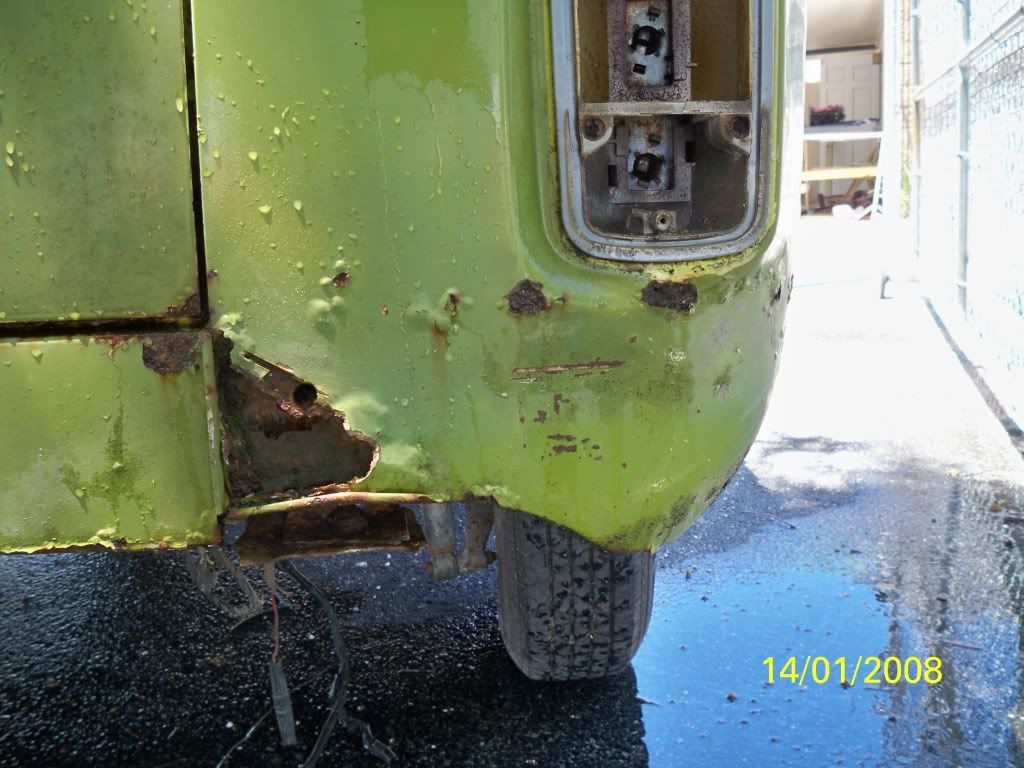

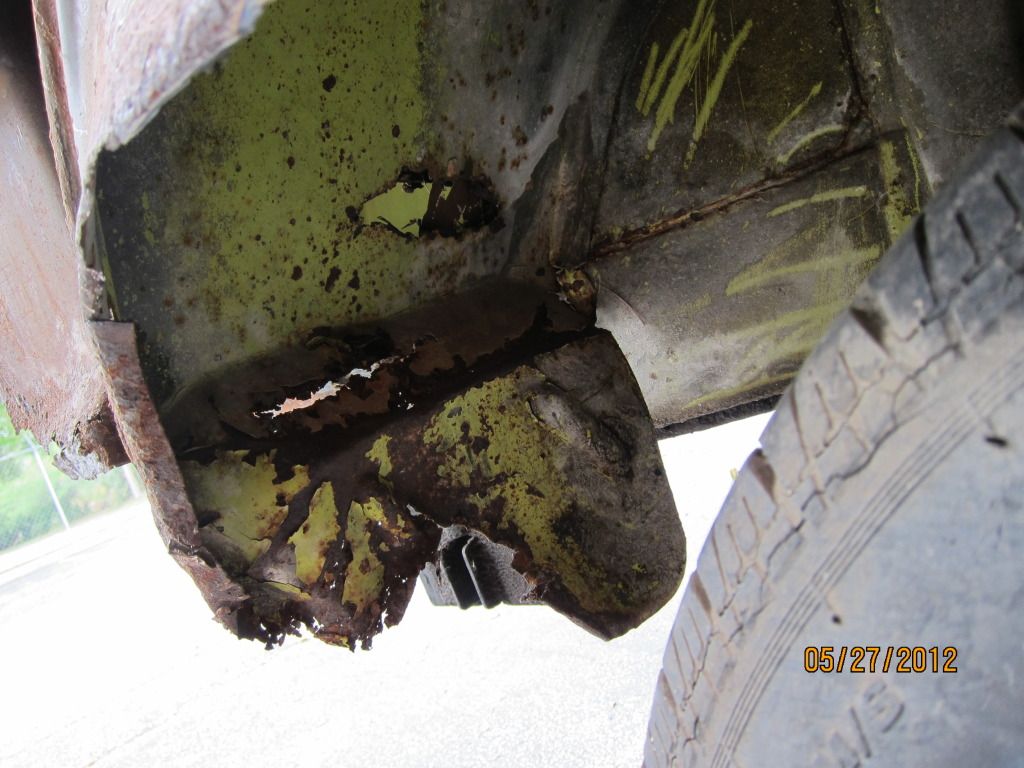

here are some pics of the corners for reference
_________________
75 west deluxe http://www.thesamba.com/vw/forum/viewtopic.php?p=5270450#5270450
2010 ford focus
Last edited by bugger101 on Sat Feb 18, 2012 11:25 pm; edited 1 time in total |
|
| Back to top |
|
 |
ned
Samba Member
Joined: June 28, 2004
Posts: 1574
Location: Arroyo Grande Ca.
|
| Posted: Sat Feb 18, 2012 9:39 am Post subject: |
|
|
If that were mine I would start by sanding that paint to see just how bad it`s gonna be. I would remove the engine first to create better access. But thats me. You may be surprised at just how bad it isn`t, but then again you may open up a whole can of worms you never anticipated. Good luck and just don`t be in a rush. I would open one side at a time. That way I can always change my mind if I don`t like what I see and just drive it as is. They are not all show cars. Good luck and try to have some fun.  Oh... I see now that it looks like the engine is out. And it don`t look too bad. But then again I am a Californian. |
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1559
Location: orlando
|
| Posted: Sat Feb 18, 2012 9:59 am Post subject: |
|
|
| ned wrote: |
| If that were mine I would start by sanding that paint to see just how bad it`s gonna be. I would remove the engine first to create better access. But thats me. You may be surprised at just how bad it isn`t, but then again you may open up a whole can of worms you never anticipated. Good luck and just don`t be in a rush. I would open one side at a time. That way I can always change my mind if I don`t like what I see and just drive it as is. They are not all show cars. Good luck and try to have some fun. |
I have the engine out and have spot blasted the area it's not that much worse. I am just confused with where i would cut and weld where it meets with the rear valance  Im just kinda of stumped at this moment. never have done a rear corner on a bus before. I think my plan of attack it to cut right below the mounting bolt for the taillight and up along the side. something like this
but the other side is going to have to wait untill I get the rear wheel arch because of this
Yea my bus is a rust bucket  But it means alot to me, I wouldn't get rid of it for anything.
_________________
75 west deluxe http://www.thesamba.com/vw/forum/viewtopic.php?p=5270450#5270450
2010 ford focus |
|
| Back to top |
|
|
DirtyCossack
Samba Member
Joined: January 29, 2012
Posts: 209
Location: Ft Sill, OK
|
| Posted: Sat Feb 18, 2012 12:26 pm Post subject: |
|
|
| My corners are far worse: wrecked and twisted by previous owner and hack body man. I wanna say I saw replacement corner panels on Bus Boy's site, but they're only 15 inches tall from bottom. The other idea I have is to further explore the rust's extent and contemplate fabrication from raw sheet metal if you have access to a good metal shop; which is looking to be my only option. |
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1559
Location: orlando
|
|
| Back to top |
|
|
cool karmann collected
Samba Member
Joined: November 23, 2008
Posts: 631
Location: Oxford, U.K.
|
| Posted: Sat Feb 18, 2012 1:00 pm Post subject: |
|
|
General rule is don't start cutting out big chunks until you have a repair panel in your hand. It's hard to say exactly where to cut as a lot depends on how solid (or not) the metal work is at your intended 'join' until you start cutting. That corner panel is available new still, although i don't know what availability is like where you are.
http://www.justkampers.com/shop/t2-bay-window/orig...10680.html
Price is good for what you're getting, works out more cost-effective in terms of time than the usual lower corner repair panel and some homemade patches
Ant |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
| Posted: Sat Feb 18, 2012 8:30 pm Post subject: |
|
|
If you are in orlando you can save a lot of money on the next pannels you need by getting used peices from randy in Valrico ( near tampa ) he is great to work with...look up " a view from the bay " in the classifieds or pm me and i will look it up when i get home ..................... working in phoenix ..............
_________________
63 two fold rag
66 sedan delivery Type 6
http://www.thesamba.com/vw/forum/viewtopic.php?t=569619&highlight=sedan+delivery |
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1559
Location: orlando
|
| Posted: Sat Feb 18, 2012 11:23 pm Post subject: |
|
|

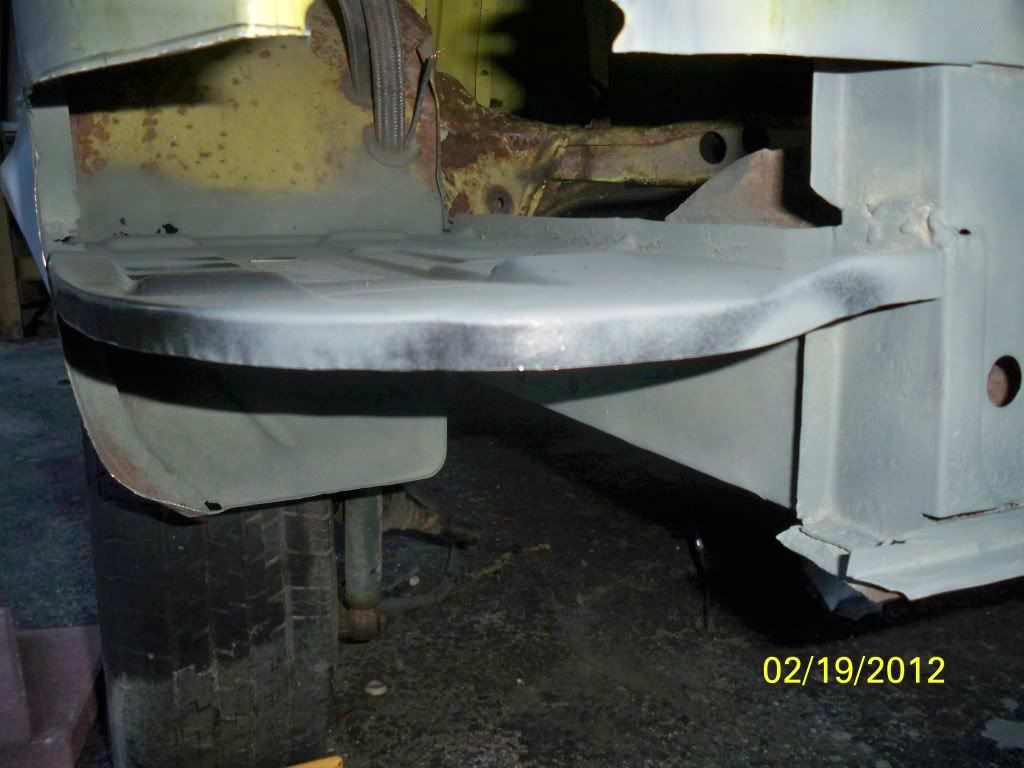

here is where I am at

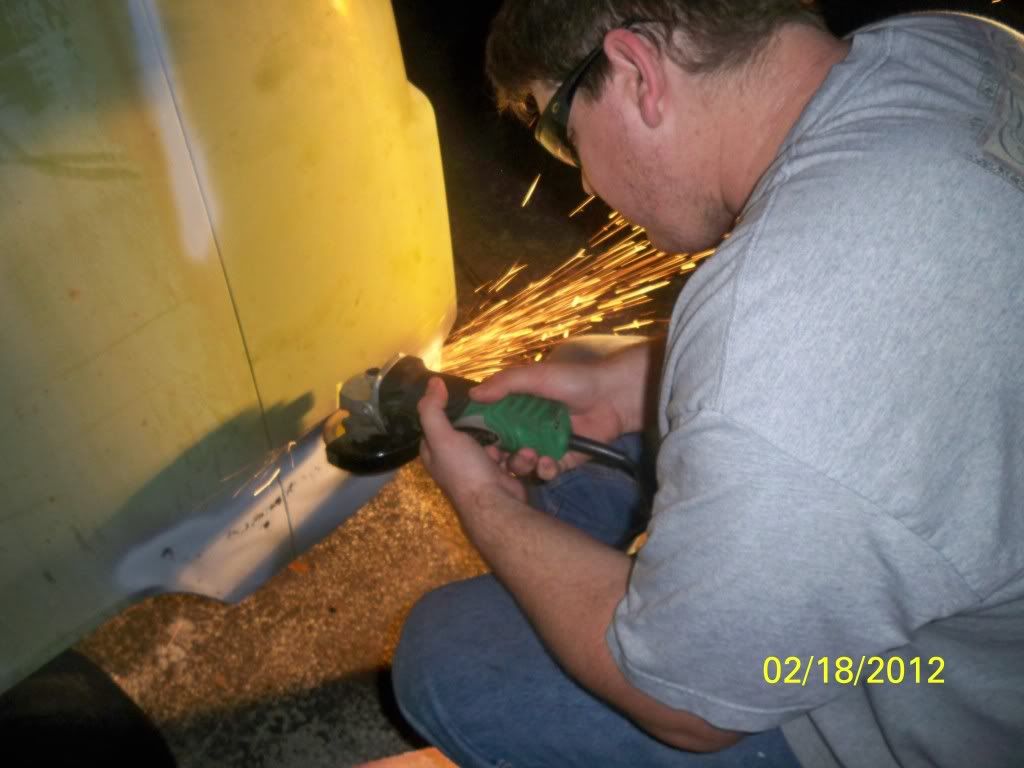

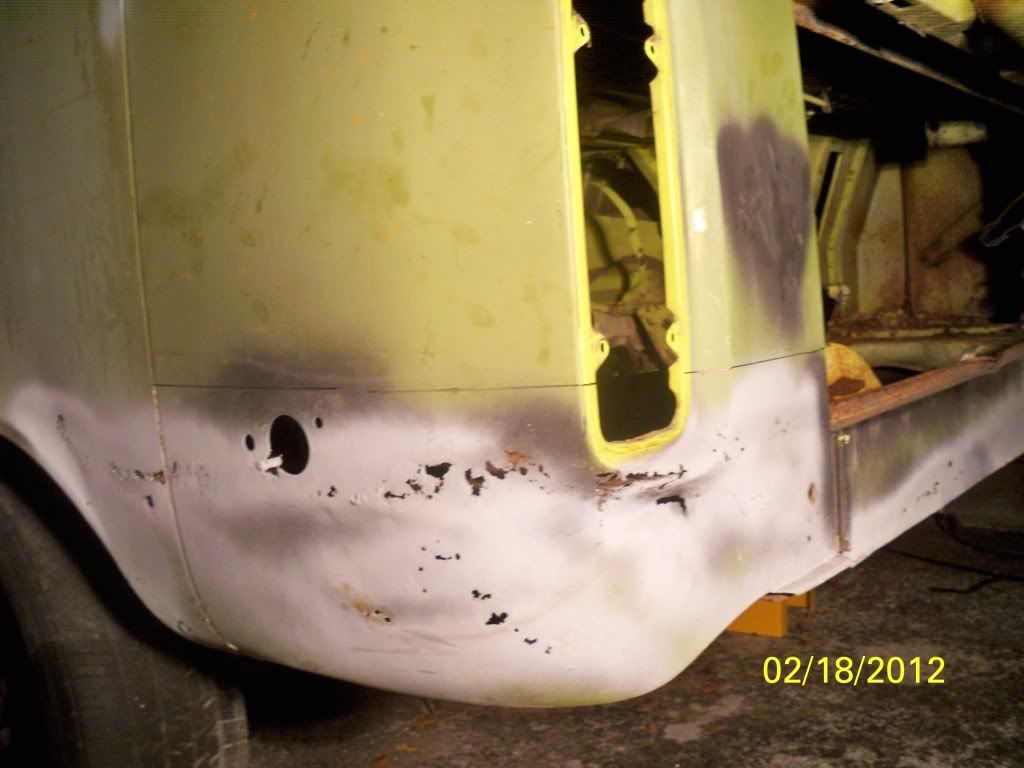

Marking the cut
Now making the cut

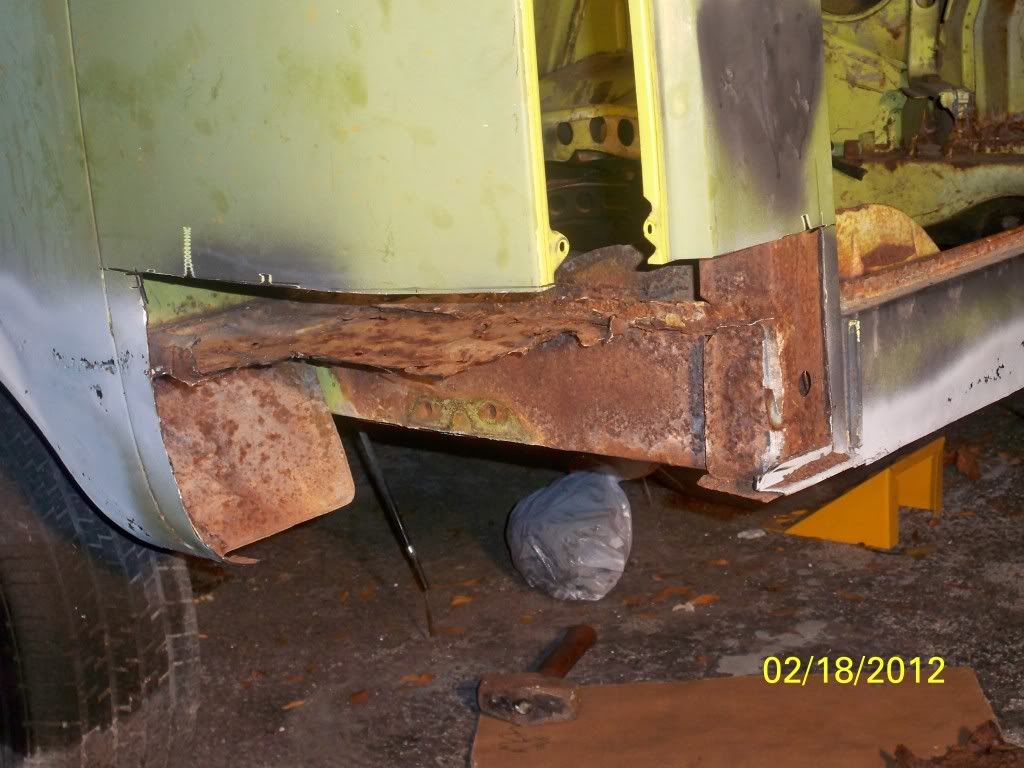

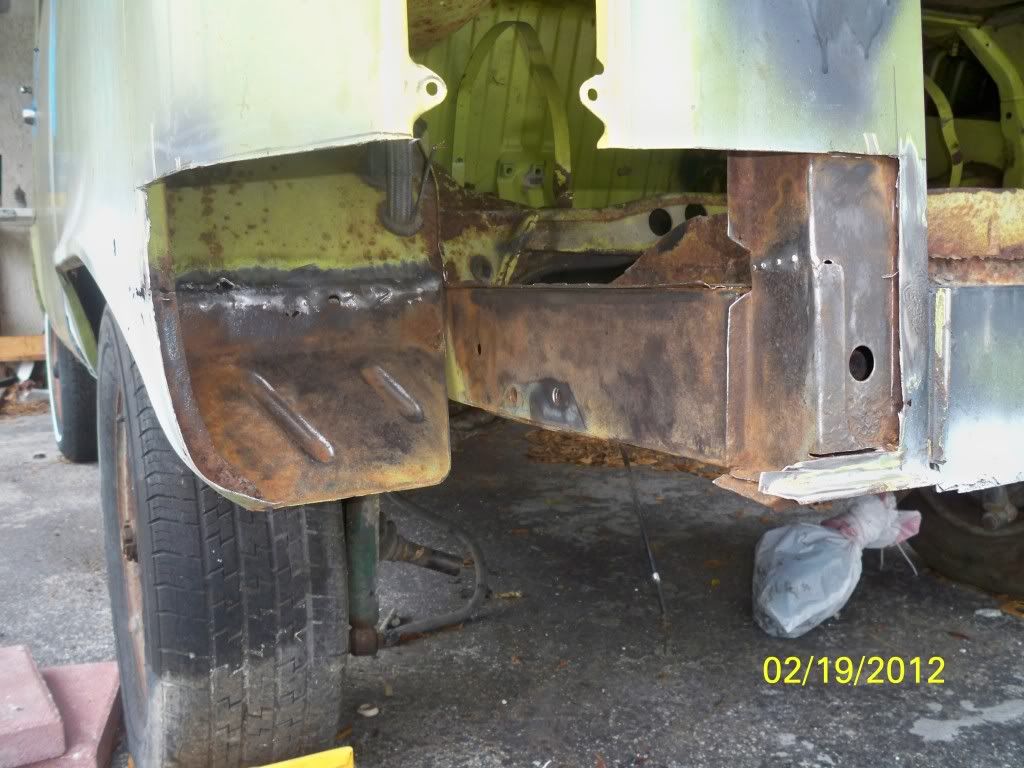

How I left it tonight
now my plan of attack is to remove the battery tray tomorrow where it is spot welded to the side and put some solid metal there so i can weld my tray in, then weld the corner in and fix the area that is next to the seam.

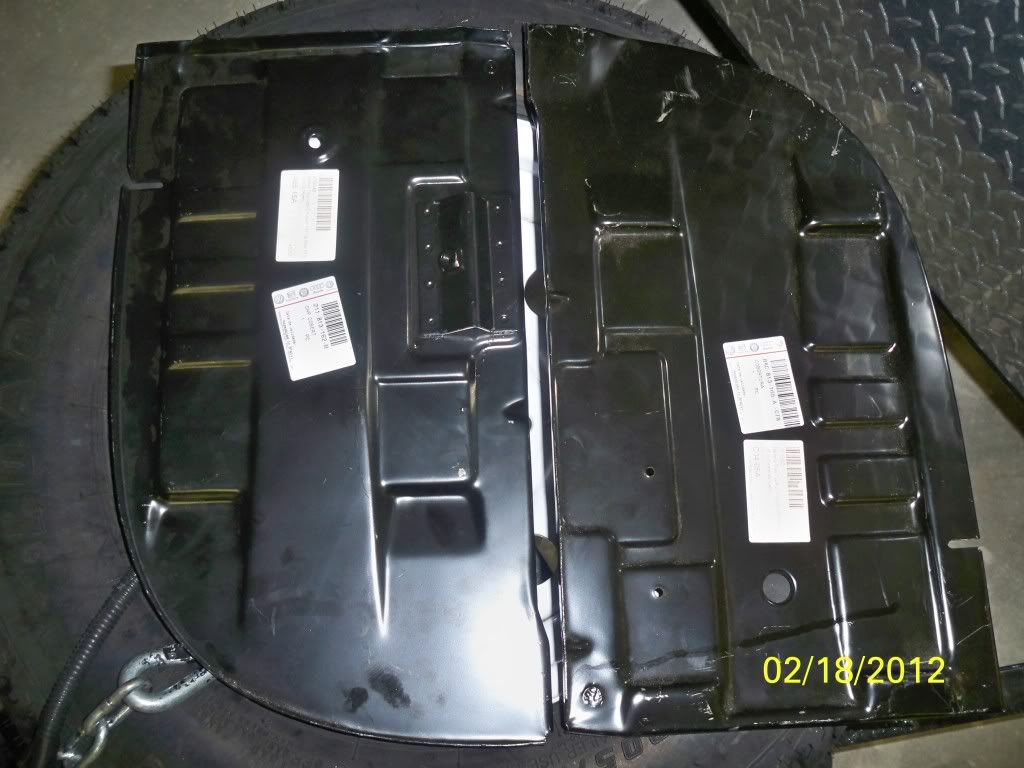

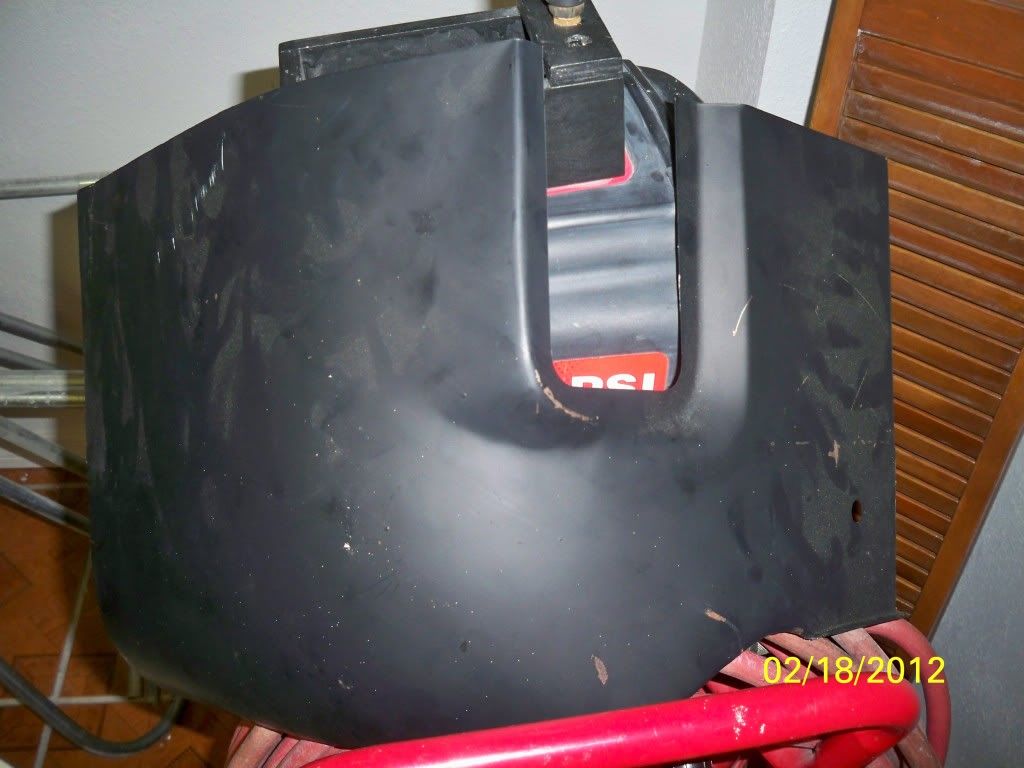

Here is the replacement panels I am working with.
VW battery trays (had the Klokkerholm sent that garbage back)
_________________
75 west deluxe http://www.thesamba.com/vw/forum/viewtopic.php?p=5270450#5270450
2010 ford focus |
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1559
Location: orlando
|
| Posted: Sun Feb 19, 2012 6:45 am Post subject: |
|
|
| grandpa pete wrote: |
| If you are in orlando you can save a lot of money on the next pannels you need by getting used peices from randy in Valrico ( near tampa ) he is great to work with...look up " a view from the bay " in the classifieds or pm me and i will look it up when i get home ..................... working in phoenix .............. |
Hey I know randy he is a great guy, I bought my engine from him.
_________________
75 west deluxe http://www.thesamba.com/vw/forum/viewtopic.php?p=5270450#5270450
2010 ford focus |
|
| Back to top |
|
|
kangaboy
Samba Member
Joined: August 28, 2010
Posts: 1064
Location: St. Louis, Mo
|
| Posted: Sun Feb 19, 2012 9:39 am Post subject: |
|
|
Where did you get those replacement panels? I thought they didnt make those for late bays....or if they did they were cheap and required a bit of persuading to get to fit.
_________________
-74 Standard - "CaliBug" 2084T, MS3X w/FI and Crank Fire
-76 Westy - "Gandalf"
-18 GTI SE
| skills@eurocarsplus wrote: |
that fucking thing looks like it drove through a J.C. Whitney catalogue and hit everything on the way out |
|
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1559
Location: orlando
|
|
| Back to top |
|
|
highlandmurf
Samba Member
Joined: April 08, 2010
Posts: 298
Location: Hudson Valley, NY
|
| Posted: Sat Mar 24, 2012 10:06 am Post subject: |
|
|
Hi,
Thanks for posting your repair. This is a job I will need to be tackling soon. I was wondering how you went about marking out where you need to cut, seeing as the bus is neither level or square.
Also, I see that you stayed away from the seam towards the wheel arch.
Did you cut down the bus depot corner, or is this as far as it goes?
Thanks
_________________
1976 Westy Marigold Yellow
2.0 stock FI
My M-Plate |
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1559
Location: orlando
|
| Posted: Sun Jun 10, 2012 9:20 am Post subject: |
|
|
| highlandmurf wrote: |
Hi,
Thanks for posting your repair. This is a job I will need to be tackling soon. I was wondering how you went about marking out where you need to cut, seeing as the bus is neither level or square.
Also, I see that you stayed away from the seam towards the wheel arch.
Did you cut down the bus depot corner, or is this as far as it goes?
Thanks |
Just to up date this thread and answer your questions
the busdepot corner does go the full length,but does not have the seam so I stayed away from the seam but I need to fix it  .

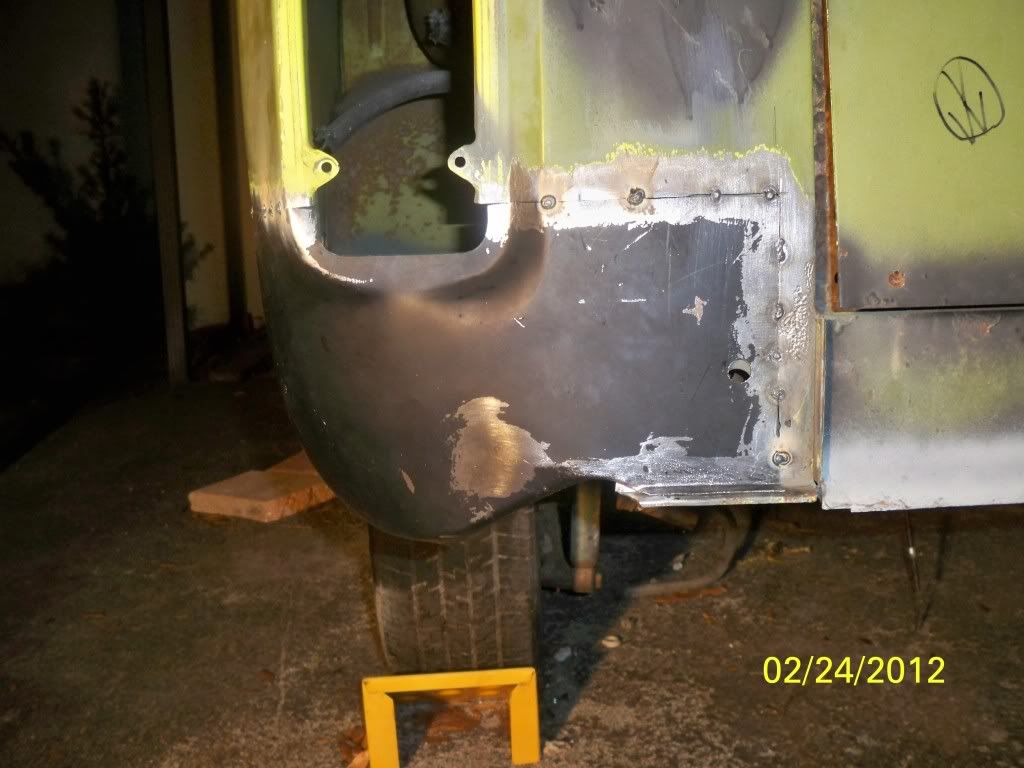

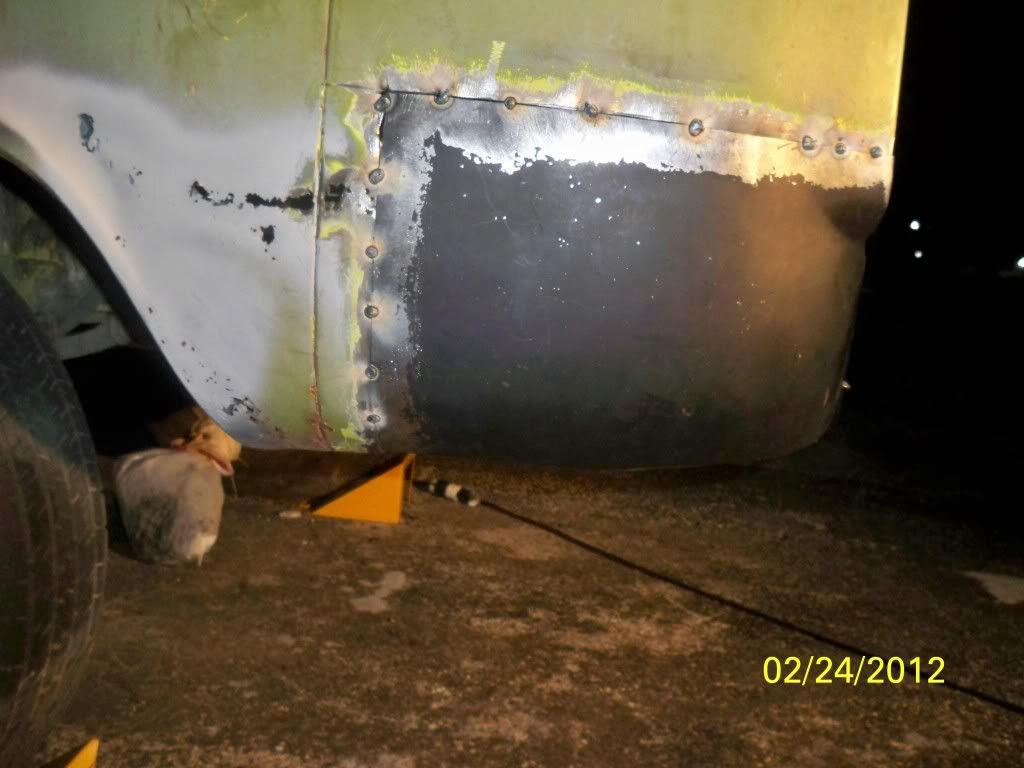

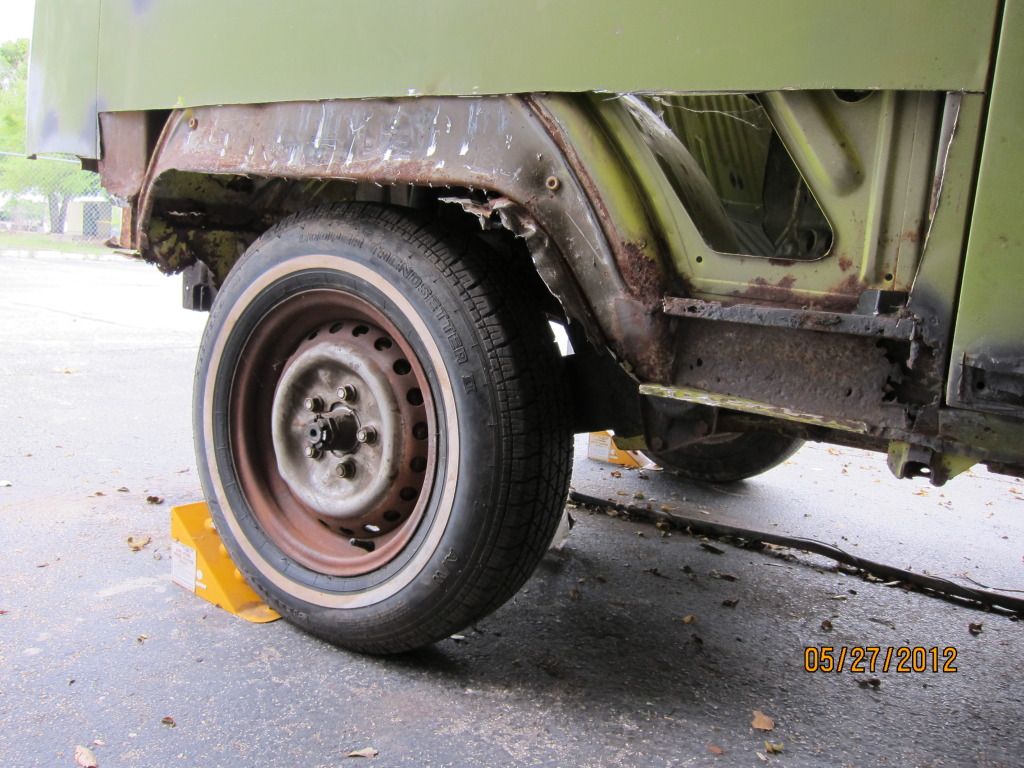

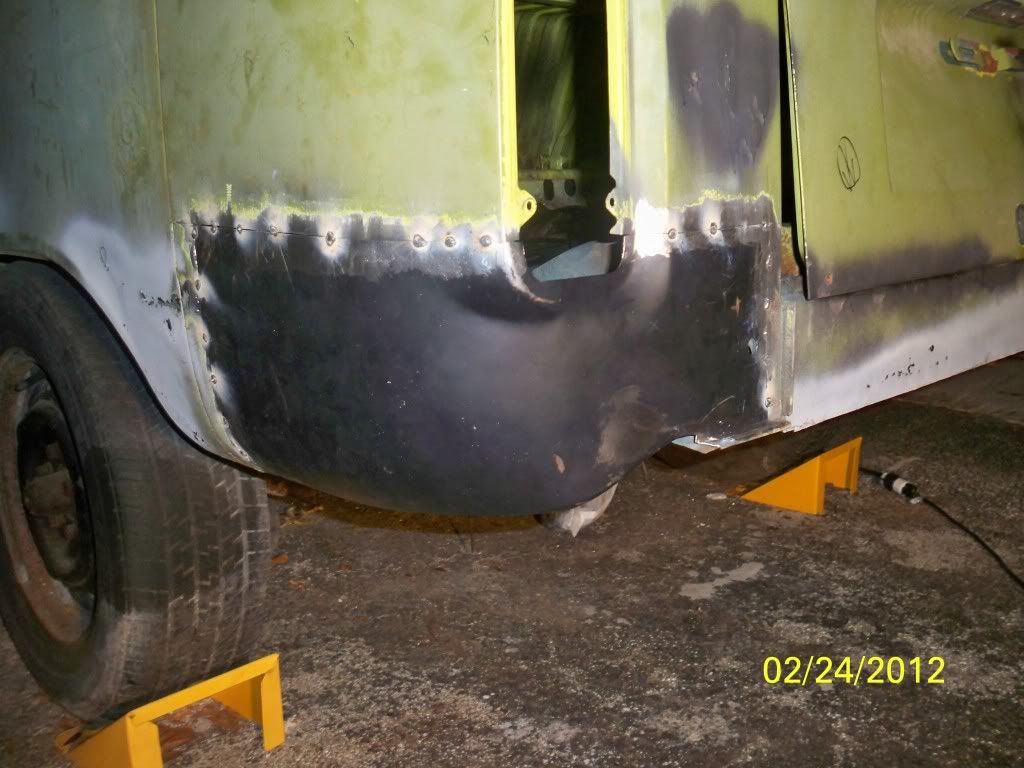

updated pictures
Not bad for the first time though  panel did warp a little
but hey it's a learning experience
_________________
75 west deluxe http://www.thesamba.com/vw/forum/viewtopic.php?p=5270450#5270450
2010 ford focus |
|
| Back to top |
|
|
levi20AE
Samba Member
Joined: June 24, 2005
Posts: 485
Location: Las Vegas, NV
|
| Posted: Sun Jun 10, 2012 2:13 pm Post subject: |
|
|
I just did a similar repair on my bus after the PO repaired a bent frame section with bondo.
I was lucky enough to purchase an entire late westy for $100 from a local VW shop to use as a panel donor. Apparently someone cut the bus in half and thought they could sell it as scrap metal without a title.
_________________
1973 Campmobile http://www.thesamba.com/vw/forum/viewtopic.php?t=524511&postdays=0&postorder=asc&start=0
20th AE VW GTI - 369hp 340tq @ 26 PSI
1982 Rabbit Pickup - German AAZ 1.9TD - daily with lots of MPGs |
|
| Back to top |
|
|
Batan
Samba Member
Joined: March 10, 2003
Posts: 1637
Location: Vancouver, BC
|
| Posted: Sun Jun 10, 2012 2:51 pm Post subject: |
|
|
Gotta ask, what's up with the blue clutch release shaft?
_________________
'69 Riviera Bay
'03 20th Anniversary GTI
'74 Super Beetle
Badzak Creative – Still and Motion Pictures |
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1559
Location: orlando
|
| Posted: Mon Jun 11, 2012 8:42 am Post subject: |
|
|
[quote="levi20AE"
I was lucky enough to purchase an entire late westy for $100 from a local VW shop to use as a panel donor. Apparently someone cut the bus in half and thought they could sell it as scrap metal without a title.[/quote]
I would drool if I found that, as I need a lot of weird body panels
To keep this thread going here is where I am at on the other side(driver's side) still have the other corner which is a piece of shit, might have to get the klassic fab corner
But I have been busy with ford's corporate training center , I will get it done soon
_________________
75 west deluxe http://www.thesamba.com/vw/forum/viewtopic.php?p=5270450#5270450
2010 ford focus |
|
| Back to top |
|
|
1967250s
Samba Member
Joined: May 02, 2007
Posts: 2137
|
| Posted: Mon Feb 11, 2013 7:15 pm Post subject: |
|
|
| Any more done? Good work! |
|
| Back to top |
|
|
bgoble
Samba Member
Joined: February 26, 2011
Posts: 34
Location: North AL
|
|
| Back to top |
|
|
elementnz
Samba Member
Joined: January 12, 2017
Posts: 5
Location: New Zealand
|
| Posted: Thu Jan 12, 2017 2:44 pm Post subject: Re: Rear corner replacment need ideas?? updated pic heavy FAQ |
|
|
Can I ask you how long it took you to replace? I've just had both corners and d posts replaced and have received a bill of $17,000. $5900 was parts the rest labour I'm thinking this is pretty extreme and wanted to find out how long it would have actually taken
thanks |
|
| Back to top |
|
|
alman72
Samba Member
Joined: October 09, 2014
Posts: 2575
Location: MICHIGAN
|
| Posted: Thu Jan 12, 2017 2:54 pm Post subject: Re: Rear corner replacment need ideas?? updated pic heavy FAQ |
|
|
^good lord!!!
did they paint? |
|
| Back to top |
|
|
|
as for the corner I got it from a busdepot It is not a Klokkerholm, but the other corner is a klokkerholm. compared side by side the klokkerholm is shit there are wrinkles all over it
