 Posted: Tue Mar 13, 2012 2:29 pm Post subject: Dash table dimensions |
 |
|
| Could someone with a dash table please give me the dimensions? |
|
| Back to top |
|
 |
MidWesty79
Samba Member
Joined: October 19, 2011
Posts: 503
Location: Milwaukee Wisconsin, US
|
| Posted: Tue Mar 13, 2012 3:12 pm Post subject: |
|
|
Mine is 18 & 3/16ths inches long by 14 & 13/16ths inches wide. That's overall. Including the black rubber trim around the edge (which appears to be about 1/4 inch thick.) Hope that helps!
_________________
1979 Westfalia, 1975 BMW 2002, 1996 Mazda Miata, 1979 Jeep CJ5, 2006 325 XI Wagon, 2021 M240i (all manual transmission... as god intended.) |
|
| Back to top |
|
|
captincanuck
Samba Member
Joined: August 13, 2014
Posts: 730
Location: The Great White North
|
| Posted: Fri Dec 09, 2016 7:12 pm Post subject: Re: Dash table dimensions |
|
|
One project I want to complete over the winter, is to make a dash table. Want to get it as close as I can to looking correct. With that I'm hoping someone can provide some of the missing dimensions. I will update the diagram for future table builders.
So some questions I have:
1) Are "A" and "B" equal (Is the leg bracket in the center?)
2) What is the spacing "C" between the brackets?
3) How long are the brackets "D"? Also how far do they stick out of the table (forgot that on the diagram)
4) What's the corner "R" radius. If someone could confirm it's the same as the back table I can just measure and copy that
5) Does the side view of the bracket look correct, or is it just a "L" shape? Can't really tell from any of the gallery pictures.
_________________
1979 Westfalia "FireFly" Subaru 2.2 with Subaru gears 5spd.
Build Thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=634777&postdays=0&postorder=asc&start=0 |
|
| Back to top |
|
|
TweedLinn
Samba Member
Joined: April 20, 2012
Posts: 287
Location: Iowa
|
| Posted: Mon Dec 12, 2016 6:51 pm Post subject: Re: Dash table dimensions |
|
|
| captincanuck wrote: |
One project I want to complete over the winter, is to make a dash table. Want to get it as close as I can to looking correct. With that I'm hoping someone can provide some of the missing dimensions. I will update the diagram for future table builders.
So some questions I have:
1) Are "A" and "B" equal (Is the leg bracket in the center?)
2) What is the spacing "C" between the brackets?
3) How long are the brackets "D"? Also how far do they stick out of the table (forgot that on the diagram)
4) What's the corner "R" radius. If someone could confirm it's the same as the back table I can just measure and copy that
5) Does the side view of the bracket look correct, or is it just a "L" shape? Can't really tell from any of the gallery pictures. |
1 - Yes. A & B both = 9.25, including the rubber trim
2 - C = 8.5
3 - D = 1 1/16 and the missing E (depth) = 3/8
4 -
5 - Yes but compressed. Where you are pointing with the "dash clip" line isn't a gap, it is squeezed tightly together. They look like Ts if you stand the table up on end.
_________________
76 Sportsmobile |
|
| Back to top |
|
|
captincanuck
Samba Member
Joined: August 13, 2014
Posts: 730
Location: The Great White North
|
|
| Back to top |
|
|
squaredlv
Samba Member
Joined: July 25, 2007
Posts: 12
Location: las vegas, nv
|
| Posted: Wed Dec 14, 2016 11:07 pm Post subject: Re: Dash table dimensions |
|
|
any pics of the actual table I'm interested in one of these too
_________________
63 ghia rhd.. under construction
69 Class 11 Bug
72 Baywindow Bus |
|
| Back to top |
|
|
captincanuck
Samba Member
Joined: August 13, 2014
Posts: 730
Location: The Great White North
|
| Posted: Thu Dec 15, 2016 10:16 am Post subject: Re: Dash table dimensions |
|
|
| squaredlv wrote: |
| any pics of the actual table I'm interested in one of these too |

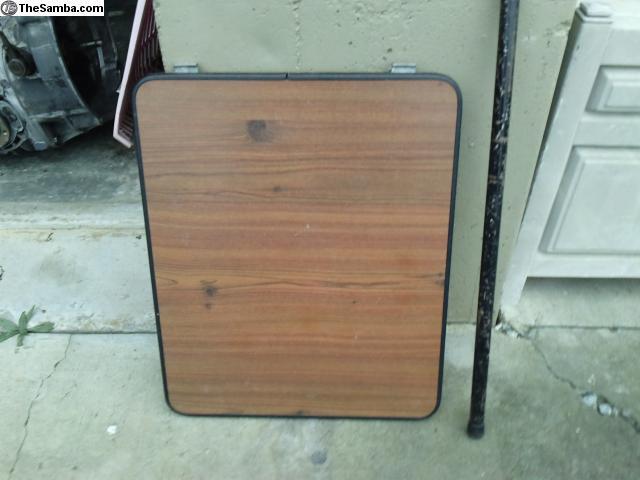

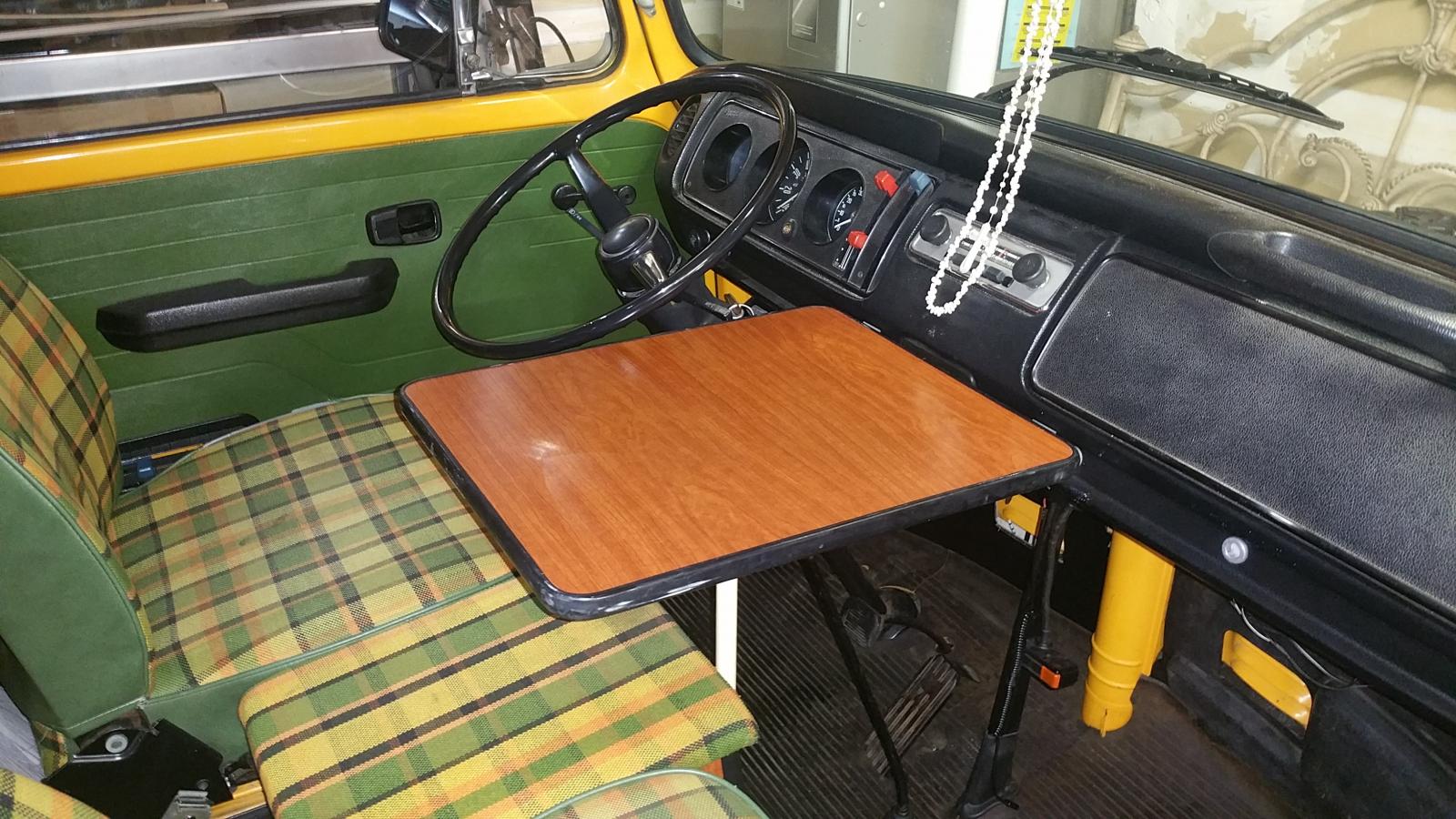

Have a search in the gallery, plenty of pics

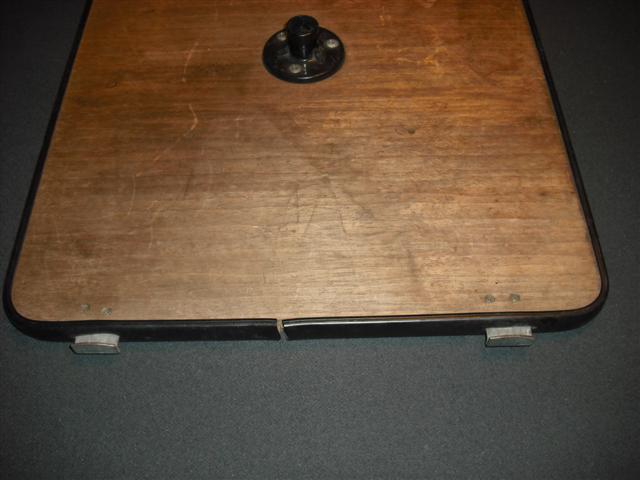

O that last one kind of answers my question about the tabs I think
_________________
1979 Westfalia "FireFly" Subaru 2.2 with Subaru gears 5spd.
Build Thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=634777&postdays=0&postorder=asc&start=0 |
|
| Back to top |
|
|
TweedLinn
Samba Member
Joined: April 20, 2012
Posts: 287
Location: Iowa
|
| Posted: Thu Dec 15, 2016 10:33 am Post subject: Re: Dash table dimensions |
|
|
| captincanuck wrote: |
Thanks for the measurements TweedLinn. So the clip function is more like this then if I understand correctly?
|
| captincanuck wrote: |
O that last one kind of answers my question about the tabs I think |
Yep and yep!
